Hobart LXNH-2L Warewash - Stationary Undercounter Dishwashers
Description

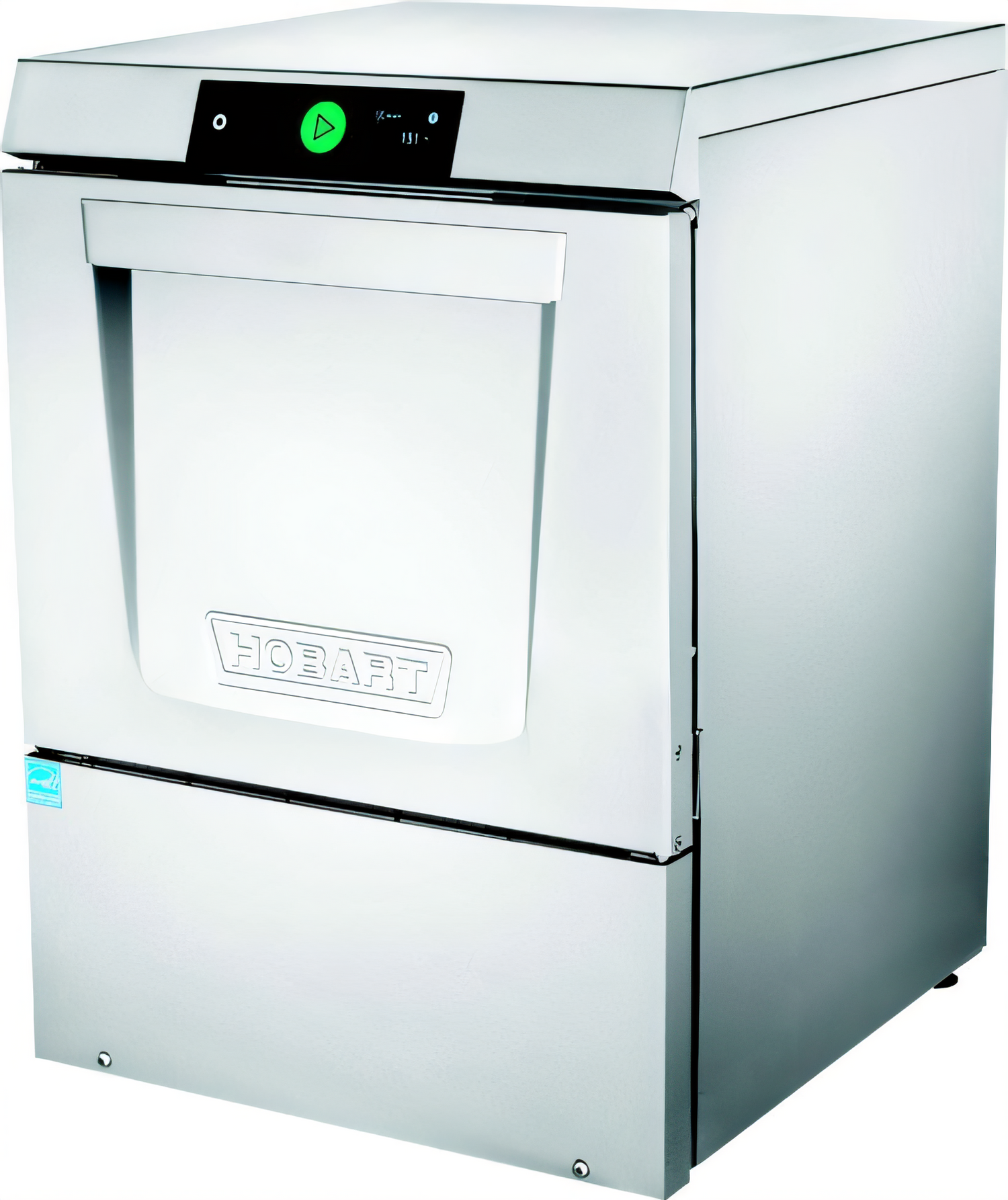

Hobart LXnH High-Temperature Undercounter Dishwasher
Two-Level Racking Kit Included • Model LXnH-2L • ENERGY STAR®Boost throughput, slash utility costs and achieve Hobart Clean in a 24 in. footprint. The LXnH-2L combines high-temperature sanitization with an NSF-certified two-level rack that lets you wash up to 48 racks per hour while using only 0.62 gal of fresh water per rack. Intuitive touchscreen controls, built-in chemical pumps and Wi-Fi connectivity simplify operation and keep you ahead of maintenance.
Why You’ll Love It

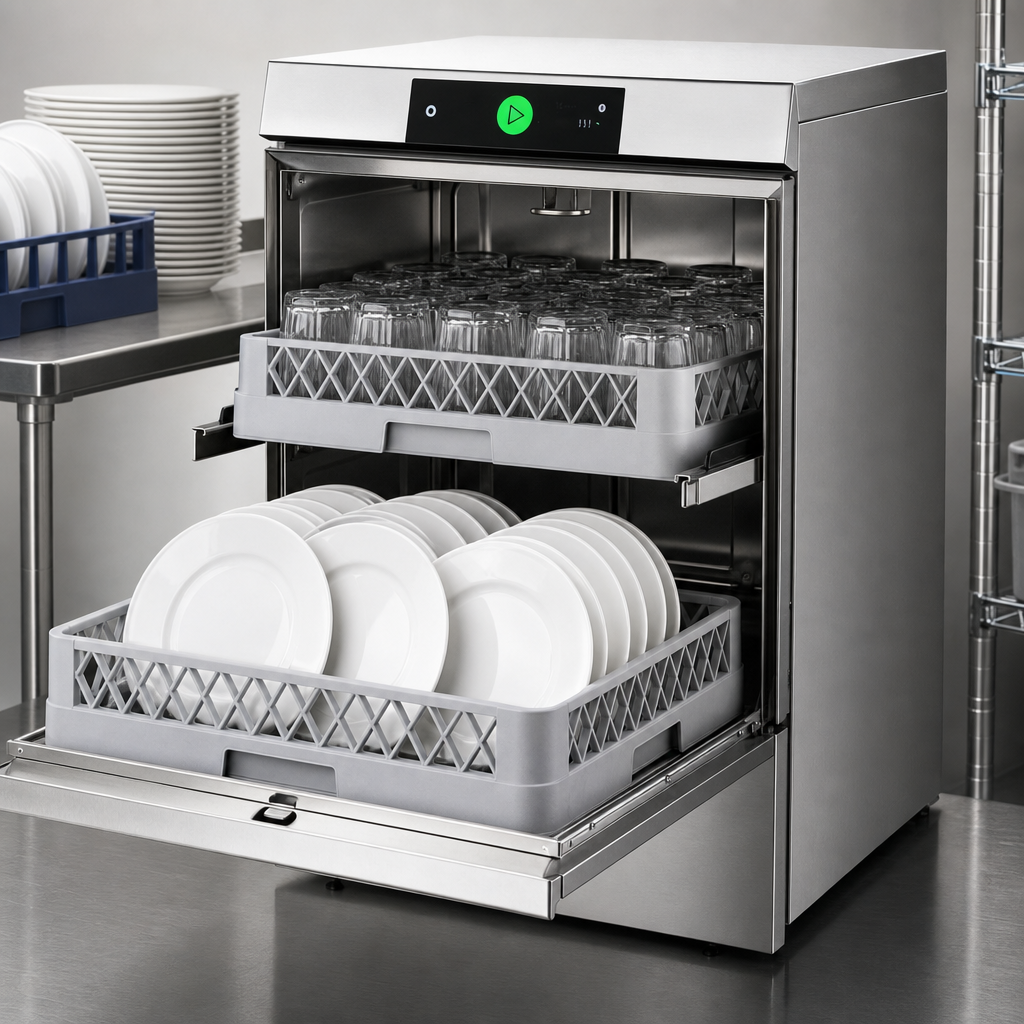

- Twice the Capacity – second-level rack doubles production to 48 racks/hr.
- High-Temp Sanitization – Sense-A-Temp™ 70 °F-rise booster delivers a 180 °F final rinse without chemicals.
- Ultra-Low Water Use – fresh-water rinse consumes just 0.62 gal/cycle and is ENERGY STAR® certified.
- Smart Controls + Wi-Fi – color touchscreen with built-in diagnostics & free SmartConnect™ app for temperature logs, usage analytics and error alerts.
- AutoClean & Auto-Prime – automatic interior wash-down at shutdown and hands-free chemical priming at start-up.
- Built-In Pumps – onboard detergent & rinse-aid pumps with low-chemical alerts.
- Soft-Start Motor – protects delicate glassware from chipping.
- Stainless Inside & Out – deep-drawn tank plus snap-in, self-cleaning wash and rinse arms for quick cleanup.
- One-Year Parts & Labor Warranty backed by Hobart’s nationwide service network.
Technical Specifications
| Model | LXnH-2L (High-Temp, Two-Level) |
|---|---|
| Sanitization Method | High temperature, 180 °F final rinse |
| Racks / Hour | 48 (two-level light cycle) • 32 (single-rack light cycle) • 15 (normal cycle) |
| Cycle Times | Light 108 s • Normal 238 s |
| Water Use | 0.62 gal per cycle | 19.8 gal/hr max |

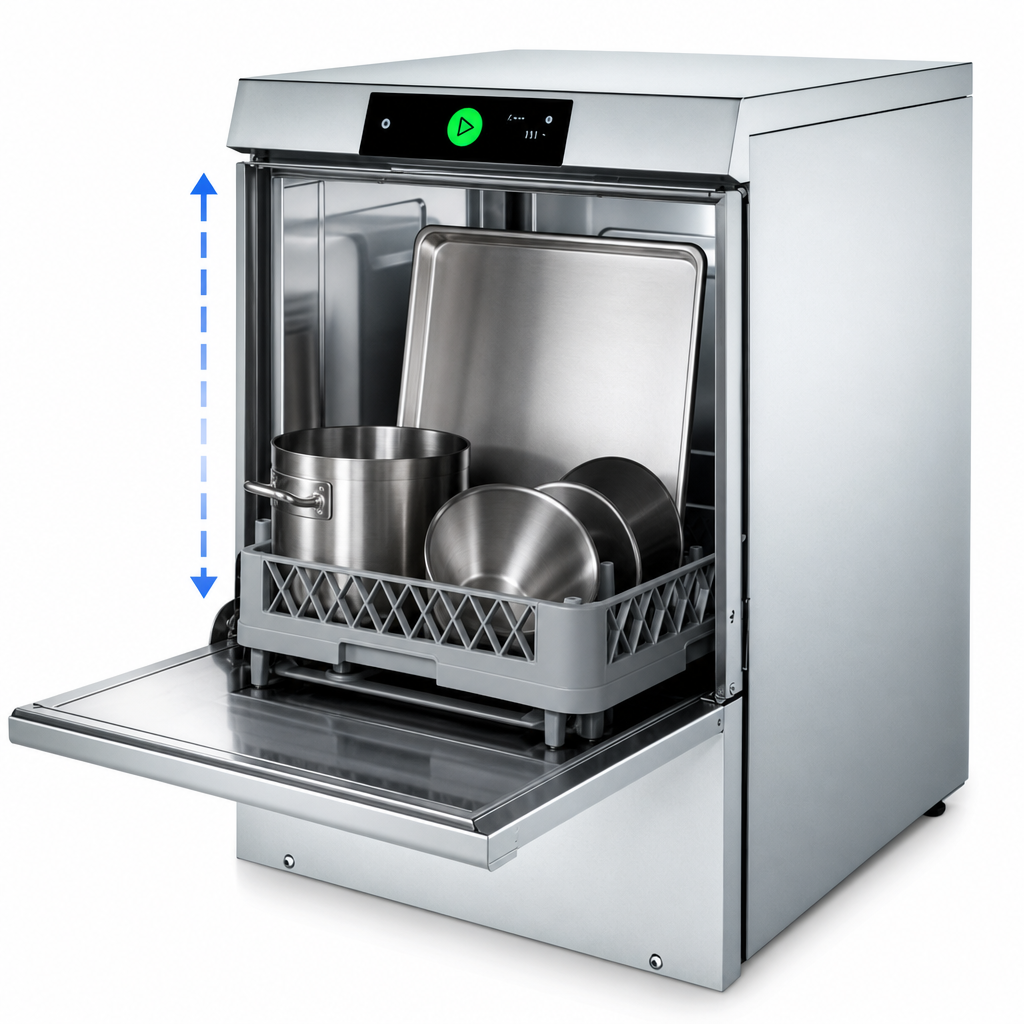

| Door Opening | 17 in H – fits full-size sheet pans & mixing bowls |
| Rack Size | 20 in × 20 in |
| Included Racks | (1) Combination rack, (1) Two-level rack |
| Dimensions (W × D × H) | 23-15/16″ × 25-9/16″ × 33-1/4″ |
| Electrical | 120/208-240 V, 60 Hz, 1-ph, 3-wire, 34 A (40 A breaker) |
| Heating Power | Booster 4.9 kW • Tank 1.8 kW |
| Motor HP | Wash 0.85 HP • Rinse 0.19 HP |
| Plumbing | 3/4″ GHT hot water inlet • 110 °F min • 15-65 psi |
| Drain | 5/8″ barb pumped drain (4 gal/min peak) |
| Certifications | cULus, NSF, ENERGY STAR® |
| Shipping Weight | Approx. 200 lb |
Requires 110 °F minimum incoming water at 15–65 psi. Install a pressure-regulating valve if supply exceeds 65 psi (not included).
For optimal performance, maintain a dishroom temperature of 65 °F (18 °C) or higher.
