Hobart LXNH-1 Warewash - Stationary Undercounter Dishwashers
Hobart LXNH-1 Warewash - Stationary Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart LXNH-1 Warewash - Stationary Undercounter Dishwashers
Description

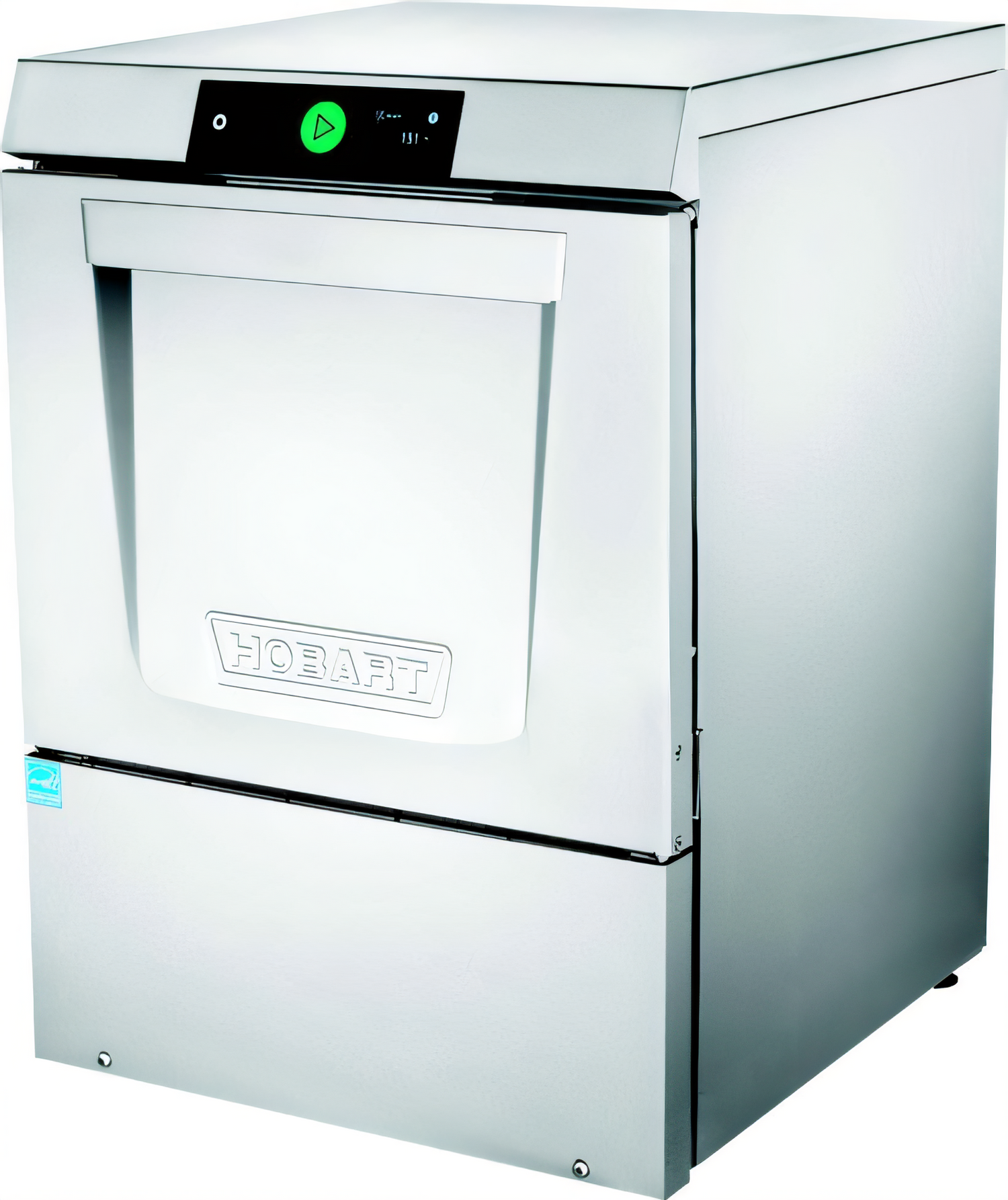

Hobart LXm Series – LXnH High-Temperature Undercounter Dishwasher
ENERGY STAR® • 208-240 V / 60 Hz / 1-Ph • Model LXnHGet Hobart Clean in a compact footprint. The LXnH undercounter dishwasher sanitizes with 180 °F fresh-water rinse, processes up to 32 racks per hour (48 with the optional two-level kit) and uses only 0.62 gal of water per rack. Smart touchscreen controls, built-in Wi-Fi and Hobart SmartConnect™ monitoring turn routine warewashing into data-driven efficiency.
Key Advantages
- 32 racks/hr standard (Light cycle) — boost to 48 racks/hr with NSF-certified two-level kit
- 17″ door opening handles pitchers, half-sheet pans and mixing bowls
- Sense-A-Temp™ 70 °F-rise electric booster for true high-temp sanitization
- Lowest-in-class 0.62 gal fresh-water rinse saves utilities and chemicals

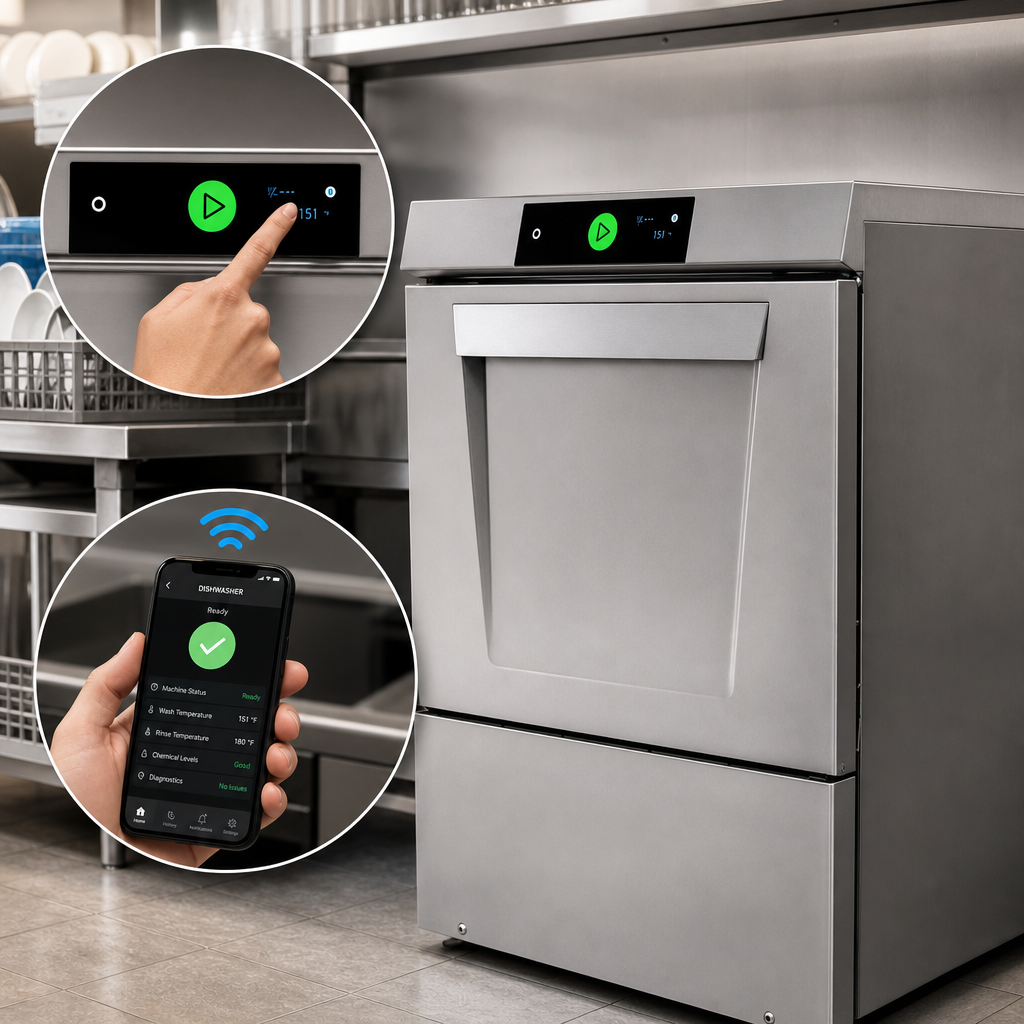

- Color touchscreen with icons, cycle countdown and built-in Wi-Fi
- SmartConnect™ app: real-time machine status, temp logs & error alerts
- AutoClean & Complete Delime™ cycles cut daily maintenance time
- Soft-start pump protects delicate stemware; two-stage filtration reduces rewash
- ENERGY STAR® certified and qualifies for many utility rebates
- 1-year parts & labor warranty backed by Hobart nationwide service
Built-In Intelligence
- Temperature & chemical lockouts ensure every rack is sanitized
- Auto-prime pumps for detergent & rinse aid—no manual siphoning
- Service diagnostics and data logging simplify troubleshooting
- Energy-saver idle mode lowers consumption during slow periods
Specification Highlights
| Throughput | Light Cycle 108 s – 32 racks/hr | Normal 238 s – 15 racks/hr |
|---|---|

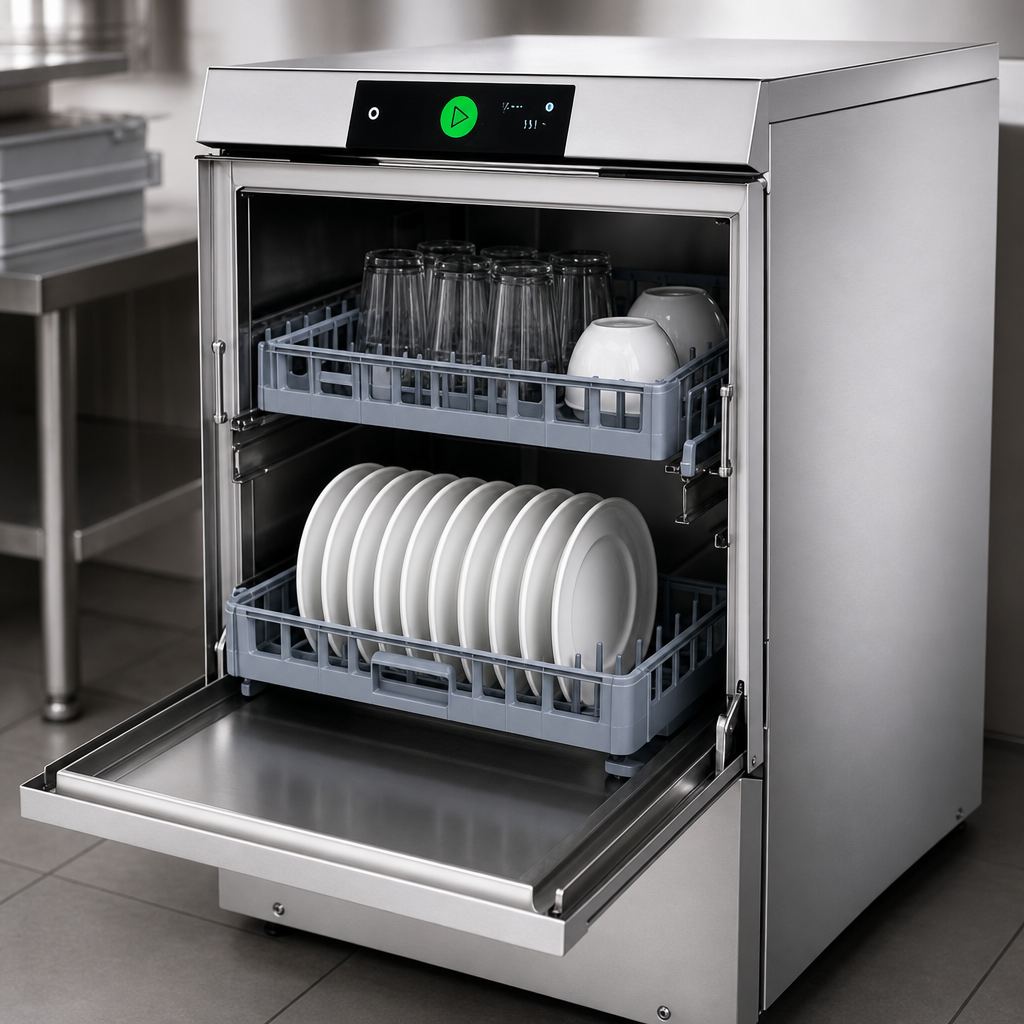

| Optional Two-Level Kit | Increases capacity to 48 racks/hr (upper rack certified for plates & silverware) |
| Fresh Water Use | 0.62 gal per rack • 19.8 gal/hr (max) |
| Tank Volume | 2.9 gal |
| Sanitizing Temps | Wash 150 °F • Rinse 180 °F |
| Heating | 4.9 kW booster • 1.8 kW tank element |
| Pump Motors | 0.85 HP wash • 0.19 HP rinse |
| Electrical | 208-240 V, 60 Hz, 1-Ph, 33.7 A — 40 A supply circuit |
| Dimensions (W×D×H) | 23-15/16″ × 25-9/16″ × 33-1/4″ |
| Door Clearance | 17″ maximum loading height |
| Shipping Weight | ≈ 200 lb |
| Certifications | NSF • cULus • ENERGY STAR® |
What’s Included
- Combination rack (plates/glassware/flatware)
- Peg rack
- 6 ft hot-water fill hose (¾″ GHT)
- 6 ft pumped-drain hose (⅝″ barb)
- Built-in detergent & rinse-aid pumps with auto-prime
Popular Accessories (sold separately)
- NSF two-level racking kit
- 6″ stainless-steel legs or 17″ storage stand
- External or internal height-adjustable casters
- Drain-water tempering & water-hammer arrestor kits
- Power-cord kit & splash-reduction panel
Installation Requirements
- Hot-water supply 110 °F min. at 15-65 psi
- ¾″ GHT fill connection • pumped drain with ⅝″ barb
- Dedicated 40 A, 208-240 V/1-phase electrical circuit with ground
- Maintain dishroom ambient ≥ 65 °F for optimal performance
- Chemical containers should sit ≤ 10″ above floor
Need configuration help? Connect the machine to the free Hobart SmartConnect app for real-time support, temperature logs and usage analytics.
