Hobart  |  Warewash - Stationary  |  SKU: LXGNR-4

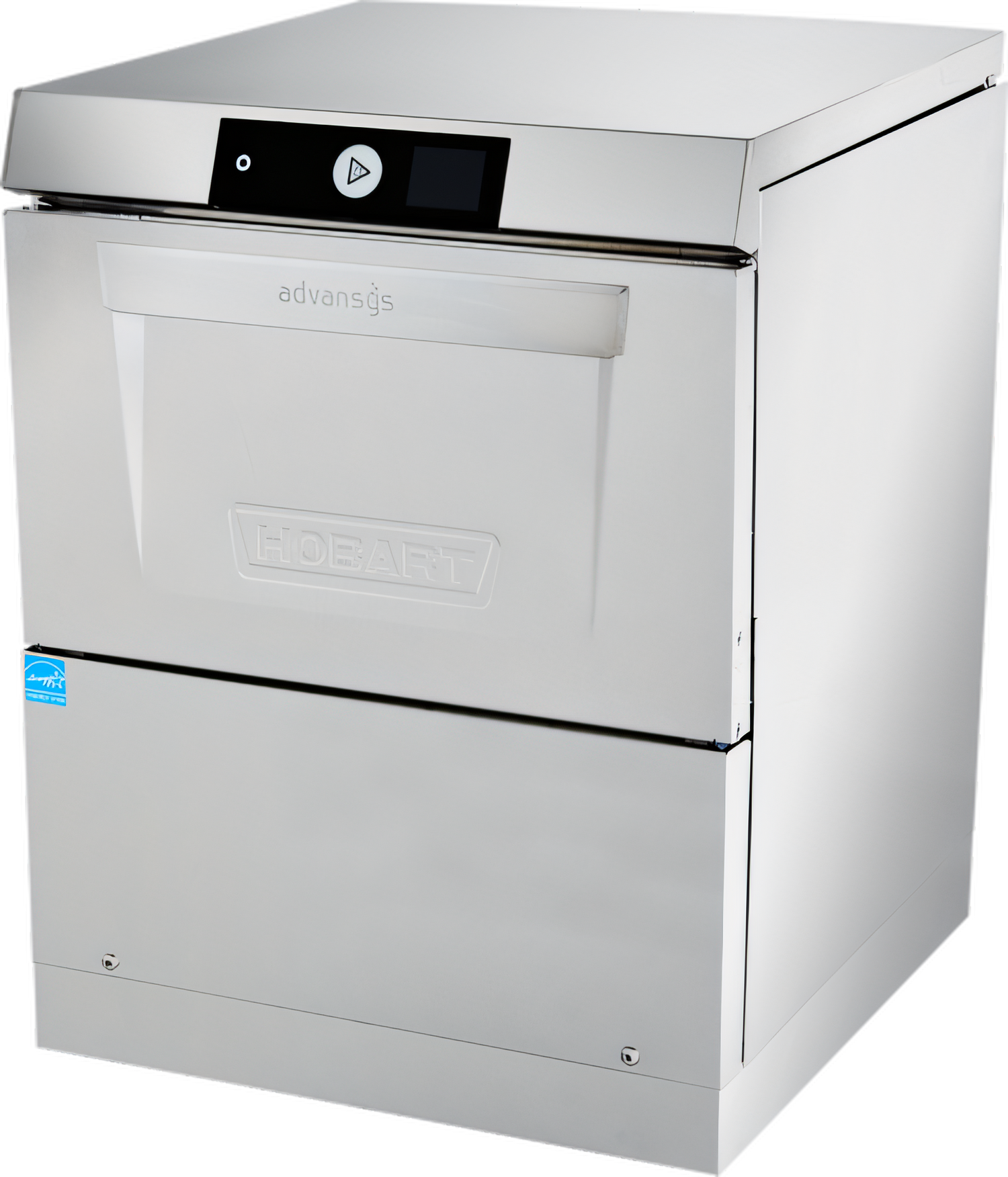

Hobart LXGNR-4 Warewash - Stationary Undercounter Dishwashers

$9,697.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Bar Equipment Dishwashers Undercounter Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hobart LXGnR Advansys™ Energy Recovery Undercounter Dishwasher – ADA Compliant

(Kickplate model • slides under 34″ countertops)

Power-packed, water-smart and built to meet ADA height requirements, the LXGnR turns a simple cold-water hook-up into high-temperature sanitation—while recovering its own energy and steam. Perfect for bars, cafés and satellite kitchens that need spotless ware without the space (or utility) of a full-size machine.

Top Reasons Operators Choose LXGnR

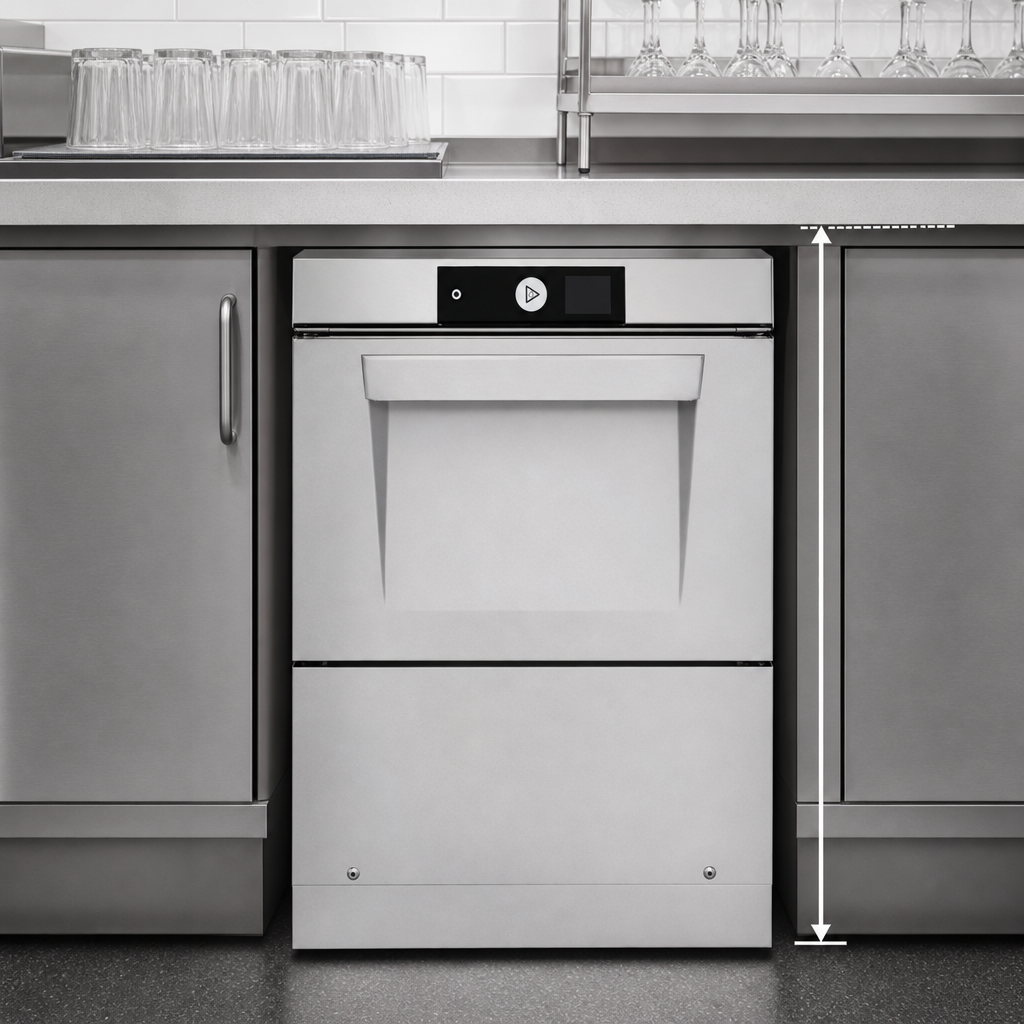

  • Compact 31″ height + 12″ door opening loads pitchers, half-sheet pans and tall stemware.
  • Energy Recovery captures exhaust heat to pre-warm incoming rinse water—no dedicated hot-water line required.
  • Ultra-low 0.62 gal of water per rack (ENERGY STAR® certified).
  • 30 racks/hr (Light) or 24 racks/hr (Normal) productivity.

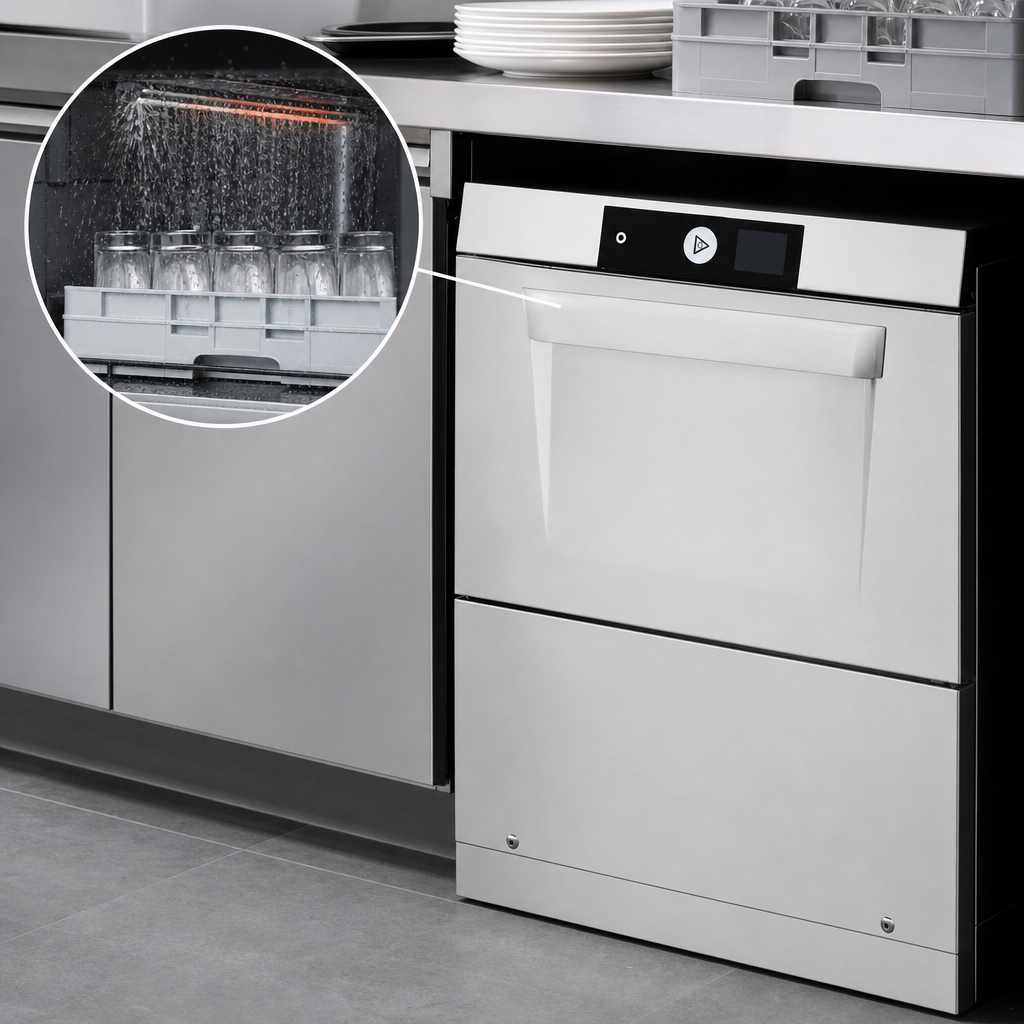

  • Sense-A-Temp™ 70 °F-rise electric booster delivers 180 °F final rinse for NSF sanitation.
  • Complete Delime™ system with auto dosing, reminder and Booster Guard™ extends life & performance.
  • Smart touchscreen + Wi-Fi + SmartConnect™ app: live status, temp logs, error alerts & usage analytics.
  • Chemical pumps with auto-prime and soft-start motor protect delicate glassware.
  • AutoClean shutdown cycle and energy-saver idle mode trim labor and utilities.
  • Deep-drawn stainless tank, snap-in wash/rinse arms and 2-stage filtration for quick daily maintenance.
Built-in Intelligence
  • Color icon touchscreen is language-agnostic and glove-friendly.
  • Temperature & chemical alerts (lock-outs optional) ensure compliant sanitation every cycle.
  • On-board service diagnostics and remote connectivity speed troubleshooting.
Specifications
Model Hobart LXGnR Advansys™ (Energy Recovery)
Rack Size / Included Rack 20″ × 20″ • 1 glass/wine rack
Door Opening 12″ H
Unit Height 31″ (fits under 34″ ADA counters)
Cycle Time Light 119 s • Normal 148 s
Racks per Hour Light 30 • Normal 24
Water Use 0.62 gal / rack • 18.6 gal / hr max
Electrical 120/208-240 V (3-wire) 60 Hz 1 Ø • 34 A • 40 A breaker
Booster Heater 4.9 kW, 70 °F rise
Tank Heater 1.8 kW
Pump Motors Wash 0.85 HP • Rinse 0.19 HP
Water Connection Single cold-water ¾″ GHT hose (55-85 °F)
Drain 5⁄8″ ID pumped drain hose
Material Stainless steel tank & cabinet
Certifications cULus • NSF • ENERGY STAR®
Warranty 1-year parts & labor
Optional Accessories
  • Water hammer arrestor kit
  • Power cord kit
  • Drain-water tempering kit
  • Splash-reduction panel
  • Door lock (prevents mid-cycle opening)
  • Trim strip
  • Pumped drain air-gap kit
Factory Start-Up Included: Hobart will commission your new LXGnR at no charge for sites within 100 mi of a Hobart Service office (accessible by public roadway) during normal business hours with prior notice. Installations beyond 100 mi or with restricted access will be quoted separately.

• For optimal results, maintain incoming water hardness ≤ 3 grains and dishroom temperature ≥ 65 °F.
• Consult the Installation & Operation Manual for complete utility, ventilation and clearance requirements.

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash - Stationary

Certifications

ENERGY STAR

Height

31.0in

Width

23.94in

Depth

26.81in

Shipping Weight

170.0lbs

Cabinet base

fully enclosed

Temperature

high temp with booster

Rack Size

20" x 20"

Tank Heat

electric

Rack Capacity

approximately (26) racks/hour

Construction

stainless steel

Energy Efficiency

ENERGY STAR®

Specifications

(Kickplate ADA) Designed to fit under an ADA counter height of 34", 12” door opening height, Advansys™ Undercounter Dishwasher/Glasswasher with 12” door opening height, Hot Water Sanitation, 120/208-240(3W)/60/1, .62 gal per rack, 30 or 24 Racks/Hour, Steam Elimination and Energy Recovery, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, Chemical Pumps with Auto Prime, smart touchscreen controls with SmartConnect™ app, Service Diagnostics,cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
