Hobart LXGNR-1 Warewash - Stationary Undercounter Dishwashers
Hobart LXGNR-1 Warewash - Stationary Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart LXGNR-1 Warewash - Stationary Undercounter Dishwashers
Description

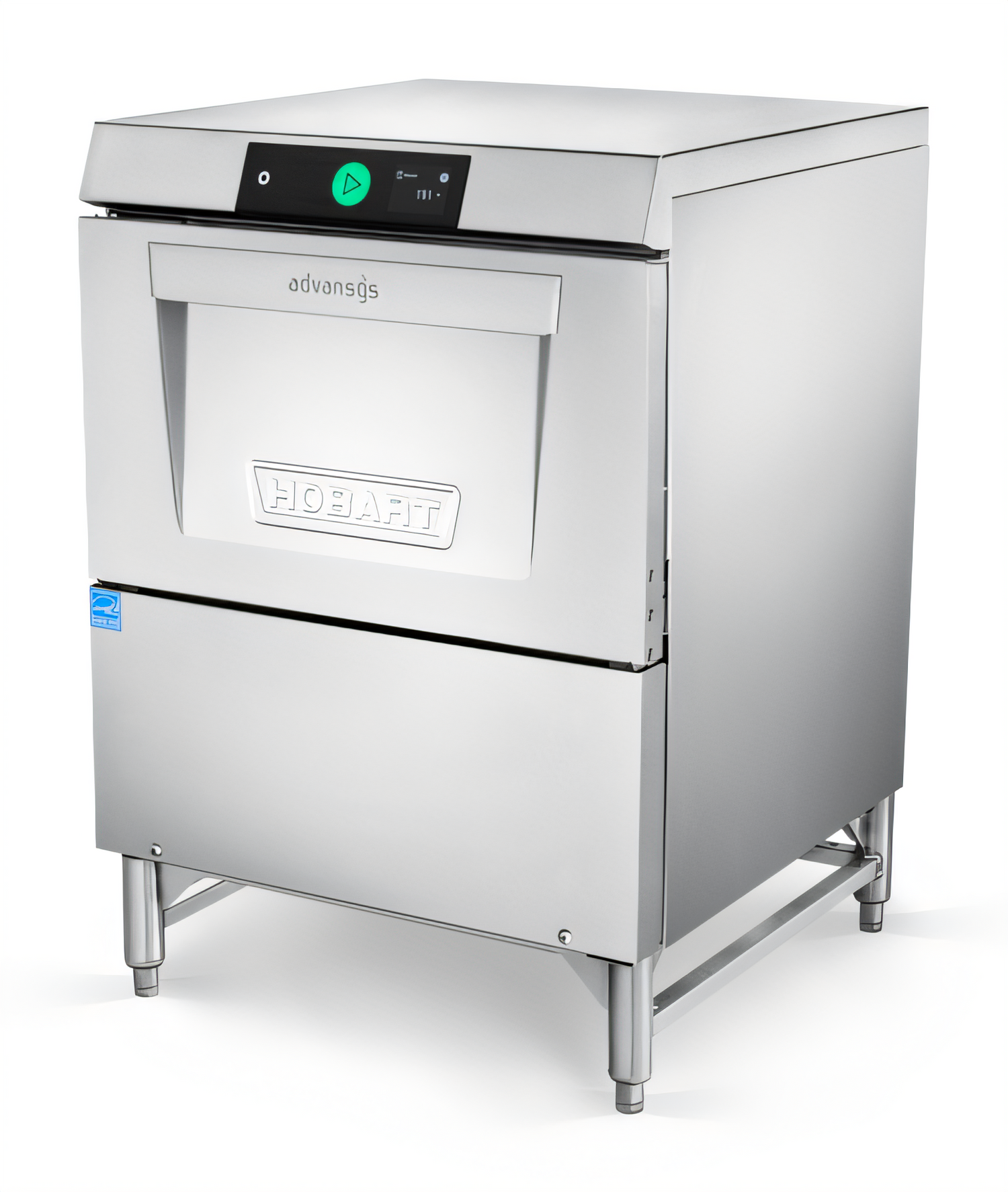

Hobart Advansys LXGnR Undercounter Glasswasher – 14" Leg Stand
ENERGY STAR® high-temp sanitation with energy recoveryUpgrade your bar or compact dishroom with Hobart’s most efficient glasswasher ever. The Advansys LXGnR combines hot-water sanitization, steam elimination and built-in energy recovery to deliver crystal-clear glassware at only 0.62 gal per rack—no external vent hood required. A smart touchscreen pairs with Wi-Fi and the SmartConnect™ app, giving you real-time machine data whether you’re behind the bar or off-site.
Key performance benefits
- 30 racks/hr (Light) or 24 racks/hr (Normal) with just 0.62 gal of water per cycle

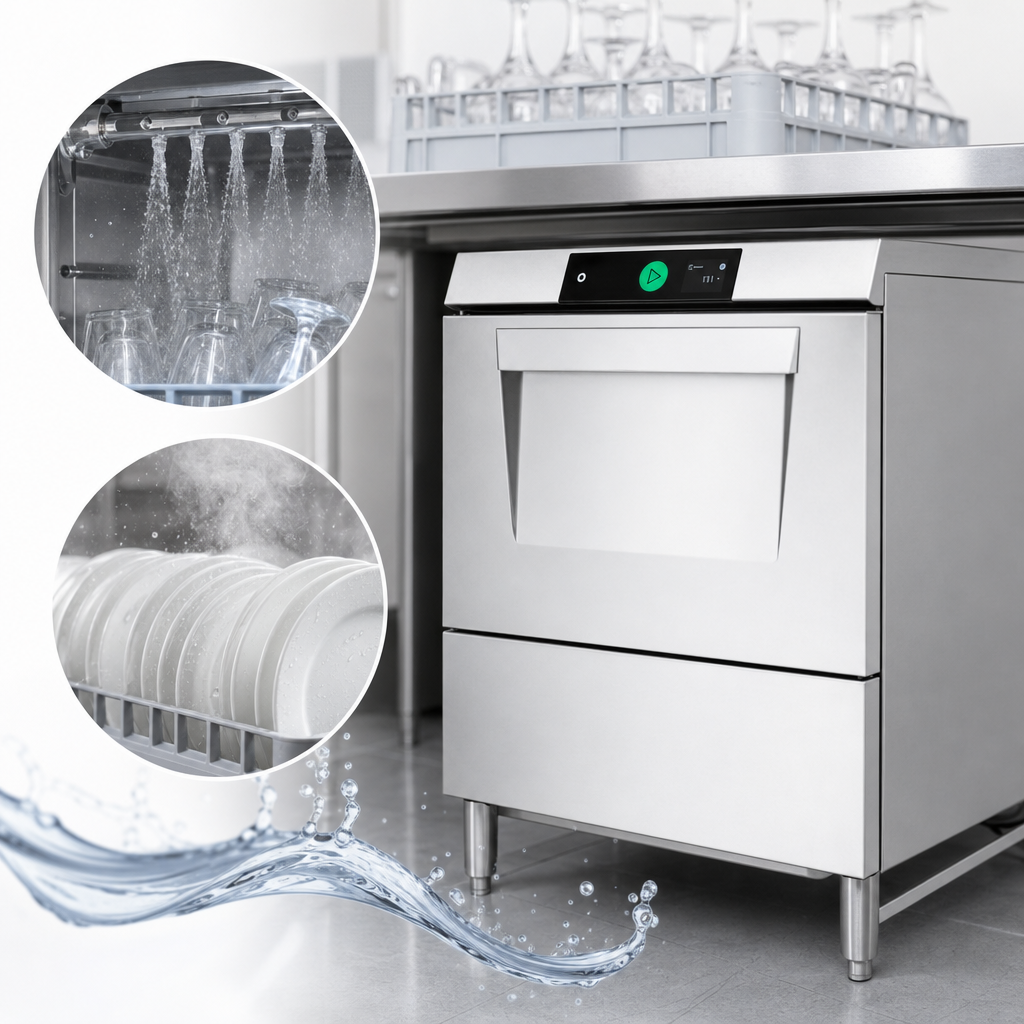

- Sense-A-Temp™ booster heater guarantees a 180 °F final rinse for NSF-approved hot-water sanitization

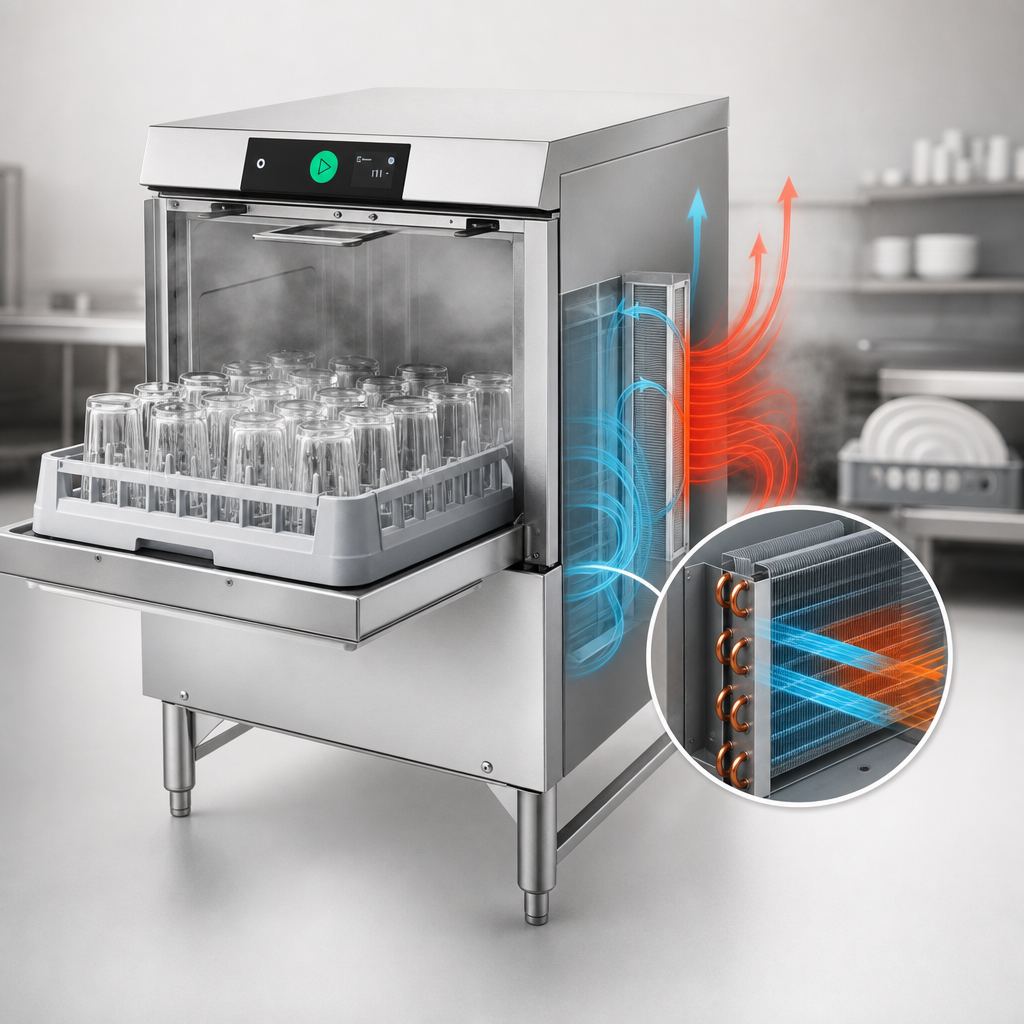

- Integrated Energy Recovery captures exhaust heat and eliminates steam in the dishroom
- Complete Delime™ system with automatic chemical dispensing and Booster Guard™
- Soft-start wash protects delicate stemware; revolving, anti-clogging wash & rinse arms ensure full coverage
- AutoClean cycle rinses the interior at shutdown to simplify end-of-shift maintenance
- cULus, NSF & ENERGY STAR® certified for safety and utility rebates
Smart, connected operation
- Intuitive color touchscreen with cycle progress, temperatures and chemical status
- Built-in Wi-Fi for Hobart SmartConnect™ app—view rack counts, temperature logs, error codes and usage analytics from any device
- Advanced service diagnostics speed troubleshooting and reduce downtime
- Automatic chemical pumps with auto-prime for detergent, rinse aid and delime agents
Specifications at a glance
| Door opening height | 12 in |
|---|---|
| Included stand | 14 in stainless steel leg stand (ergonomic 42 in loading height) |
| Cycle times | Light 119 s / Normal 148 s |
| Racks per hour | 30 (Light) / 24 (Normal) |
| Water use | 0.62 gal per rack · 18.6 gal max per hour |
| Wash / Rinse temperatures | 150 °F wash / 180 °F final rinse |
| Incoming water | 55–85 °F cold-water feed recommended |
| Electrical | 120/208-240 V, 3-wire, 60 Hz, 1-phase · 34 A · 40 A circuit |
| Tank / Booster heaters | 1.8 kW tank / 4.9 kW booster |
| Dimensions (W × D × H) | 23 15⁄16" × 26 13⁄16" × 49 1⁄16" (with stand) |
| Shipping weight | Approx. 215 lb |
| Certifications | ENERGY STAR®, cULus, NSF |
What’s in the box
- (1) 20" × 20" wine/glass rack
- 14" stainless steel leg stand (ships installed)
- Factory-installed chemical pumps (detergent, rinse aid, delime)
- 6′ fill hose with ¾" GHT fitting & 6′ drain hose
- Free factory start-up* and 1-year parts & labor warranty
Popular accessories (sold separately)
- Power cord kit
- Drain-water tempering kit
- Splash-reduction panel
- Door-lock kit (prevents door from opening during cycle)
- Trim strip for built-in installations
- External or 3" internal height-adjustable casters
- Water hammer arrestor kit
- Pumped-drain air-gap kit
For optimum results, maintain dishroom ambient temperature at 65 °F or higher and water hardness at ≤ 3 grains. Specifications are subject to change without notice.
