Hobart LXGNPR-3 Warewash - Stationary Undercounter Dishwashers
$7,996.10
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hobart LXGNPR-3 Warewash - Stationary Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart LXGNPR-3 Warewash - Stationary Undercounter Dishwashers
$7,996.10
Unit price
/
Unavailable
Description

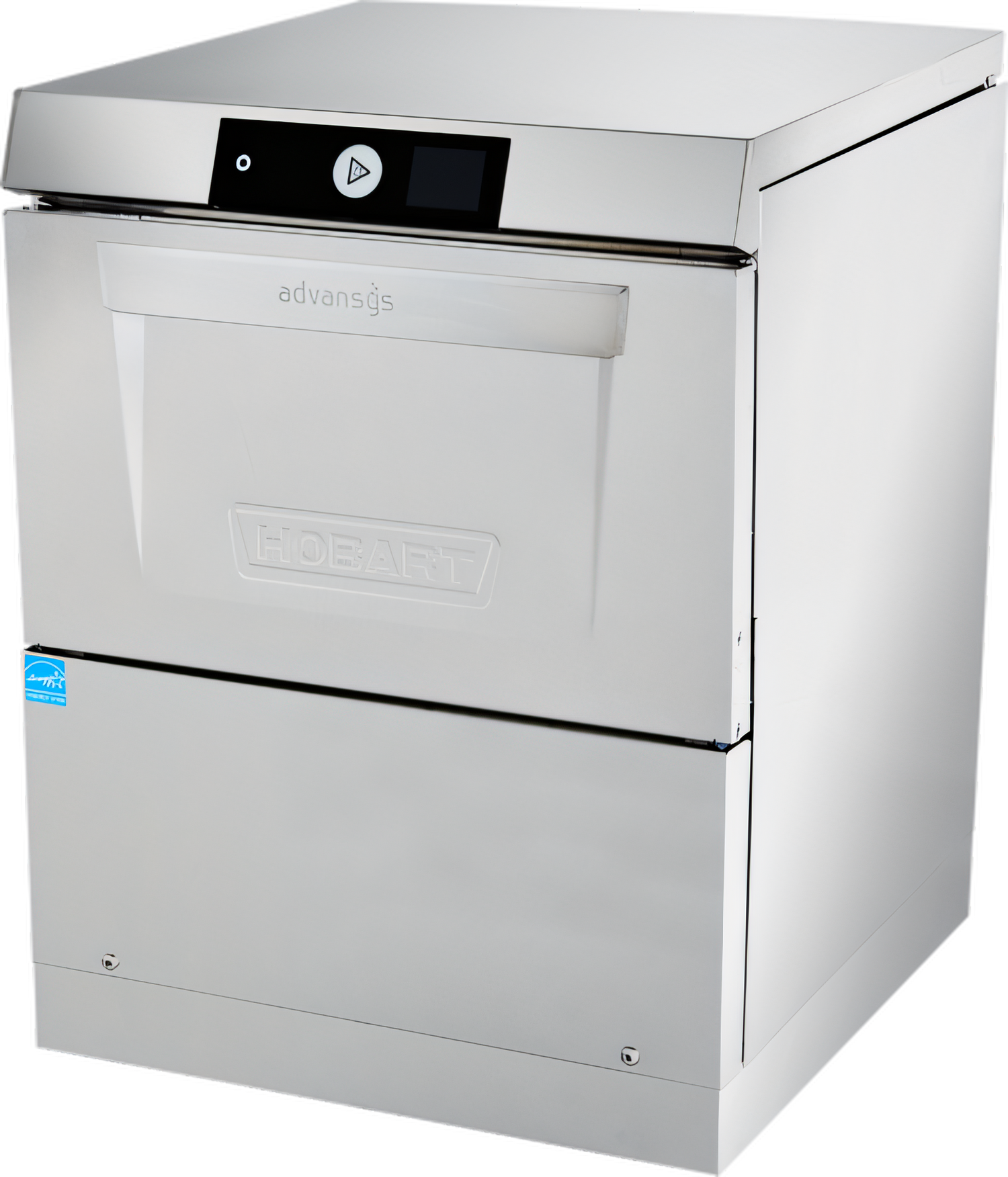

Hobart LXGnPR Advansys™ Undercounter Glasswasher / Dishwasher
ADA-compliant – Chemical Sanitizing with PuriRinse™Get sparkling results, lower utility bills and full ADA accessibility—all in a sleek, 31-inch-tall footprint that slides perfectly under a 34" counter. The LXGnPR pairs Hobart’s legendary wash performance with smart, connected tech to keep your operation running at peak efficiency day after day.
Why You’ll Love It

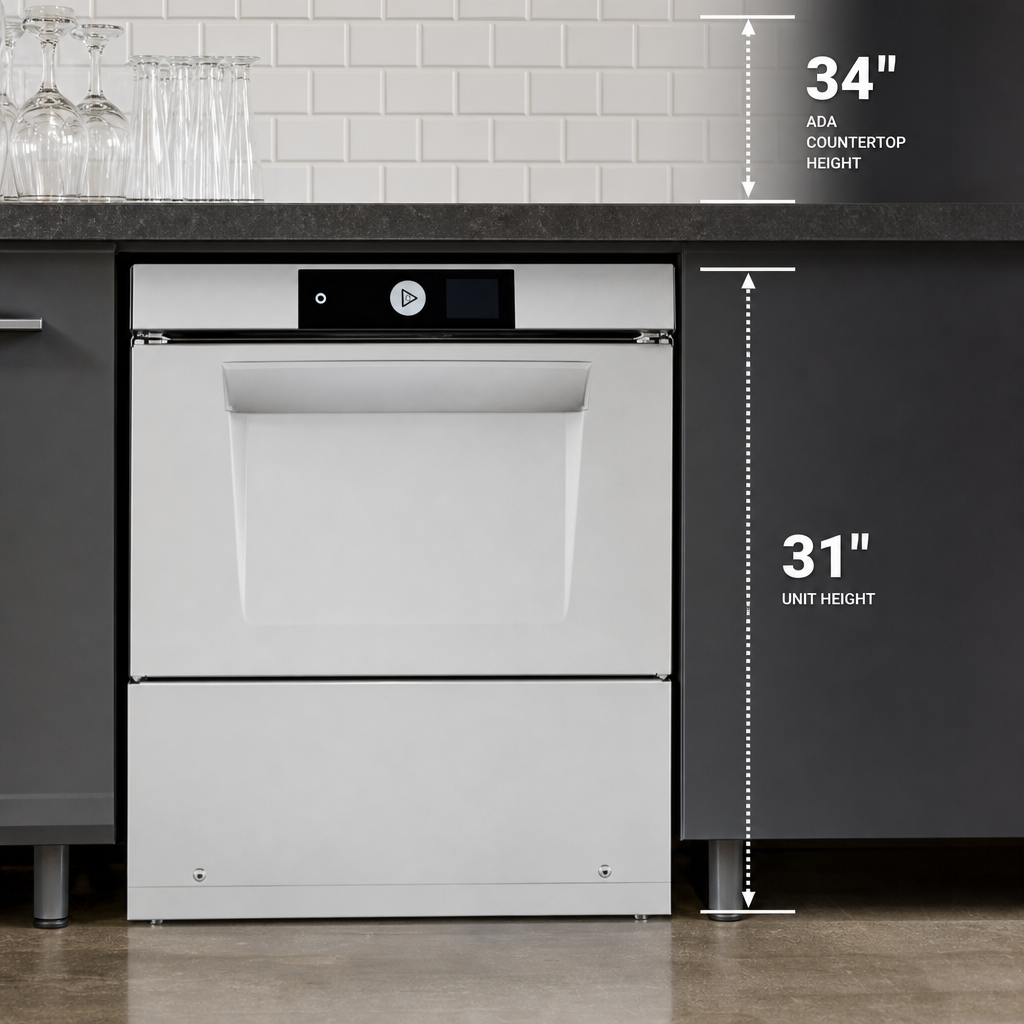

- Compact 31" overall height with included ADA kickplate.
- High throughput: 38 racks/hour (Light) or 29 racks/hour (Normal).
- Ultra-low water use—just 1.14 gal per cycle (≈ 0.62 gal per rack).

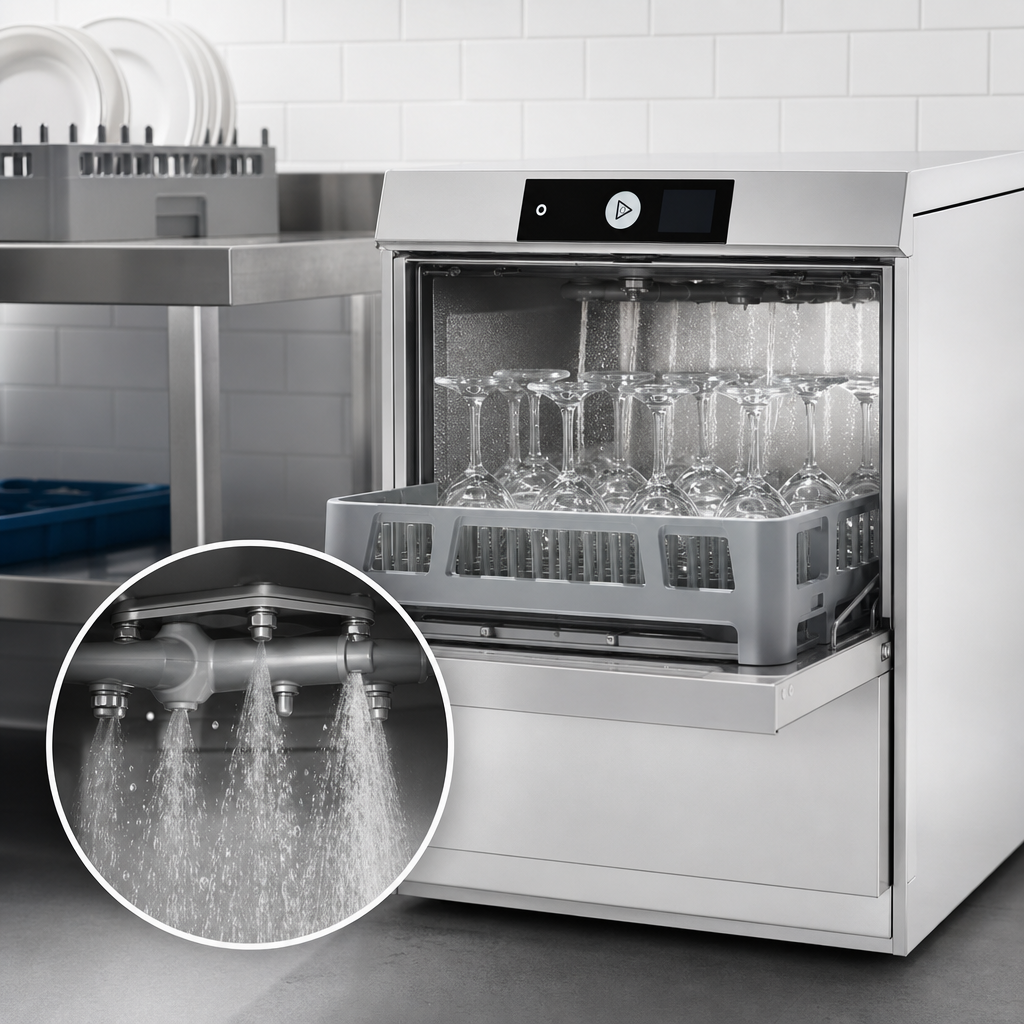

- PuriRinse™ final rinse removes chemical residue for crystal-clear glassware.
- User-friendly 3.5" color touchscreen with built-in Wi-Fi.
- SmartConnect™ app provides remote machine status, temperature logs, error alerts and usage analytics.
- AutoClean shutdown wash and automatic Delime cycle prolong machine life.
- Integrated detergent, rinse-aid and sanitizer pumps with auto-prime.
- Soft-start motor protects fragile stemware from breakage.
- ENERGY STAR®, NSF & cULus certified for water, energy and safety compliance.
- Free factory start-up within 100 mi of any Hobart Service office.
Technical Specifications
| Model | LXGnPR-ADA (Chemical Sanitizing) |
|---|---|
| Rack Size / Included Rack | 20" × 20" • 1 glass/wine rack |
| Cycles | Time | Light – 96 s • Normal – 125 s |
| Racks per Hour | Light – 38 • Normal – 29 |
| Water Consumption | 1.14 gal per cycle • 33 gal/hr max |
| Sanitizing Method | Low-temperature chlorine (chemical) |
| Incoming Water Temp | 120 °F min (140 °F recommended) |
| Wash Tank Capacity | 2.9 gal (electric heated, 1.8 kW) |
| Electrical | 120 V / 60 Hz / 1 ph • 14.9 A • Requires 20 A circuit |
| Motor HP | Wash – 0.85 HP • Rinse – 0.19 HP |
| Dimensions (W × D × H) | 23 15⁄16" × 26 11⁄16" × 31" |
| Door Opening | 12" |
| Shipping Weight | ≈ 180 lb |
| Certifications | ENERGY STAR®, NSF/ANSI 3, cULus |
Perfect For
- Bars, tasting rooms & wineries demanding spotless stemware
- Restaurants and cafés with limited dishroom space
- Hotels, country clubs & banquet facilities with variable throughput needs
- Healthcare & senior-living kitchens requiring ADA-compliant equipment
Optional accessories (sold separately): door lock, splash-reduction panel, water-hammer arrestor kit.
Installation requirements: 120 V/20 A dedicated circuit, 15-65 psi hot-water supply with ¾" garden-hose fitting, and common ⅝" drain connection. Factory start-up is free within a 100-mile radius of a Hobart Service office; travel surcharges apply outside this area or to locations not accessible by public roadway.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash - Stationary
Certifications
NSF, cULus, ENERGY STAR
Height
31.0in
Width
23.94in
Depth
26.69in
Shipping Weight
170.0lbs
Energy Efficiency
ENERGY STAR®
Cabinet base
fully enclosed
Construction
stainless steel
Rack Size
20" x 20"
Tank Heat
electric
Temperature
low temp chemical
Rack Capacity
approximately (35) racks/hour
Specifications
(Kickplate ADA) Designed to fit under an ADA counter height of 34", Advansys™ Undercounter Dishwasher/Glasswasher with Puri Rinse, chemical sanitization, 120/60/1, .62 gal per rack, 38 or 29 Racks/Hour, Delime Notification with Cycle, Chemical Pumps with Auto Prime, smart touchscreen controls with SmartConnect™ app, Service Diagnostics, heated recirculating wash tank , cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
