Hobart LXGNPR-1 Warewash - Stationary Undercounter Dishwashers
Description

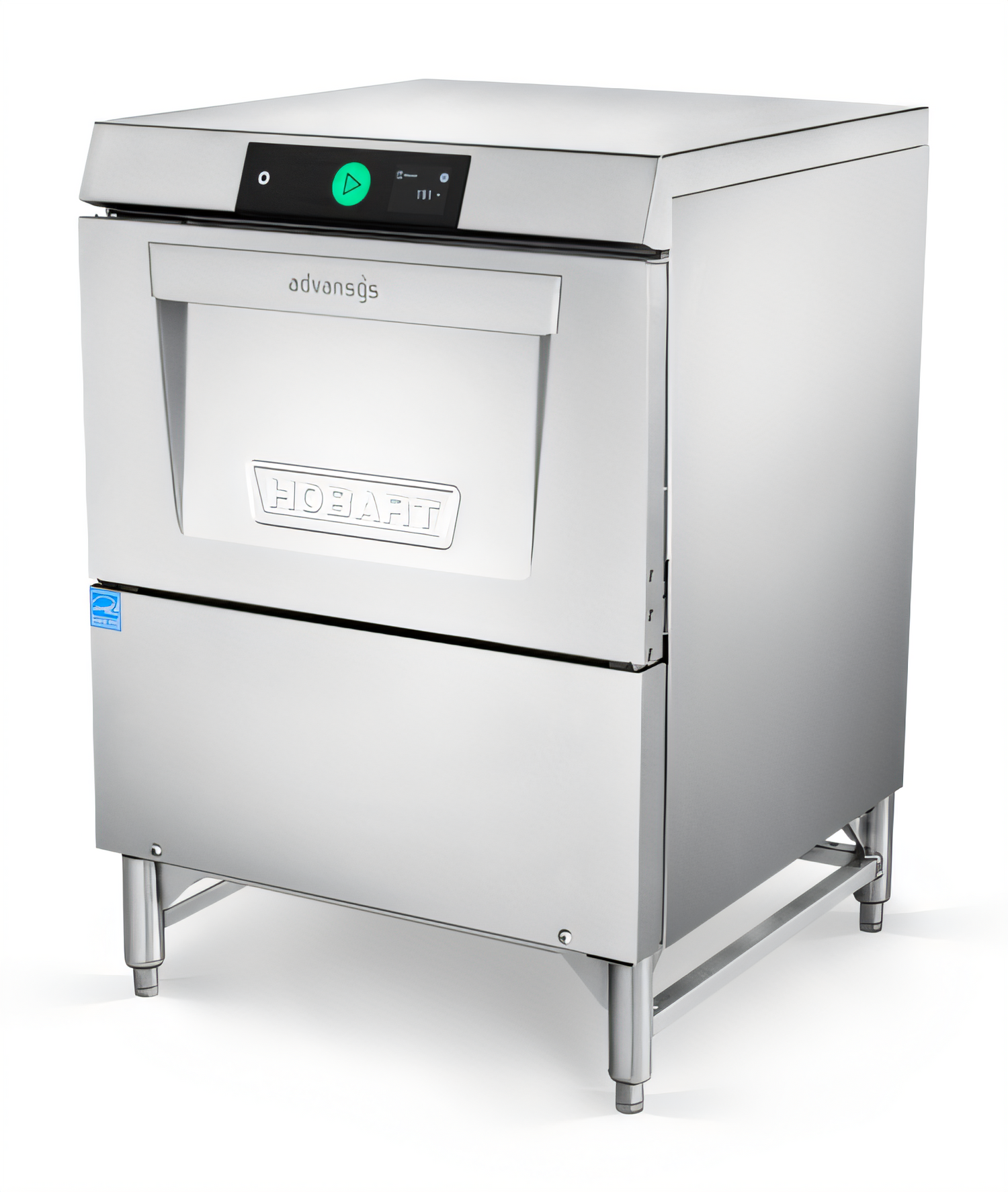

Hobart Advansys™ LXGnPR Undercounter Glasswasher
14" Stainless Steel Leg Stand • Chemical Sanitizing with PuriRinse™ • ENERGY STAR®Engineered for high-volume bars, tasting rooms and cafés, the LXGnPR delivers spotless glassware while slashing water, energy and labor costs. Hobart’s Advansys technology pairs an ultra-efficient wash system (only 1.14 gal per cycle) with smart, Wi-Fi-enabled controls so you can monitor performance from anywhere.
Why the LXGnPR Stands Out
- Up to 38 racks/hour (Light) or 29 racks/hour (Normal) to keep pace with rush periods.

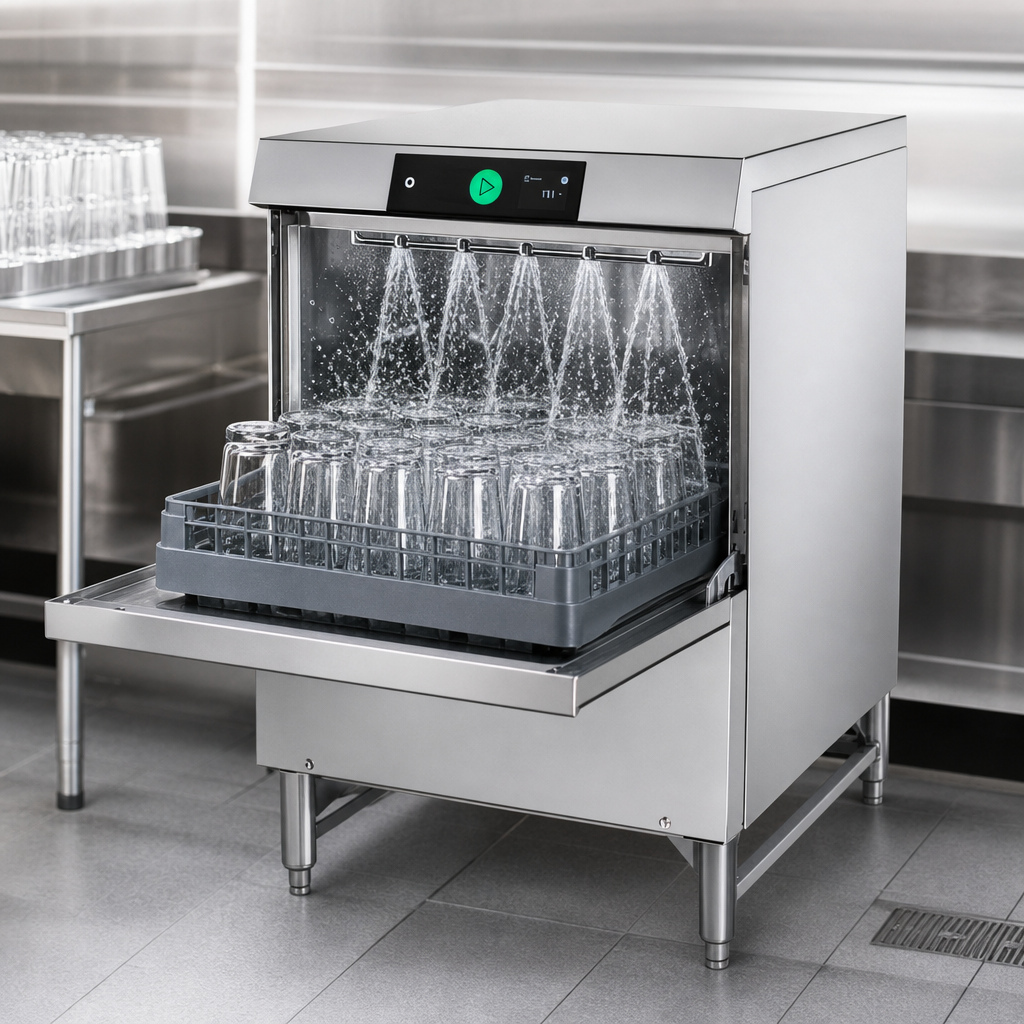

- PuriRinse™ cycle uses a potable-water final rinse that removes chemical residue—perfect for wine & craft-beer glassware.
- Consumes just 1.14 gal of water per cycle—that’s ES certified efficiency.
- Integrated chemical pumps with Auto-Prime for detergent, rinse aid & sanitizer—no external dispensers needed.

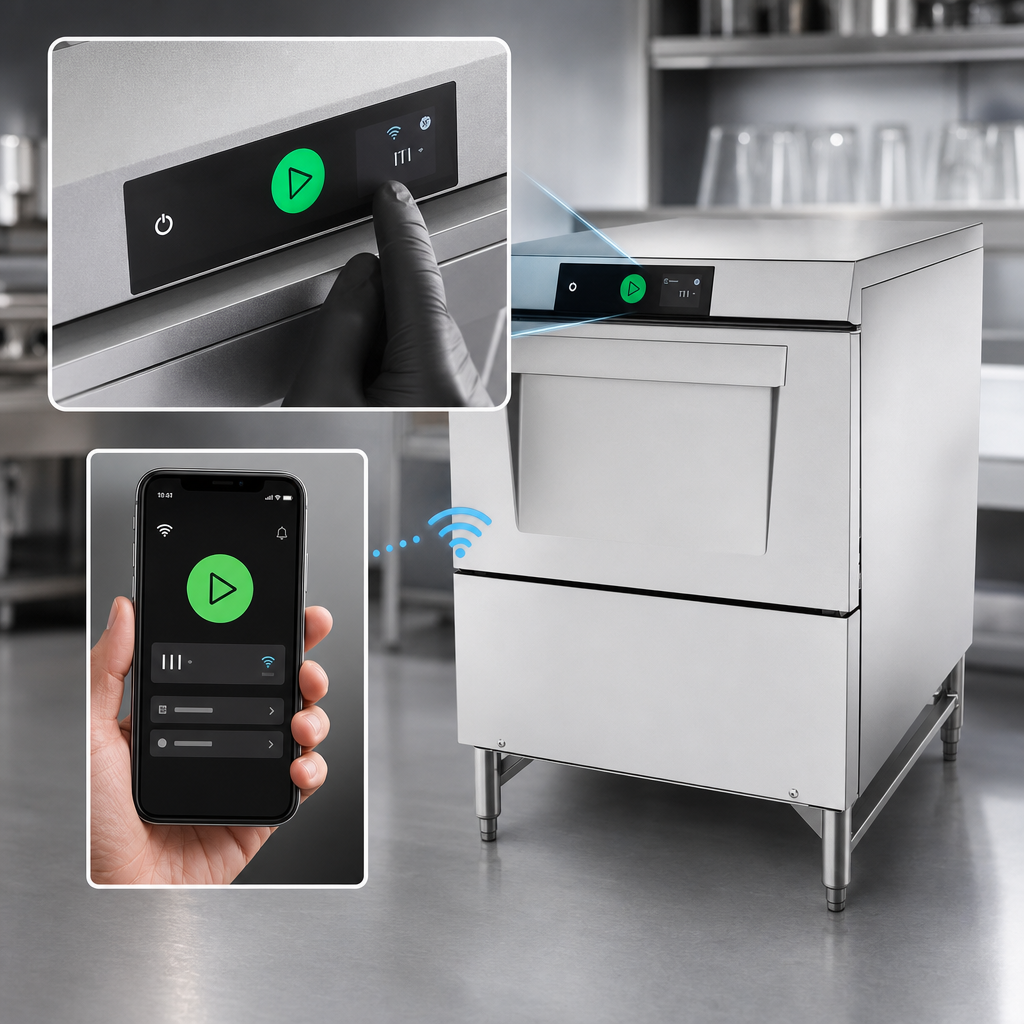

- Smart touchscreen with SmartConnect™ App for temperature logs, error codes & usage analytics via Wi-Fi.
- AutoClean at shutdown plus Delime notification & cycle help maintain peak performance.
- Soft-Start motor protects delicate stems from chipping.
- Rugged, deep-drawn stainless-steel tank & corrosion-resistant pump for years of service.
- Factory startup included* for a hassle-free first day in service.
What’s Included
- (1) 20 x 20" wine/glass rack
- (1) 14" stainless-steel leg stand (ships assembled)
- 6' fill hose (¾" GHT) & 6' drain hose (⅝" barb)
- Built-in detergent, rinse-aid & sanitizer pumps
- Service diagnostics & user manual
Technical Specifications
| Racks per hour | 38 (Light) / 29 (Normal) |
|---|---|
| Cycle time | 96 s (Light) / 125 s (Normal) |
| Water use | 1.14 gal per cycle (@120 °F inlet) |
| Wash tank capacity | 2.9 gal, electric heat (1.8 kW) |
| Door opening | 12" |
| Electrical | 120 V / 60 Hz / 1-ph, 14.9 A, NEMA 5-20P (field wired) |
| Motors | 0.85 HP wash • 0.19 HP rinse |
| Dimensions (w × d × h) | 27" W × 30" D × 49" H (service clearance) |
| Shipping weight | ≈ 185 lb |
| Certifications | cULus, NSF, ENERGY STAR® |
Popular Options (sold separately)
- Power-cord kit (plug-in installation)
- Water-hammer arrestor kit
- Splash-reduction side panel
- Door lock (prevents opening mid-cycle)
- Adjustable or internal casters for mobile installs
*Factory startup is free when the site is within 100 mi of a Hobart Service Office (public-road access, normal business hours, advance notice required). Additional travel or special access charges may apply outside this radius.
