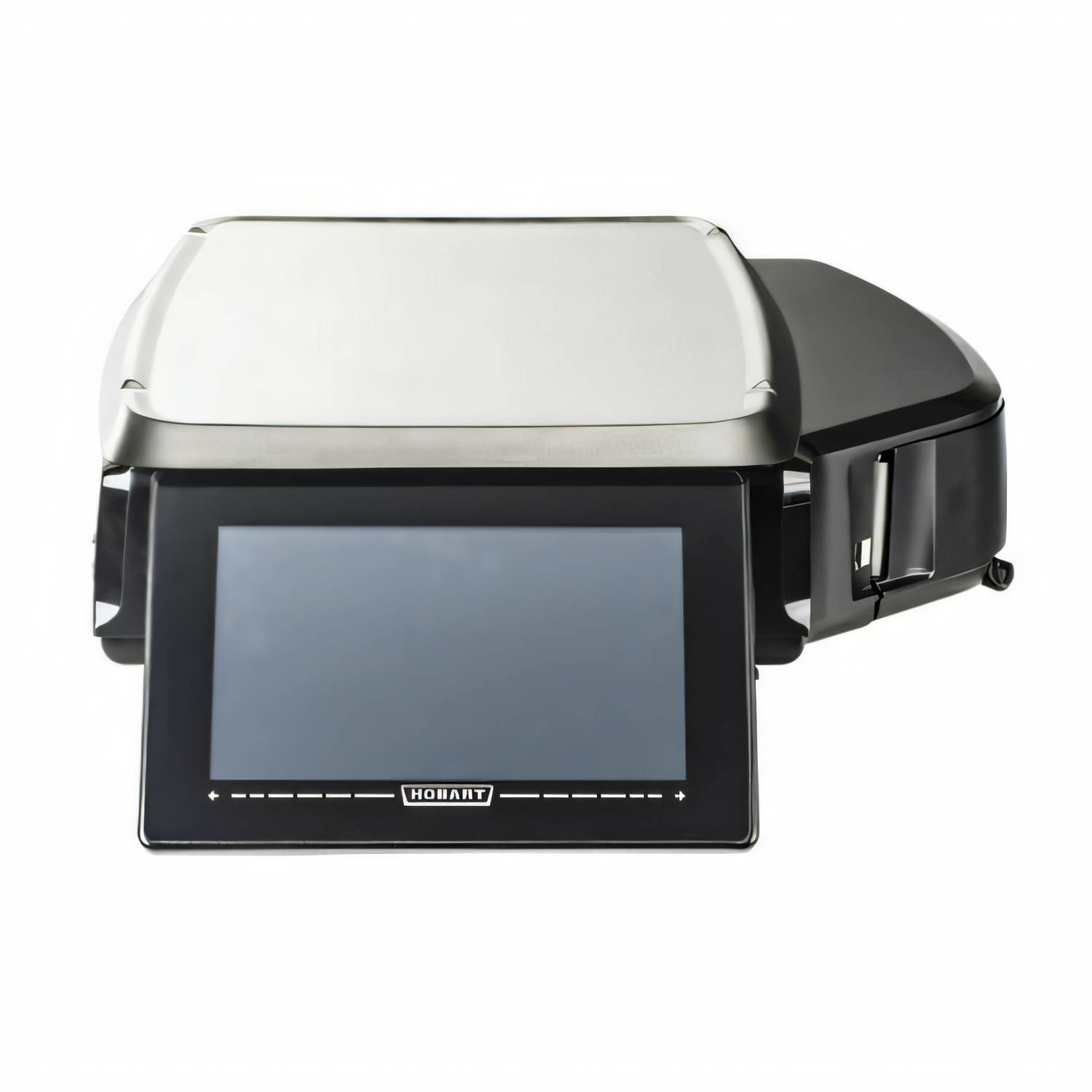

Hobart Weigh/Wrap HTS-7ELS Digital Price Computing Scale with Label Printer, 30 lb x .005 lb Dual Range, 10.1-Inch Touchscreen
- Operator display
- 10.1-inch WSVGA TFT LCD, LED backlit, 5-wire resistive touchscreen
- Customer display
- 7-inch elevated color LCD
- Scale capacity
- 30 lb dual range
- Graduation, USA
- 30 lb x .01 lb
- Graduation, Metric
- 15 kg x .005 kg
- Platform size
- 14 in. x 15 in.
Specifications
Description
The HTS-7ELS is a digital price computing scale with a 10.1-inch operator touchscreen, an elevated 7-inch customer display, and a thermal label printer.
It weighs products, computes prices from stored PLUs, and prints labels. The scale uses embedded Linux and provides Ethernet communications.
- 10.1-inch WSVGA TFT LCD operator touchscreen with LED backlighting
- 7-inch elevated color LCD customer display
- 30 lb dual-range weighing capacity
- 203 dpi thermal printhead with 8 dots per millimeter
- Accepts 1.5-inch and 2.25-inch label widths
Overall Dimensions:
15.625"W x 25.75"D x 6.3125"HProduct Weight:
34.0 lbPrice computing and label printing
The scale weighs products, automatically computes prices from stored PLUs, and prints labels.

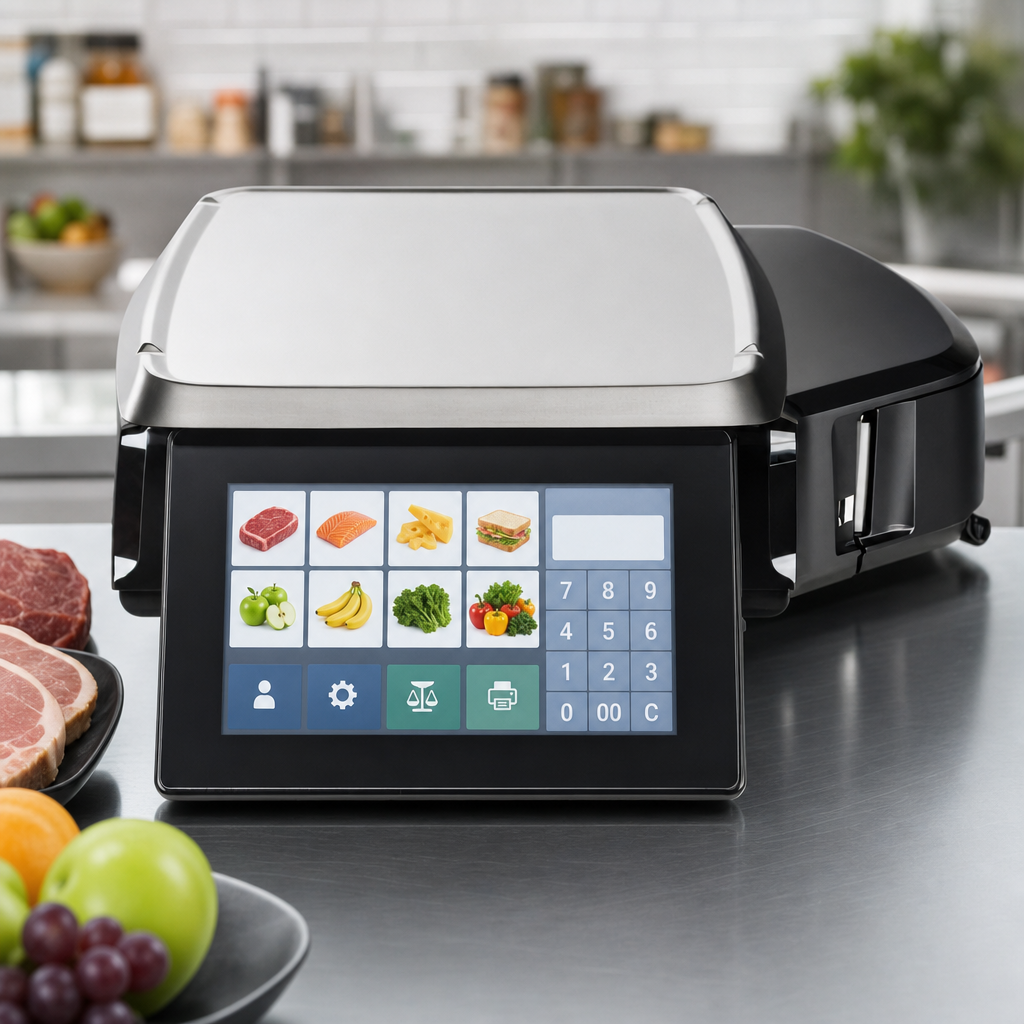

Operator touchscreen
A 10.1-inch WSVGA TFT LCD operator display uses LED backlighting and 5-wire resistive touch technology.

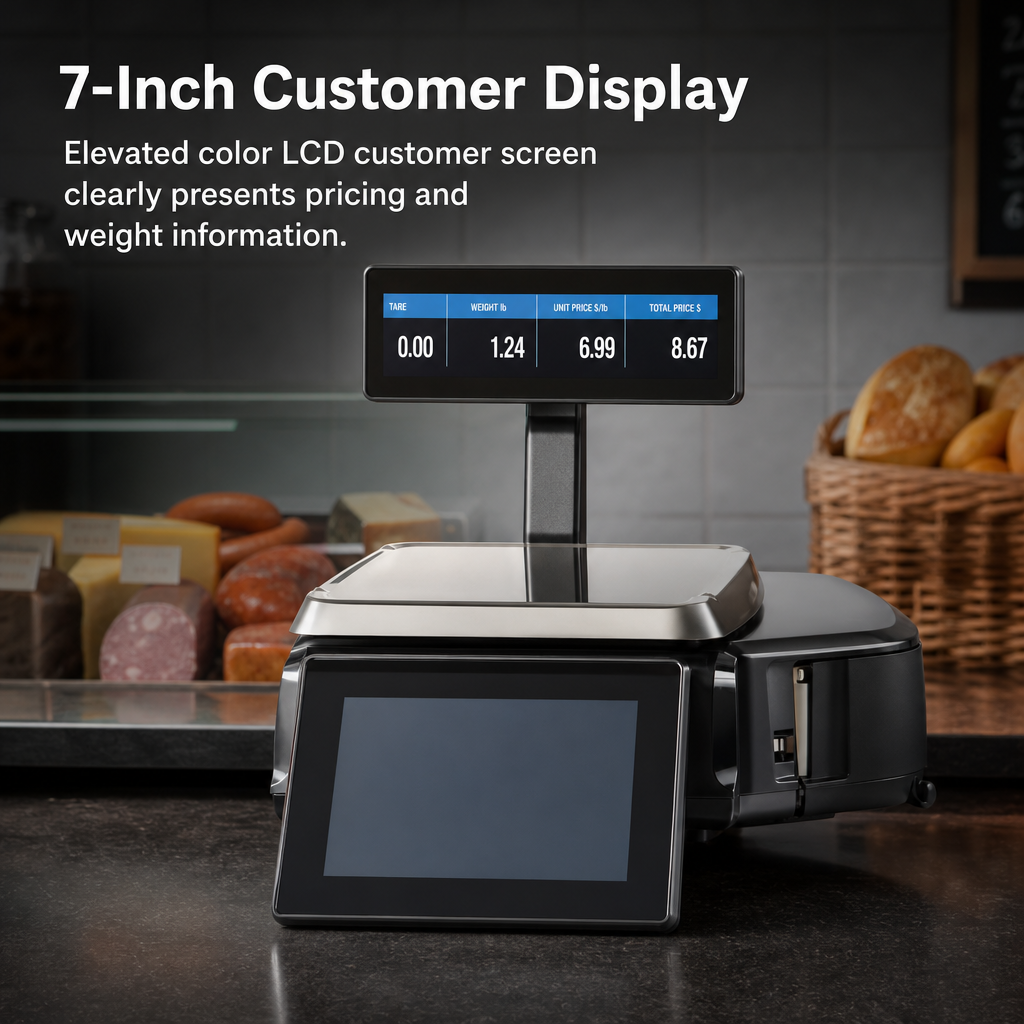

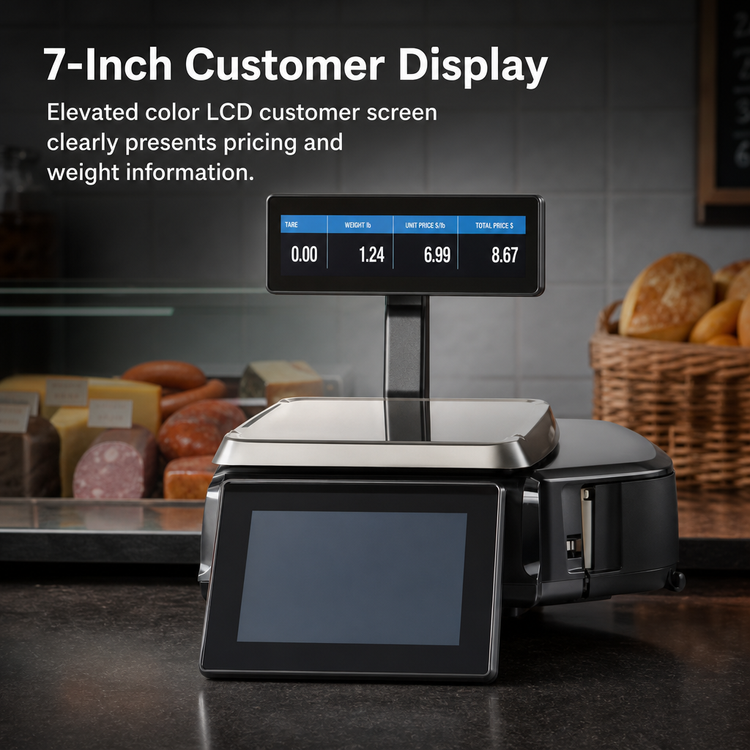

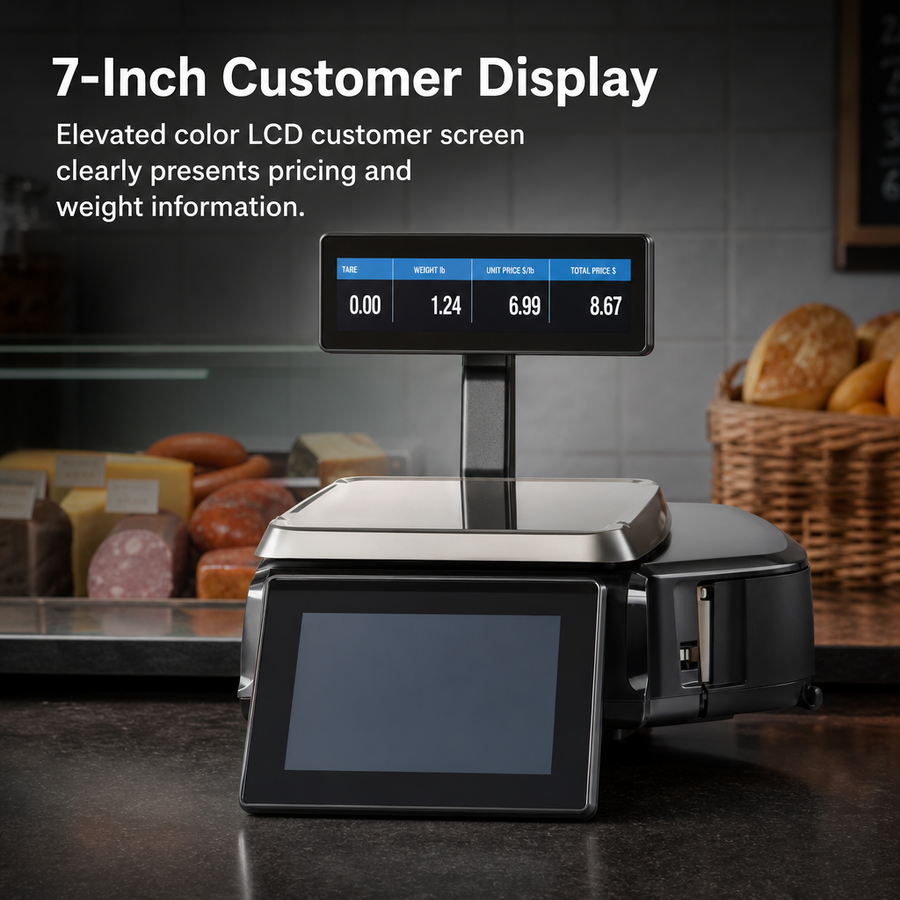

Elevated customer display
The exact model configuration includes a 7-inch elevated color LCD customer display.
Thermal printing
The high-resolution thermal printhead provides 203 dpi resolution, or 8 dots per millimeter.
Label support
Accepted media includes 1.5-inch and 2.25-inch-wide labels, 1-inch to 9.5-inch die-cut labels, continuous labels, and oval labels.
Network communications
The scale provides 10/100 Mbps Ethernet communications; 802.11 a/b/g/n wireless is listed as optional in the technical documentation.
Embedded operating system
The scale uses an embedded Linux operating system with a single-core processor, 1 GB DDR3 RAM, and 8 GB storage media.
Product data functions
The HTs scale platform supports stored product data, PLU search, barcode formats, operator notes, shelf-life settings, and label graphics.
