Hobart HSU440-1 Food Machines - Mixers Spiral Dough Mixers
Description

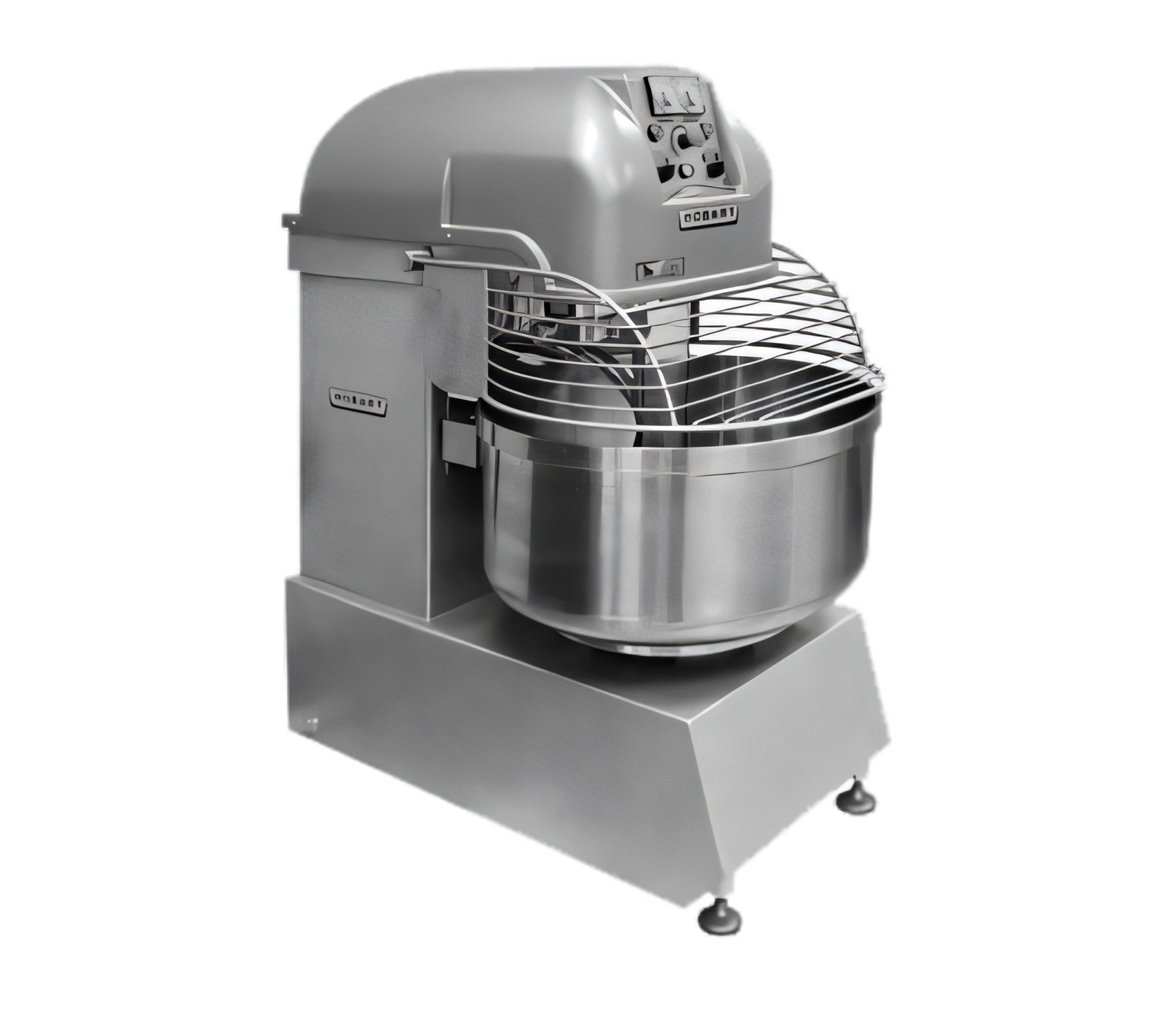

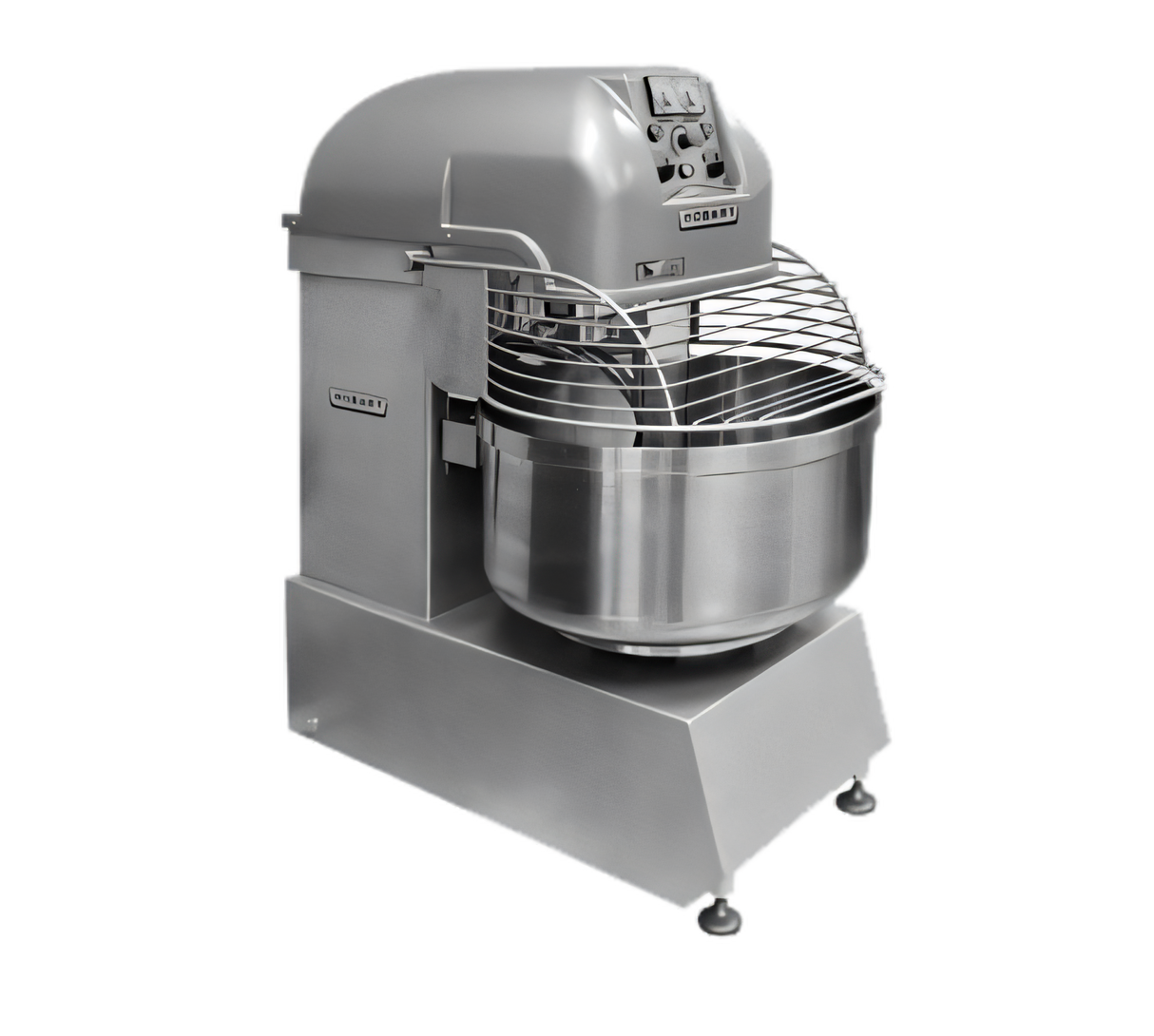

Hobart HSU440 Spiral Mixer – 440 lb Dough Capacity
Heavy-duty power, precise control and bakery-ready consistencyBuilt for serious production, the Hobart HSU440 combines a rugged 10.7 HP* spiral motor with a polished 314-quart stainless bowl to mix, develop and finish up to 440 lb of dough at once. Dual 20-minute electronic timers, automatic speed change-over and a reversible bowl drive take the guess-work out of every batch—whether you’re making artisan loaves, NY-style pizza or dense bagels.
Why Bakers Choose the HSU440
- Serious torque – double-pulley, belt-driven design handles the heaviest loads with ease.
- Two fixed speeds – 100 RPM (low) and 200 RPM (high) for optimum gluten development.
- Dual 0-20 min timers – independently set low- and high-speed run times; mixer shifts automatically.
- Reversible 15 RPM bowl – clockwise for mixing, counter-clockwise for gentle incorporation or cleanup.
- Jog Control & bowl-pulsing – makes it easy to clear dough from the hook and bowl.
- Stainless steel spiral hook & wireform guard – durable, hygienic and fully NSF compliant.
- Roll-up mobility – ball-bearing front & rear casters plus adjustable stabilizing feet.
- Rugged construction – steel body frame, cast-aluminum hood and chip-resistant powder-coat finish.
Typical Mixing Capacities
| Product (AR %) | Flour Weight | Batch Weight |
|---|---|---|
| Bread Dough, 60 % | 240 lb | 440 lb |
| Whole Wheat Dough | 240 lb | 464 lb |
| Thin Pizza, 40 % | 150 lb | 220 lb |
| Medium Pizza, 50 % | 200 lb | 310 lb |
| Light Pizza, 60 % | 240 lb | 340 lb |
| Pie Dough | — | ≈ 150 lb |
| Bagel Dough, 50 % | 170 lb | 260 lb |
Capacities are based on 12 % flour moisture and 70 °F water temperature. Reduce flour by 25 lb when using ice or water below 55 °F.
Key Specifications
| Model | HSU440 (fixed bowl) |
|---|---|

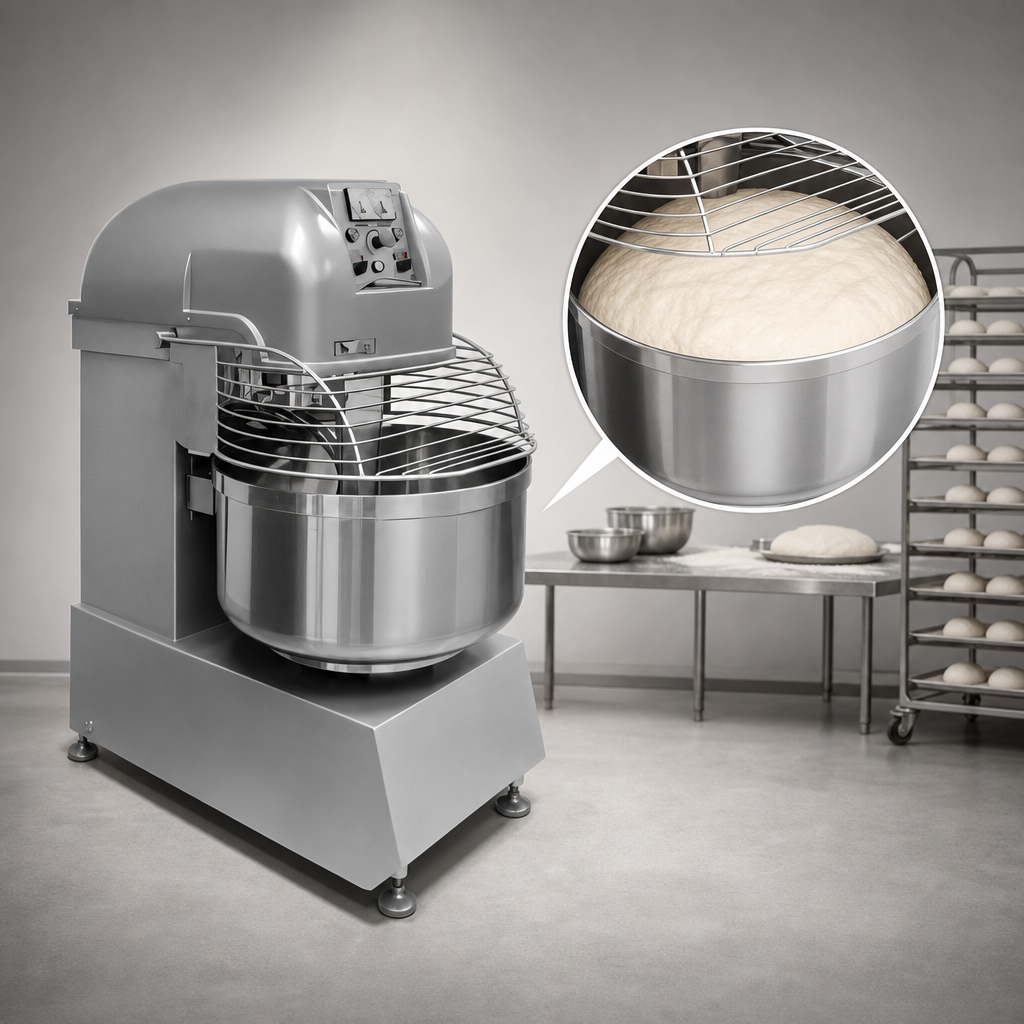

| Dough Capacity | Up to 440 lb (200 kg) |

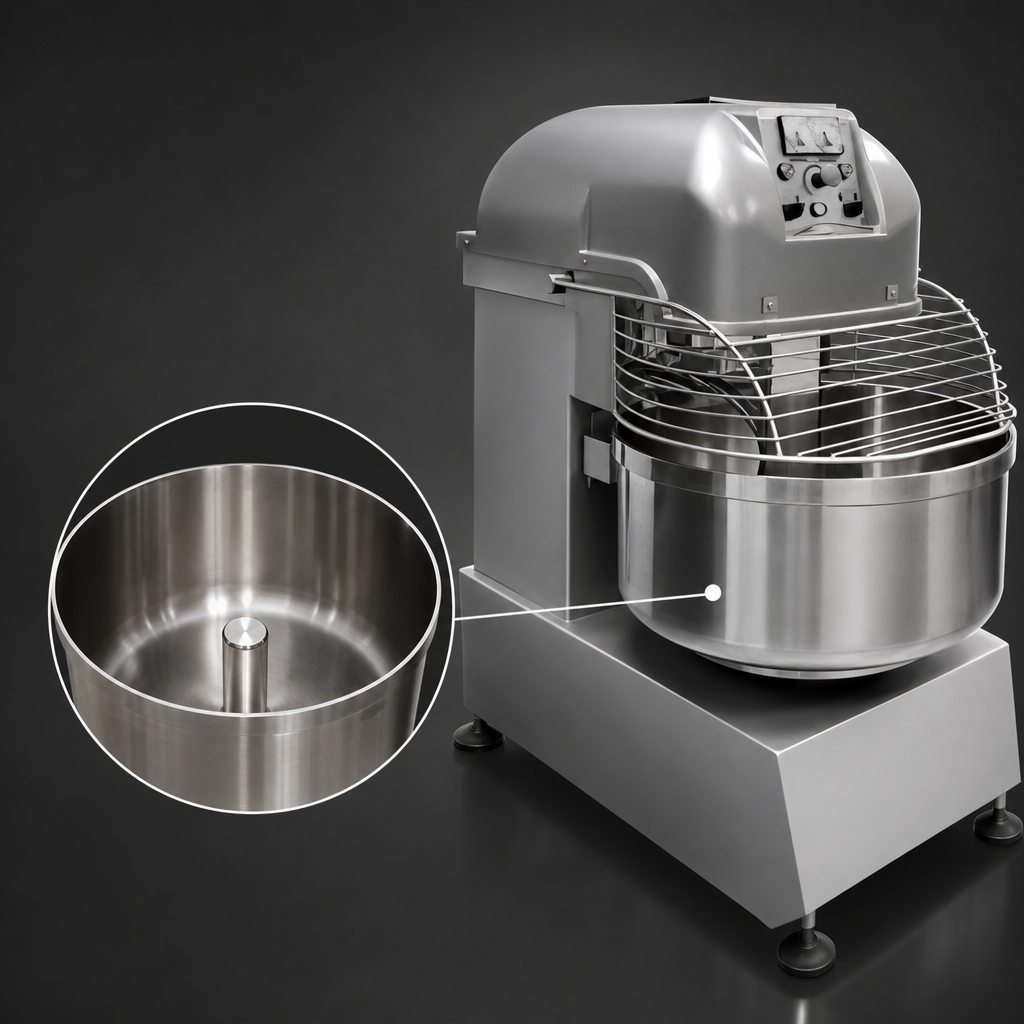

| Bowl Volume | 314 qt (297 L) polished stainless steel, with center post |
| Spiral Speeds | 100 RPM (1st), 200 RPM (2nd) |
| Bowl Speed | 15 RPM; reversible |
| Timers | Two electronic timers, 0-20 min each with audible cycle-end tone |
| Motors | Spiral: 6.1 / 10.6 HP (low / high) • Bowl: 1.0 HP — total 10.7 HP* |
| Power Requirements | 208 V / 60 Hz / 3-phase, 43.5 A |
| Controls | Dust-proof push-button panel, bowl-direction selector & Jog Control |
| Finish | Gray powder-coat body, cast aluminum cover |
| Dimensions (W × D × H) | 36.6 × 56.4 × 81 in (929 × 1 433 × 2 054 mm) |
| Net / Ship Weight | 1 785 lb / 1 920 lb |
| Warranty | 1-year parts, labor & mileage |
*Horsepower values are manufacturer’s nominal ratings.
