Hobart HSL220-1 Food Machines - Mixers Spiral Dough Mixers
Description

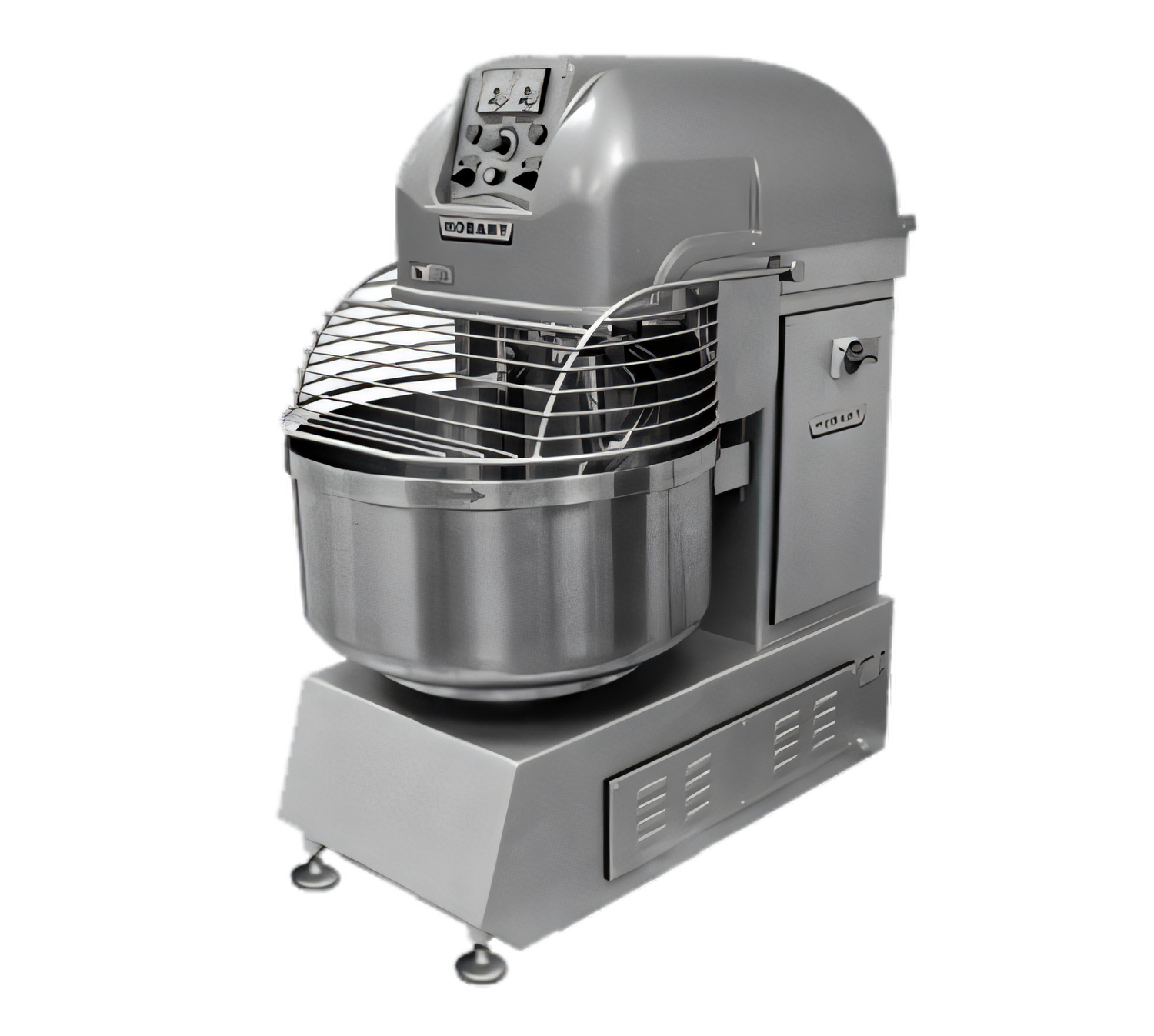

Hobart HSL220 Spiral Mixer
220-lb Dough Capacity · Dual-Speed · 208 V / 60 Hz / 3 PhDesigned for bakeries, pizza production, commissaries and central kitchens, the NSF-listed Hobart HSL220 delivers powerhouse performance in a compact footprint. A high-torque 6 HP spiral motor, dual electronic timers and reversible bowl action give you consistent, perfectly-developed dough every time—whether you’re mixing a full 220-lb batch or just 10 % of the bowl.
Why You’ll Love It
- High-Torque Drive – Double-pulley belt transmission for extra torque when working heavy doughs.

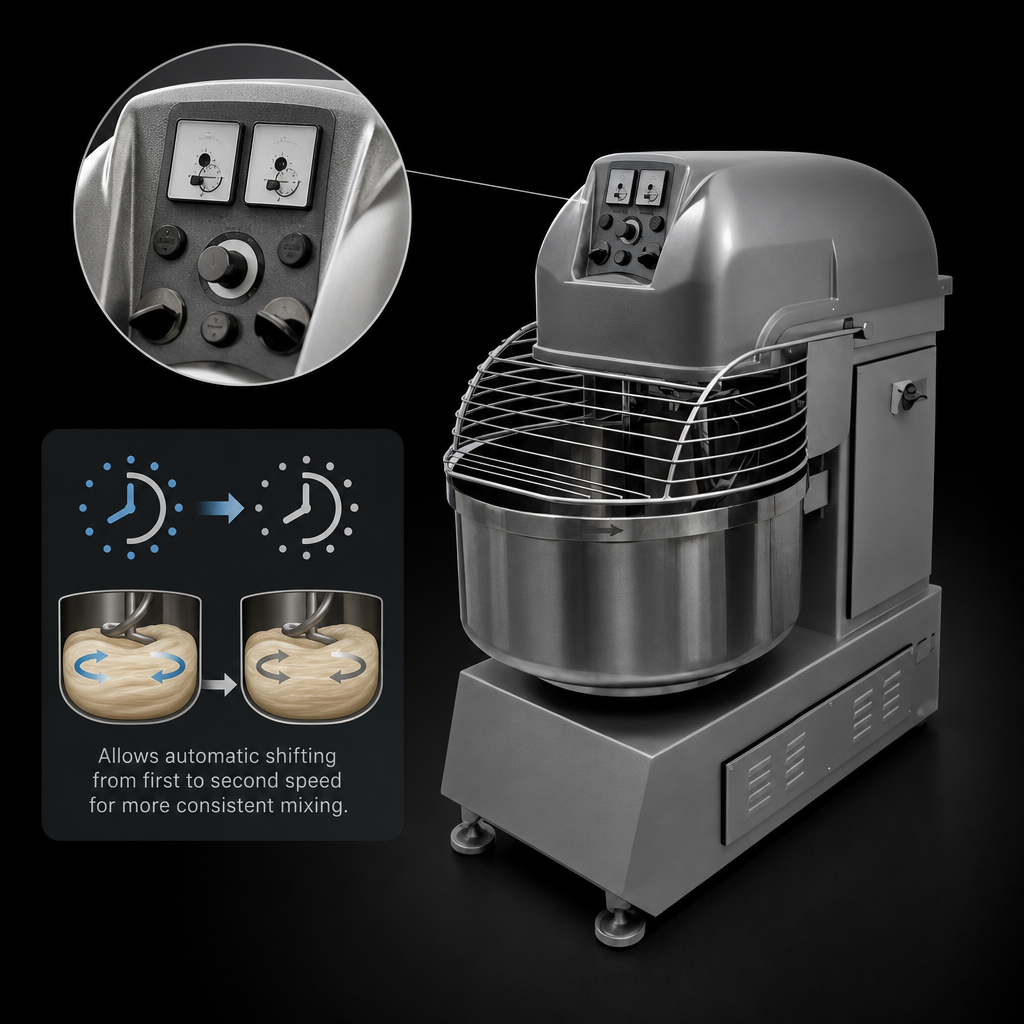

- Two Fixed Speeds – 100 RPM / 200 RPM spiral arm automatically shifts via dual 0-20 min timers.
- Reversible 15 RPM Bowl – Clockwise, counter-clockwise & Jog modes speed up loading and unloading.

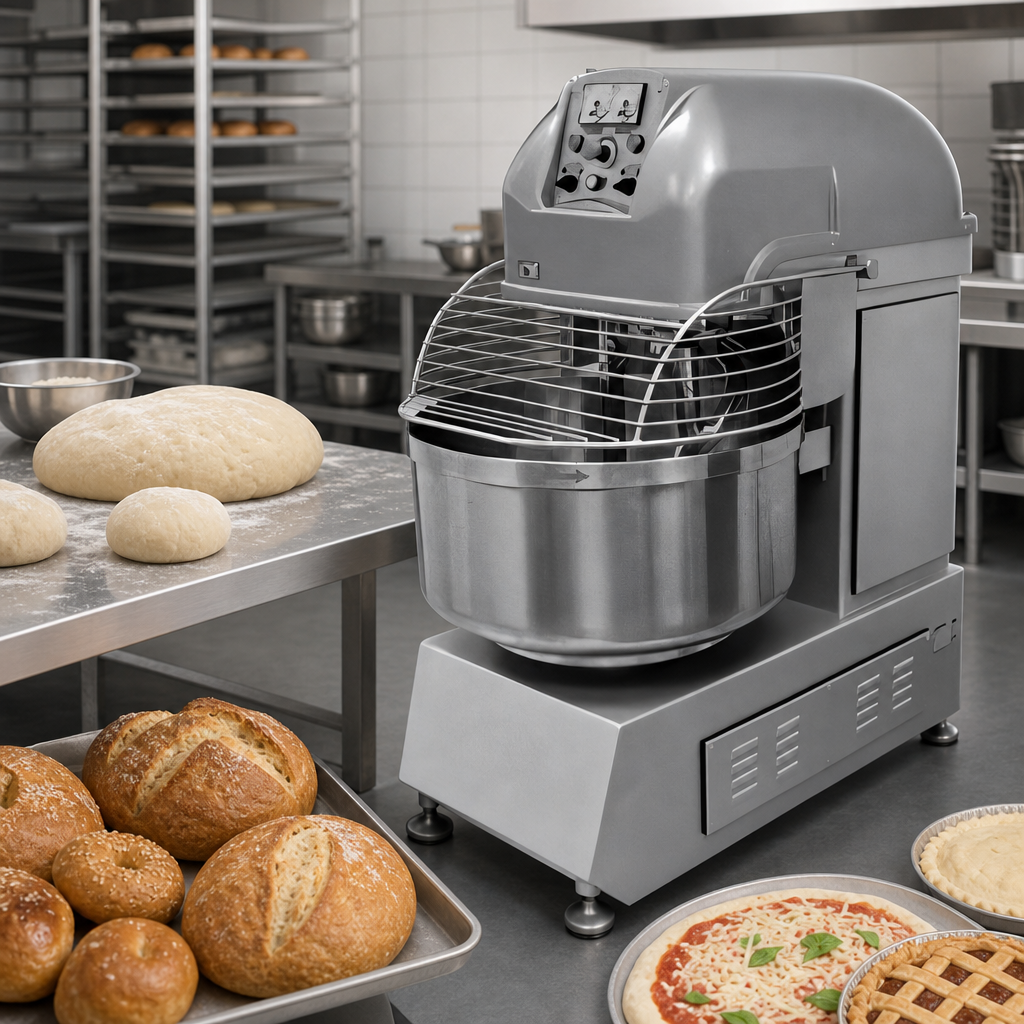

- Built-in Batch Flexibility – Handles dough sizes from 22 lb up to the full 220 lb capacity.
- Operator Safety – Stainless wire-form guard with interlock prevents operation when raised.
- Easy to Move & Level – Heavy-duty front/rear casters plus adjustable stabilizing feet.
- Lasting Construction – Steel body frame, cast-aluminum hood, polished stainless bowl & spiral hook.
- One-Year Warranty – Full coverage on parts, labor & mileage from Hobart Service.
Recommended Dough Capacities
| Product Type | Flour (lbs.) | Final Batch (lbs.) |
|---|---|---|
| Bread Dough, 60 % AR | 120 | 220 |
| Whole-Wheat Dough | 120 | 232 |
| Thin-Crust Pizza, 40 % AR | 75 | 110 |
| Medium Pizza, 50 % AR | 100 | 155 |
| Light Pizza, 60 % AR | 120 | 170 |
| Pie Dough | – | 75 |
| Bagel Dough, 50 % AR | 85 | 120 |
%AR = water weight ÷ flour weight. Capacities based on 12 % flour moisture & 70 °F water. Reduce flour by 25 lb when using water ≤ 55 °F or containing ≥ 25 % ice.
Technical Specifications
| Model | HSL220 |
|---|---|
| Bowl Volume | 170 qt (fixed, stainless steel) |
| Maximum Dough Capacity | 220 lb |
| Spiral Motor | 3.3 / 6.0 HP (speed 1 / speed 2) |
| Bowl Motor | 0.75 HP |
| Spiral Speeds | 100 RPM & 200 RPM |
| Bowl Speed | 15 RPM (reversible) |
| Timer Range | 0–20 min (low) & 0–20 min (high) |
| Electrical | 208 V / 60 Hz / 3 Ph, 34.5 A (field-wired) |
| Dimensions (W×D×H) | 32.8 " × 48.0 " × 70.1 " (833 × 1220 × 1780 mm) |
| Net / Ship Weight | 1,125 lb / 1,215 lb |
| Listings | NSF, ETL (US & C) |
Upgrade your production line with the Hobart HSL220 Spiral Mixer and experience the strength, consistency and reliability that have made Hobart the industry standard for more than a century.
