Hobart HL800C-2STD Food Machines - Mixers Planetary Mixers
Description

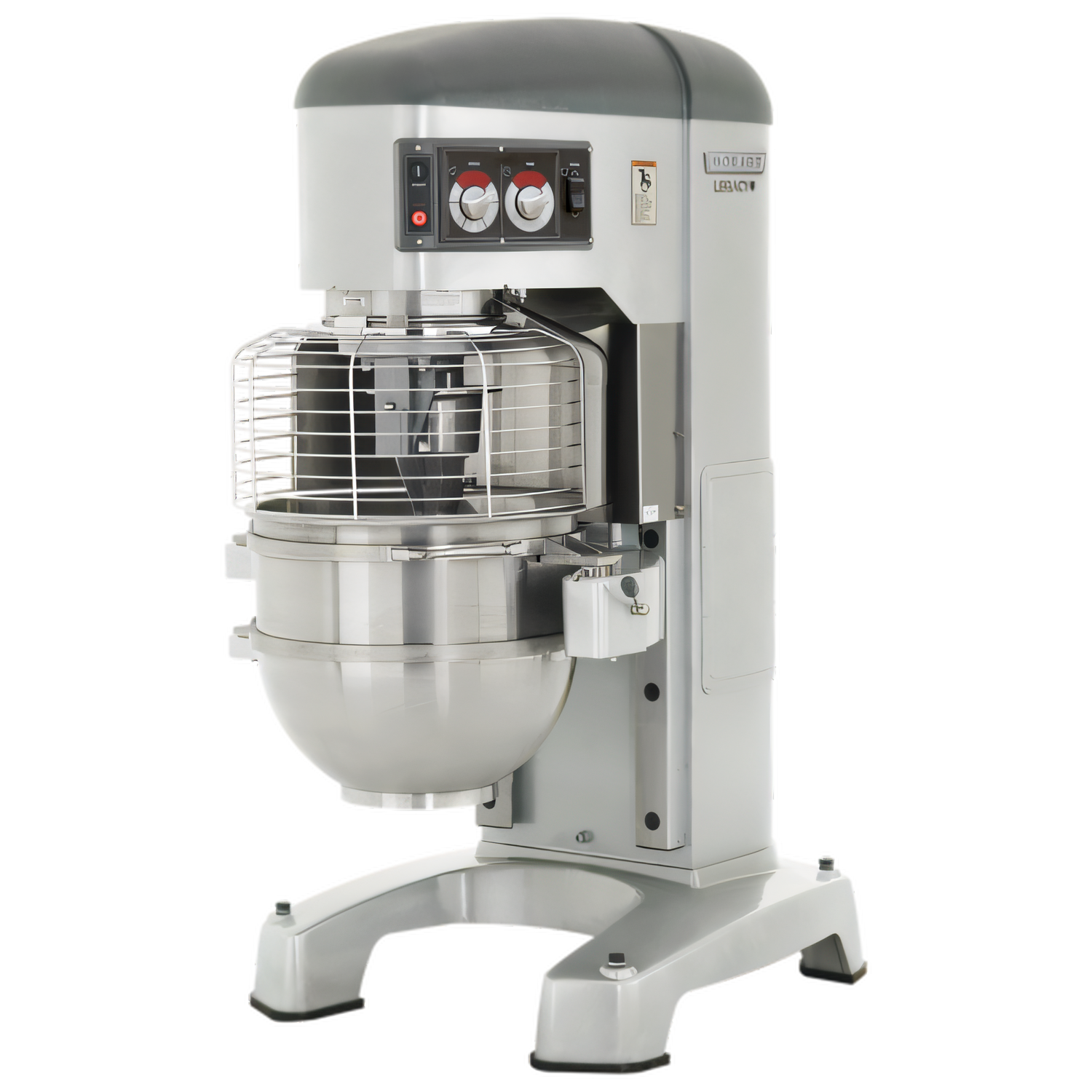

Hobart Legacy+ HL800C 80-Quart Correctional Planetary Mixer
Maximum-security construction. Maximum heavy-duty performance.Engineered for the unique demands of correctional foodservice, the Hobart HL800C combines a rugged 3 HP gear-driven transmission with Hobart’s exclusive PLUS System to deliver consistent, high-volume mixing day in and day out. Four fixed speeds plus a gentle Stir speed, Shift-on-the-Fly™ controls and an ergonomic swing-out bowl give your team the power and flexibility to keep production moving safely and efficiently.
Why the Legacy+ HL800C stands out

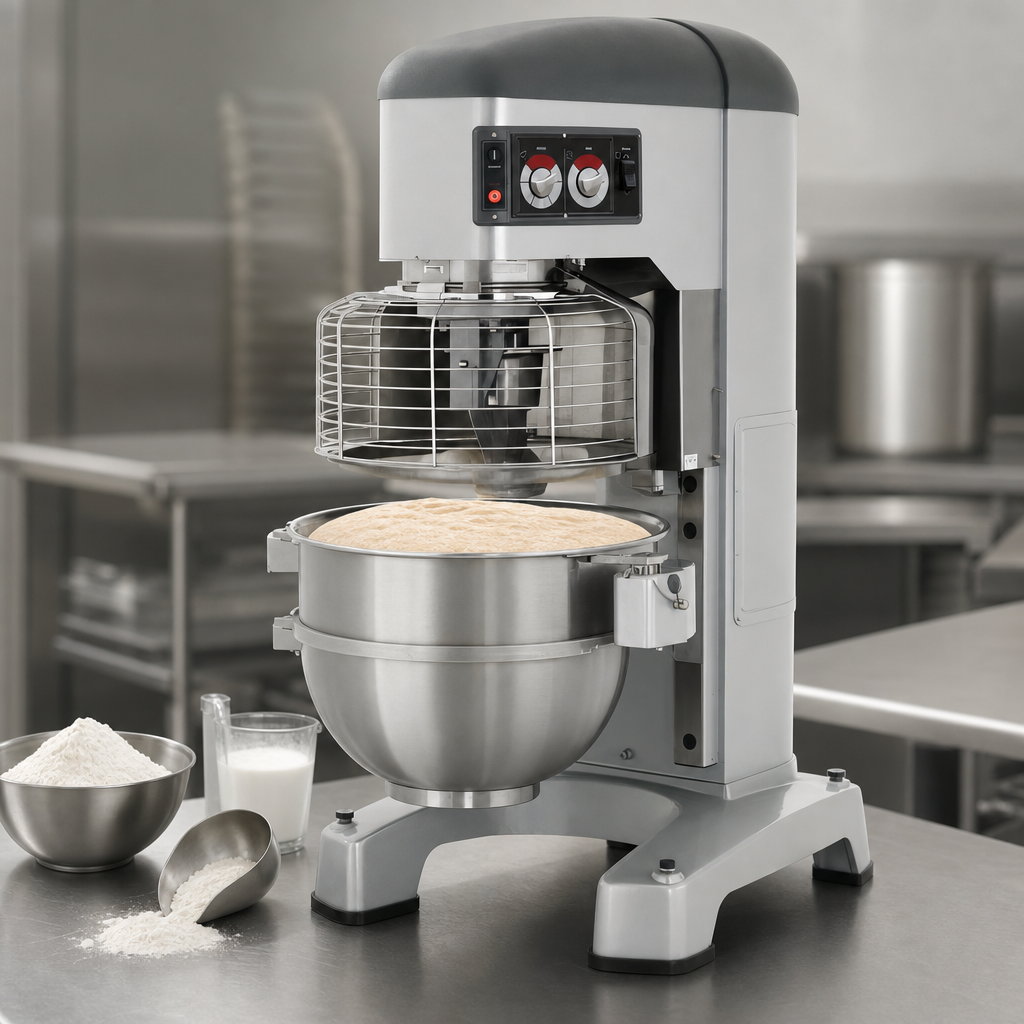

- 80-quart capacity handles up to 170 lb. of medium bread dough or 100 lb. of cake batter in a single batch.
- Heavy-duty 3 HP motor with VFDadvantage variable-frequency drive for superior torque & motor protection.

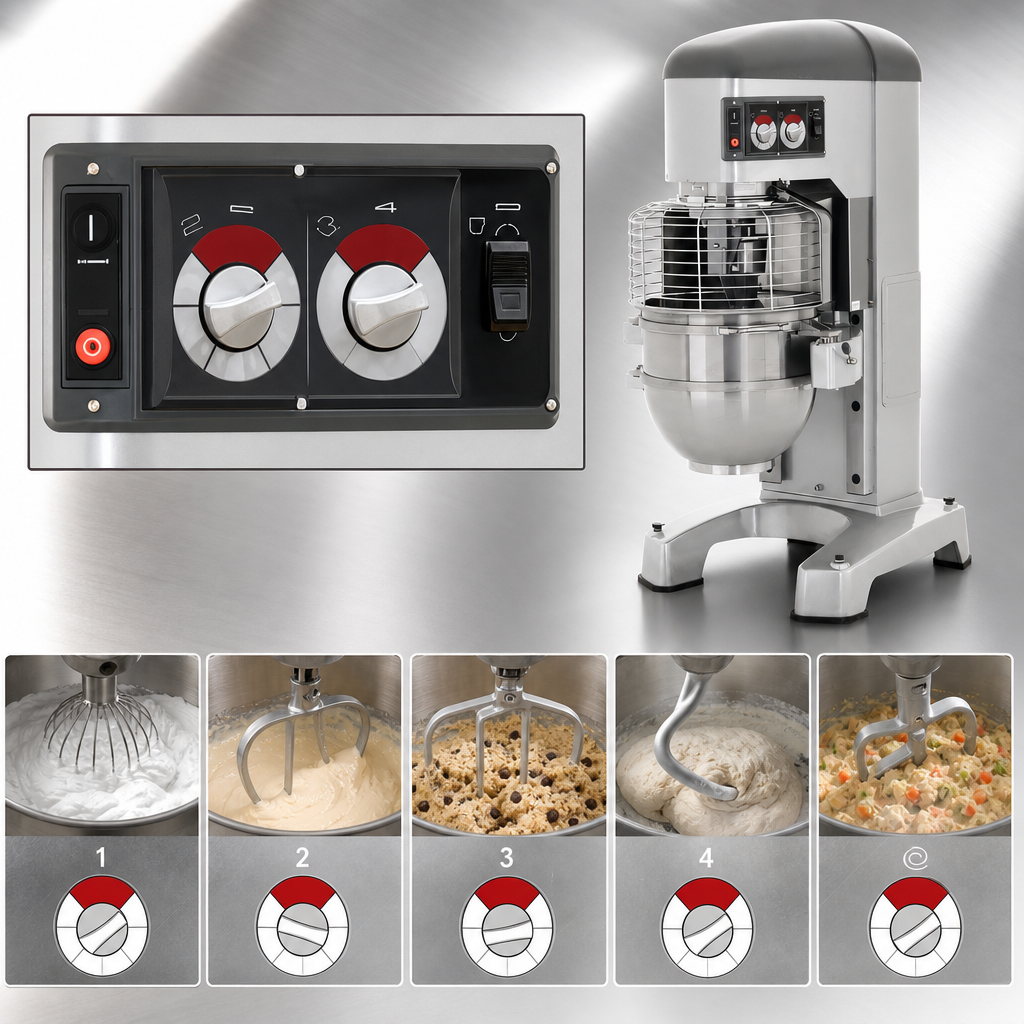

- Four fixed speeds + Stir—change on the fly without stopping the mixer.
- 20-Minute SmartTimer™ with automatic time recall for each speed.
- Power bowl lift raises/lowers the bowl at the touch of a button and includes Stir-on-Lift operation.
- Triple Interlock System with MagnaLock prevents operation until bowl & guard are secured.
- Ergonomic swing-out bowl and single-point installation speed up loading and unloading.
- FastStop brings all moving parts to a complete stop in under three seconds.
- Maximum Security Correctional Package adds tamper-resistant fasteners and security-focused hardware for inmate kitchens.
- Stainless steel bowl guard removes without tools and is dishwasher safe.
- Metallic gray hybrid powder-coat finish resists scratches, chemicals and corrosion.
Included accessory package
- 80-qt stainless steel bowl
- 80-qt “B” flat beater (Quick Release™)
- 80-qt “ED” dough hook (Quick Release™)
- Heavy-duty bowl truck for safe transport
Recommended maximum batch sizes
| Product | HL800C Capacity |
|---|---|
| Egg whites | 2 qt. |
| Mashed potatoes | 60 lb. |
| Whipped cream | 16 qt. |
| Cake batter | 100 lb. |
| Cookies, sugar | 60 lb. |
| Bread / roll dough (60 % AR) | 170 lb. |
| Heavy bread dough (55 % AR) | 140 lb. |
| Thick pizza dough (60 % AR) | 155 lb. |
Capacities based on 70 °F water and 12 % flour moisture. Reduce batch size by 10 % when using high-gluten flour or ice.
Technical specifications
| Motor | 3 HP high-torque, gear driven |
|---|---|
| Speeds (RPM) | Stir 27 • 1st 55 • 2nd 96 • 3rd 183 • 4th 322 |
| Electrical | 380-460 V / 50-60 Hz / 3-phase, 6 A draw |
| Bowl capacity | 80 qt. (7.6 gal / 75.7 L) |
| Overall dimensions* | 25.8 in W × 36.4 in D × 64.6 in H (658 × 925 × 1641 mm) |
| Net weight* | 1,375 lb. (624 kg) including bowl |
| Construction | Cast-iron frame, hybrid powder coat, stainless bowl guard |
| Certifications | NSF, UL Listed |
| Warranty | 1-year parts & labor |
*Refer to spec drawing for full dimensional details.
