Hobart HL800C-1STD Food Machines - Mixers Planetary Mixers
Hobart HL800C-1STD Food Machines - Mixers Planetary Mixers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart HL800C-1STD Food Machines - Mixers Planetary Mixers
Description

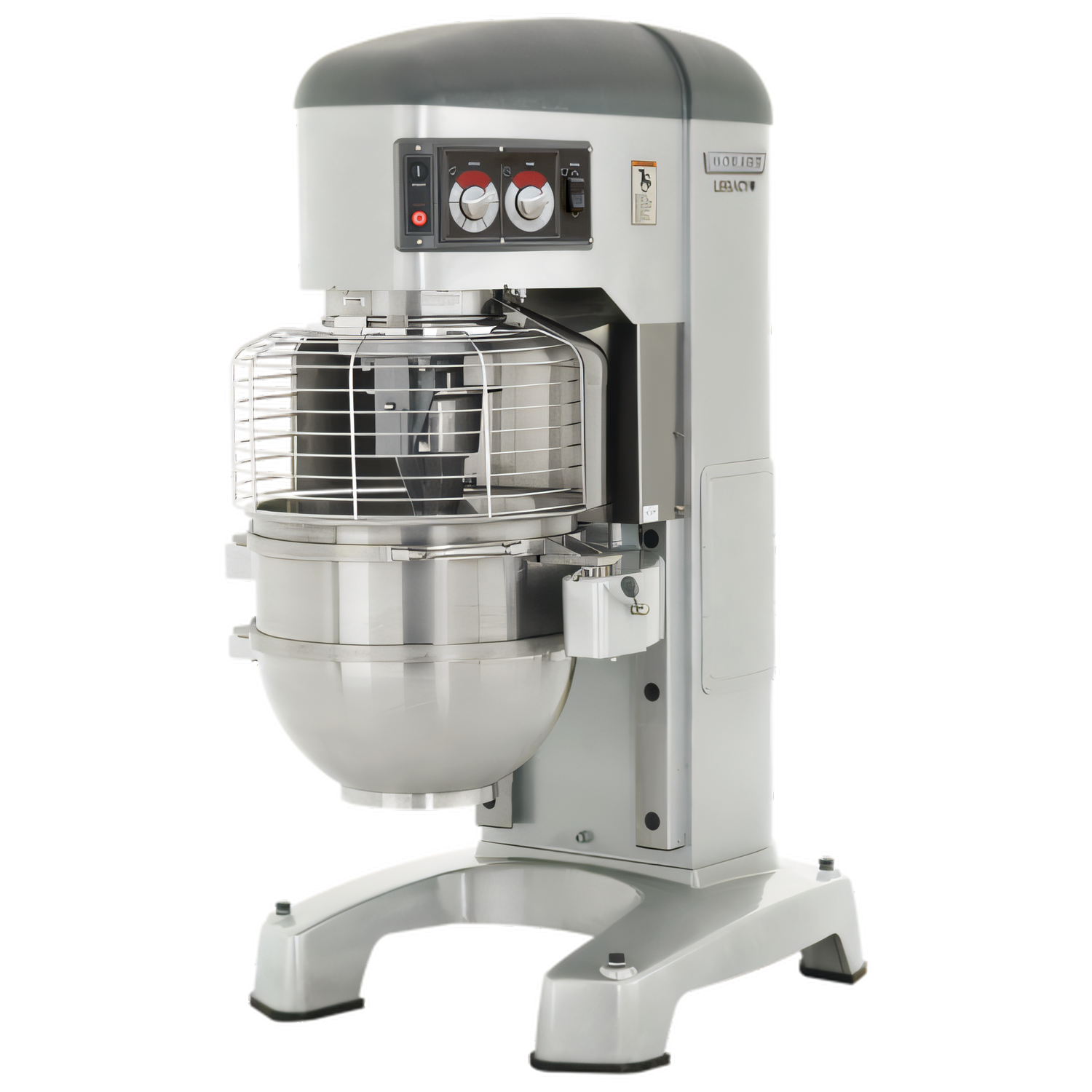

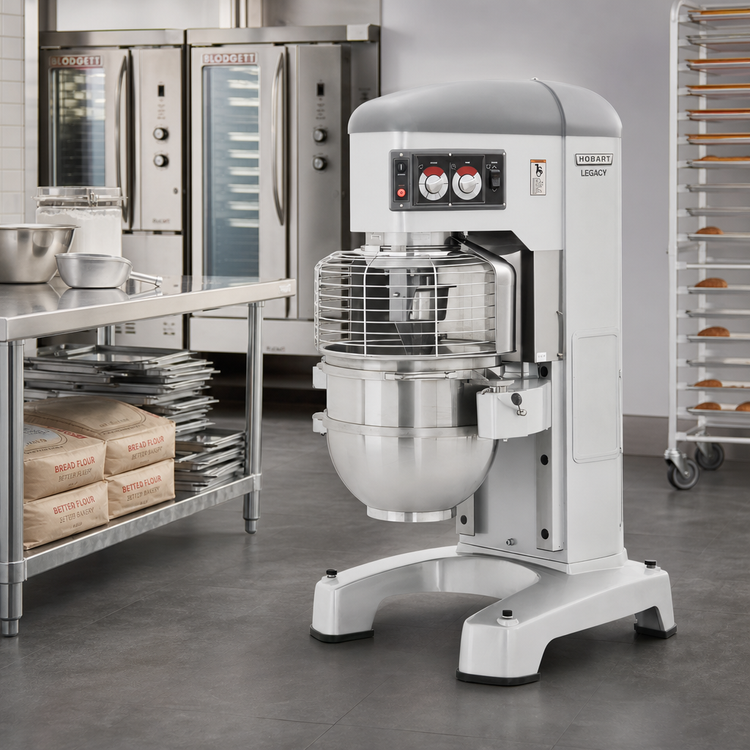

Hobart Legacy+ HL800C 80-Qt Correctional Planetary Mixer

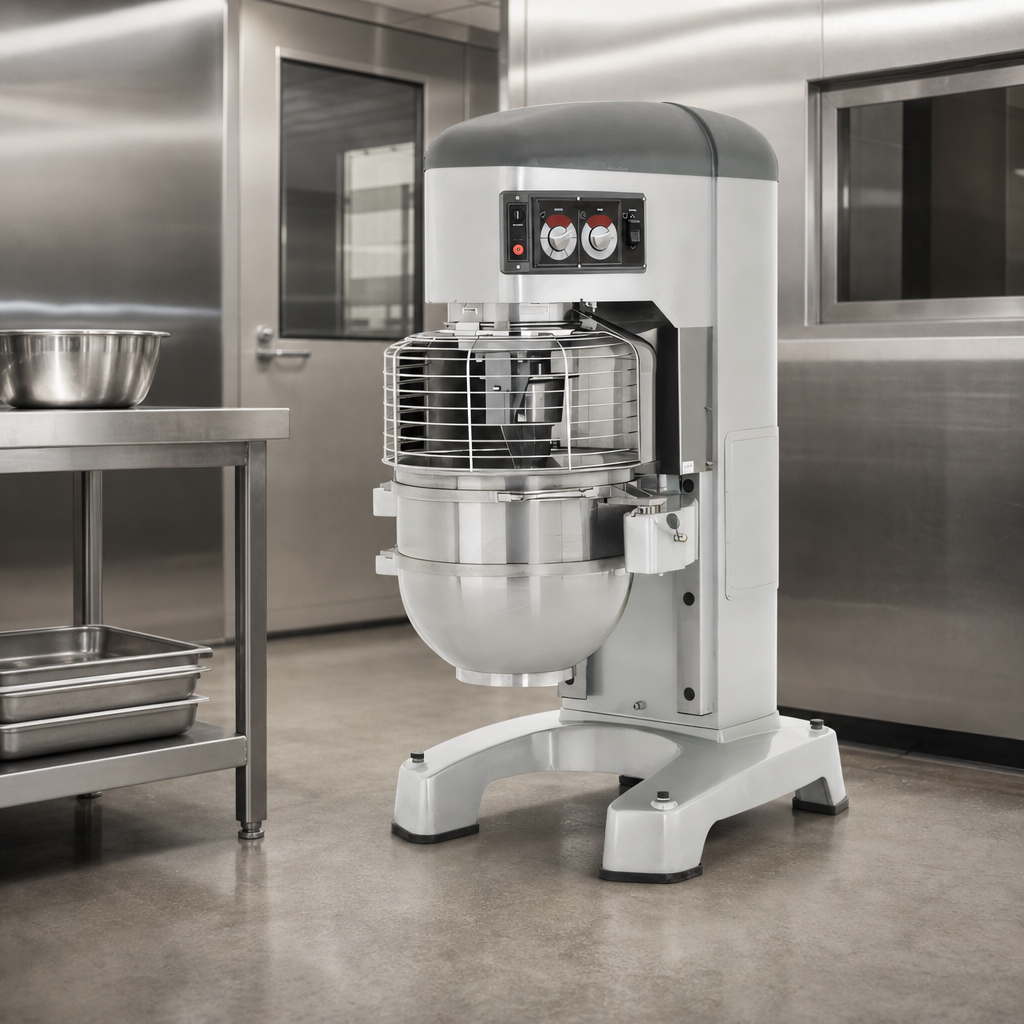

200-240 V / 50-60 Hz / 3-Phase • 3 HP • US Correctional Facility configurationEngineered for the toughest institutional kitchens, the Hobart Legacy+ HL800C combines an ultra-durable 3 HP gear-driven motor with Hobart’s exclusive PLUS System to deliver consistent, high-volume mixing while meeting the rigorous security demands of correctional facilities.
Why You’ll Love It
- Correctional-ready design – tamper-resistant fasteners, heavy-gauge guards and a “no-loose-parts” bowl lift meet maximum-security requirements.

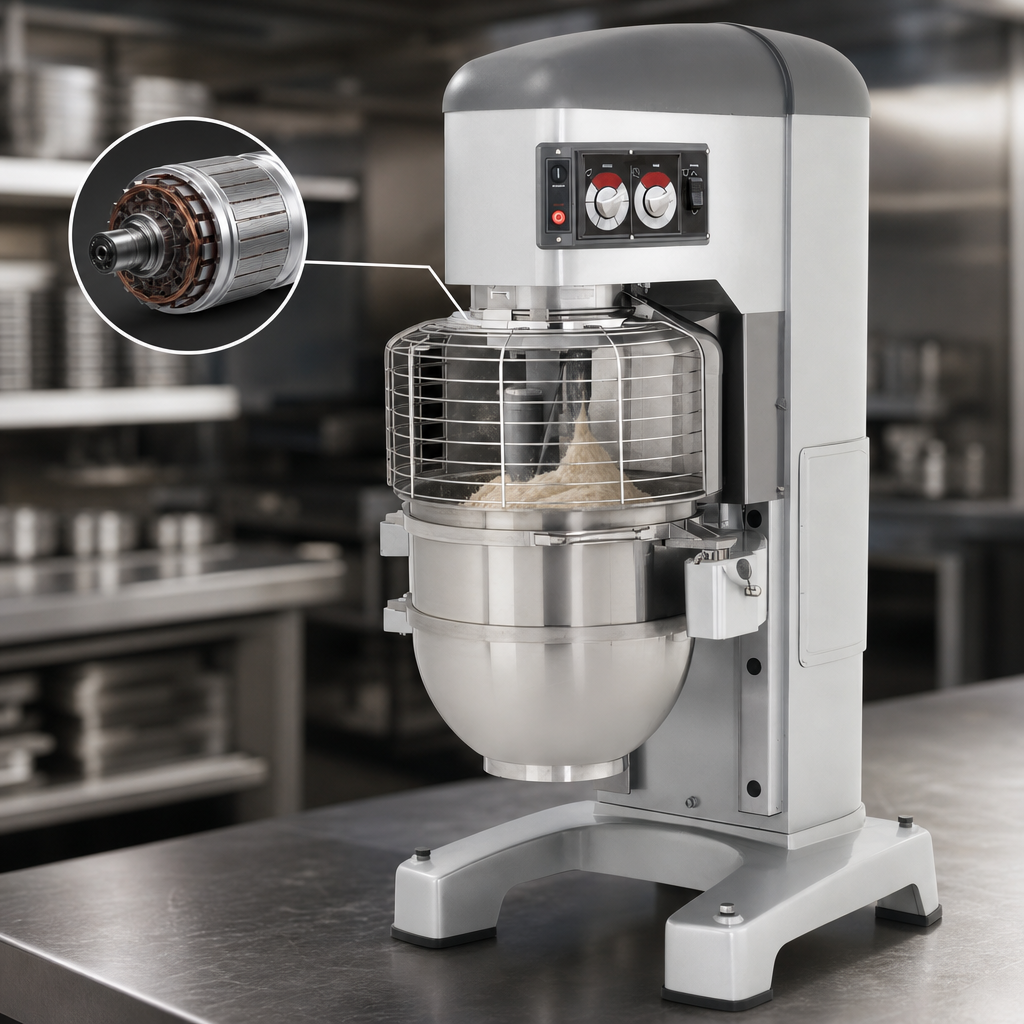

- PLUS System powertrain – VFDadvantage variable-frequency drive delivers full 3 HP torque, motor overload protection and smooth, quiet operation.
- 4 fixed speeds + stir – shift-on-the-fly™ allows speed changes without stopping; soft-start avoids ingredient splash-out.
- 20-Minute SmartTimer™ – automatic time recall remembers the last setting used in each speed to streamline recurring recipes.
- Ergonomic swing-out bowl & single-point mounting make loading, unloading and cleaning fast and safe.
- Triple interlock with MagnaLock® & FastStop halts all moving parts in under 3 seconds if the guard or bowl is not secured.
- Power bowl lift raises the 80-qt bowl into position at the touch of a button—no manual cranking.
- All-stainless contact surfaces – removable bowl guard and 80-qt bowl are stainless steel for simple, NSF-approved sanitising.
Included Accessories
- 80-qt stainless steel bowl (BOWL-HL80)
- Quick Release™ “B” flat beater (BBEATER-HL80)
- Quick Release™ “ED” dough hook (EDDOUGH-HL80)
- Heavy-duty bowl truck for safe transport
Recommended Maximum Batch Sizes*
| Product | Capacity |
|---|---|
| Cakes | 100 lb |
| Sugar cookies | 60 lb |
| Bread / roll dough (60 % AR) | 170 lb |
| Heavy bread dough (55 % AR) | 140 lb |
| Thick pizza dough (60 % AR) | 155 lb |
| Thin pizza dough (40 % AR – 5 min max) | 85 lb |
| Mashed potatoes | 60 lb |
| Whipped cream | 16 qt |
*Based on 70 °F water and 12 % flour moisture. Reduce 10 % when using high-gluten flour.
Technical Specifications
| Model | HL800C (Maximum Security Correctional Package) |
|---|---|
| Motor | 3 HP, high-torque |
| Speeds (Agitator RPM) | Stir 27 • 1st 55 • 2nd 96 • 3rd 183 • 4th 322 |
| Transmission | All-gear, permanently lubricated |
| Electrical | 200-240 V / 50-60 Hz / 3-Ph, 12 A |
| Bowl Capacity | 80 qt (liquid) |
| Construction | Cast-iron base, metallic-gray hybrid powder coat finish |
| Overall Dimensions | 62.8 " H × 42.1 " W × 36.4 " D (159.5 × 106.8 × 92.6 cm) |
| Net Weight | 1,375 lb / 624 kg (with bowl) |
| Certifications | NSF, UL |
| Warranty | 1-year parts, labour & travel |
Need additional agitators or attachments? Contact us for the full line of Hobart-compatible accessories.
