Hobart HL800-70STD Food Machines - Mixers Planetary Mixers
Description

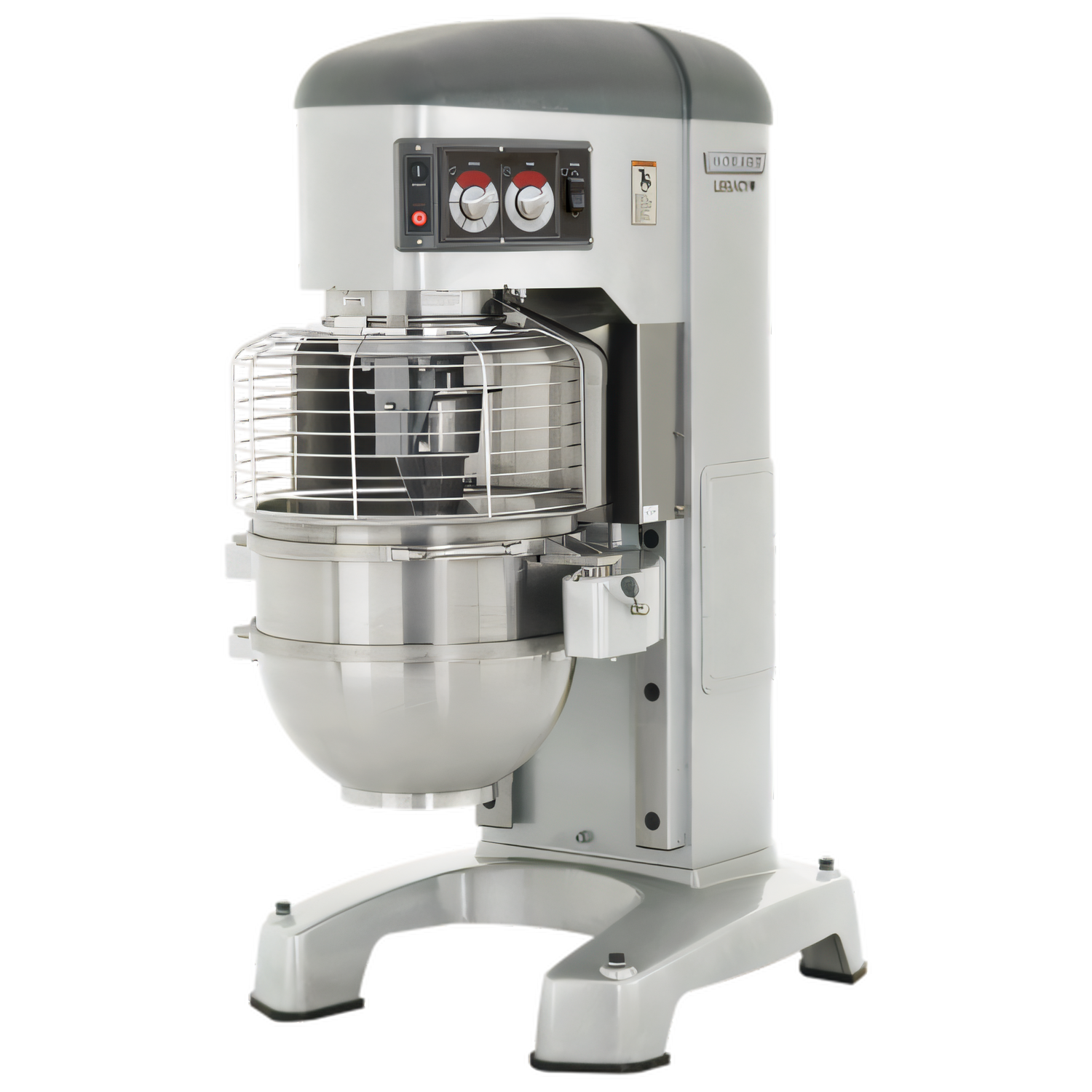

Hobart Legacy+ HL800 80-Quart Planetary Mixer
3 HP • 4 Fixed Speeds + Stir • 400 V / 50 Hz / 3-Ph (CE)Built for the toughest commercial kitchens, the Hobart Legacy+ HL800 offers unrivaled mixing power, precision, and safety. Its heavy-duty 3 HP gear-driven motor and variable-frequency drive keep torque constant through every speed, so you can whip meringue, fold batters, or knead dense dough—all in one machine.
What’s Included
- 80 qt 304-stainless steel bowl
- Quick-Release “B” flat beater
- Quick-Release “D” wire whip
- Quick-Release “ED” dough hook
- Stainless steel removable bowl guard with ingredient chute
Key Features & Benefits
- PLUS System with VFDadvantage – maintains consistent speed under load and protects the motor from overheating.
- 4 fixed speeds + stir – change speeds on the fly without stopping the mixer.
- 20-Minute SmartTimer™ – automatic time recall for repeatable results.
- Ergonomic swing-out bowl & single-point installation – faster loading and unloading.
- Power bowl lift with Stir-on-Lift – smooth, hands-free lifting and splash-free starts.
- Triple-interlock & FastStop – prevents operation unless bowl and guard are secured; stops moving parts in <3 sec.
- Soft-Start agitation – minimizes ingredient splash-out on start-up.
- Durable metallic-gray powder-coat finish and open-base design for easy cleanup.
Typical Mixing Capacities*
| Product | Maximum Batch Size |
|---|---|
| Bread / roll dough (60 % AR) | 170 lb / 77 kg |
| Heavy bread dough (55 % AR) | 140 lb / 64 kg |
| Cake batter | 100 lb / 45 kg |
| Mashed potatoes | 60 lb / 27 kg |
| Whipped cream | 16 qt / 15 L |
| Egg whites | 2 qt / 1.9 L |
*Capacities based on 70 °F water and 12 % flour moisture. Reduce batch size 10 % when using high-gluten flour or ice.
Technical Specifications
| Bowl capacity | 80 qt (75.7 L) |
|---|---|
| Motor | 3 HP high-torque |
| Speeds (RPM) | Stir 27 • 1st 55 • 2nd 96 • 3rd 183 • 4th 322 |
| Transmission | Gear-driven, variable-frequency direct drive |
| Electrical | 400 V / 50 Hz / 3-Ph (CE) |
| Controls | Start/Stop & Power Lift buttons, 20-min SmartTimer™ |
| Overall dimensions (H × W × D) | 64.6″ × 36.5″ × 29.0″ (164 × 93 × 74 cm) |
| Net weight | 1,375 lb / 624 kg (with bowl) |
| Certifications | NSF, CE, UL |
| Warranty | 1-year parts & labor |
Looking for extra bowls, scrapers, or hub attachments? Explore the full line of Legacy+ accessories to expand your mixer’s capabilities.
