Hobart HL800-1 Food Machines - Mixers Planetary Mixers
Description

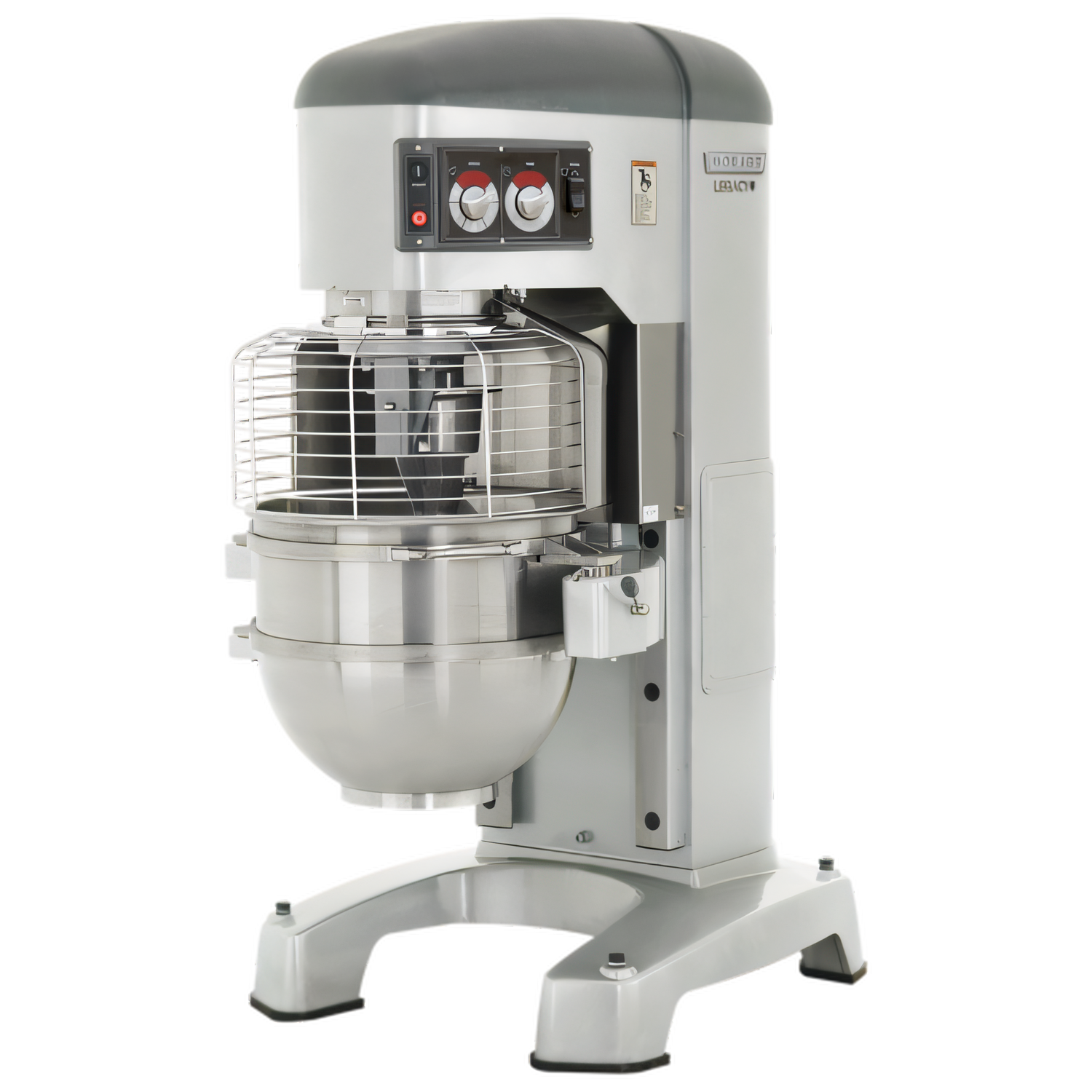

Hobart Legacy+ HL800 80-Quart Planetary Mixer – Base Unit
3 HP | 4 Fixed Speeds + Stir | Gear-Driven | 200-240 V / 50-60 Hz / 3-PhEngineered for the toughest, highest-volume mixing jobs, the Hobart HL800 delivers the industry’s only “Maximum Heavy-Duty” performance in an 80-quart footprint. Whether you’re turning out bagels before sunrise or cake batter before lunch, the Legacy+ PLUS System keeps production moving with more power, more protection, and more capacity than conventional mixers.
Why chefs choose the HL800

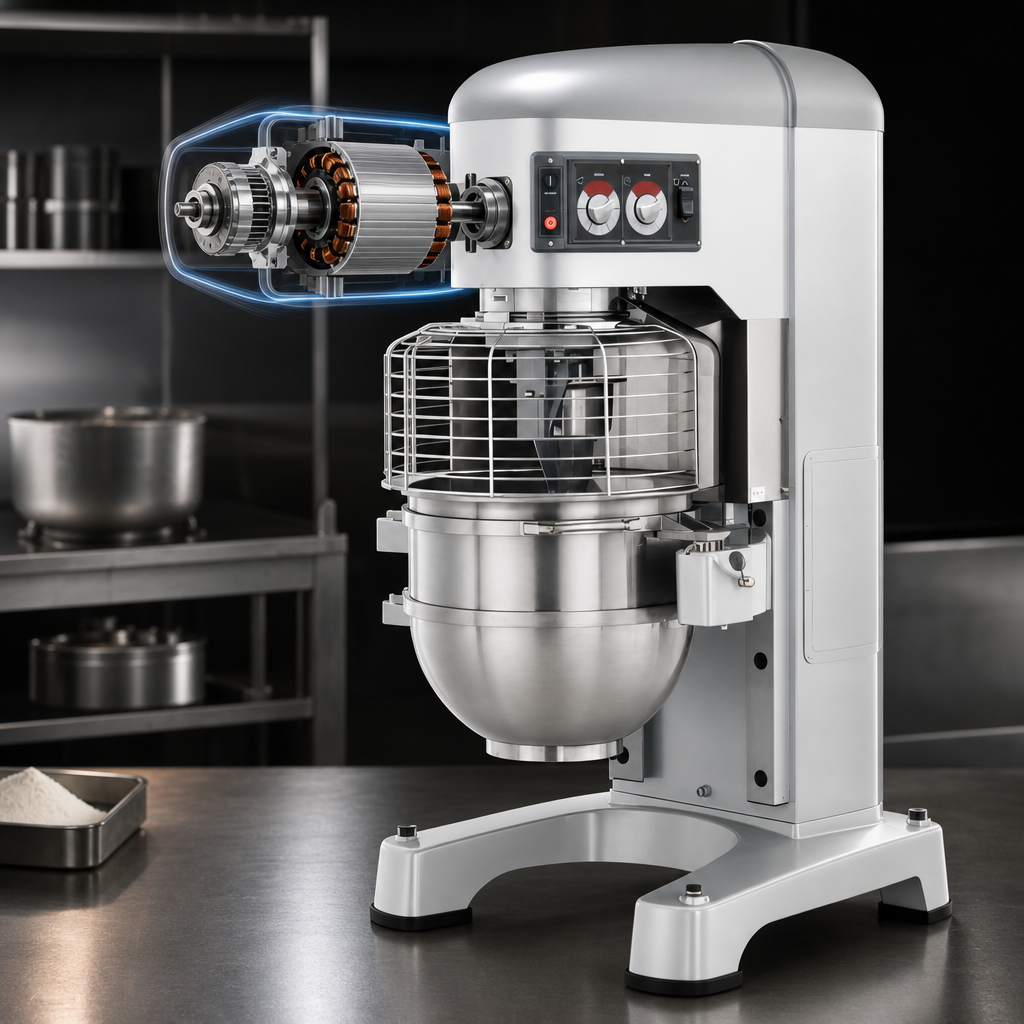

- 3 HP Variable Frequency Motor with VFDadvantage for rock-solid power and speed consistency.
- Four fixed speeds + Stir let you shift-on-the-fly™ without stopping the agitator.
- Reinforced all-gear transmission stands up to heavy doughs and continuous production.
- 20-Minute SmartTimer™ with automatic time recall for repeatable results batch after batch.
- Power bowl lift & ergonomic swing-out bowl simplify loading, unloading and sanitation.
- Triple-Interlock & MagnaLock® bowl guard prevent operation unless everything is locked in place.
- Soft-Start agitation technology reduces splash-out and ingredient loss.
- FastStop brings moving parts to a complete stop in under three seconds for operator safety.
- Open base & hybrid powder-coat finish for easy floor cleaning and long-lasting good looks.
Recommended batch capacities*
| Product | Agitator | Max Batch |
|---|---|---|
| Egg whites | D Wire Whip | 2 qt |
| Mashed potatoes | B Beater / C Wing Whip | 60 lb |
| Whipped cream | D or C Whip | 16 qt |
| Cake batter | B Beater | 100 lb |
| Cookies, sugar | B Beater | 60 lb |
| Bread dough (60 % AR) | ED Dough Hook | 170 lb |
| Heavy bread (55 % AR) | ED Dough Hook | 140 lb |
| Thick pizza (60 % AR) | ED Dough Hook | 155 lb |
*Capacities based on 70 °F water, 12 % flour moisture. Reduce 10 % when using high-gluten flour or ice.
Technical specifications
| Model | HL800 Legacy+ (base unit, no attachments) |
|---|---|

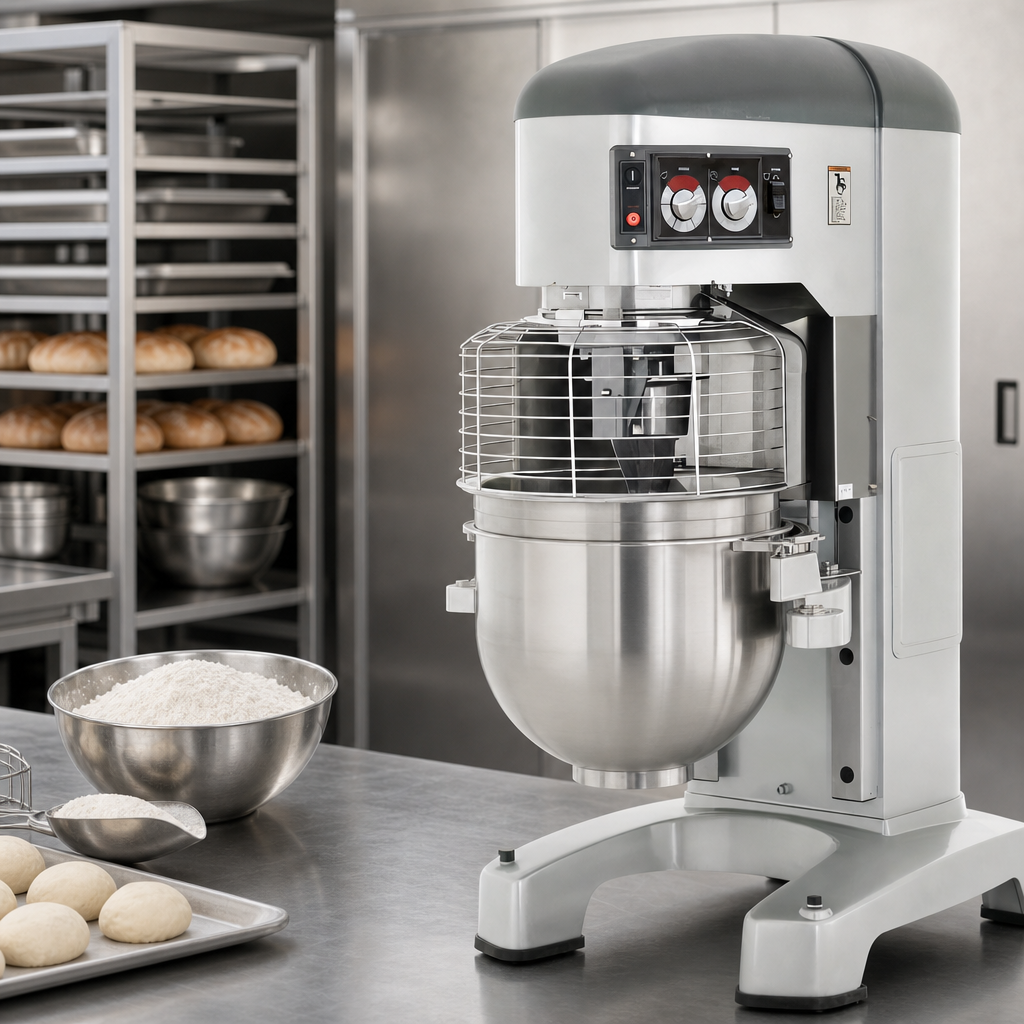

| Bowl size | 80 qt (single-point, swing-out) |
| Speeds (RPM) | Stir 27 | 1st 55 | 2nd 96 | 3rd 183 | 4th 322 |
| Motor | 3 HP high-torque, gear-driven |
| Controls | Start/Stop & Power-Lift push buttons, 20-min SmartTimer™ with auto recall |
| Electrical | 200-240 V / 50-60 Hz / 3-Ph, 12 A (hard-wire connection recommended) |
| Construction | Cast-iron body, hybrid powder-coat finish, stainless steel removable bowl guard |
| Overall dimensions | 62.8″ H × 36.4″ W × 34.6″ D (159.5 × 92.5 × 88 cm) |
| Net weight | 1,375 lb (624 kg) including bowl |
| Certifications | NSF, UL (US & Export configuration) |
| Warranty | 1-year parts & labor |
Popular accessories (sold separately)
- 80-qt stainless steel bowl (BOWL-HL80)
- Quick-Release™ agitators – B Flat Beater, D Wire Whip, ED Dough Hook, C Wing Whip, P Pastry Knife, I Heavy-Duty Whip
- Bowl scraper & ingredient chute
- Lexan splatter shield
- Bowl truck for safe transport
- Stainless bowl extension ring
Ready to grow? Add Hobart Quick-Release agitators anytime—no tools required—to tailor the HL800 to your exact menu.
