Hobart HL400C-1STD Food Machines - Mixers Planetary Mixers
Description

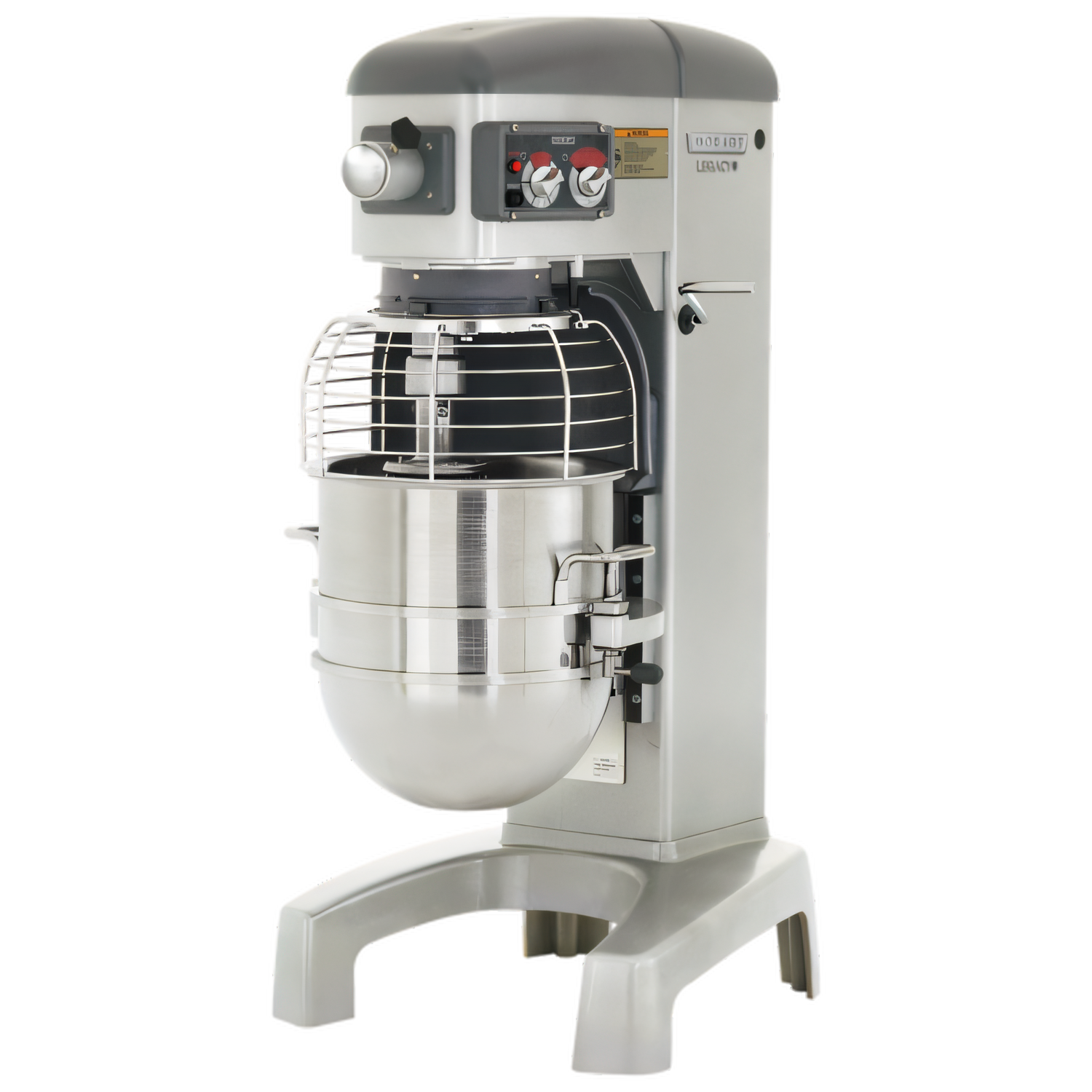

Legacy+ HL400C 40-Quart Correctional Planetary Mixer
Hobart | 200-240 V / 50-60 Hz / 3-Phase | UL (U.S. Correctional Facility)Engineered for maximum security kitchens, the Hobart Legacy+ HL400C delivers the legendary strength of the Legacy+ platform with tamper-resistant hardware and lockable controls that meet stringent correctional-facility requirements. A powerful 1.5 HP gear-driven transmission, three fixed speeds and Hobart’s PLUS System guarantee consistent, high-volume production while the ergonomic swing-out bowl and SmartTimer™ make operation fast and fool-proof.
Why you’ll love it
- Heavy-duty 1.5 HP motor with VFDadvantage variable-frequency drive—full torque at any speed.
- PLUS System adds maximum-capacity overheat protection and a reinforced planetary shaft for unrivaled durability.
- Three fixed speeds (low, intermediate, high) optimized for breads, doughs, batters and more.
- SmartTimer™ 20-minute digital timer with automatic time recall boosts batch-to-batch consistency.
- Manual bowl lift & ergonomic swing-out bowl speed up loading and unloading—no heavy lifting.
- Stainless-steel removable bowl guard with triple-interlock MagnaLock technology—meet NSF sanitation and operator-safety codes.
- Correctional package: lockable controls and tamper-resistant fasteners, knobs and handles prevent unauthorized access.
- #12 taper hub accepts Hobart VS9 vegetable slicers, grinders and more (sold separately).
- Included agitators: 40 qt stainless bowl, “B” flat beater, “D” wire whip & “ED” dough hook with quick-release connection.
- Metallic gray hybrid powder-coat finish resists corrosion and cleans up easily.
Mix with confidence
- Pizza dough (60 % AR): up to 45 lb
- Bread or roll dough (60 % AR): up to 45 lb
- Cake batter: up to 40 lb
- Mashed potatoes: up to 30 lb
- Whipped cream: up to 9 qt
Capacities based on 70 °F water and 12 % flour moisture. Reduce batch size 10 % when using high-gluten flours or ice.
Technical specifications
| Capacity | 40 qt (37.9 L) |
|---|---|
| Motor | 1.5 HP high-torque, gear-driven |
| Speeds (Agitator RPM) | Low 96 • Intermediate 179 • High 319 |
| Electrical | 200-240 V, 50/60 Hz, 3-Ph, 5.6 A (hard-wire connection recommended) |
| Timer | 20-minute SmartTimer™ with automatic recall |
| Attachment Hub | #12 taper |
| Bowl Lift | Manual, self-locking (top & bottom) |
| Construction | Metallic gray hybrid powder coat; stainless-steel bowl & guard |
| Overall Dimensions (W × D × H) | 23.0 in × 30.9 in × 49.8 in (58.5 cm × 78.4 cm × 126.5 cm) |
| Net / Shipping Weight | 387 lb / 453 lb (175.5 kg / 205.5 kg) |
| Certifications | UL (US Corrections), NSF |
What’s in the box
- 40-qt stainless-steel bowl (BOWL-HL40)
- “B” flat beater (BBEATER-HL4030)
- “D” wire whip (DWHIP-HL4030)
- “ED” dough hook (EDDOUGH-HL40SS)
- Owner’s manual
Backed by Hobart’s full 1-year parts, labor and mileage warranty. Extended service contracts available.
