Description

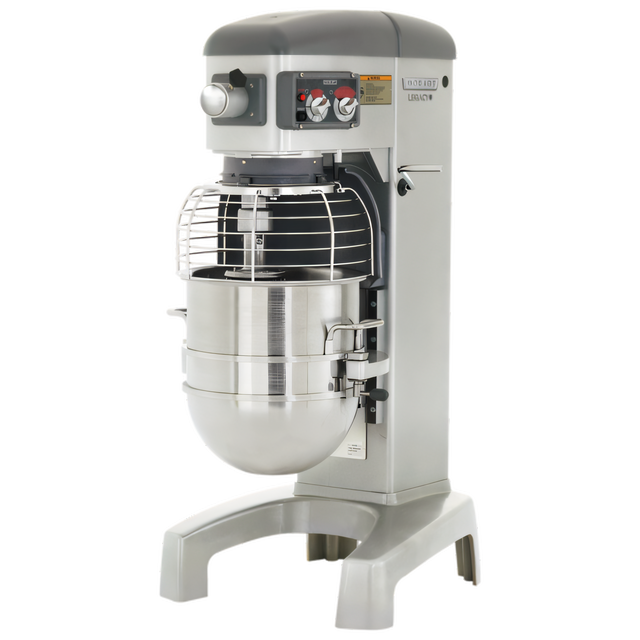

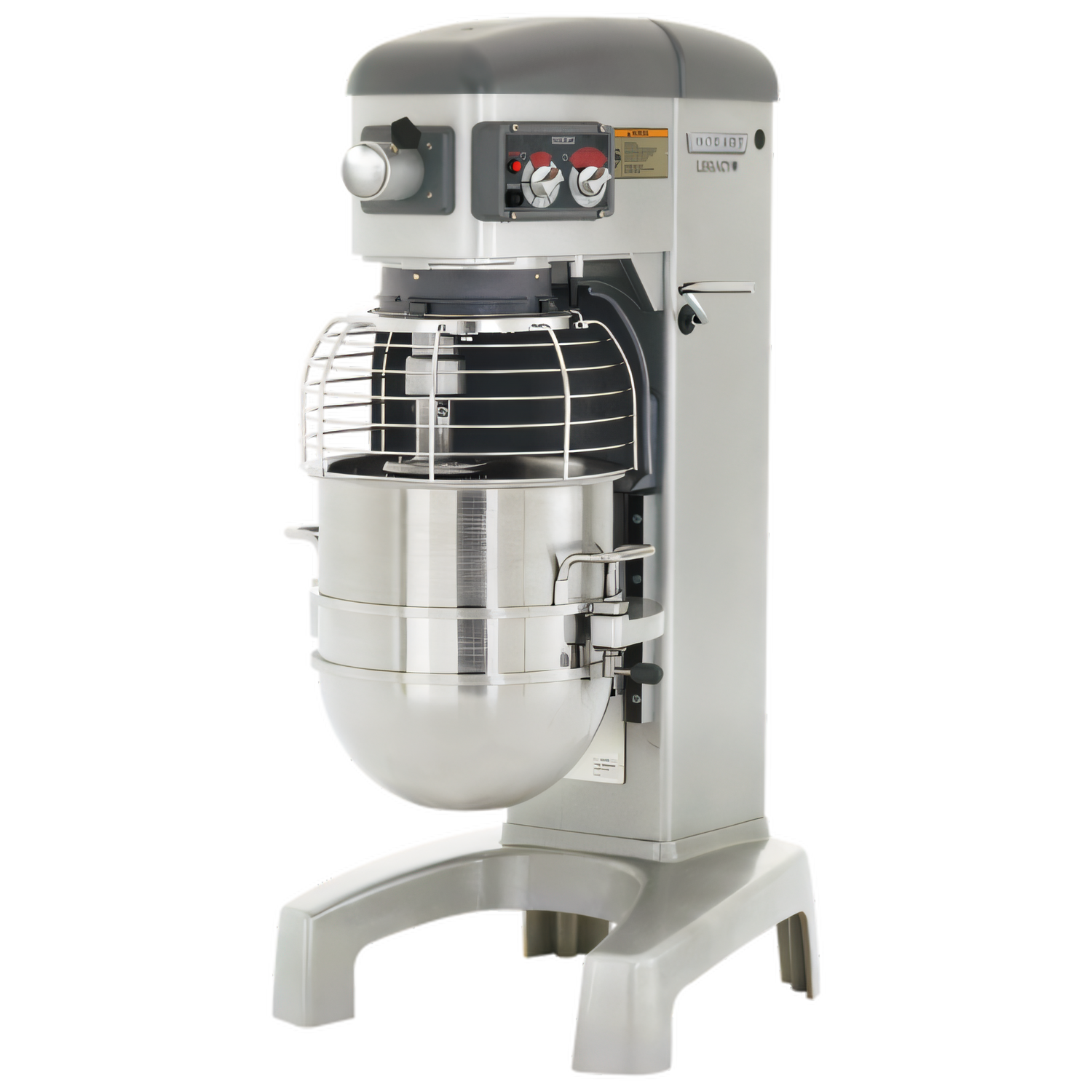

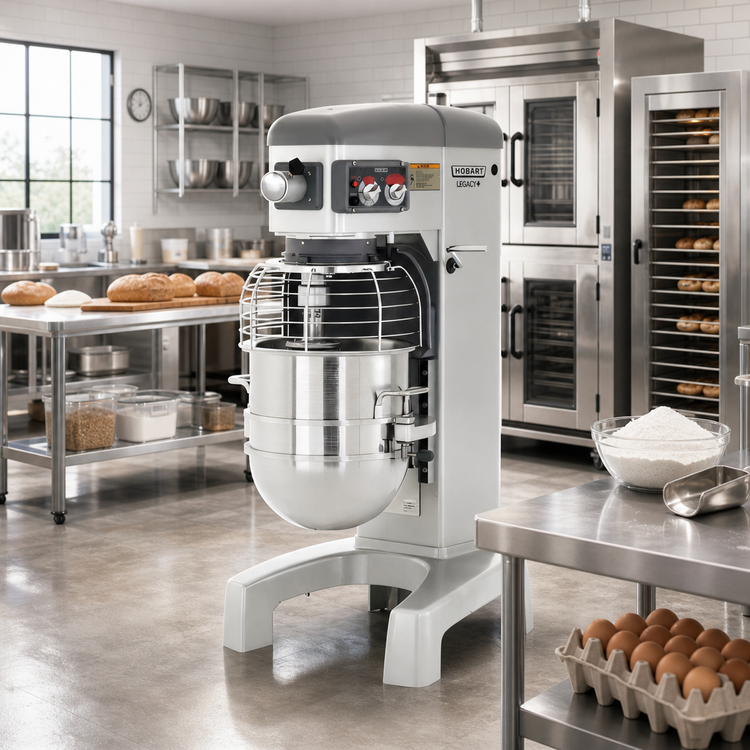

Hobart Legacy+ HL400 40-Quart Planetary Mixer

Includes Bowl, “B” Beater, “D” Wire Whip & “ED” Spiral Dough Arm

Built for busy kitchens that refuse to compromise, the HL400 delivers Hobart’s renowned durability, precision and operator-focused design in a space-saving 40-quart footprint. A 1½-horsepower variable-frequency drive powers through everything from airy meringue to 45 lb. heavy pizza dough, while smart controls keep every batch consistent.

Key advantages
  • PLUS System with VFDadvantage maintains full torque under load and protects the motor from overheating.
  • Three fixed speeds plus dedicated stir speed—no belt changes required.
  • Shift-on-the-Fly™ lever lets you change speeds while mixing.
  • 20-minute SmartTimer™ automatically recalls the last time set for each speed.
  • Ergonomic swing-out bowl and single-point installation speed up loading and unloading.
  • Stainless steel removable bowl guard detaches in seconds for dish-machine cleaning.

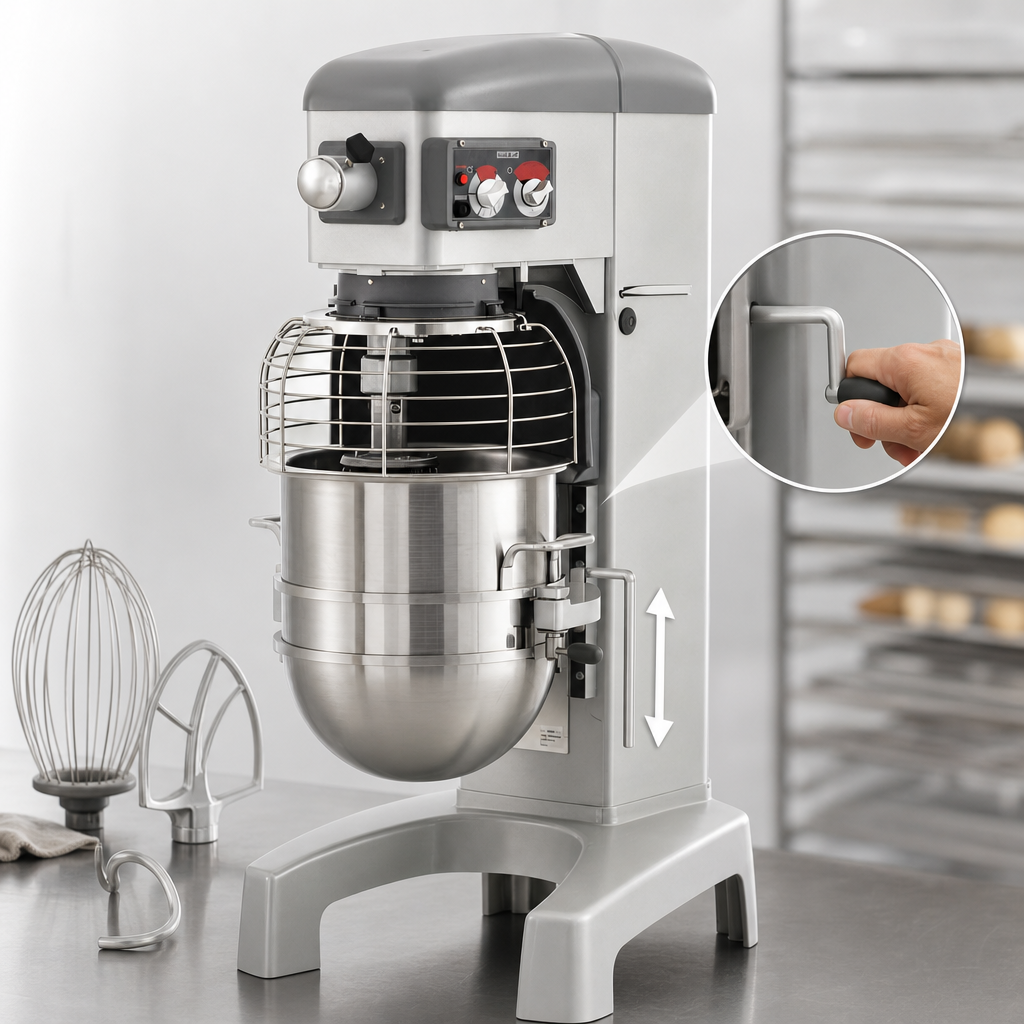

  • Manual bowl lift locks in top and bottom positions for added safety.
  • Front-mounted #12 attachment hub accepts slicer, shredder & meat-chopper accessories (sold separately).
What’s in the box
  • 40 qt. stainless steel bowl (BOWL-HL40)
  • Quick Release™ “B” flat beater (BBEATER-HL4030)
  • Quick Release™ “D” wire whip (DWHIP-HL4030)
  • Quick Release™ “ED” spiral dough arm (EDDOUGH-HL40SS)
Typical batch capacities
Whipped cream 9 qt.
Mashed potatoes 30 lb.
Sugar cookies 30 lb.
Bread dough (60 % AR) 45 lb. • 1st speed, “ED” arm
Thick pizza dough (60 % AR) 45 lb.
Thin pizza dough (40 % AR) 25 lb. • max 5 min. mix
Technical specifications
Model HL400 Legacy+
Capacity 40 qt. (38 L)

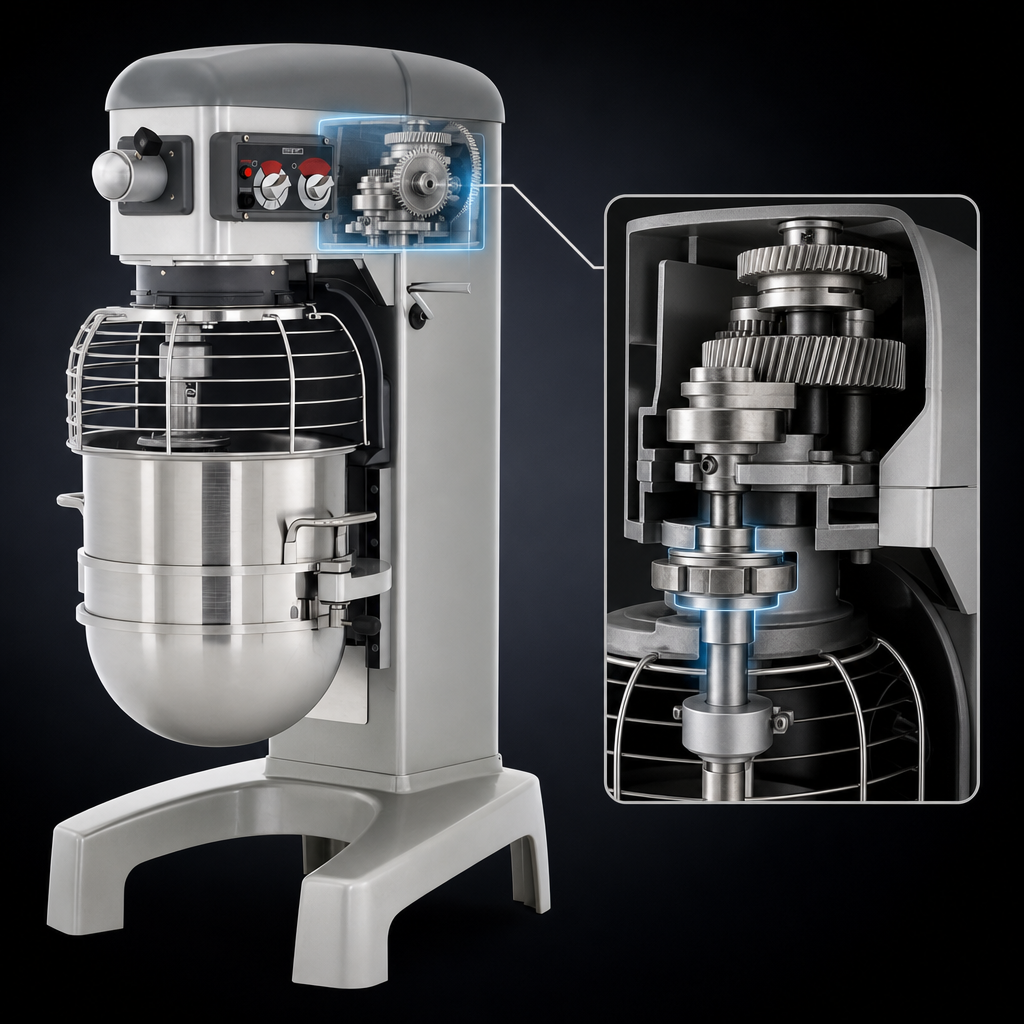

Motor 1.5 HP high-torque, gear-driven
Speeds (Agitator / Attachment RPM) Stir 58 / 34 • Low 96 / 56 • Med 179 / 104 • High 319 / 185
Electrical 200–240 V • 50/60 Hz • 1-Phase • 9.3 A (hard-wire connection recommended)
Timer 20-min SmartTimer™ with automatic recall
Dimensions (W × D × H) 24.1″ × 23.0″ × 49.8″ (61.3 × 58.5 × 126.5 cm)
Net weight 387 lb. (175.5 kg) without bowl
Warranty 1 year parts, labor & travel—Hobart factory service
Popular accessories (sold separately)
  • Splash cover – SPLASH-LEX040
  • Bowl scraper – SCRAPER-HL40
  • Ingredient chute – CHUTE-HL4030
  • VS9 vegetable slicer & shredder plates
  • #12 meat chopper attachment
  • Bowl truck – TRUCK-HL4030 for effortless mobility
Important: Never use the #12 attachment hub while the agitator is mixing. Reduce batch size by 10 % when using high-gluten flour or ice to protect the motor and ensure product quality.

Features & Specs

Manufacturer

Hobart

Brand_name

Food Machines - Mixers

Shipping Weight

453.0lbs

Attachments

bowl guard, bowl, beater, whip, hook

Hub size

#12 hub

Type

floor model

Timer

with timer

Bowl Capacity

30 - 40 quart

Speed

3-speed

Specifications

200-240/50/60/1 Mixer; with bowl, beater, whip & spiral dough arm; US/EXP configuration - Legacy Planetary Mixer, 1.5 hp, 40 quart capacity, (3) fixed speeds, gear-driven transmission, 20 minute timer, #12 taper attachment hub, manual bowl lift, bowl guard, stainless steel bowl, "B" beater, "D" whip, "ED" dough hook
