Hobart HL400-4 Food Machines - Mixers Planetary Mixers
Description

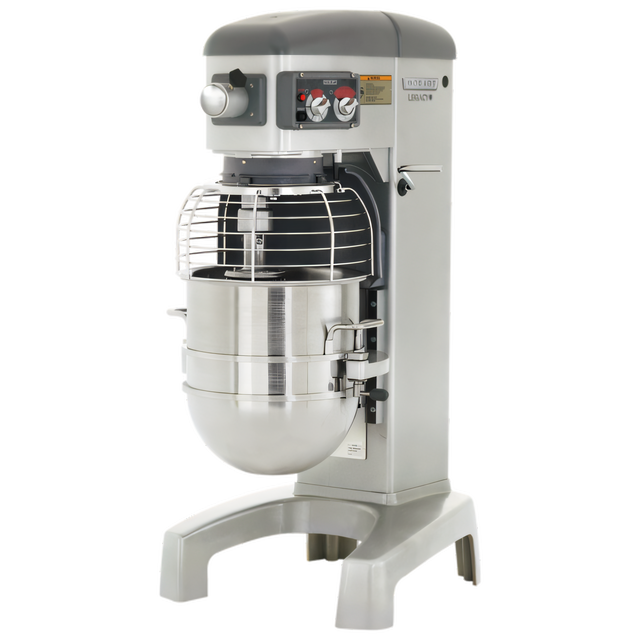

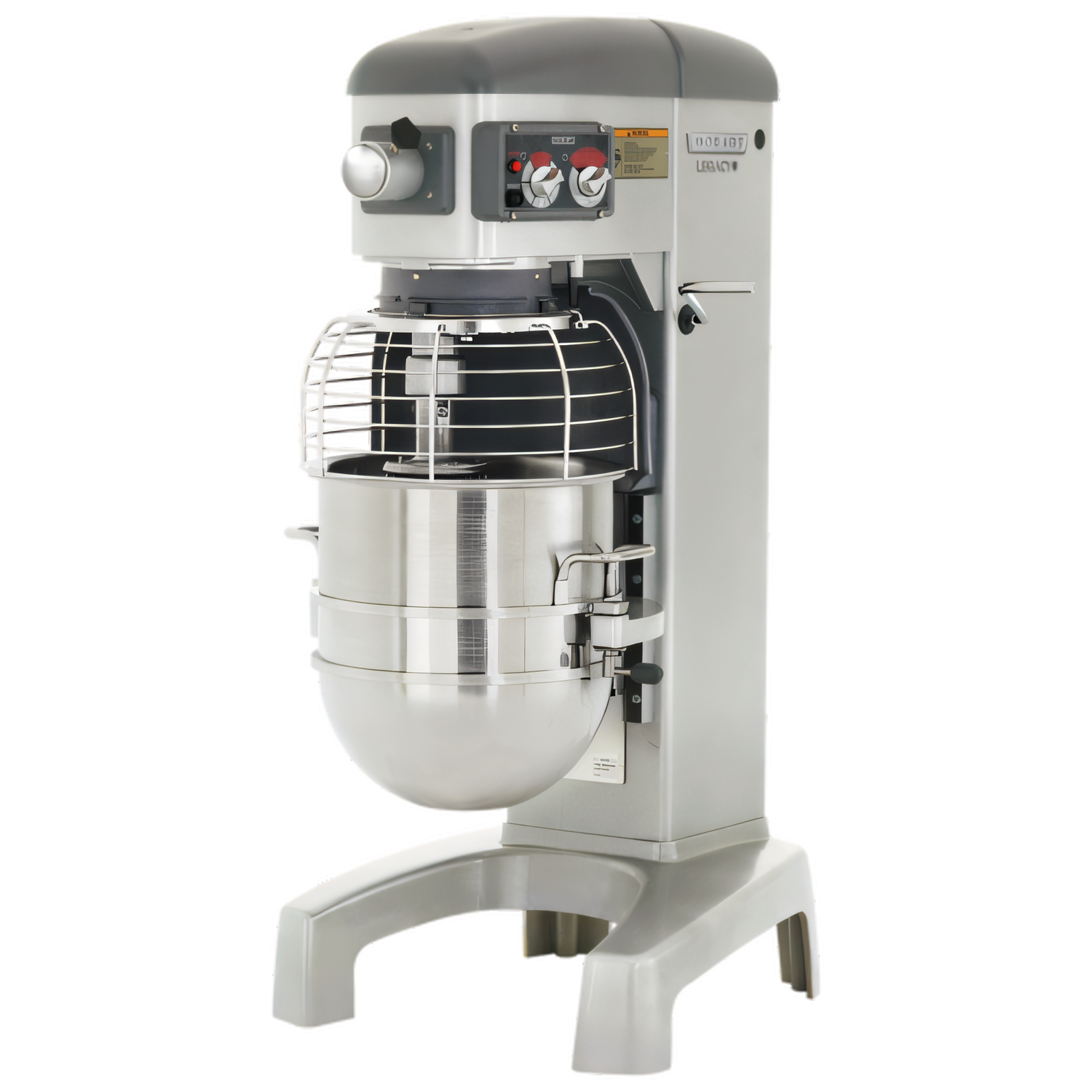

Hobart Legacy+ HL400 40-Quart Planetary Mixer – Unit Only
Maximum Heavy-Duty Mixer | 1.5 HP | 200-240 V, 50/60 Hz, 1-PhThe Hobart HL400 Legacy+ is engineered for kitchens that run hard every day. Its high-torque, gear-driven 1.5 HP motor teams with Hobart’s exclusive PLUS System to give you up to 30 % more mixing capacity and rock-solid reliability. From delicate meringues to 45-pound dough batches, you’ll turn out consistent results—faster and with less operator fatigue.
Why you’ll love it
- PLUS System – VFDadvantage variable-frequency drive, reinforced planetary shaft and maximum-capacity overheat protection for unmatched power and longevity.
- Heavy-duty 1.5 HP motor with all-gear, direct-drive transmission—no belts to slip, stretch or replace.
- 3 fixed speeds + stir speed with Shift-on-the-Fly™ control—change speeds without stopping the batch.
- 20-minute SmartTimer™ remembers the last time set for each speed—perfect repeatability.
- Triple-interlock MagnaLock bowl guard and bowl-support interlock keep operators safe.
- Swing-out bowl & manual lift reduce heavy lifting and speed ingredient additions.
- #12 taper hub accepts Hobart vegetable slicers, meat choppers and more (attachments sold separately).
- Dishwasher-safe stainless-steel bowl guard and corrosion-resistant powder-coat finish for easy cleaning.
Recommended batch sizes
| Product | Max Batch | Agitator* |
|---|---|---|
| Cakes | 40 lb | B Flat Beater |
| Sugar cookies | 30 lb | B Flat Beater |
| Mashed potatoes | 30 lb | B Beater / C Wing Whip |
| Whipped cream | 9 qt | D Wire Whip |
| Egg whites | 1 ¾ qt | D Wire Whip |
| Bread / roll dough 60 % AR | 45 lb | ED Dough Hook |
| Thick pizza dough 60 % AR | 45 lb | ED Dough Hook |
| Thin pizza dough 40 % AR† | 25 lb | ED Dough Hook |
*Agitators and bowl are not included with this configuration.
†5-minute maximum mix time for 40 % absorption dough.
Technical details
| Capacity | 40 qt (liquid) |
|---|---|
| Motor | 1.5 HP high-torque, totally-enclosed |
| Planetary speeds (RPM) | Stir 58 | Low 96 | 2nd 179 | 3rd 319 |
| Transmission | All-gear, constant-mesh, grease-lubricated |
| Electrical | 200-240 V, 50/60 Hz, 1-Ph, 9.3 A |
| Timer | 0–20 min SmartTimer™ with auto recall |
| Bowl lift | Manual, self-locking (top & bottom) |
| Dimensions (W × D × H) | 24.1 × 26.4 × 49.8 in (612 × 671 × 1265 mm) |
| Net weight | 387 lb (175.5 kg) – without bowl |
| Certifications | cULus, NSF |
| Warranty | 1-year parts & labor |
Popular add-ons (sold separately)
- 40 qt stainless-steel bowl (BOWL-HL40)
- Quick-Release™ agitators: B Beater, D Wire Whip, ED Dough Hook, C Wing Whip, P Pastry Knife
- Ingredient chute kit (CHUTE-HL4030) for mess-free additions
- VS9 vegetable slicer or 12TIN-C meat chopper for the #12 hub
- Bowl scraper, splash cover, bowl truck & stainless-steel feet
