Hobart HL400-2STD Food Machines - Mixers Planetary Mixers
Description

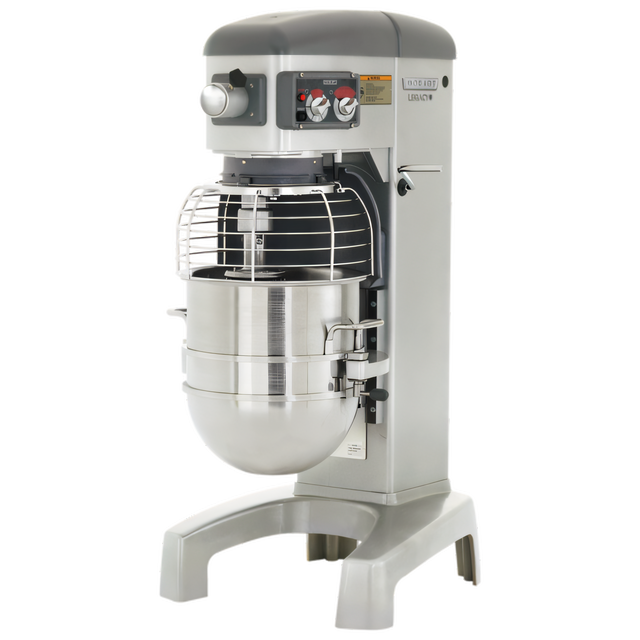

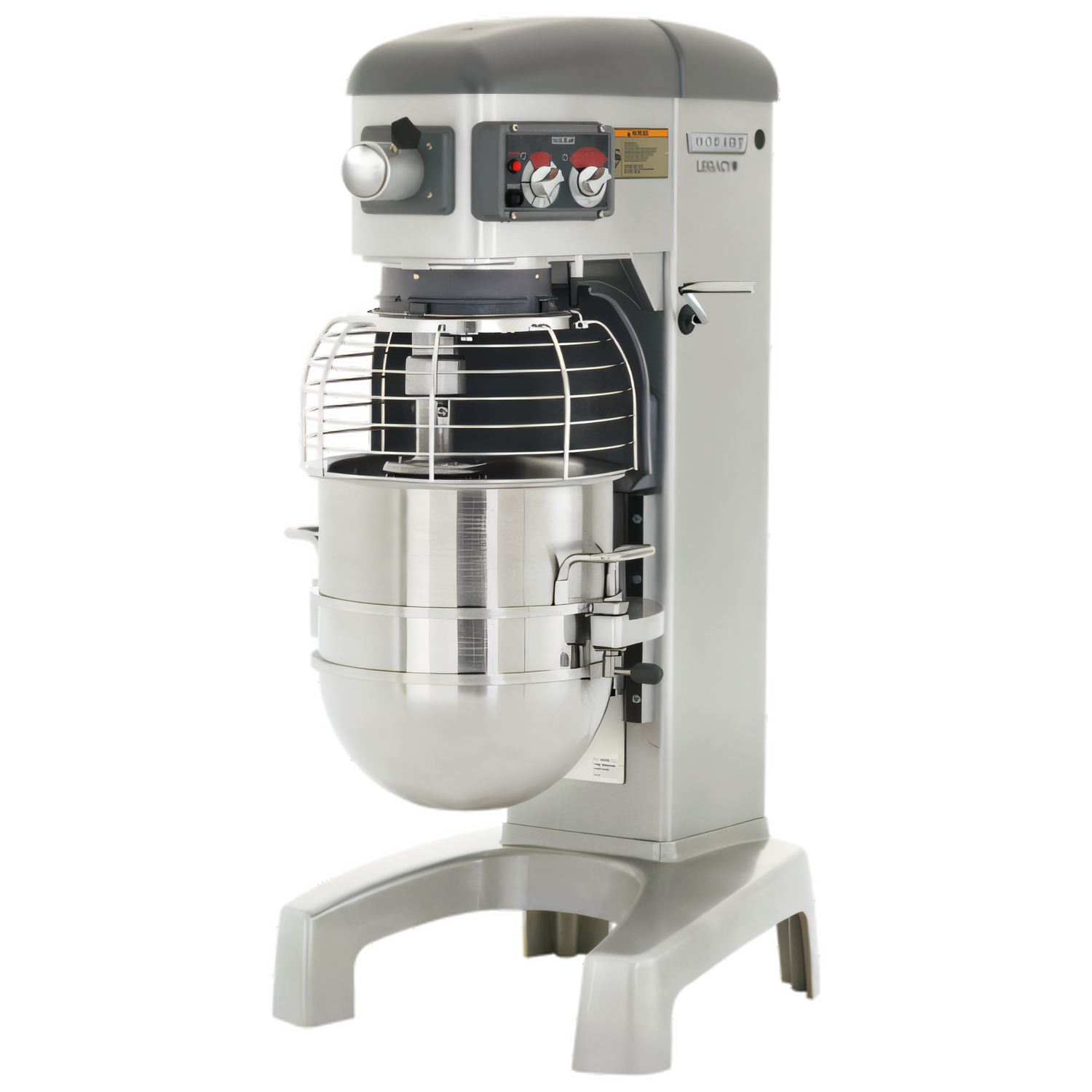

Hobart Legacy+ HL400 40-Quart Heavy-Duty Planetary Mixer
380-460 V / 50-60 Hz / 3-Phase – Includes bowl, “B” beater, “D” whip & “ED” spiral dough armBuilt for bakeries, restaurants and high-volume kitchens that refuse to compromise on consistency, the Hobart HL400 Legacy+ gives you 40 quarts of maximum heavy-duty mixing power in a surprisingly operator-friendly footprint. From delicate whipped cream to stiff pizza dough, the PLUS System’s variable-frequency, gear-driven drive delivers the torque, precision and protection today’s food-service operations demand.
Why you’ll love the Legacy+ HL400
- 1.5 HP, all-gear transmission handles dense doughs without stalling.
- PLUS System with VFDadvantage ensures superior speed accuracy & motor protection.
- Three fixed speeds + dedicated stir speed—change on the fly without stopping.
- Soft-Start technology minimizes ingredient splash-out at start-up.
- 20-minute SmartTimer™ with automatic time recall for repeatable results.
- Ergonomic swing-out bowl and single-point installation simplify loading & unloading.
- Triple-interlock bowl guard with MagnaLock ™ keeps operators safe & productive.
- #12 attachment hub expands capability for slicers, grinders and more.
- NSF & UL listed; metallic-gray hybrid powder-coat resists corrosion and cleans fast.
What’s in the box
- 40-qt 304-stainless steel bowl
- Quick-Release™ 40-qt “B” flat beater (aluminum)
- Quick-Release™ 40-qt “D” wire whip (stainless)
- Quick-Release™ 40-qt “ED” dough hook (aluminum spiral arm)
- Removable stainless steel bowl guard
- Manual bowl-lift with rubber foot pads
Recommended batch capacities
| Product | Agitator | Max. Batch |
|---|---|---|
| Egg whites | D Whip | 1¾ qt |
| Mashed potatoes | B Beater / C Wing Whip | 30 lb |
| Cookies, sugar | B Beater | 30 lb |
| Cake batter | B Beater | 40 lb |
| Pizza dough 40 % AR (≤ 5 min) | ED Hook | 25 lb |
| Pizza dough 60 % AR | ED Hook | 45 lb |
| Bread dough 60 % AR | ED Hook | 45 lb |
AR = Absorption Ratio (water ÷ flour). If using high-gluten flour, reduce batch size by 10 %.
Technical specifications
| Motor | 1.5 HP high-torque, variable-frequency |
|---|---|
| Speeds (agitator rpm) | Stir 58 • 1st 96 • 2nd 179 • 3rd 319 |
| Bowl capacity | 40 qt (liquid) |
| Electrical | 380-460 V / 50-60 Hz / 3 Ph, 2.7 A (hard-wire) |
| Dimensions (W × D × H) | 23″ × 24.1″ × 49.8″ (584 × 612 × 1 265 mm) |
| Net weight | 387 lb (175.5 kg) – without bowl |
| Finish | Metallic gray hybrid powder coat |
| Attachment hub | #12 taper – do not use while mixing |
| Warranty | 1-year parts, labor & travel |
Popular accessories (sold separately)
- Ingredient chute – CHUTE-HL4030
- Bowl splash cover – SPLASH-LEX040
- Bowl scraper – SCRAPER-HL40
- 9″ VS9 vegetable slicer hub attachment
- #12 meat-chopper attachment – 12TIN-C/EPAN
- Bowl truck – TRUCK-HL4030
