Hobart HL400-2 Food Machines - Mixers Planetary Mixers
Description

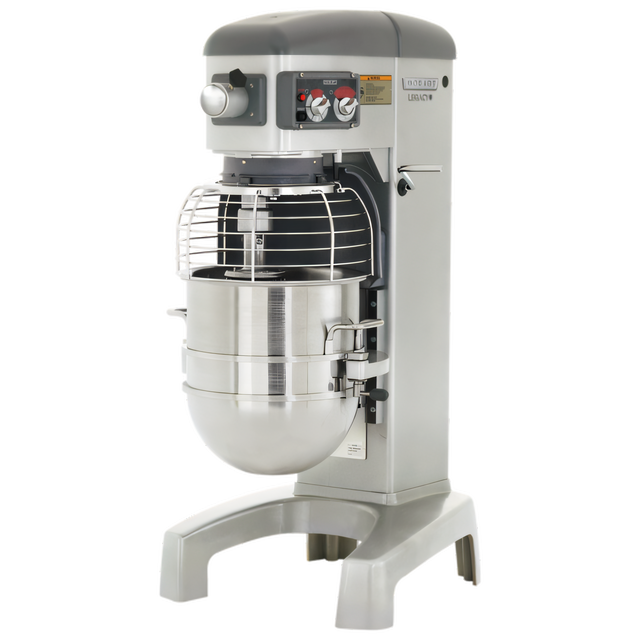

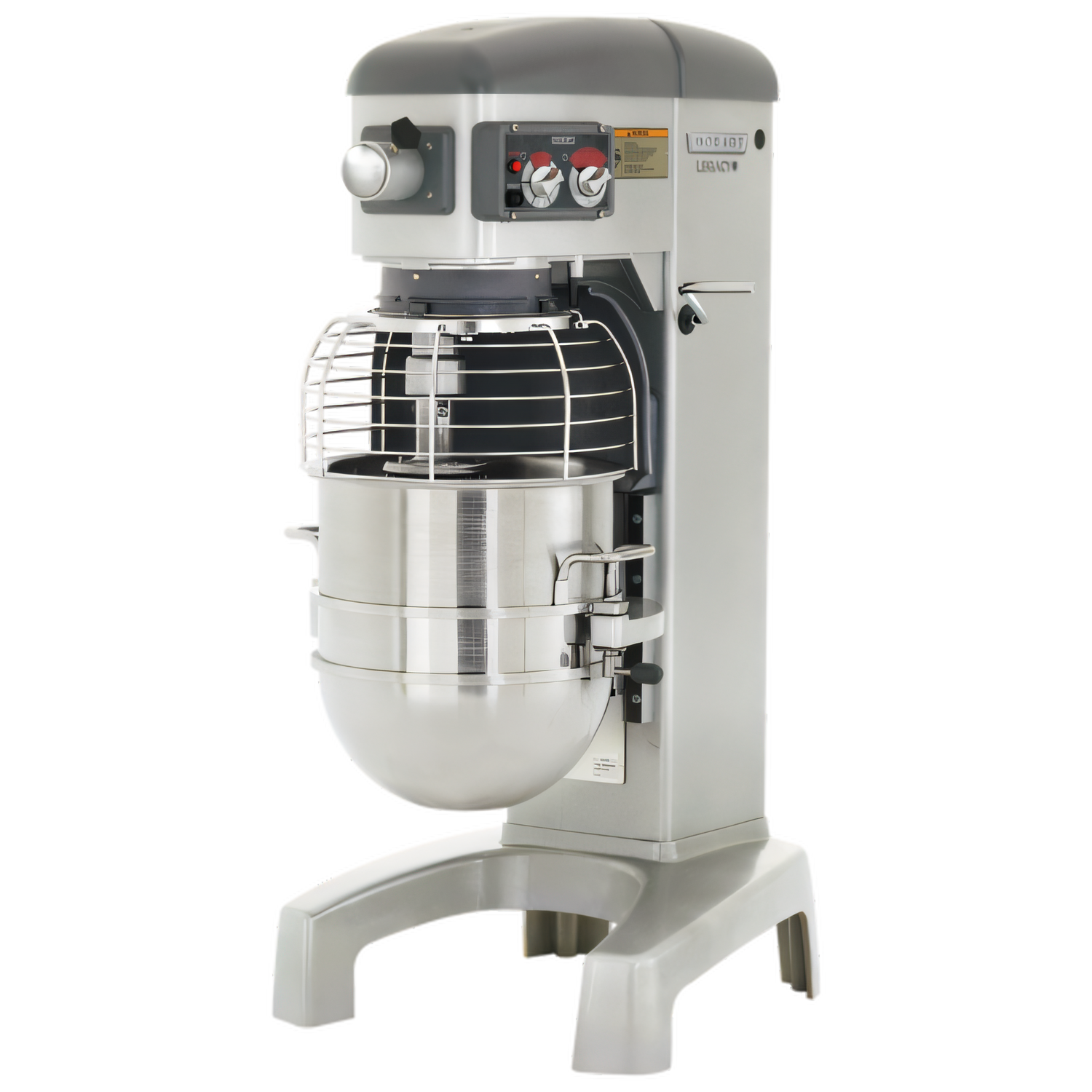

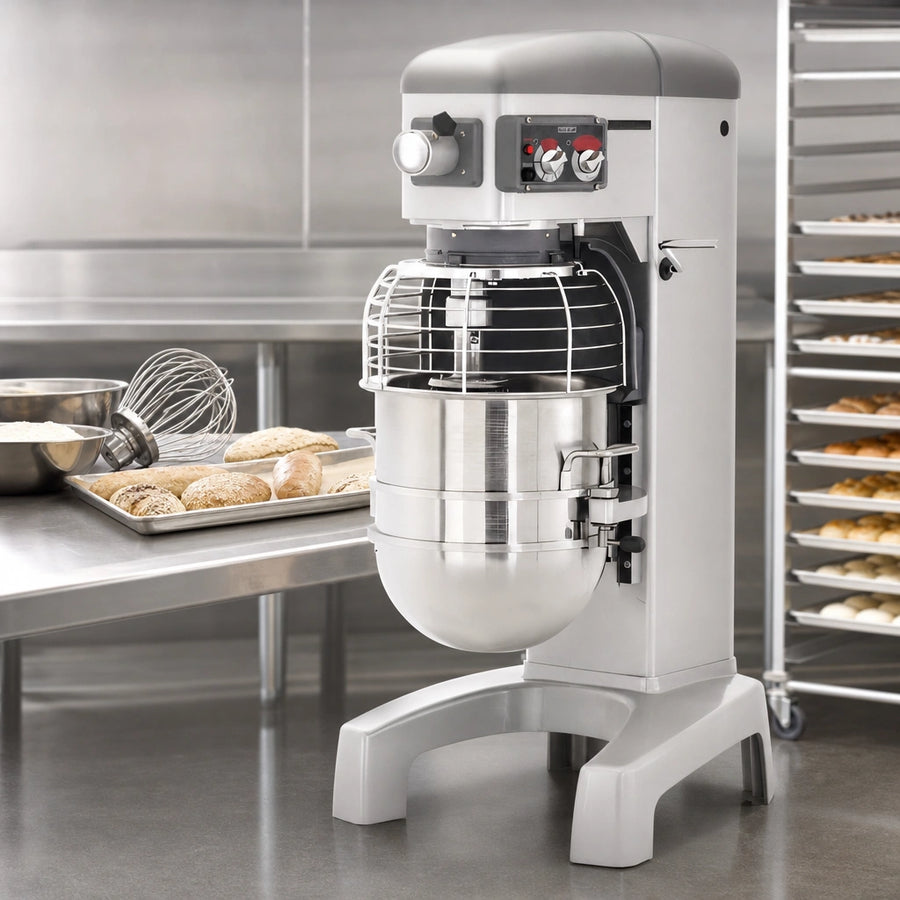

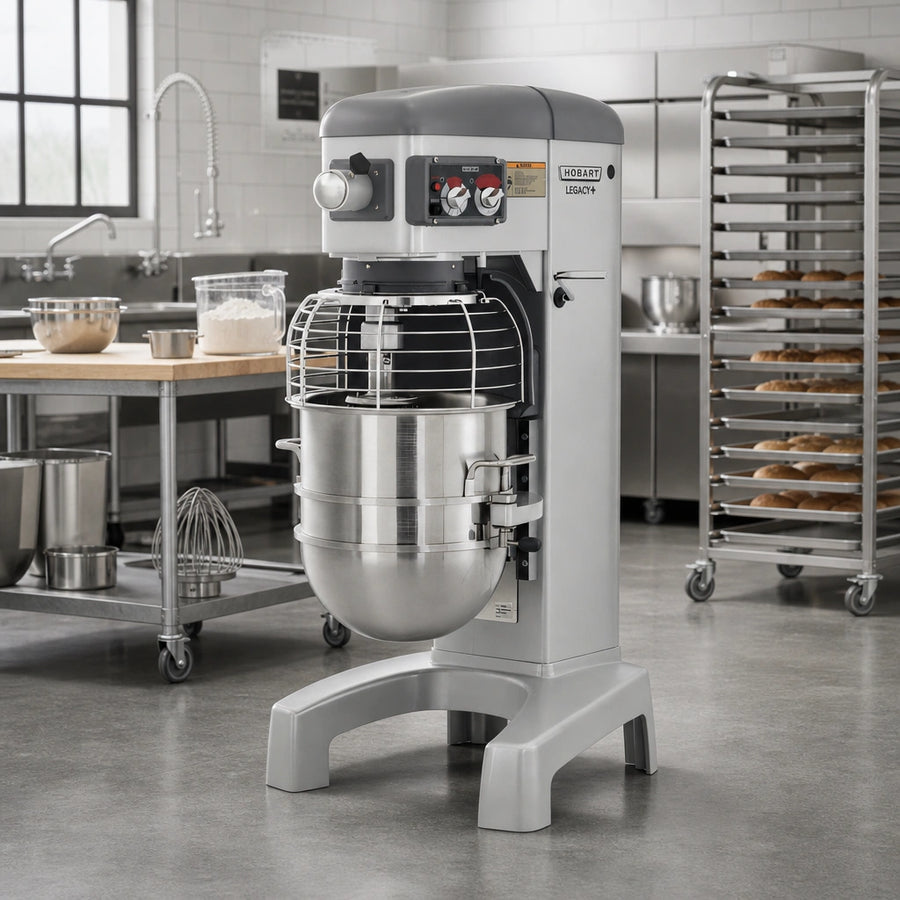

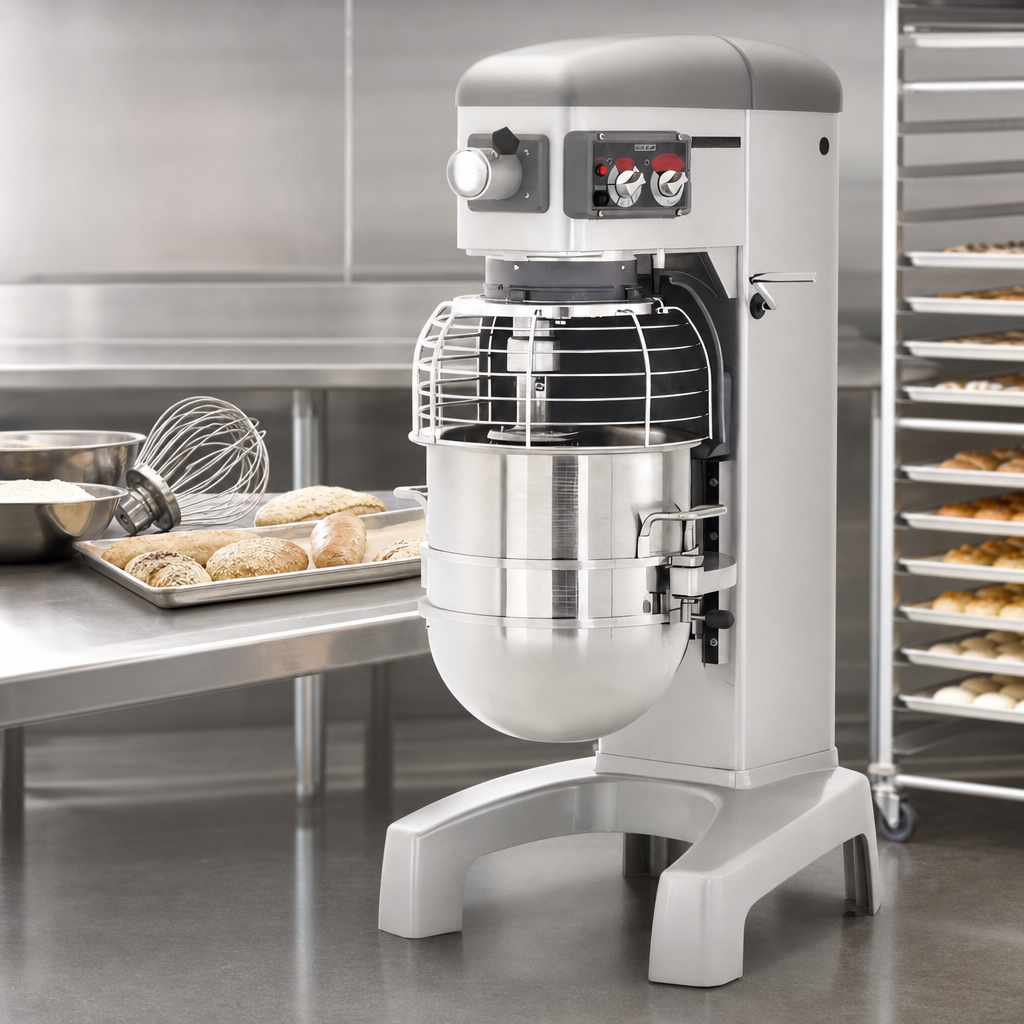

Hobart Legacy+ HL400 40-Quart Planetary Mixer — Unit Only
Heavy-duty, gear-driven mixer with 1.5 HP motor | 380-460 V / 50-60 Hz / 3-PhBuilt on Hobart’s industry-leading Legacy+ platform, the HL400 delivers maximum mixing muscle in a compact 40-quart footprint. The PLUS System’s variable-frequency precision, reinforced planetary shaft and overheat protection let you power through bread, pizza, cake batter and more—shift speeds on the fly, every batch, every day.
Key advantages
- 1.5 HP high-torque motor with all-gear, direct-drive transmission

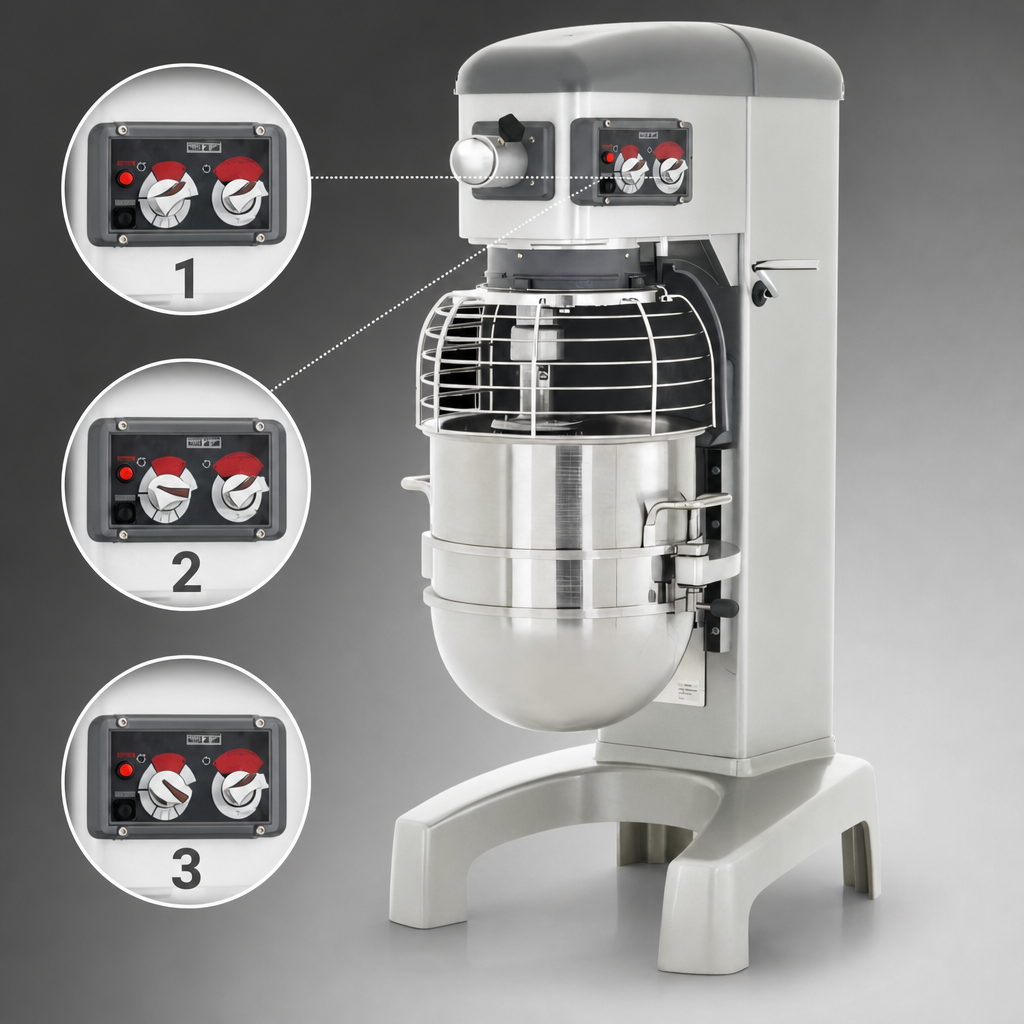

- Three fixed speeds + dedicated stir speed for consistent, repeatable results
- Shift-on-the-Fly™ push-button controls with 20-minute SmartTimer™ & automatic time recall
- Ergonomic swing-out bowl and manual bowl-lift for fast loading/unloading
- Triple-interlock MagnaLock system and stainless-steel removable bowl guard for operator safety
- Front-mounted #12 taper hub accepts meat-choppers, slicers & more (attachments sold separately)
- Rugged metallic-gray hybrid powder-coat finish resists scratches and corrosion
Performance snapshot*
| Maximum bowl capacity | 40 qt (liquid measure) |
|---|---|
| Motor output | 1.5 HP |
| Agitator speeds (RPM) | Stir 58 | Low 96 | Intermed. 179 | High 319 |
| Transmission | Gear-driven, grease-lubricated |
| Timer | SmartTimer™, 0-20 min. with auto recall |
| Attachment hub | #12 taper, front-mounted |
| Bowl-lift | Manual, self-locking top & bottom |
| Electrical | 380-460 V / 50-60 Hz / 3-Ph, 2.7 A |
| Dimensions (W × D × H) | 23 in × 31 in × 49.8 in (58.5 × 78.9 × 126.5 cm) |
| Net weight | 387 lb (175.5 kg) – machine only |
| Warranty | 1-year parts & labor |
*Capacities assume 70 °F water & 12 % flour moisture. Reduce batch size 10 % when using high-gluten flour or ice water.
Made for
- Bakeries & pastry kitchens producing breads, cookies & cakes
- High-volume pizzerias mixing up to 45 lb thick-crust dough
- Cafeterias, hotels & commissaries whipping potatoes, cream or eggs
- Catering operations needing a versatile, plug-and-play prep station
Popular add-ons (sold separately)
- Stainless-steel 40 qt bowl (BOWL-HL40)
- Quick-Release™ agitators: “B” flat beater, “D” wire whip, “ED” dough hook
- Bowl scraper, ingredient chute & splash cover for faster turnarounds
- VS9 vegetable slicer, 12TIN meat-chopper & other #12-hub attachments
- Bowl truck for moving heavy mixes with ease
