Hobart  |  Food Machines - Mixers  |  SKU: HL400-1STD

Hobart HL400-1STD Food Machines - Mixers Planetary Mixers

$20,529.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions Parts manual Capacity chart Options & accessories Owners manual Video Service terms & conditions Options & accessories Installation instructions Catalog
Related Searches
Commercial Mixers Food Prep Equipment Mixers Planetary Mixers Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

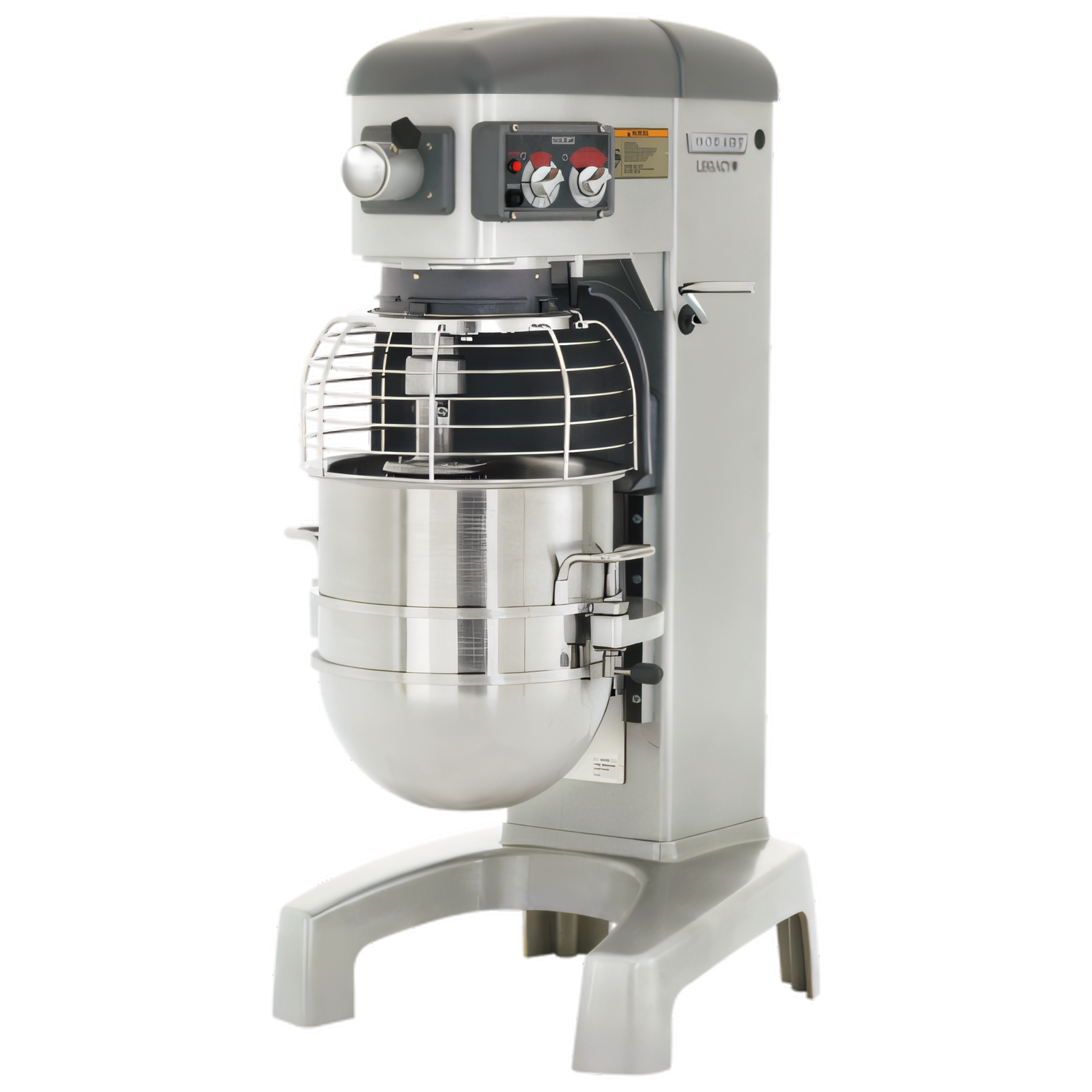

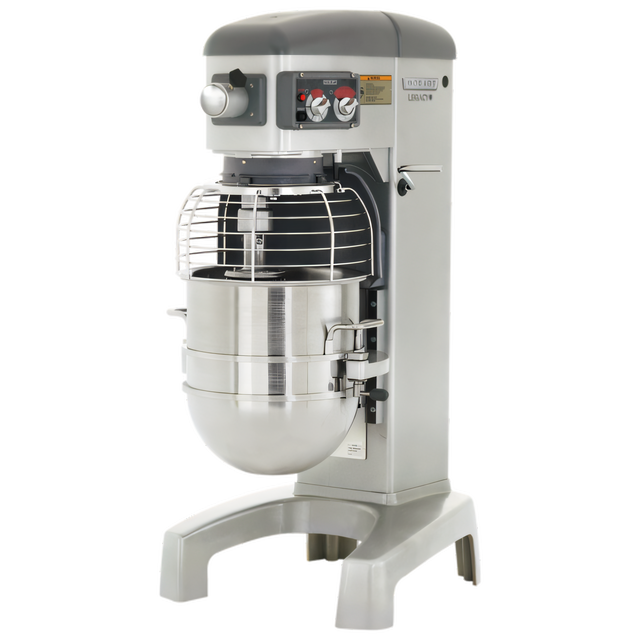

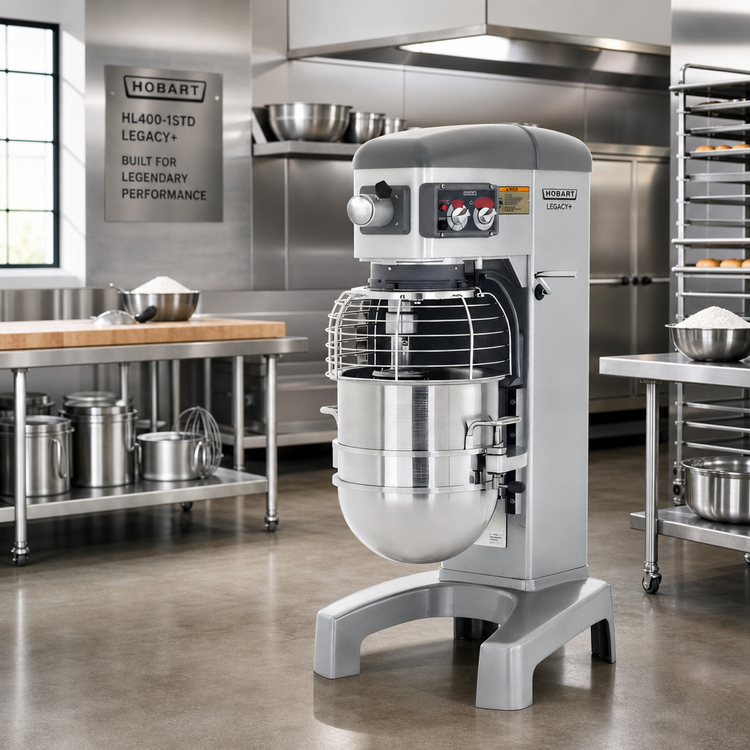

Hobart Legacy+ HL400 40-Quart Planetary Mixer

200-240 V | 50/60 Hz | 3-Phase – includes bowl, beater, whip & spiral dough arm

Built for kitchens that never slow down, the Hobart Legacy+ HL400 delivers the muscle, consistency and safety you need for high-volume doughs, batters and creams. A 1½ HP gear-driven motor, Hobart’s exclusive PLUS System and an ergonomic swing-out bowl combine for unwavering performance shift after shift.

Performance You Can Count On

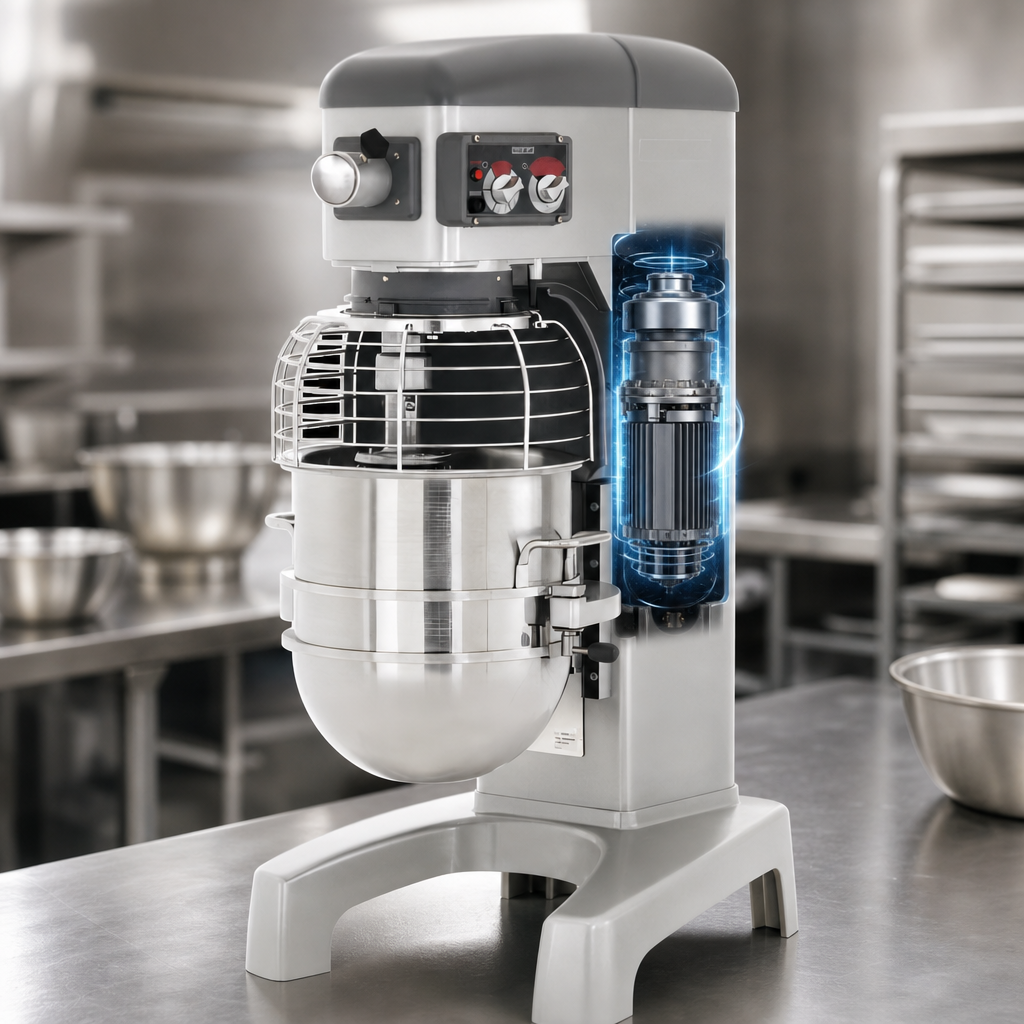

  • 1½ HP gear-driven motor tears through dense doughs without stalling.
  • PLUS System – VFDadvantage variable-frequency drive, reinforced planetary shaft and over-heat protection keep the mixer running cooler and longer.
  • 3 fixed speeds + stir with Shift-on-the-Fly™ controls – change speeds while mixing.
  • Soft-Start Agitation reduces ingredient splash-out on start-up.
  • 20-minute SmartTimer™ with automatic time recall for repeatable results.
  • Triple Interlock & MagnaLock® guard prevent operation unless the bowl and guard are locked.
  • #12 attachment hub adds slicing, grinding and more (attachments sold separately).

Easy on Staff

  • Ergonomic swing-out bowl simplifies loading and unloading heavy batches.
  • Single-point bowl installation speeds set-up and reduces spills.
  • Manual bowl lift locks securely in up or down position with minimal effort.
  • Large, intuitive control panel is glove-friendly and easy to reach.

Standard Accessory Package (US/EXP)

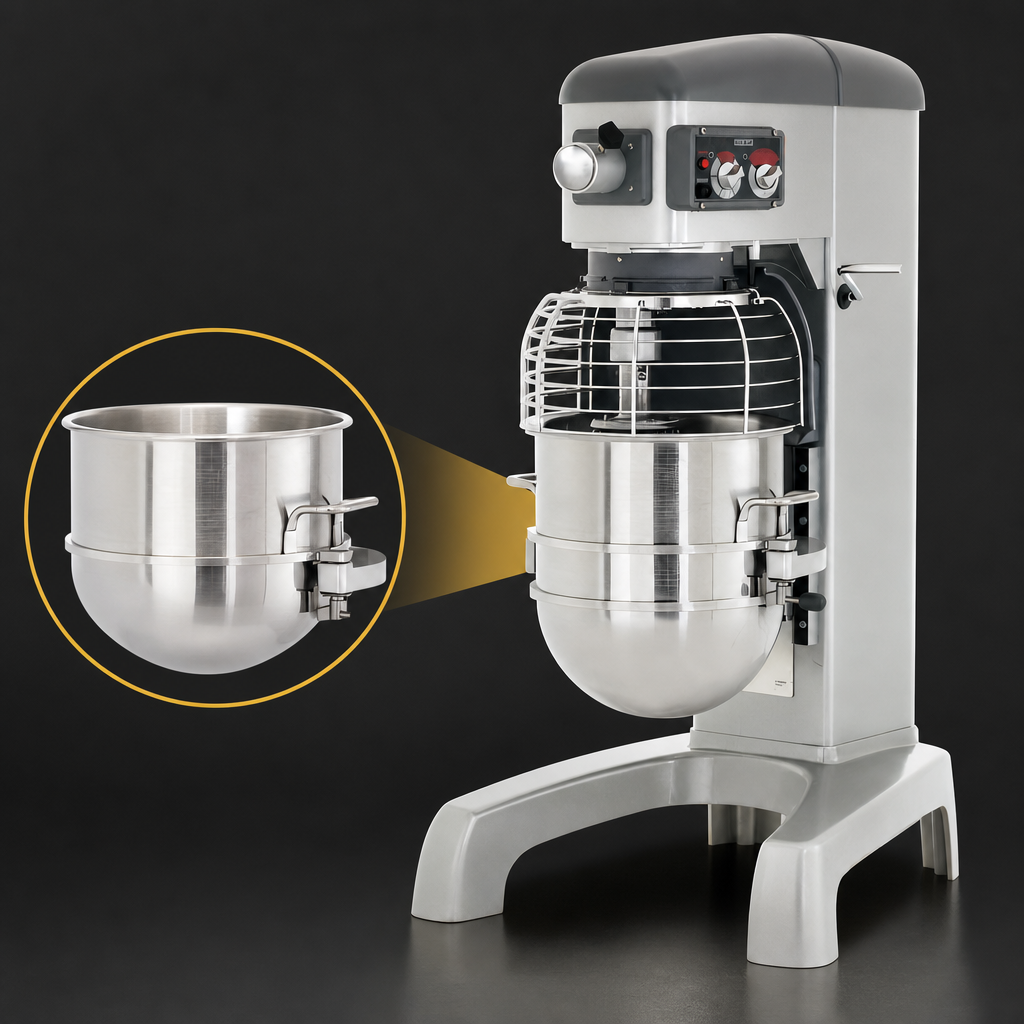

  • 40 qt. stainless-steel bowl
  • 40 qt. “B” flat beater (quick-release)
  • 40 qt. “D” wire whip (quick-release)
  • 40 qt. “ED” spiral dough hook (quick-release)

Technical Specifications

Model Legacy+ HL400
Capacity 40 qt. (38 L) bowl
Motor 1½ HP, gear-driven
Speeds (Agitator RPM) Stir 58 | Low 96 | Intermediate 179 | High 319
Timer 20-minute SmartTimer™ with auto recall
Electrical 200-240 V, 50/60 Hz, 3-Ph, 5.6 A (hard-wire connection)
Attachment Hub #12 taper
Bowl Lift Manual, self-locking
Guard Stainless-steel removable bowl guard with triple interlock
Finish Metallic-gray hybrid powder coat
Footprint (W × D) 23 in × 24 in (58.5 cm × 61.3 cm)
Overall Height 49.8 in (126.5 cm)
Weight 387 lb (175.5 kg) – less bowl
Certifications cULus, NSF
Warranty 1-year parts, labor & mileage

Recommended Batch Capacities

Product HL400 Max. Batch
Cakes 40 lb
Mashed Potatoes 30 lb
Bread Dough (60 % AR) 45 lb ★
Thick Pizza Dough (60 % AR) 45 lb ●
Thin Pizza Dough (40 % AR) 25 lb ● (max. 5 min)
Whipped Cream 9 qt

★ Reduce by 10 % when using high-gluten flour.
● Use 1st speed on 50 % AR or lower doughs.

Heads-up: The attachment hub should not be used while the mixer is running.

Features & Specs

Manufacturer

Hobart

Brand_name

Food Machines - Mixers

Shipping Weight

453.0lbs

Attachments

bowl guard, bowl, beater, whip, hook

Hub size

#12 hub

Type

floor model

Timer

with timer

Speed

3-speed

Bowl Capacity

30 - 40 quart

Specifications

200-240/50/60/3 Mixer; with bowl, beater, whip, & spiral dough arm; US/EXP configuration - Legacy Planetary Mixer, 1.5 hp, 40 quart capacity, (3) fixed speeds, gear-driven transmission, 20 minute timer, #12 taper attachment hub, manual bowl lift, bowl guard, stainless steel bowl, "B" beater, "D" whip, "ED" dough hook
