Hobart HL400-1 Food Machines - Mixers Planetary Mixers
Description

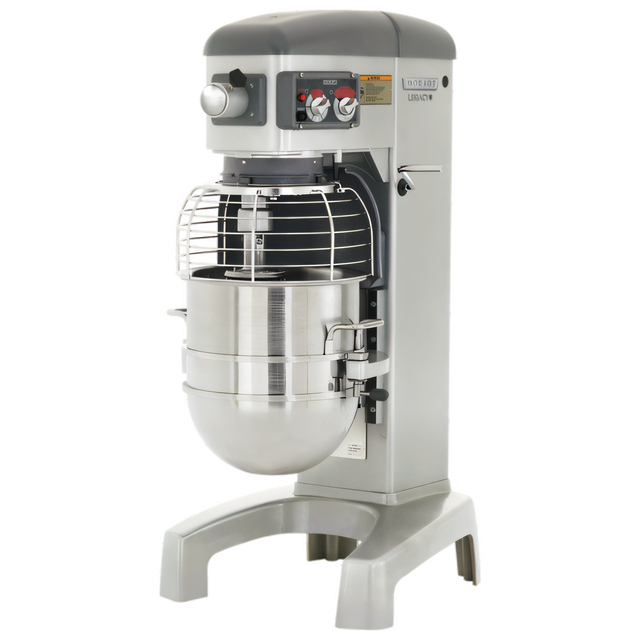

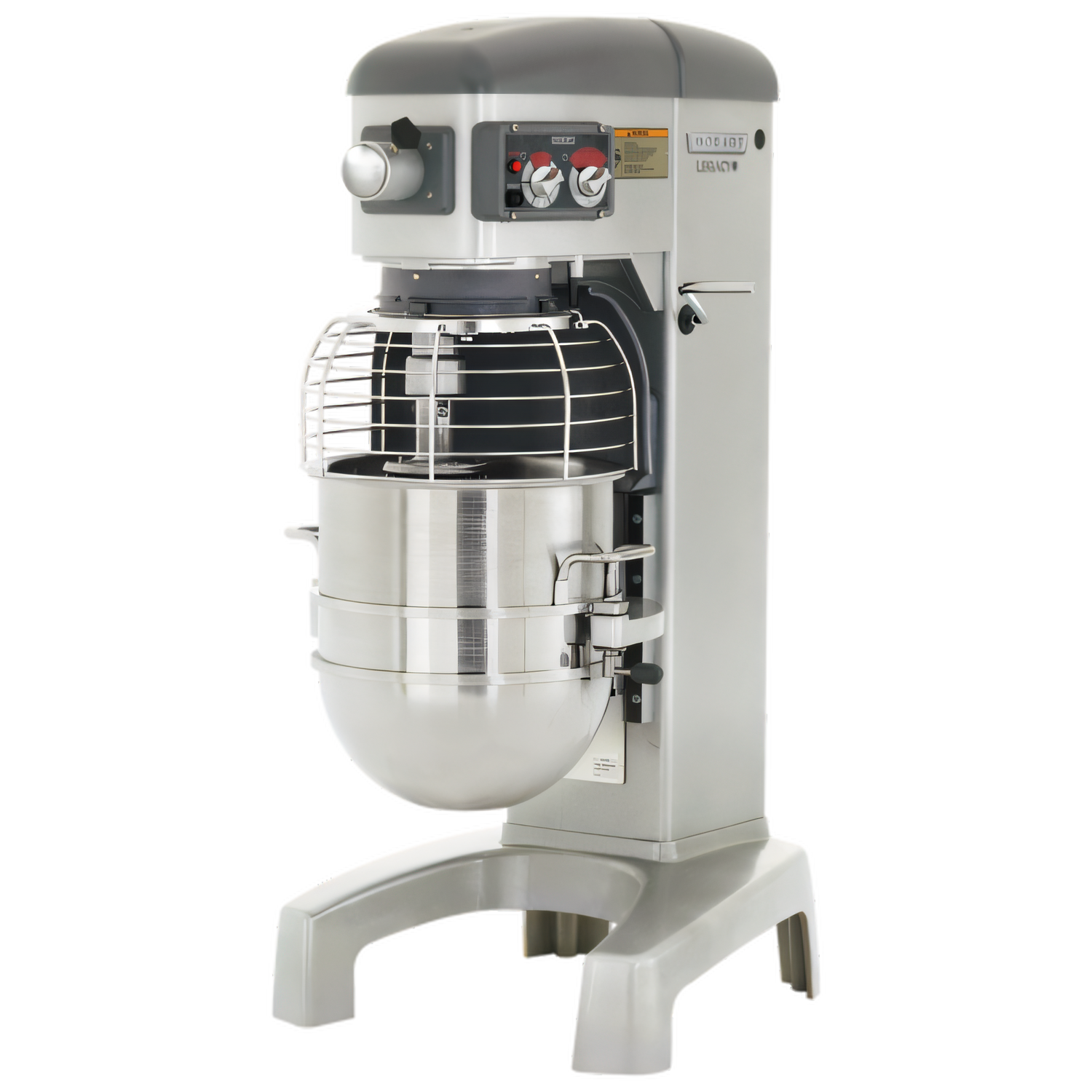

Hobart Legacy+ HL400 40-Quart Planetary Mixer
200-240 V / 50-60 Hz / 3-Phase • 1.5 HP • Unit-Only (no attachments)Built for bakeries, restaurants and high-volume kitchens, the Hobart Legacy+ HL400 delivers uncompromising power, consistency and safety in a compact 40-quart footprint. The proprietary PLUS System pairs an all-gear, variable-frequency drive with reinforced components, protecting the motor under the heaviest loads while guaranteeing perfectly mixed results every time.
Why You’ll Love It

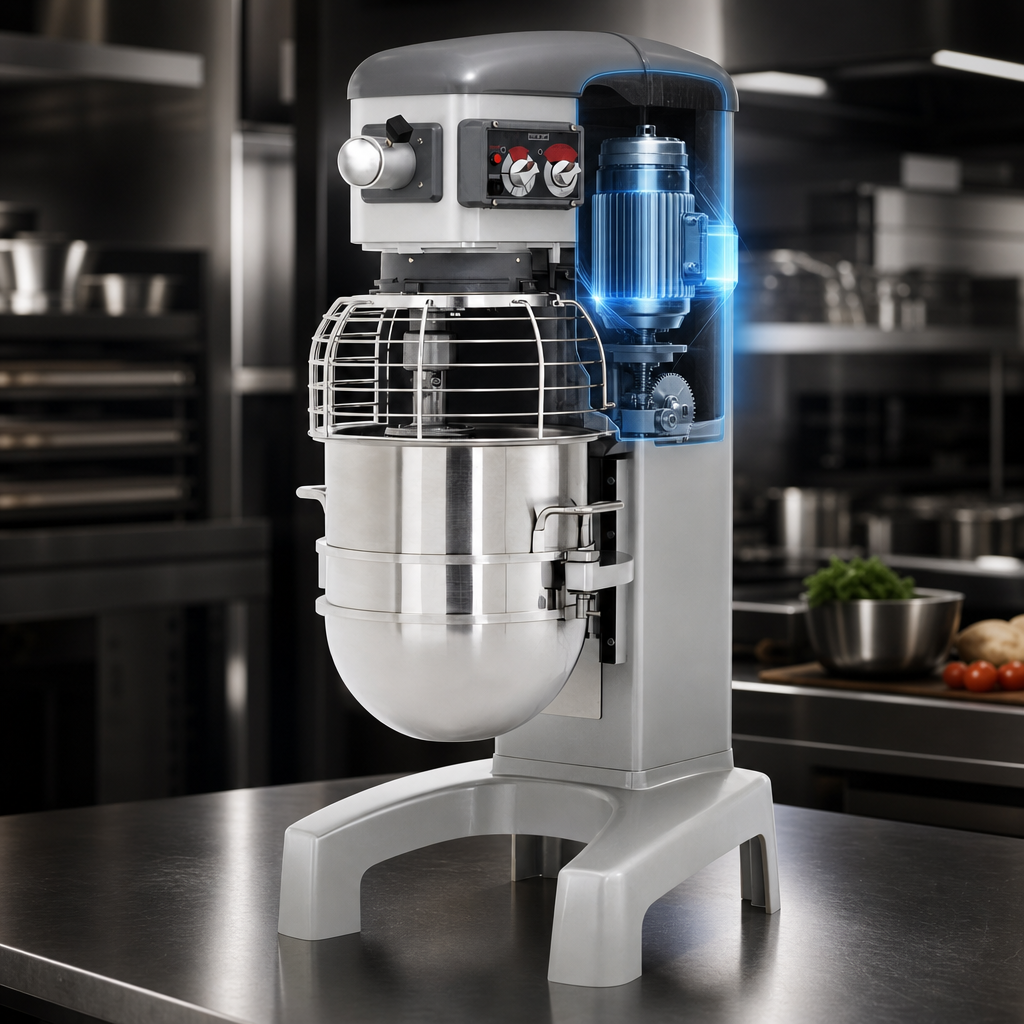

- Heavy-duty 1.5 HP motor with VFDadvantage variable frequency drive for smooth, reliable torque.
- Three fixed speeds plus dedicated stir speed—change on the fly with Shift-on-the-Fly™ controls.
- Soft-Start technology reduces splash-out and ingredient loss.
- 20-minute SmartTimer™ with automatic time recall for each speed setting.

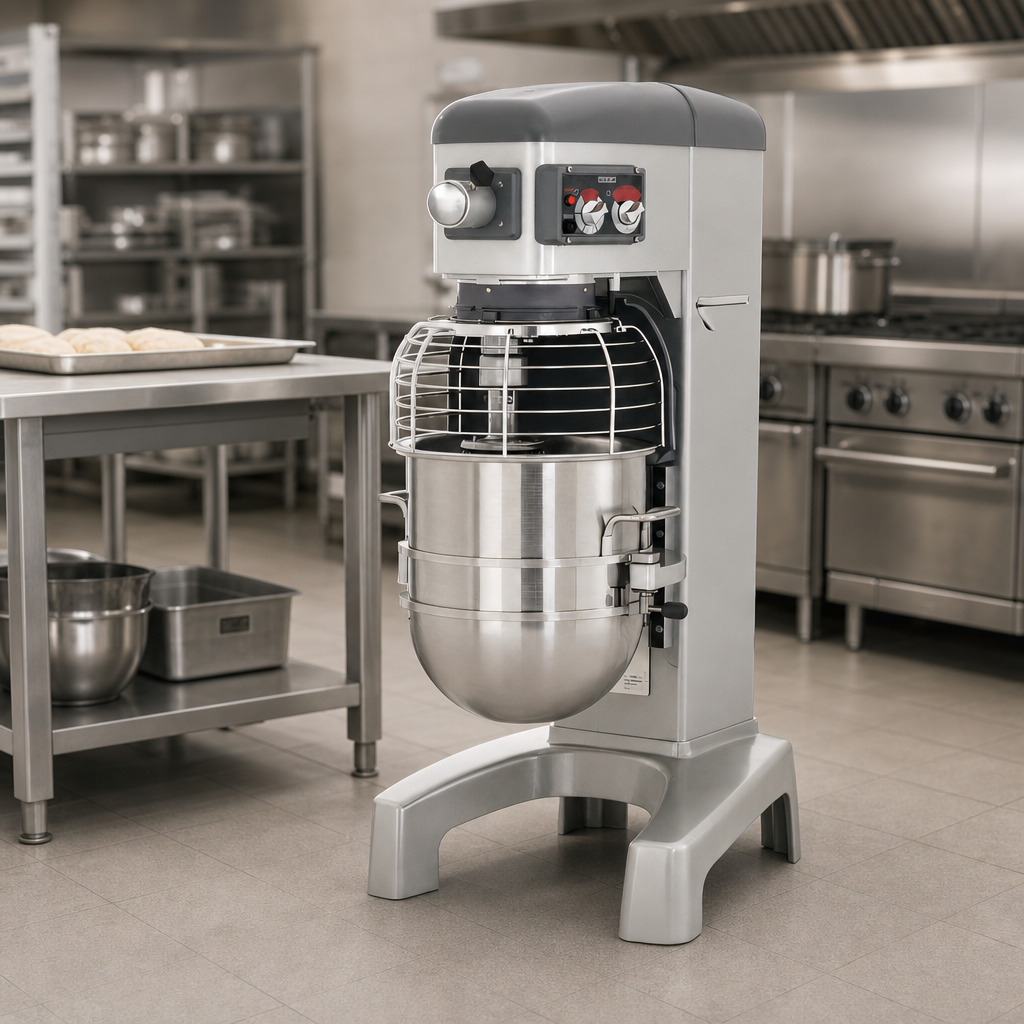

- Ergonomic swing-out 40 qt bowl with single-point installation for quick loading/unloading.
- Manual bowl lift locks solidly in both raised and lowered positions.
- Triple-interlock MagnaLock bowl-guard system meets NSF/ANSI standards.
- #12 front-mounted attachment hub accepts grinders, slicers and more (sold separately).
- Durable metallic-gray hybrid powder-coat finish wipes clean and resists corrosion.
Performance Capacities
| Product | Maximum Batch Size |
|---|---|
| Cakes | 40 lb |
| Cookies (sugar) | 30 lb |
| Mashed potatoes | 30 lb |
| Bread/Roll dough (60 % AR) | 45 lb |
| Heavy bread dough (55 % AR) | 35 lb |
| Thin pizza dough (40 % AR, 5 min max) | 25 lb |
| Thick pizza dough (60 % AR) | 45 lb |
| Whipped cream | 9 qt |
%AR = water weight ÷ flour weight. Reduce batch 10 % when using high-gluten flour or ice.
Technical Specifications
| Model | HL400 Legacy+ Planetary Mixer |
|---|---|
| Capacity | 40 qt (liquid) |
| Motor | 1.5 HP high-torque |
| Transmission | Gear-driven, permanently lubricated |
| Speeds (Agitator RPM) | Stir 58 | 1st 96 | 2nd 179 | 3rd 319 |
| Timer | 0–20 min SmartTimer™ with recall |
| Electrical | 200-240 V / 50-60 Hz / 3-Phase • 5.6 A |
| Attachment Hub | #12 taper (front-mounted) |
| Bowl Guard | Stainless steel, removable without tools |
| Dimensions (W × D × H) | 24.1″ × 31.1″ × 49.8″ (61.3 × 78.9 × 126.5 cm) |
| Net Weight | 387 lb (175.5 kg) – less bowl |
| Certifications | cULus, NSF |
| Warranty | 1-year parts & labor |
Popular Add-Ons (Sold Separately)
- 40 qt stainless-steel bowl (BOWL-HL40)
- “B” flat beater – general mixing
- “D” wire whip – aerating & whipping
- “ED” dough hook – bread & pizza dough
- Bowl scraper, splash cover, or ingredient chute for cleaner operation
- VS9 vegetable slicer or 12TIN meat chopper for hub versatility
Looking for something else? Ask us about the full line of Legacy+ compatible accessories.
