Hobart HL1400C-2STD Food Machines - Mixers Planetary Mixers
Description

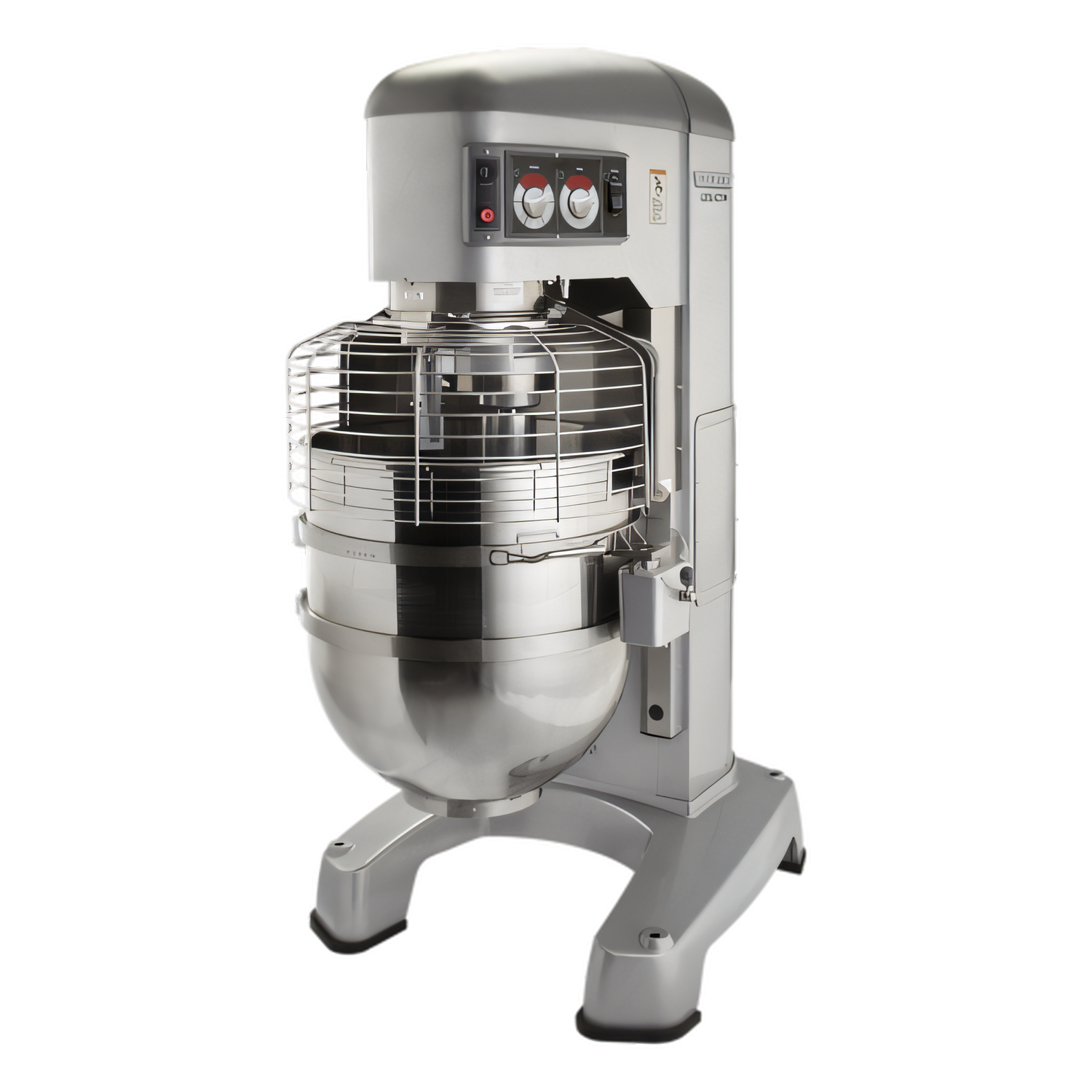

Hobart Legacy+ HL1400C Correctional Planetary Mixer – 140 Quart, 5 HP
Maximum-security configuration • 380-460 V / 50/60 Hz / 3-phase
Engineered for the toughest food-service environments, the Hobart Legacy+ HL1400C
delivers 5 horsepower of gear-driven power, a massive 140-quart capacity and the
added protection of Hobart’s Maximum Security Correctional Package.
From bread dough to whipped cream, its VFDadvantage variable-frequency drive, four
fixed speeds plus stir, and SmartTimer™ technology give operators consistent,
repeatable results shift after shift.
Key performance advantages

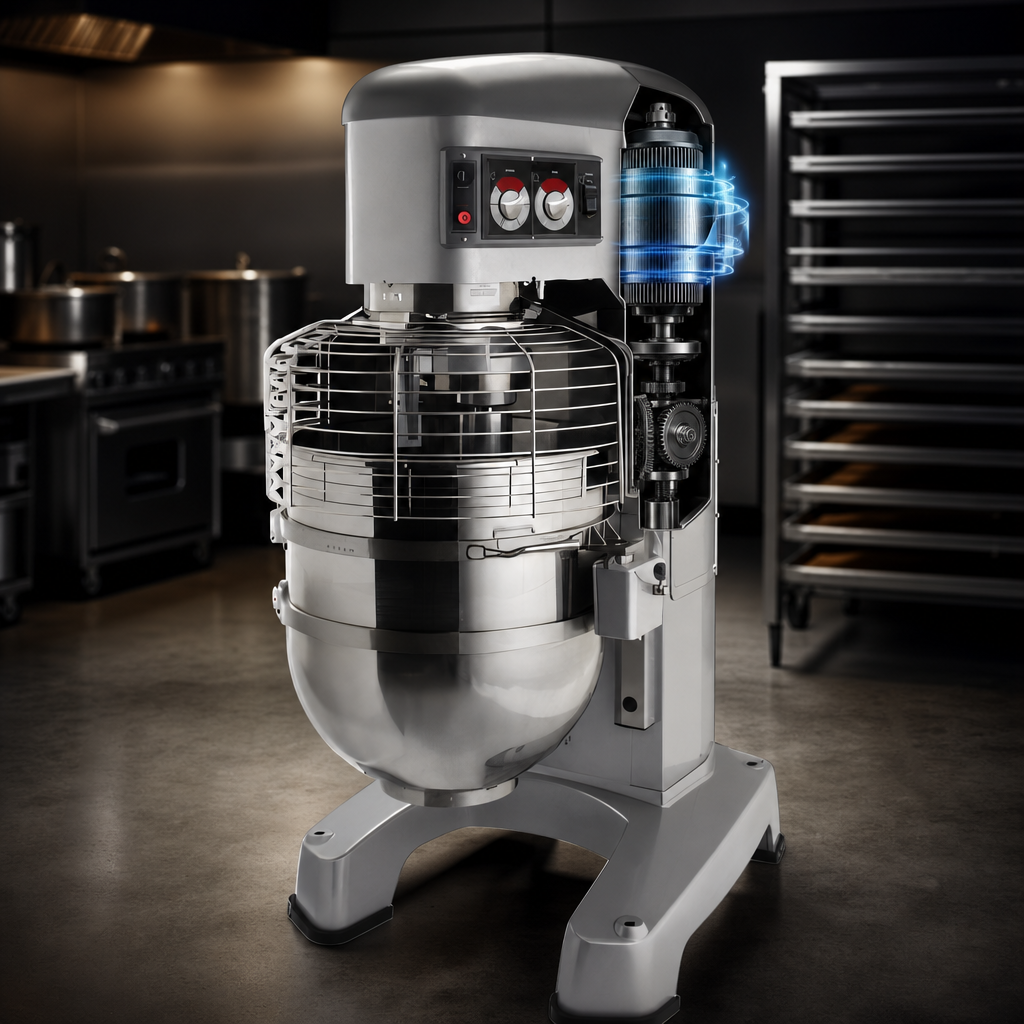

- Heavy-duty 5 HP motor with reinforced planetary shaft for extreme durability
- Gear transmission & VFDadvantage drive provide steady power under any load
- Four fixed speeds + dedicated stir speed; Shift-on-the-Fly™ lets you change speed while mixing
- 20-minute SmartTimer™ with automatic time recall for each speed
- Soft-Start agitation minimizes ingredient splash-out
- Triple-interlock bowl guard with MagnaLock technology and FastStop braking bring the mixer to a halt in <3 seconds
- Power bowl lift with “stir-on-lift” feature speeds through production runs
- Ergonomic swing-out bowl and single-point installation streamline loading and cleaning
- Metallic-gray hybrid powder-coat finish resists corrosion and cleans easily
- cUL, UL and NSF listed for commercial use

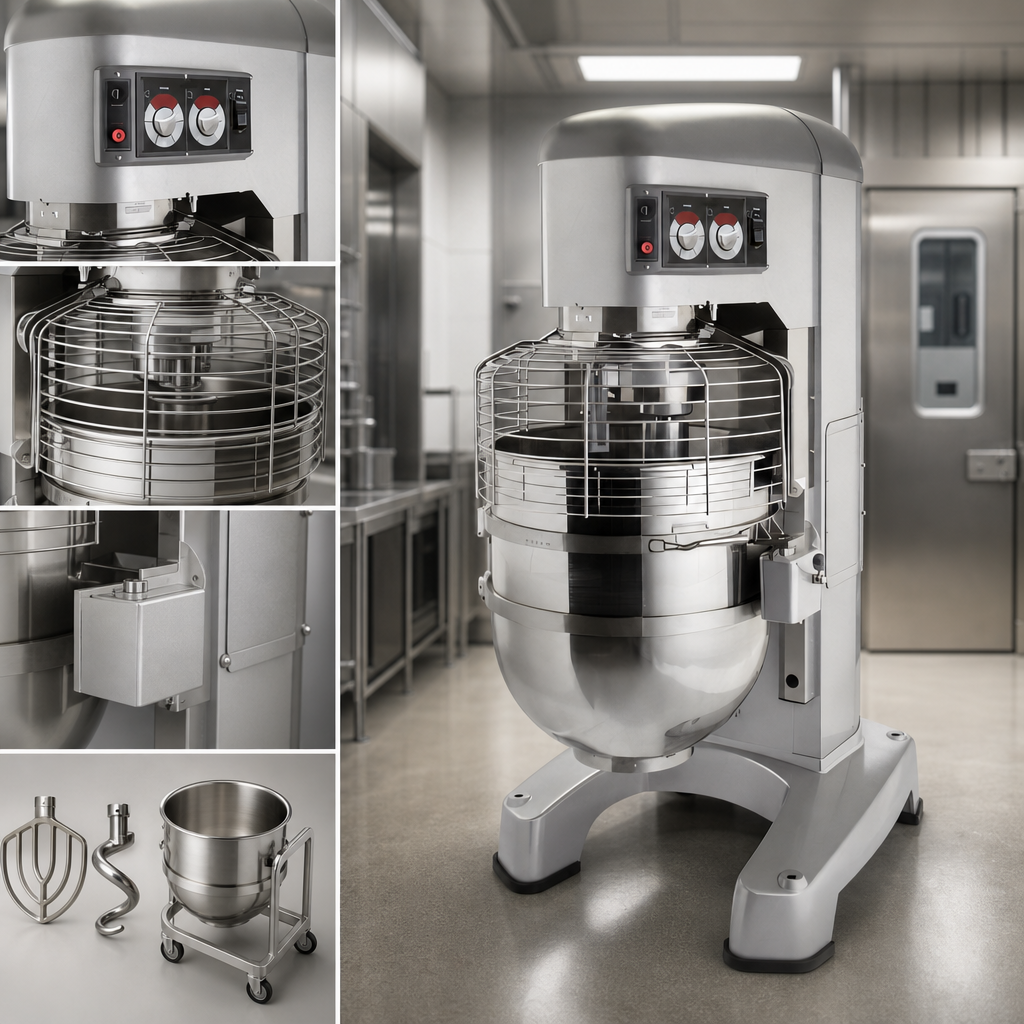

Correctional-ready construction
- US Correctional Facility configuration (HL1400C) featuring Hobart’s Maximum Security Correctional Package
- Designed to withstand rigorous, high-volume use in secure environments
Included accessory package
- 140-quart stainless steel bowl
- Quick-Release™ “B” flat beater
- Quick-Release™ “ED” spiral dough hook
- Heavy-duty bowl truck
- Stainless steel removable bowl guard
Quick specs
| Capacity | 140 qt (liquid) |
|---|---|
| Motor power | 5 HP high-torque |
| Speeds (RPM) | Stir 23 | 1st 46 | 2nd 80 | 3rd 150 | 4th 265 |
| Electrical rating | 380-460 V / 50/60 Hz / 3 ph, 6.8 A |
| Controls | Shift-on-the-Fly™, 20-min SmartTimer™, start/stop & power-lift push-buttons |
| Bowl lift | Electro-powered, fingertip control |
| Overall dimensions (HxWxD) | 67.6 in × 36.4 in × 60.2 in (171.8 cm × 92.6 cm × 152.8 cm) |
| Net weight | 1,460 lb (662 kg) – bowl included |
| Finish | Metallic gray hybrid powder coat |
| Certifications | UL, cUL, NSF |
Typical batch capacities
- Bread dough 60 % AR: 210 lb ▲
- Heavy bread dough 55 % AR: 175 lb ▲
- Cookies, sugar: 100 lb
- Cake batter: 185 lb
- Mashed potatoes: 100 lb
- Whipped cream: 30 qt
- Egg whites: 4 qt
▲ 3rd speed. Capacities based on 70 °F water, 12 % flour moisture.
Use of ice or high-gluten flour requires batch-size reduction (see Hobart capacity chart).
Optional accessories (sold separately)
- “C” wing whip – CWHIP-HL140
- “D” wire whip – DWHIP-HL140
- “I” heavy-duty wire whip – IWIRE-HL140
- “P” pastry knife – PPASTRY-HL140
- Bowl scraper – SCRAPER-HL140
- Ingredient chute – CHUTE-LMV
- Lexan splash cover – SPLASH-LEX140
Need a custom configuration, installation details or volume pricing? Contact our team.
