Hobart HL1400C-1STD Food Machines - Mixers Planetary Mixers
Description

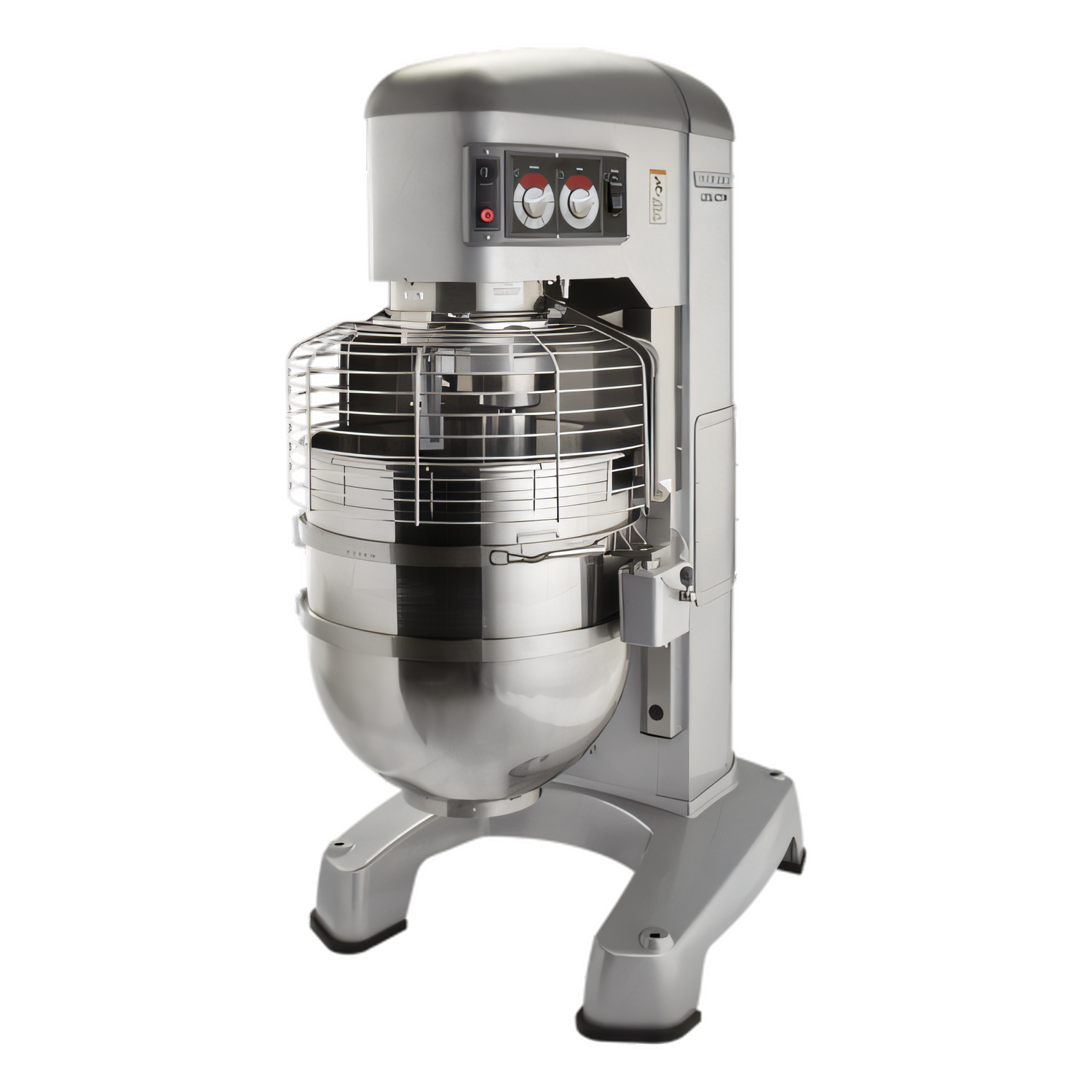

Legacy+ HL1400C Correctional Planetary Mixer – 140 Qt, 5 HP
200-240 V • 50/60 Hz • 3-Phase • UL Listed for U.S. Correctional FacilitiesBuilt for the toughest institutional kitchens, the Hobart Legacy+ HL1400C delivers maximum-security durability while giving your staff the power, capacity and easy-to-use controls they need to keep production moving. The 5 HP, gear-driven motor teams with Hobart’s exclusive PLUS System to mix up to 140 quarts of dough, batter or whipped product with legendary consistency—batch after batch.
Why This Mixer Stands Out

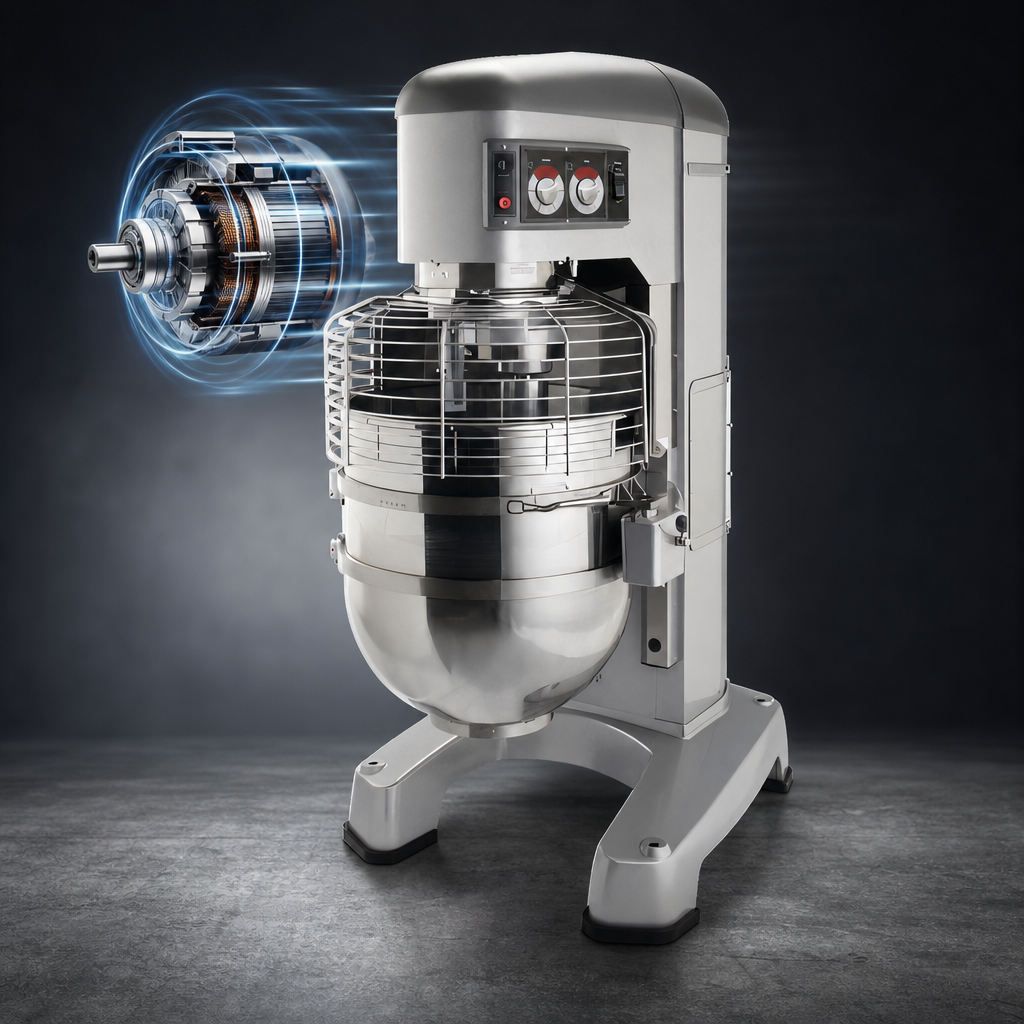

- 5 HP high-torque motor with VFDadvantage variable-frequency drive for rock-steady power under heavy loads.
- Four fixed speeds + Stir let you shift on the fly without stopping the agitator.
- PLUS System combines reinforced planetary shaft, over-heat protection and VFD control for up to 30 % more capacity than competitive units.
- 20-Minute SmartTimer™ with automatic time recall—perfect for repeatable results.
- Ergonomic swing-out bowl and power bowl lift simplify loading and unloading heavy batches.
- Triple-interlock MagnaLock® guard and FastStop braking bring the agitator to a full stop in <3 sec for operator safety.
- Soft-Start Agitation technology helps prevent ingredient splash-out.

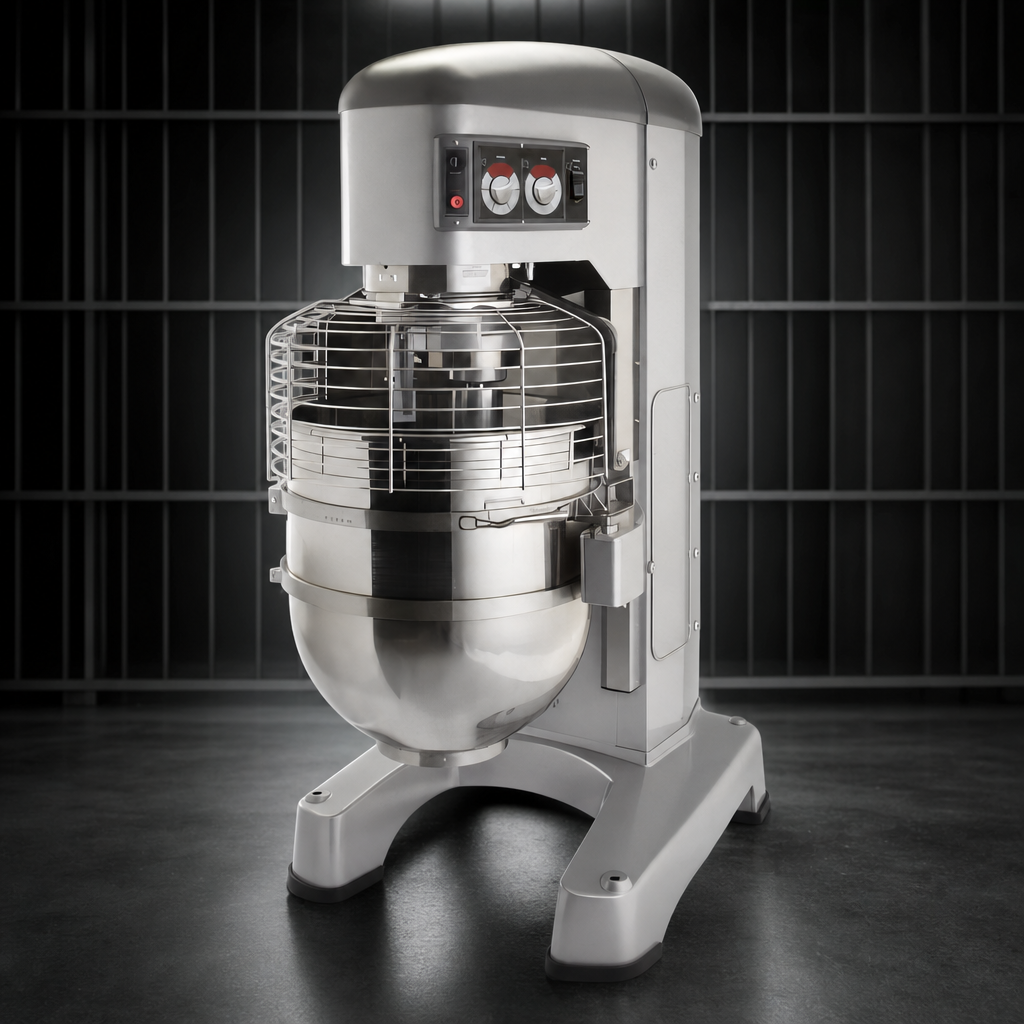

- Maximum-security correctional package features tamper-resistant components and shrouded controls for institutional peace of mind.
- Durable metallic-gray hybrid powder-coat finish stands up to daily sanitation.
Standard Accessory Package
- 140 qt stainless-steel bowl
- 140 qt Quick-Release “B” flat beater
- 140 qt Quick-Release “ED” dough hook
- Bowl truck for safe transport of heavy mixes
- Stainless-steel removable bowl guard with ingredient chute
Recommended Batch Capacities*
| Product (Agitator) | Max Load |
|---|---|
| Bread or Roll Dough 60 % AR (ED) | 210 lb |
| Thick Pizza Dough 60 % AR (ED) | 190 lb |
| Cookies, Sugar (B) | 100 lb |
| Cake Batter (B) | 185 lb |
| Mashed Potatoes (B & C) | 100 lb |
| Whipped Cream (D or C) | 30 qt |
*Capacities based on flour at 12 % moisture, 70 °F water; reduce 10 % for high-gluten flour or ice-cold water.
Technical Specifications
| Model | HL1400C Legacy+ Correctional Planetary Mixer |
|---|---|
| Motor / Power | 5 HP, gear-driven, VFD controlled |
| Speeds (RPM) | Stir 23, 1st 46, 2nd 80, 3rd 150, 4th 265 |
| Bowl Capacity | 140 qt (132 L) liquid volume |
| Electrical | 200-240 V, 50/60 Hz, 3-ph, 14.8 A |
| Overall Dimensions (W × D × H) | 32.25 ″ × 47.09 ″ × 67.63 ″ (81.9 × 119.7 × 171.8 cm) |
| Net Weight | 1,460 lb (662 kg) with bowl |
| Finish | Metallic-gray hybrid powder coat |
| Certifications | UL (U.S. Correctional), NSF |
| Warranty | 1-year parts & labor |
Unlock the full potential of your high-volume kitchen with the Hobart Legacy+ HL1400C—engineered to mix more, last longer and keep your team safe. Add it to your cart or request a quote today!
