Hobart HL1400-70STD Food Machines - Mixers Planetary Mixers
Description

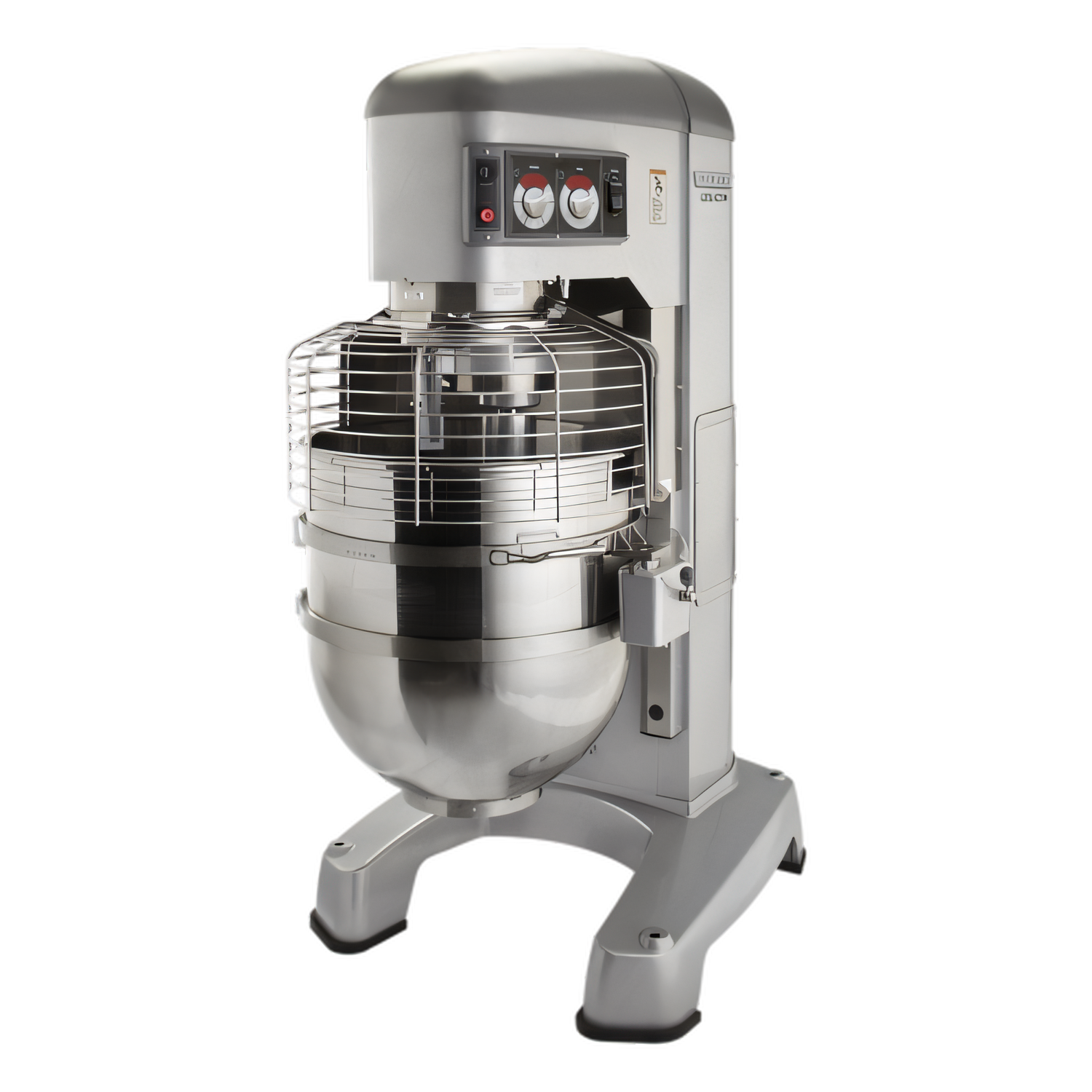

Hobart Legacy+ HL1400 140-Quart Heavy-Duty Planetary Mixer
5 HP • 400 V / 50 Hz / 3-Phase (CE) • Item #4270Built for the toughest, highest–volume kitchens, the Hobart HL1400 Legacy+ gives you 140-quart capacity and Hobart’s industry-leading PLUS System in a compact, easy-to-operate package. Four fixed speeds plus stir speed, an ergonomic swing-out bowl and a power bowl lift let your team mix anything from delicate meringue to 210 lb. bread dough with total confidence and repeatable results.
Why You’ll Love It

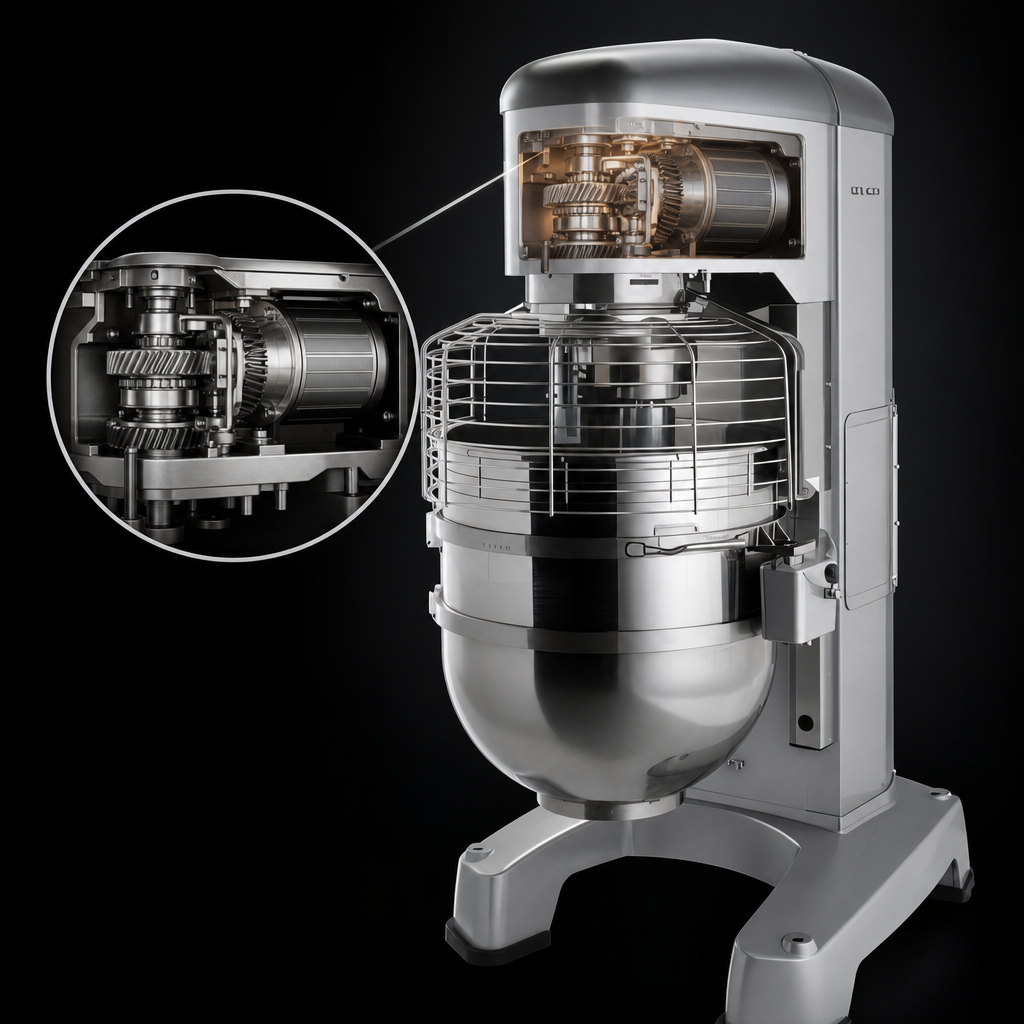

- Massive 5 HP motor with gear-driven transmission delivers relentless torque in every speed.

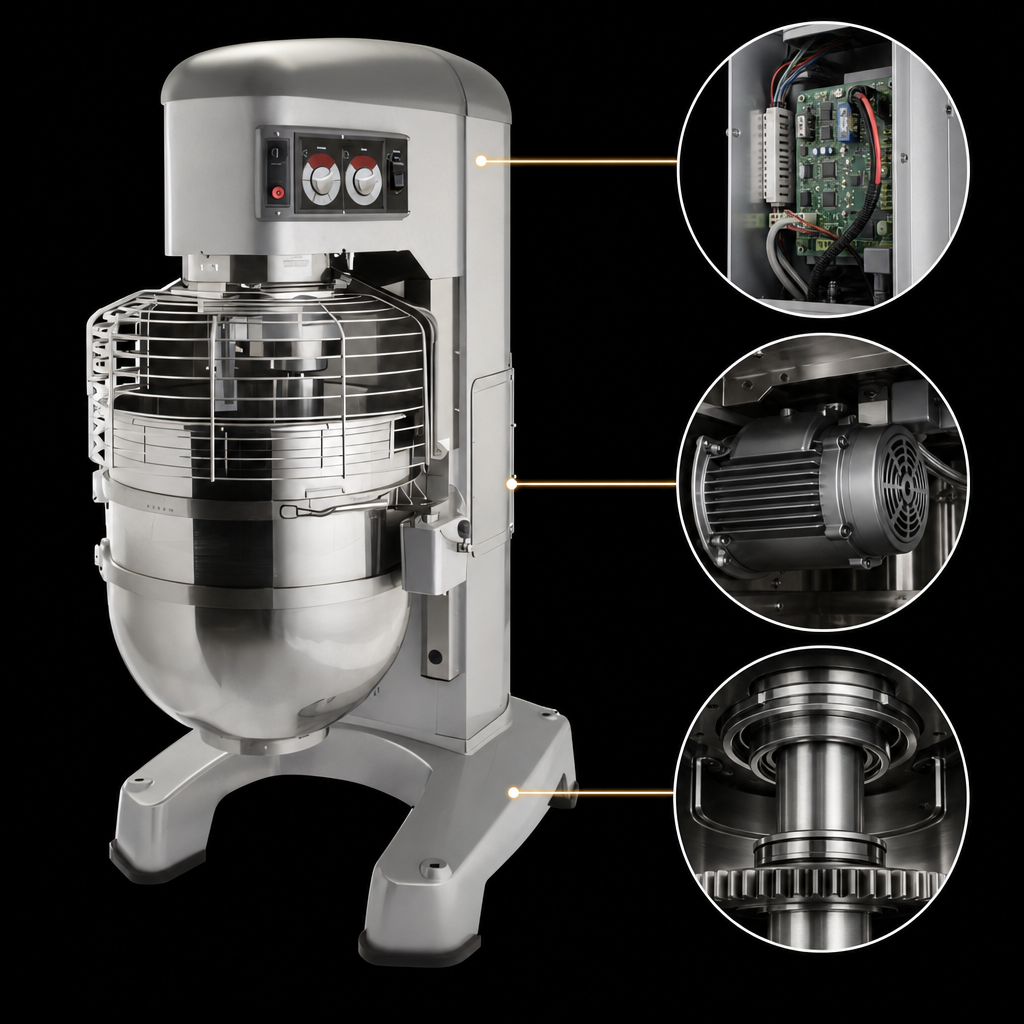

- PLUS System combines VFDadvantage variable-frequency drive, reinforced planetary shaft and maximum-capacity overheat protection for extraordinary reliability.
- Shift-on-the-Fly™ lets you change speeds without stopping the agitator.
- 20-minute SmartTimer™ remembers the last time set for each speed—perfect for repeat batches.
- Triple interlock & MagnaLock™ guard prevent operation unless bowl and guard are fully secured.
- Soft-Start agitation dramatically reduces ingredient splash-out.
- Ergonomic swing-out bowl & single-point mounting make loading and unloading fast and safe.
- Electric power bowl lift raises the heavy 140-qt bowl at the touch of a button.
- FastStop brings the agitator to a complete halt in under three seconds for operator safety.
- Durable stainless-steel removable bowl guard is dishwasher-safe for quick clean-up.
- Rugged metallic-gray hybrid powder-coat finish resists scratching and corrosion.
Included Accessory Package
- 140-qt stainless-steel bowl
- 140-qt “B” flat beater
- 140-qt “D” wire whip
- 140-qt “ED” spiral dough hook
- Bowl truck for safe transport
Batch Capacity Guide
| Product | HL1400 Capacity |
|---|---|
| Bread / Roll Dough 60 % AR | 210 lb ★ (1st speed) |
| Heavy Bread Dough 55 % AR | 175 lb ▲ (3rd speed max) |
| Thin Pizza Dough 40 % AR | 135 lb ● (1st speed, ≤ 5 min) |
| Mashed Potatoes | 100 lb |
| Cake Batter | 185 lb |
| Whipped Cream | 30 qt |
| Egg Whites | 4 qt |
★ 1st speed ▲ 3rd speed ● Special conditions – see operator manual for details.
Technical Specifications
| Model | HL1400 (CE configuration) |
|---|---|
| Motor | 5 HP high-torque, totally-enclosed fan-cooled |
| Speeds (Agitator RPM) | Stir 23 | 1st 46 | 2nd 80 | 3rd 150 | 4th 265 |
| Timer | Programmable 20-minute SmartTimer™ with automatic time recall |
| Capacity | 140 qt / 132 L bowl |
| Electrical | 400 V, 50 Hz, 3-phase, 6.8 A (hard-wired) |
| Dimensions (W × D × H) | 33.9 in × 62.8 in × 67.6 in (86.0 × 159.5 × 171.8 cm) |
| Net Weight | 1,460 lb / 662 kg (includes bowl) |
| Bowl Lift | Power, push-button-controlled |
| Construction | Cast-iron frame; reinforced planetary shaft; stainless-steel bowl guard |
| Warranty | 1-year parts, labor & travel |
| Certifications | NSF • CE • UL (Electrical) |
Power Through Your Toughest Mixes
From artisan breads and pizza dough to cake batter, icings and whipped fillings, the Hobart HL1400 delivers the consistency, capacity and operator safety today’s high-output kitchens demand. Add it to your cart now, or contact us for expert advice and volume pricing.
