Hobart HL1400-2STD Food Machines - Mixers Planetary Mixers
Description

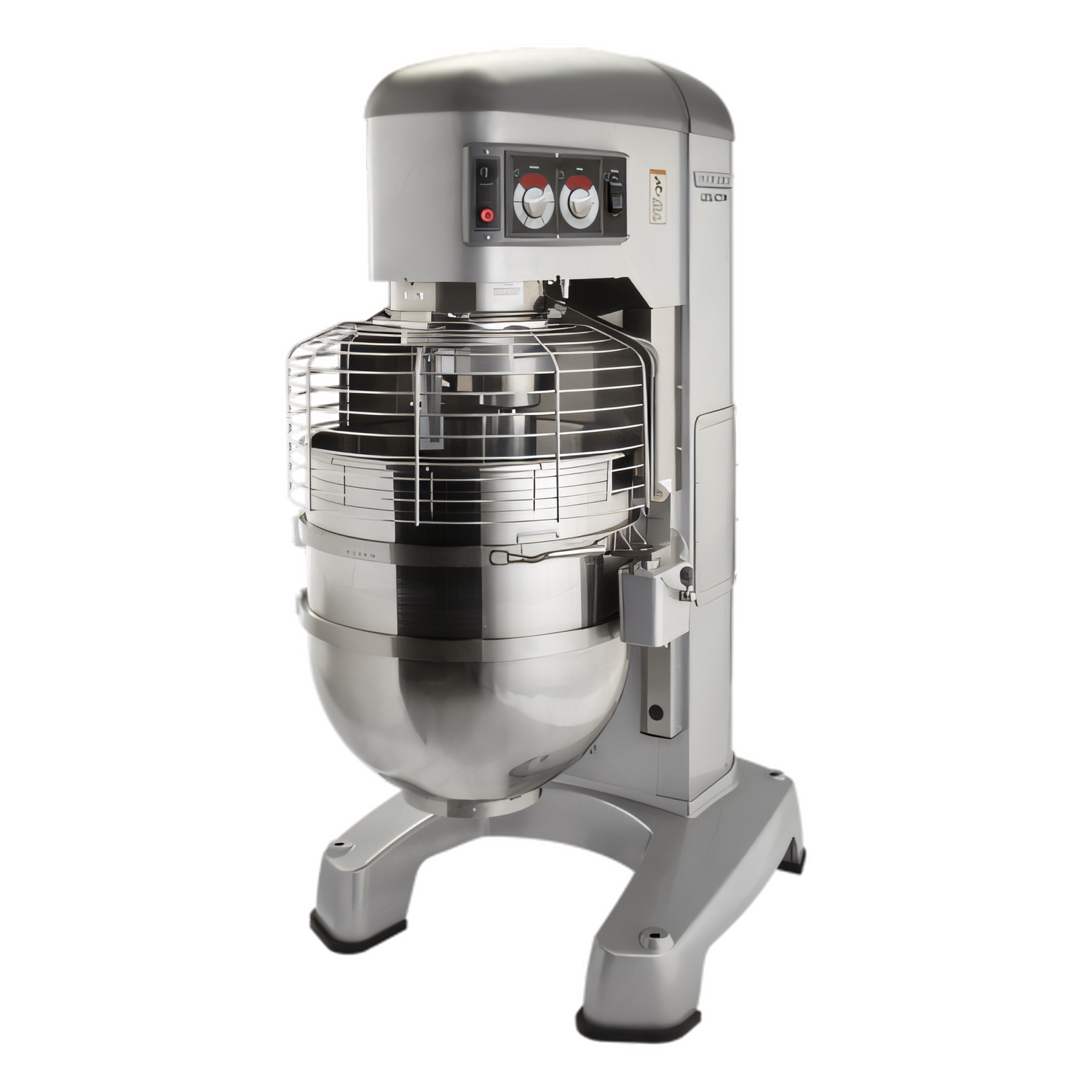

Hobart Legacy+ HL1400 140-Qt Heavy-Duty Planetary Mixer
5 HP • 4 fixed speeds + stir • 380-460 V / 50/60 Hz / 3-Phase (US/EXP)Built for bakeries, commissaries and high-volume kitchens that refuse to compromise, the Hobart Legacy+ HL1400 brings unrivaled capacity, consistency and operator safety to every mix. The PLUS™ variable-frequency-drive system delivers the torque of a 5 HP motor through a rugged gear transmission, while an ergonomic swing-out bowl and power lift make 140-quart batches feel effortless.
Why You’ll Love It

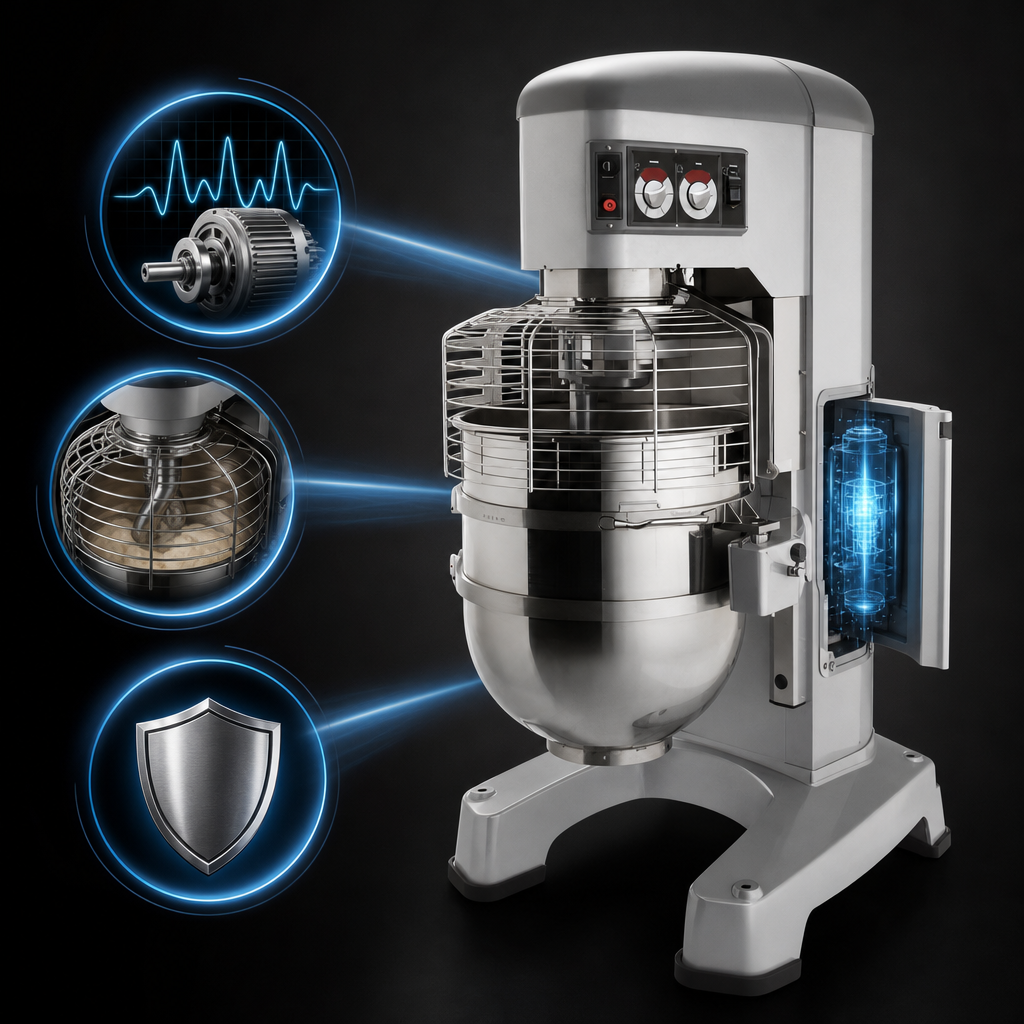

- PLUS System with VFDadvantage for maximum torque, soft-start and FastStop® braking (<3 s).
- Four fixed speeds plus dedicated stir speed – change speeds on the fly without stopping the mixer.

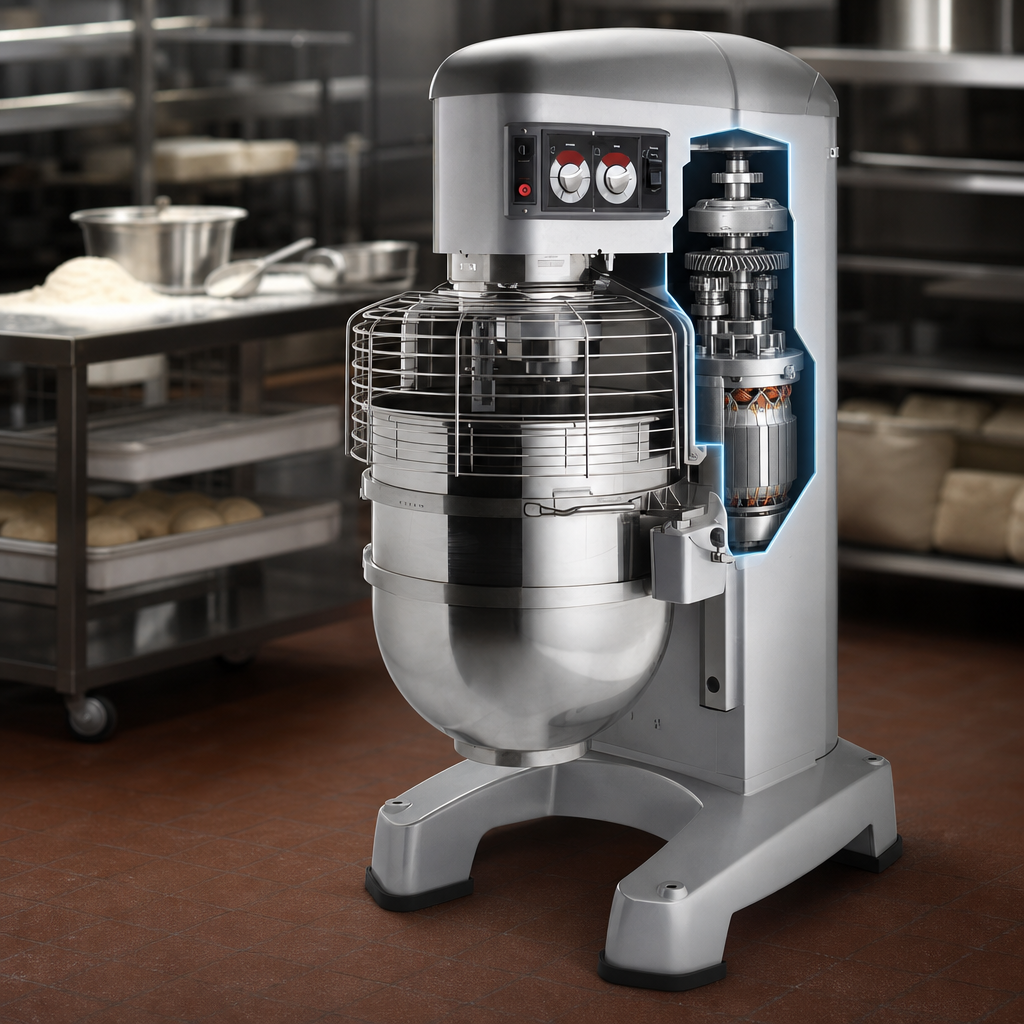

- 5 HP high-torque motor protected by maximum-capacity overheat technology.
- Reinforced planetary shaft and constant-mesh, heat-treated gears for extreme durability.
- 20-Minute SmartTimer™ with automatic time recall for every speed.
- Triple-interlock MagnaLock® guard system prevents operation unless bowl is up and guard is closed.
- Single-point, ergonomic swing-out bowl and electronic power lift simplify loading and unloading.
- Open base with industrial, metallic-gray hybrid powder coat for easy floor cleaning and corrosion resistance.
- NSF and cULus listed; neoprene footpads supplied.
What’s in the Box
- 140-Qt stainless steel bowl (Quick-Release™)
- “B” flat beater
- “ED” spiral dough arm
- Stainless steel removable bowl guard
- Bowl truck for effortless transport
Recommended Batch Capacities
| Product | HL1400 Capacity |
|---|---|
| Cookies, Sugar | 100 lb |
| Cake Batter | 185 lb |
| Mashed Potatoes | 100 lb |
| Dough, Bread/Roll 60 % AR | 210 lb · 1st spd |
| Dough, Heavy Bread 55 % AR | 175 lb · 1st spd |
| Dough, Thin Pizza 40 % AR | 135 lb · 1st spd (≤5 min) |
| Dough, Thick Pizza 60 % AR | 190 lb · 2nd spd max |
| Whipped Cream | 30 qt |
| Egg Whites | 4 qt |
Capacities based on 12 % flour moisture at 70 °F water temperature. Reduce batch size 10 % when using high-gluten flour or ice.
Operator-Focused Details
- Large, front-mounted controls and LCD timer – easy to read even with gloved hands.
- Shift-on-the-Fly™ plus jog/pulse modes for precise ingredient incorporation.
- Ingredient-chute ready guard lets you add while you mix; chute kit optional.
- Guard and agitators are dishwasher-safe for quick, sanitary turnaround.
Technical Specifications
| Motor | 5 HP, high-torque, gear-driven |
|---|---|
| Speeds (RPM) | Stir 23 • 1st 46 • 2nd 80 • 3rd 150 • 4th 265 |
| Timer | 20-min SmartTimer™ with automatic recall |
| Electrical | 380-460 V / 50/60 Hz / 3 Ph • 6.8 A (machine must be hard-wired) |
| Bowl Capacity | 140 qt (132 L) |
| Overall Dimensions (W × D × H) | 36.4″ × 62.8″ × 67.6″ (92.6 × 159.5 × 171.8 cm) |
| Net Weight | 1,460 lb / 662 kg (incl. bowl) |
| Finish | Metallic gray hybrid powder coat |
Popular Add-Ons (Sold Separately)
- 140-Qt “C” wing whip, “D” wire whip, or “I” heavy-duty whip
- Bowl scraper and lexan splash cover
- Ingredient chute (part #438047) for tool-free guard installation
- Additional stainless bowls or agitators for quick batch change-outs
