Hobart HL1400-2 Food Machines - Mixers Planetary Mixers
Description

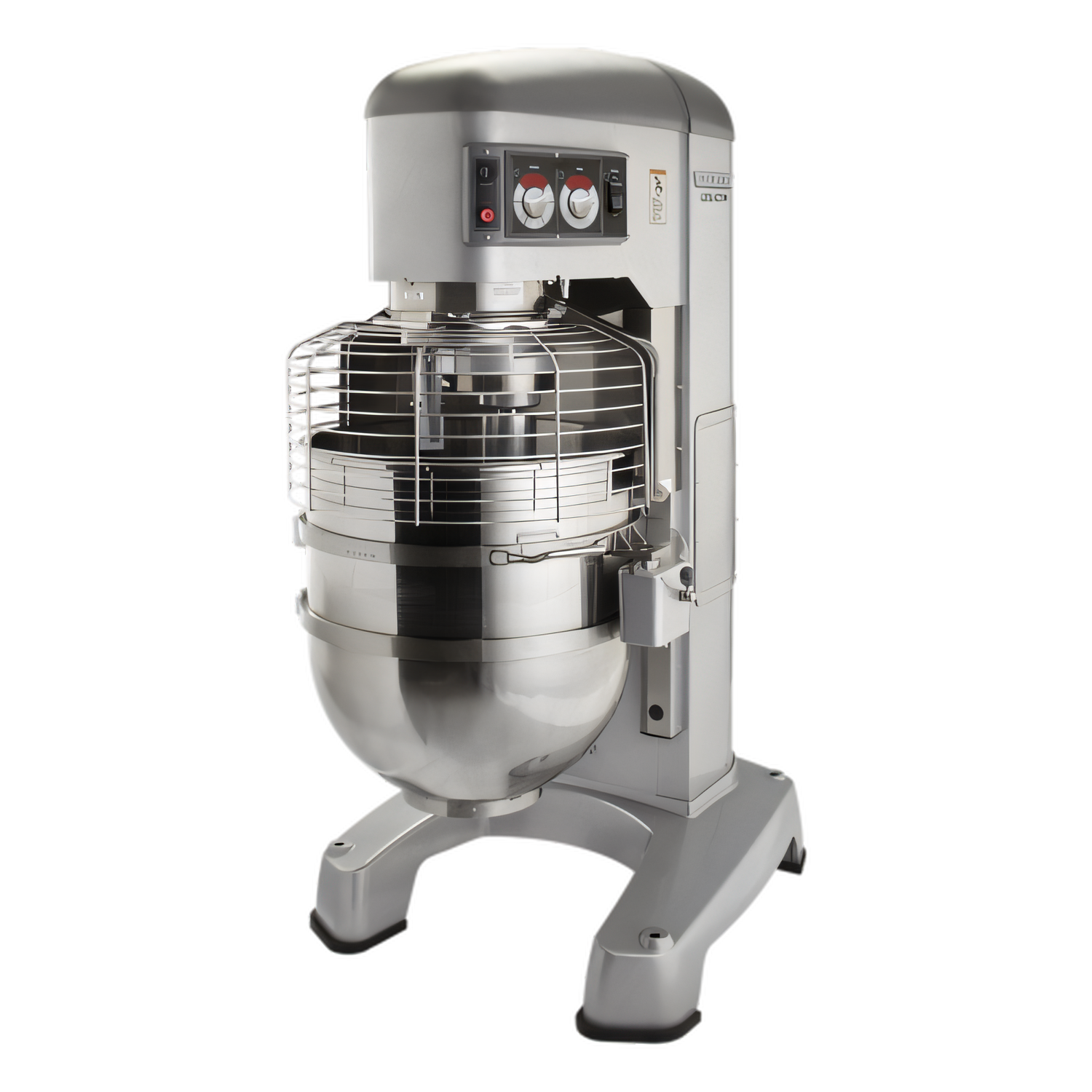

Hobart Legacy+ HL1400 140-Quart Planetary Mixer
5 HP • Gear-Driven • 380-460 V / 50/60 Hz / 3-PhaseEngineered for the toughest doughs and the largest batches, the Legacy+ HL1400 gives high-volume kitchens the power, capacity and safety they demand—without slowing production. Hobart’s exclusive PLUS System couples a heavy-duty 5 HP motor with a reinforced planetary shaft, delivering reliable torque through four fixed speeds plus stir speed, while VFDadvantage™ technology maintains consistent mixing results every cycle.
Key benefits
- Massive 140 qt. capacity handles up to 210 lb. of 60 % AR bread dough (1st speed).
- 5 HP, gear-driven transmission built for continuous, heavy-duty production.
- PLUS System: variable-frequency drive, maximum-capacity overheat protection & reinforced planetary shaft.
- Shift-on-the-Fly™ controls with Soft Start agitation reduce ingredient splash-out.
- 20-minute SmartTimer™ with automatic time recall for each speed.
- Power bowl lift & ergonomic swing-out bowl simplify loading and unloading.
- Triple-interlock MagnaLock™ safety system and FastStop (<3 sec. stop time).
- Stainless-steel, removable bowl guard—dishwasher safe for effortless sanitation.
- Open-base design, metallic-gray hybrid powder-coat finish & neoprene footpads.
- NSF & UL Listed; one-year parts & labor warranty.
Technical specifications
| Capacity | 140 qt. (liquid) |
|---|---|
| Motor output | 5 HP high-torque |
| Transmission | Gear-driven with poly-V belt primary drive |
| Speeds (RPM) | Stir 23 | 1st 46 | 2nd 80 | 3rd 150 | 4th 265 |
| Timer | 20-minute SmartTimer™ with automatic time recall |
| Bowl lift | Electric power lift with Stir-on-Lift feature |
| Safety | Triple interlock, stainless bowl guard, FastStop braking |
| Electrical | 380-460 V / 50/60 Hz / 3-Ph, 6.8 A (machine must be hard-wired) |
| Finish | Metallic-gray hybrid powder coat; stainless guard & bowl interface |
| Dimensions (W × D × H) | 39.9 in × 59.6 in × 67.6 in (101.4 cm × 151.5 cm × 171.8 cm) |
| Net weight | 1,460 lb (662 kg) with bowl |
| Certifications | NSF, UL |
| Warranty | 1-year parts, labor & mileage |
Recommended batch capacities (guide)
| Product | Max. batch size | Speed |
|---|---|---|
| Bread / roll dough (60 % AR) | 210 lb | 1st |
| Heavy bread dough (55 % AR) | 175 lb | 1st |
| Thin pizza dough (40 % AR) | 135 lb | 1st |
| Mashed potatoes | 100 lb | 1st |
| Cake batter | 185 lb | 2nd |
| Whipped cream | 30 qt | 3rd |
Capacities based on 70 °F water, 12 % flour moisture. Reduce by 10 % when using high-gluten flour or ice.
Popular accessories (sold separately)
- 140-qt stainless-steel bowl (BOWL-HL140)
- “B” flat beater (BBEATER-HL140)
- “ED” dough hook (EDDOUGH-HL140)
- “D” wire whip (DWHIP-HL140)
- Bowl truck (TRUCK-HL1486)
- Bowl scraper, splash cover, ingredient chute & more
Need a lower voltage, correctional or fully accessorized model? Ask our team about additional Legacy+ configurations and service contracts tailored to your operation.
