Hobart HL1400-1STD Food Machines - Mixers Planetary Mixers
Description

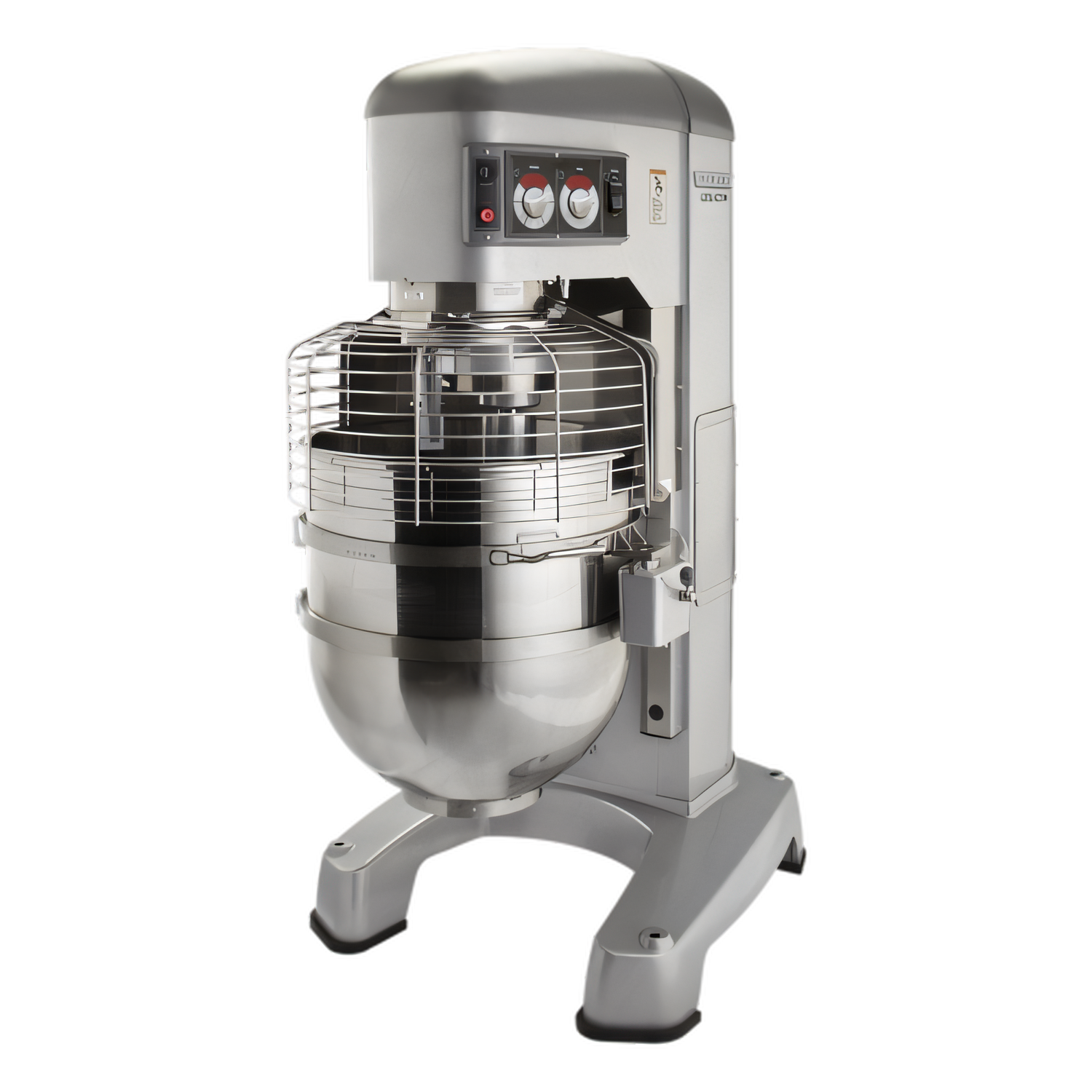

Hobart Legacy+ HL1400 140-Quart Planetary Mixer
5 HP • 4 Fixed Speeds + Stir • Complete 140 Qt PackageWhen your bakery, commissary or high-volume kitchen can’t compromise on consistency, capacity or operator safety, step up to the Hobart Legacy+ HL1400. This 5 HP, gear-driven powerhouse pairs Hobart’s exclusive PLUS System with an ergonomic swing-out bowl, delivering up to 210 lb of dough per batch without breaking a sweat. The HL1400 arrives as a ready-to-work package—stainless steel bowl, “B” flat beater, “ED” spiral dough arm and self-centering bowl truck are all included.
Why choose the Legacy+ HL1400?

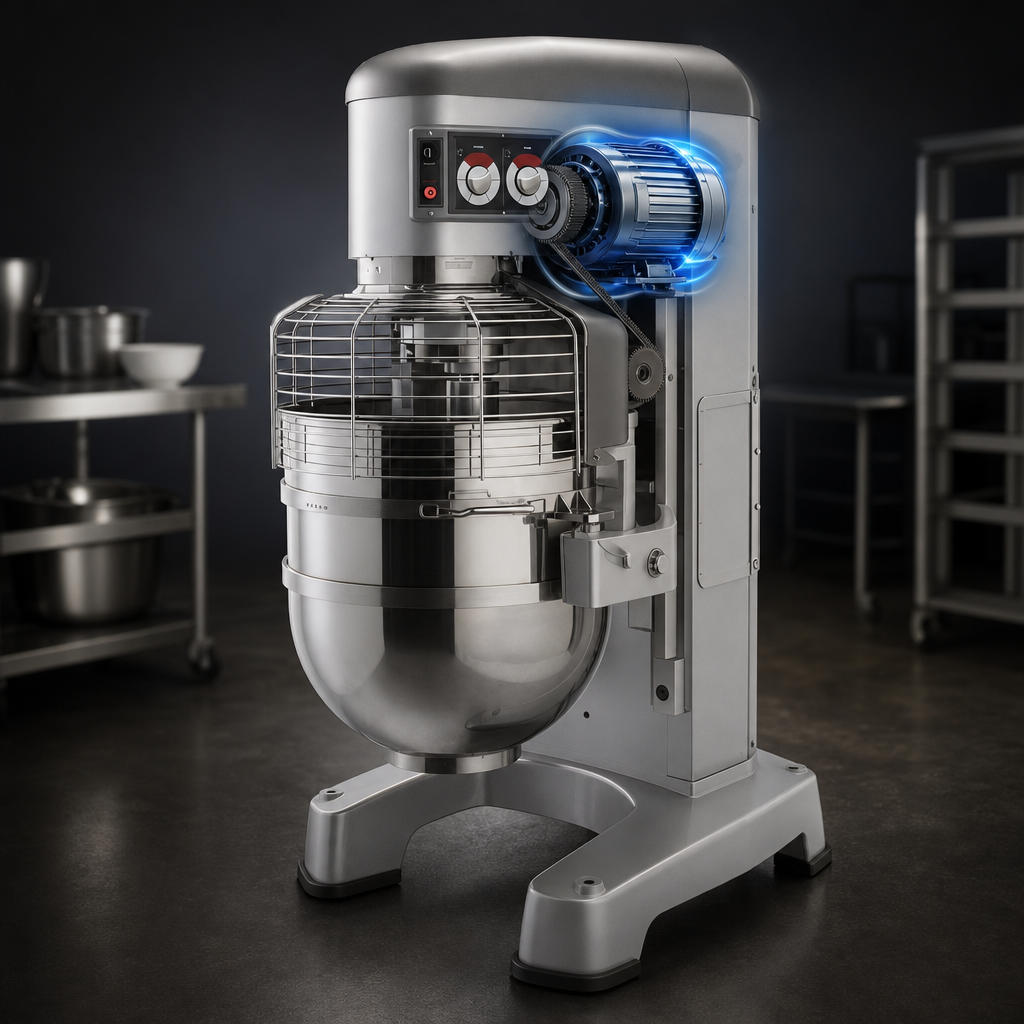

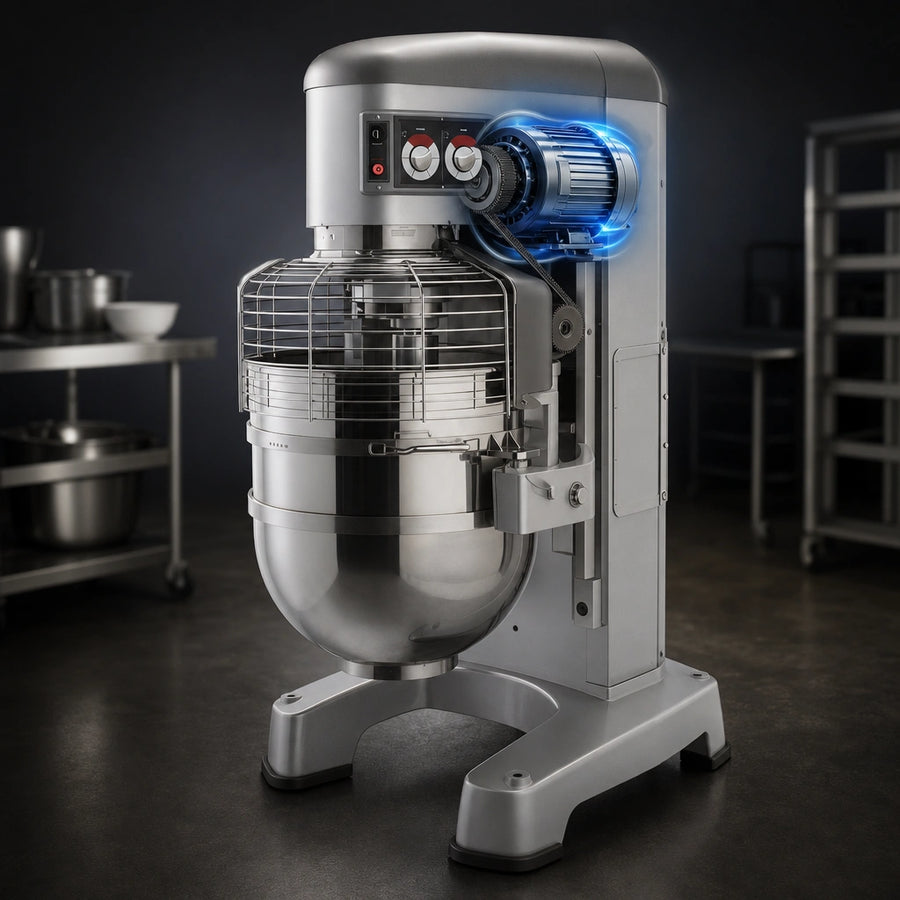

- 5 HP VFDadvantage Motor – Variable-frequency drive delivers whisper-smooth power, superior torque and built-in FastStop braking (<3 sec).

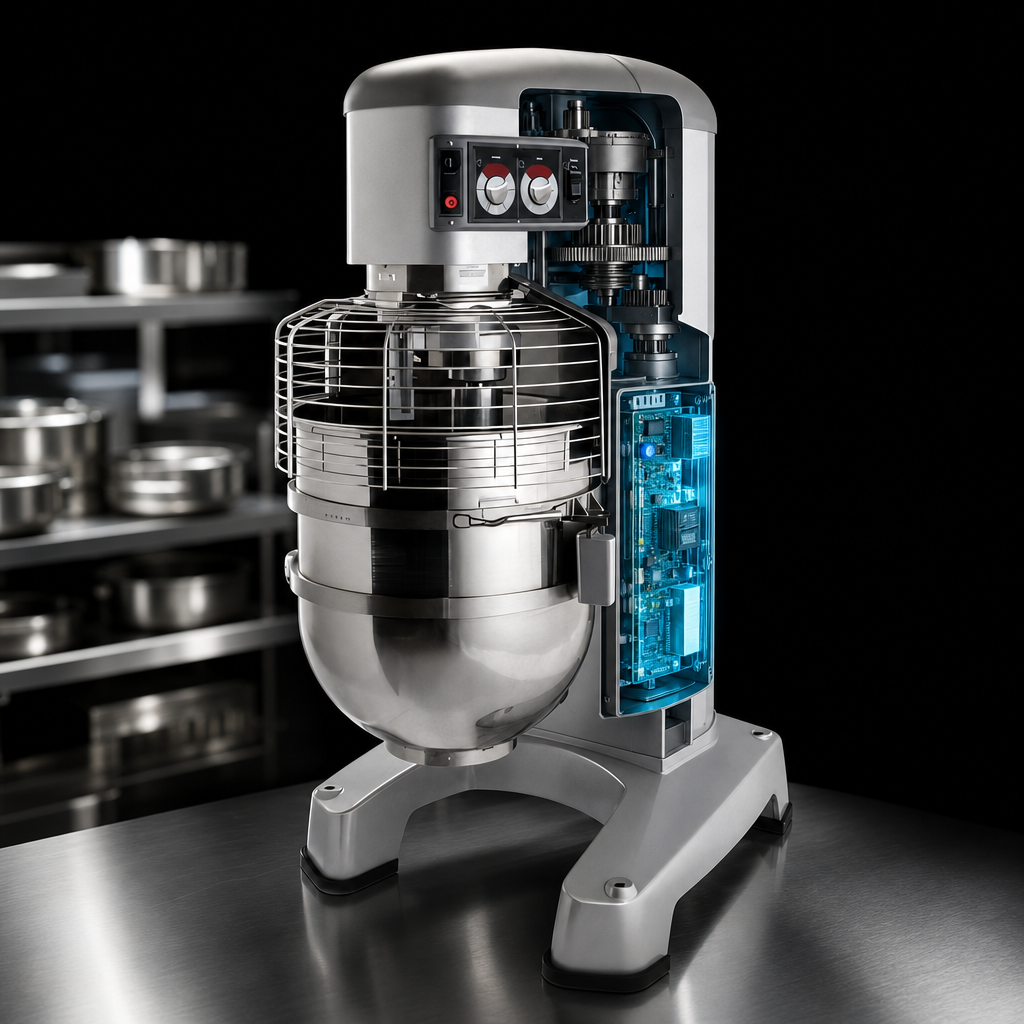

- PLUS System Protection – Reinforced planetary shaft and over-heat monitoring safeguard your investment under the heaviest loads.
- Four Fixed Speeds + Stir – Shift-on-the-Fly™ controls let you change speeds without stopping the agitator.
- 20-Minute SmartTimer™ – Remembers the last time set for each speed—perfect for repeatable, multi-stage recipes.
- Ergonomic Swing-Out Bowl – Single-point installation means no awkward lifting; simply swing, load and lock.
- Power Bowl Lift – Fingertip-controlled electric lift positions the bowl automatically; includes “Stir-on-Lift” feature.
- Triple-Interlock Bowl Guard with MagnaLock™ – Stainless guard removes without tools and must be closed for operation.
- NSF & UL Listed; metallic-gray hybrid powder coat resists corrosion and cleans up fast.
What’s in the box
- 140 qt 304-SS Swing-Out Bowl (BOWL-HL140)
- 140 qt “B” Flat Beater (BBEATER-HL140)
- 140 qt “ED” Spiral Dough Hook (EDDOUGH-HL140)
- Heavy-duty Bowl Truck (TRUCK-HL1486) for effortless mobility
- Stainless Steel Removable Bowl Guard
Recommended Maximum Capacity
| Product Type | Agitator | Max Batch |
|---|---|---|
| Bread/Roll Dough – 60 % AR | “ED” Hook | 210 lb (1st speed) |
| Heavy Bread – 55 % AR | “ED” Hook | 175 lb (1st speed) |
| Thin Pizza Dough – 40 % AR* | “ED” Hook | 135 lb (1st speed, ≤5 min) |
| Cookies/Sugar | “B” Beater | 100 lb |
| Cakes (Box/Sheet) | “B” Beater | 185 lb |
| Whipped Cream | “D” or “C” Whip | 30 qt |
*Reduce batch 10 % when using ice or high-gluten flour.
Technical Specifications
| Model | HL1400 Legacy+ Planetary Mixer |
|---|---|
| Capacity | 140 qt (132 L) |
| Motor | 5 HP, gear-driven, VFD |
| Speeds (RPM) | Stir 23 | 1st 46 | 2nd 80 | 3rd 150 | 4th 265 |
| Electrical | 200-240 V / 50-60 Hz / 3-phase, 14.8 A |
| Controls | Start/Stop, Shift-on-the-Fly™, Power Lift, 20-min SmartTimer™ with Auto Recall |
| Finish | Metallic-gray hybrid powder coat |
| Footprint (W × D × H) | 32.3 " × 47.1 " × 67.6 " (82 × 120 × 172 cm) |
| Net Weight | 1,460 lb (662 kg) – bowl included |
| Warranty | 1-year parts, labor & travel (factory-authorized service network) |
Perfect for
- Wholesale and in-store bakeries producing high-volume doughs & batters
- School, hospital and corporate commissaries
- Pizza or bagel operations mixing dense, low-hydration doughs
- Hotel pastry departments whipping creams or marshmallow icing in bulk
Popular Upgrades (sold separately)
- “C” Wing Whip or “I” Heavy-Duty Wire Whip for aerating light products
- Bowl Scraper for continuous sidewall cleaning during mixing
- Lexan Splash Cover to control lightweight ingredient throw-off
- Ingredient Chute (CHUTE-LMV) for safe, on-the-fly additions
- Step-down bowls (40–80 qt) to scale recipes without changing mixers
Need help configuring attachments or scheduling professional installation? Contact our food-equipment specialists—we’re ready to assist.
