Hobart HL1400-1 Food Machines - Mixers Planetary Mixers
Description

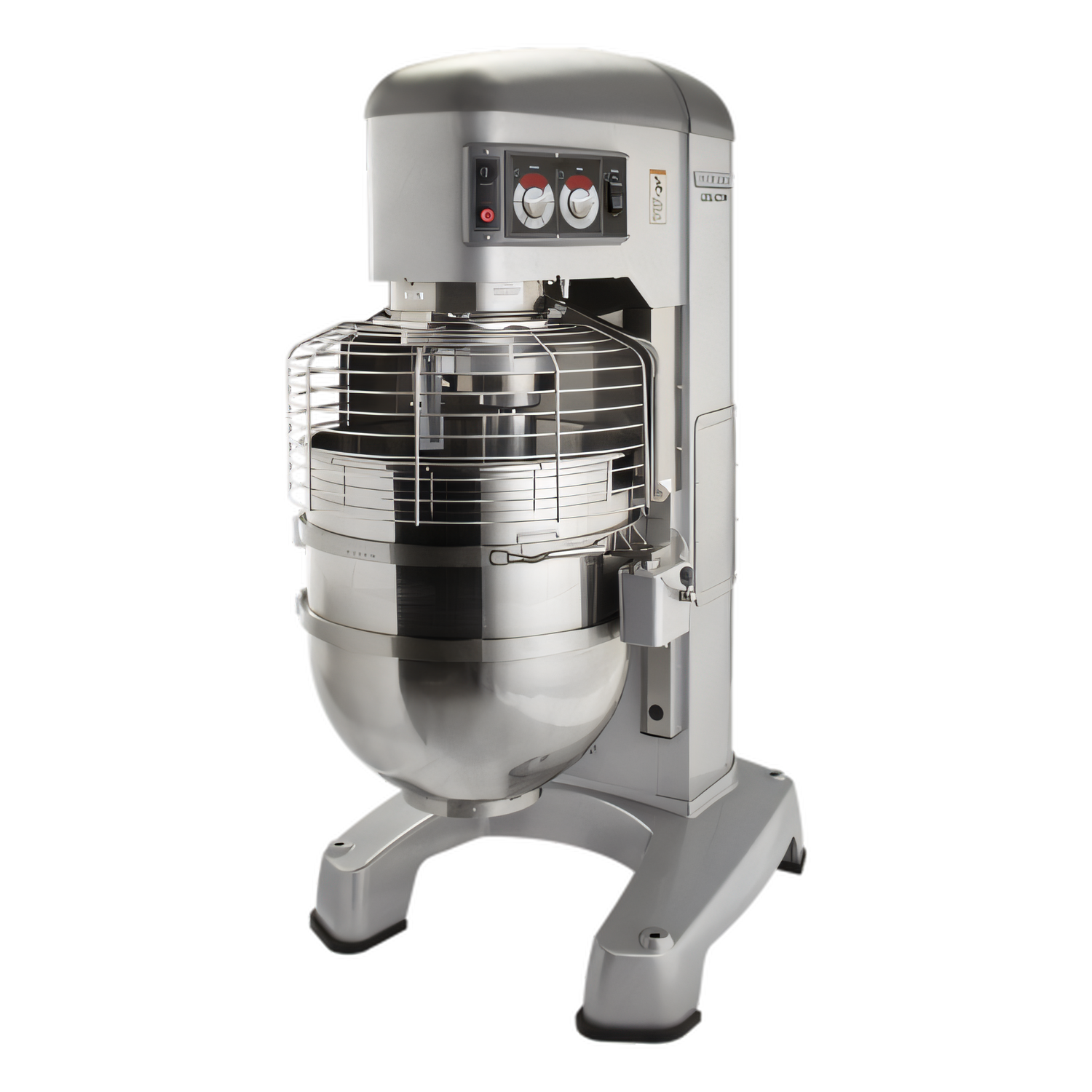

Hobart Legacy+ HL1400 140-Quart Heavy-Duty Planetary Mixer
5 HP • 4 Fixed Speeds + Stir • 200-240 V / 50-60 Hz / 3-Phase (Unit Only)Engineered for the largest commercial kitchens and commissaries, the Hobart Legacy+ HL1400 delivers unmatched mixing muscle, precision and operator safety. Its rugged 5-horsepower gear drive and advanced PLUS System maintain consistent torque through the toughest doughs—so you can turn out high-volume batches with absolute confidence.
Performance Highlights
- VFDadvantage variable-frequency drive supplies full-time torque and motor protection
- Reinforced planetary shaft with gear transmission for maximum durability
- Four fixed speeds plus dedicated Stir; Shift-on-the-Fly™ for speed changes while mixing
- Soft Start agitation minimizes ingredient splash-out
- 20-Minute SmartTimer™ with automatic time recall for each speed
- Maximum-capacity overheat protection for extreme-duty cycles
Operator Comfort & Safety
- Ergonomic swing-out bowl & single-point installation speed up loading/unloading
- Power bowl lift raises or lowers the 140-qt bowl at the touch of a button
- Triple-interlock system with MagnaLock keeps bowl and guard securely in place
- Stainless steel removable bowl guard is dishwasher-safe
- FastStop halts all moving parts in under three seconds
High-Volume Capacity Guide
| Product | Maximum Batch |
|---|---|
| Bread/Roll Dough (60 % AR) | 210 lb |
| Heavy Bread Dough (55 % AR) | 175 lb |
| Thin-Crust Pizza Dough (40 % AR, 5 min.) | 135 lb |
| Cake Batter | 185 lb |
| Mashed Potatoes | 100 lb |
| Whipped Cream | 30 qt |
Capacities based on 70 °F water and 12 % flour moisture. Reduce batch 10 % when using high-gluten flour.
Technical Specifications
| Bowl Capacity | 140 qt (bowl sold separately) |
|---|---|
| Motor Power | 5 HP high-torque |
| Speeds (Agitator RPM) | Stir 23 • 1st 46 • 2nd 80 • 3rd 150 • 4th 265 |
| Drive Type | Gear-driven with poly-V belt input |
| Electrical | 200-240 V / 50-60 Hz / 3-Ph, 14.8 A |
| Finish | Metallic gray hybrid powder coat |
| Overall Dimensions (H × W × D) | 67.6 in × 32.3 in × 47.1 in (171.8 cm × 81.9 cm × 119.7 cm) |
| Net Weight | 1,460 lb (662 kg) – without bowl |
| Certifications | cULus, NSF |
| Warranty | One-year parts & labor |
What’s Included
- Legacy+ HL1400 mixer body
- Stainless steel front-rotating bowl guard
- Integrated power bowl lift
- SmartTimer™ with Start/Stop controls
Compatible Accessories (Sold Separately)
- 140-qt stainless steel bowl (BOWL-HL140)
- Quick Release™ agitators: “B” beater, “ED” dough hook, “D” wire whip, “C” wing whip, “I” heavy-duty whip
- Bowl truck, bowl scraper, ingredient chute, pastry knife and more
