Hobart Warewash - Disposers FD4/200+BUILDUP 2 HP Continuous-Duty Food Waste Disposer, Basic Unit Only, 2-Inch Drain Connection
- Type
- Food Waste Disposer
- Style
- Basic Unit Only
- Horsepower
- 2 HP
- Drain Connection Size
- 2 Inches
- Selling Unit
- Each
- Units Per Case
- 1
Specifications
Description

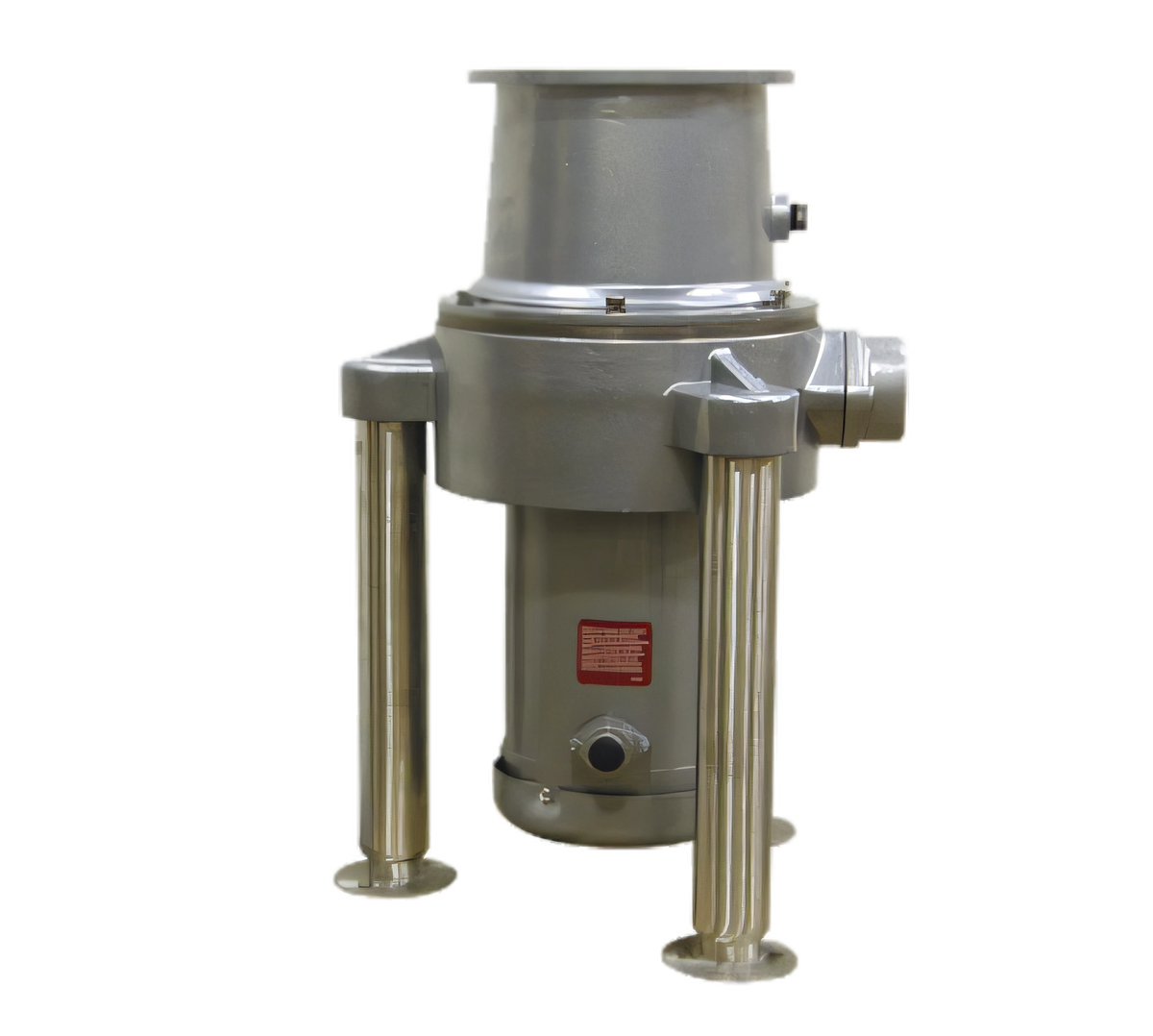

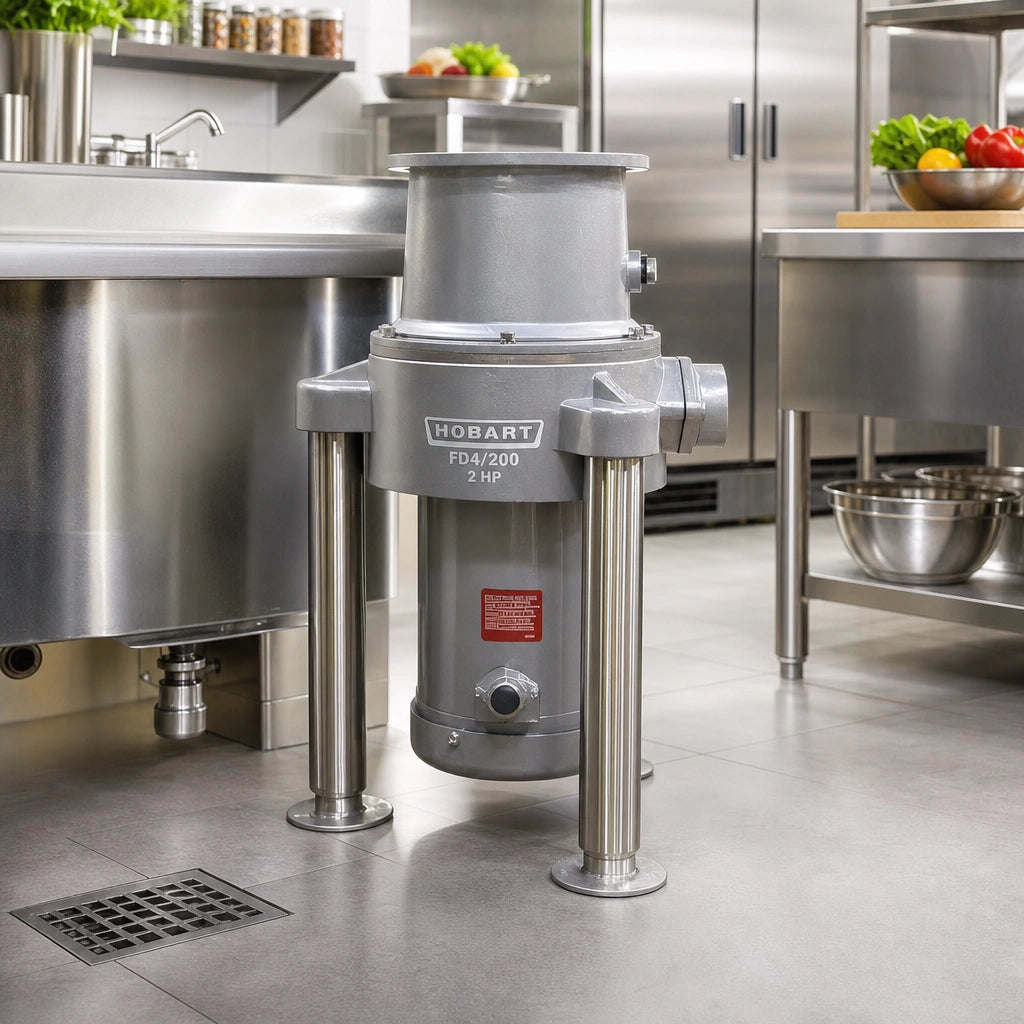

Hobart FD4/200 2 HP Food Waste Disposer, Basic Unit Only
Continuous-Duty Motor, 7 Inch I.D. Cone Interface, Adjustable Flanged Feet
A rugged 2 HP food waste disposer designed for continuous-duty commercial waste handling, vibration-reducing mounting, and easy jam-clearing reverse operation.
- Basic unit only for a commercial food waste disposer system; cones, controls, and accessory groups are selected separately.
- 2 HP continuous-duty motor with manual reset thermal overload protection.
- Heavy-duty ductile iron and cast iron housings built for demanding kitchen use.
- Tubular stainless steel legs with flanged feet adjust up to 3 inches in either direction.
- Dual-direction grinding helps clear jams and improve grinding efficiency.
- Mounts to 7 inch I.D. cones with a vinyl isolating ring to reduce vibration and noise.
Product Weight:

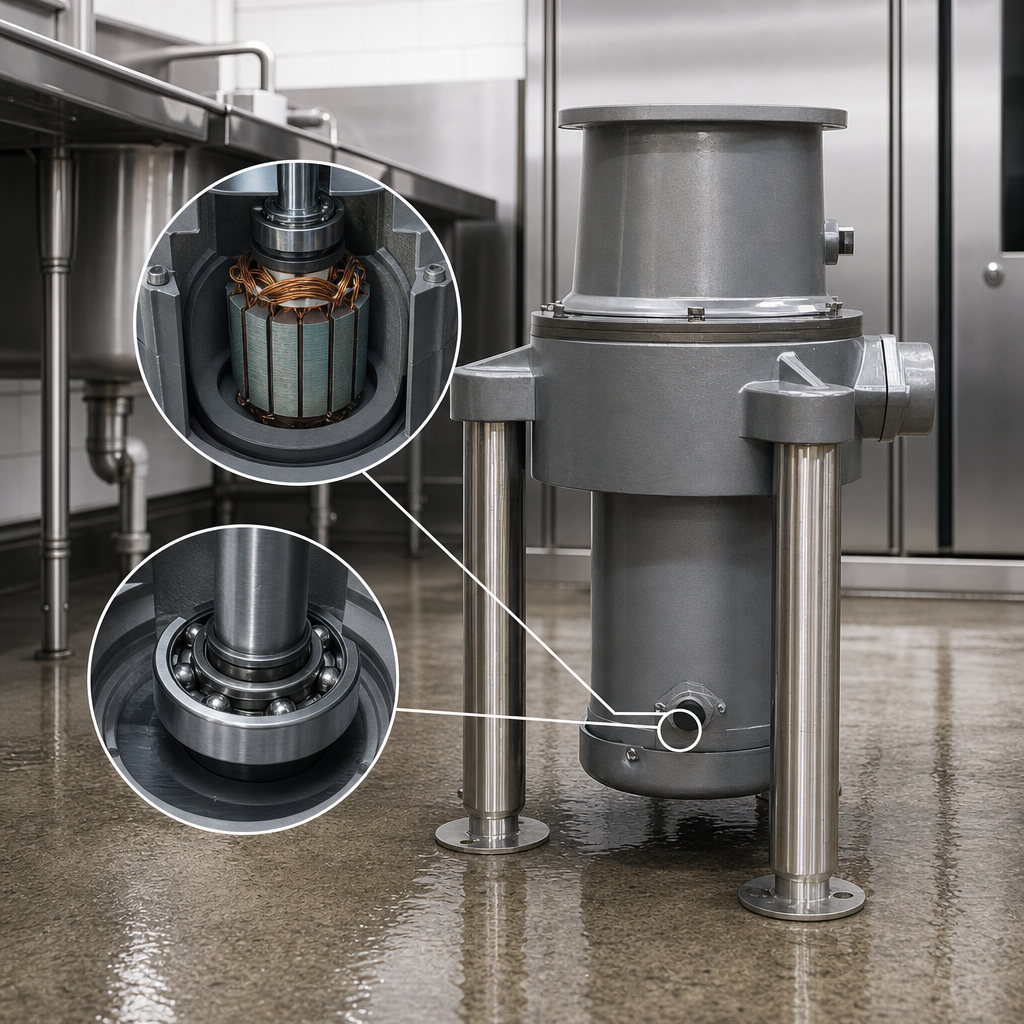

158.0 lbContinuous-Duty Motor
Equipped with manual reset thermal overload protection and permanently lubricated ball bearings for upper and lower shaft support.
Heavy-Duty Housings
Uses a heavy ductile iron upper housing and ductile gray cast iron lower housing; the lower housing is primed and powder coated.
Adjustable Stainless Steel Legs
Tubular stainless steel legs with flanged feet support the housing and adjust 3 inches in either direction.
7 Inch Cone Mounting
Fastens to 7 inch I.D. cones with a vinyl isolating ring that helps eliminate metal-to-metal contact and reduce vibration and noise transmission.
Dual-Directional Grinding
Operates in either direction of flywheel rotation to help clear jams and improve the life and efficiency of grinding elements.
Replaceable Cutter Blocks
Two hardened ductile iron cutter blocks are replaceable and can be indexed to expose new cutting edges.
Mechanical Shaft Seal
Mechanical face-type seal uses a spring-loaded carbon ring insert in chemical-resistant neoprene bellows.
2 Inch Drain Connection
The removable outlet flange is tapped for a 2 inch pipe connection.
