Hobart CUH-1 Warewash - Centerline Undercounter Dishwashers
Description

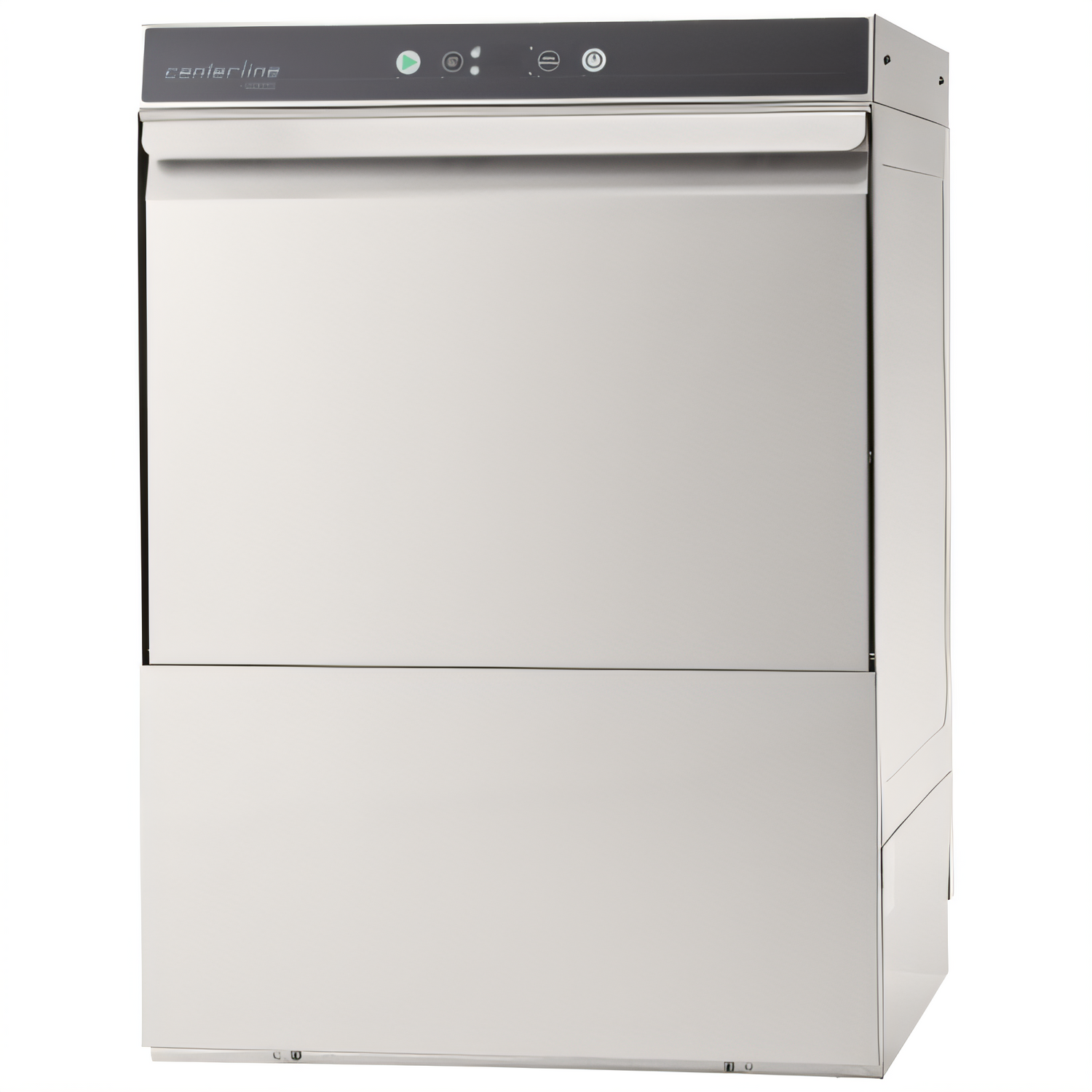

Centerline by Hobart CUH High-Temperature Undercounter Dishwasher
Compact, ENERGY STAR® certified warewashing in a 22 11⁄16" wide footprintDesigned for cafés, bars, schools and satellite kitchens, the Centerline CUH delivers NSF-approved hot-water sanitizing while using less than one gallon of fresh water per rack. Get Hobart reliability and performance at an approachable price point.
Key advantages
- High-temperature sanitizing with integrated 6 kW booster—Sense-a-Temp™ maintains a 180 °F final rinse.
- Fast 2-minute standard cycle (optional 4-minute extended) processes up to 24 racks per hour.
- Industry-leading water use: just 0.84 gal per rack for lower utility costs.
- Soft-start pump protects delicate glassware and reduces startup noise.
- Top-mounted digital display shows real-time wash & rinse temperatures.
- Snap-in anti-clog upper and lower wash/rinse arms for quick cleaning.
- Automatic fill, pumped drain, delime cycle and built-in chemical pumps simplify operation.
- Service diagnostics with error notifications speed troubleshooting and minimize downtime.
- ENERGY STAR® qualified—eligible for many local rebates.
What’s included
- (1) 20" × 20" peg rack for plates & trays
- (1) 20" × 20" combo rack for glasses, bowls & utensils
- 6' fill hose with ¾" GHT female fitting
- 6' pumped-drain hose with 19 mm barb
Performance & utility data
| Rack capacity | 24 racks / hour |
|---|---|
| Cycle time | 120 s (standard) | 240 s (extended) |
| Water use | 0.84 gal / rack (20.2 gal / hr max) |
| Door opening | 14.46" |
| Wash temperature | 150 °F |
| Final rinse temperature | 180 °F (Sense-a-Temp™) |
| Booster heater | 6.0 kW (70 °F rise) |
| Tank heat | 5.5 kW electric |
| Dimensions (W × D × H) | 22 11⁄16" × 24" × 32 5⁄16" |
| Electrical | 208-240 V / 60 Hz / 1-ph | 24.2-27.5 A | 30 A circuit |
| Shipping weight | Approx. 148 lb (crated) |
| Certifications | cULus, NSF, ENERGY STAR® |
Optional accessories
- Stainless steel stand with rack storage (adds up to 17 7⁄8" height)
- Upper/lower stainless wash & rinse arm kit
- Chemical sensing indicators (low-chemical alert)
- Power-cord kits
- DWT drain-water tempering kit
Compliance & warranty
Meets NSF/ANSI 3 sanitation standards and ENERGY STAR® 3.0 efficiency requirements. Backed by a 1-year parts and labor warranty and Hobart’s nationwide service network.
CAD/Revit files available at hobartcorp.com.
