Hobart  |  Warewash - Flow  |  SKU: CL86C-DWR+BUILDUP

Hobart CL86C-DWR+BUILDUP Warewash - Flow Conveyor Dishwashers

$104,574.49
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Steam spec sheet
Related Searches
Conveyor Dishwashers Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

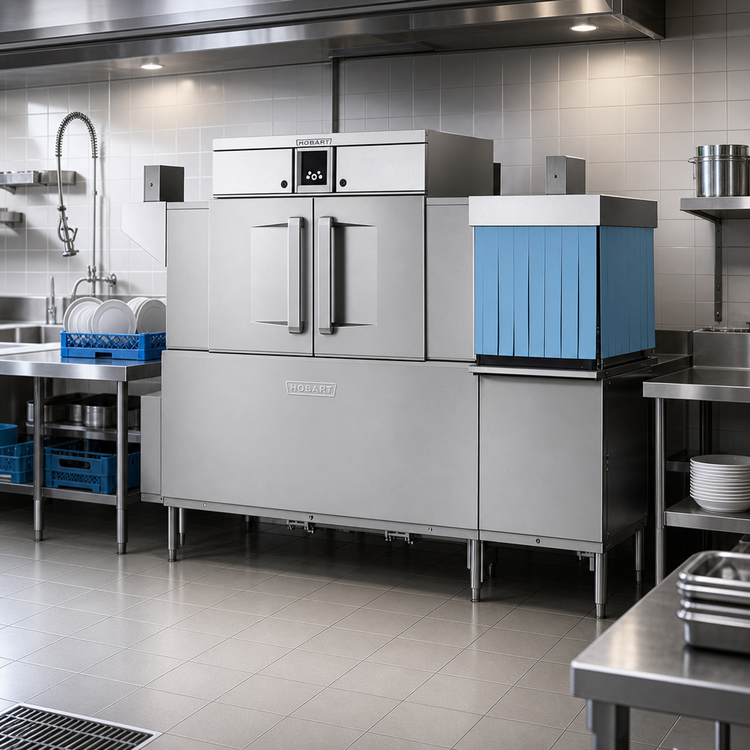

Hobart CL86C-DWR “Flow” Rack Conveyor Dishwasher

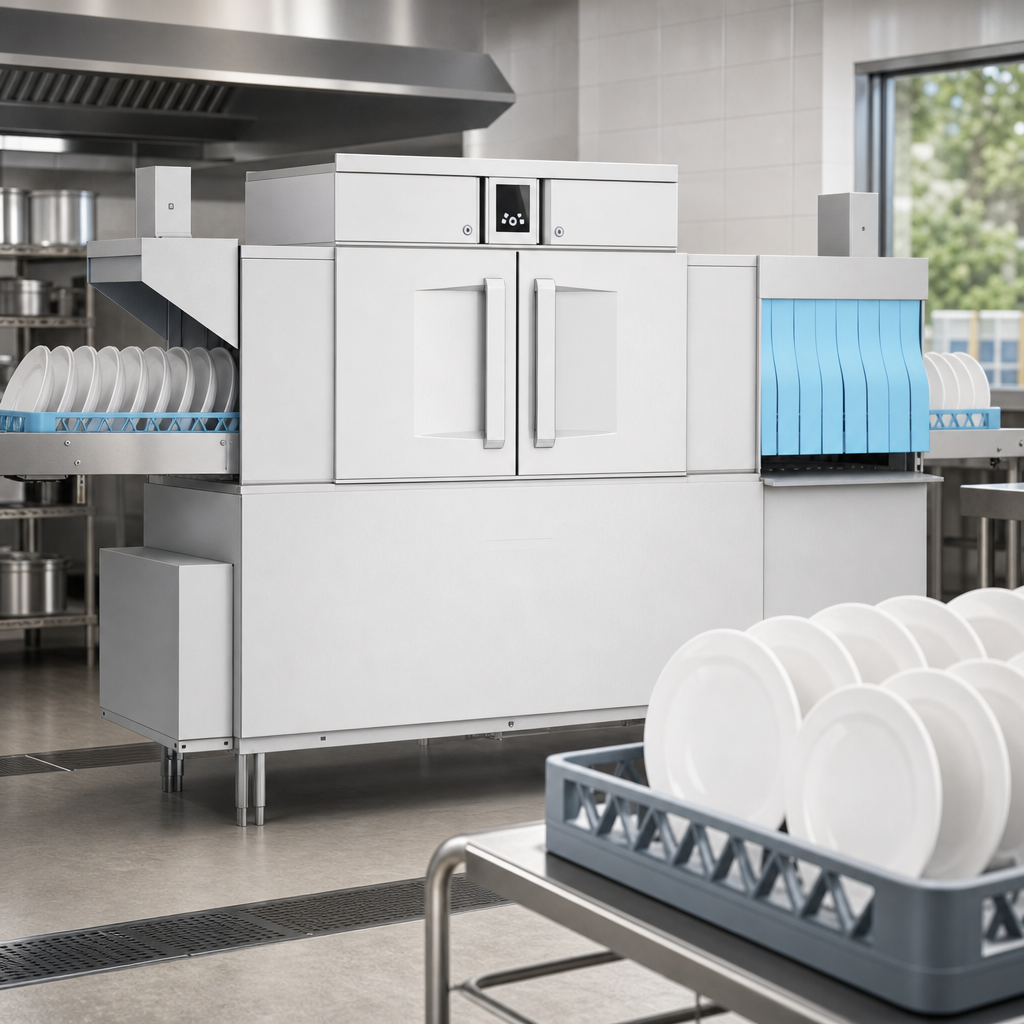

High-Temperature • Drain Water Energy Recovery • 342 Racks/Hour

Meet the next wave of high-volume warewashing. The Hobart CL86C-DWR “Flow” combines a powerful two-tank design with corner pre-wash, ENERGY STAR® efficiency and cloud-connected intelligence—delivering spotless results at just 0.33 gallons per rack.

Key Operator Benefits

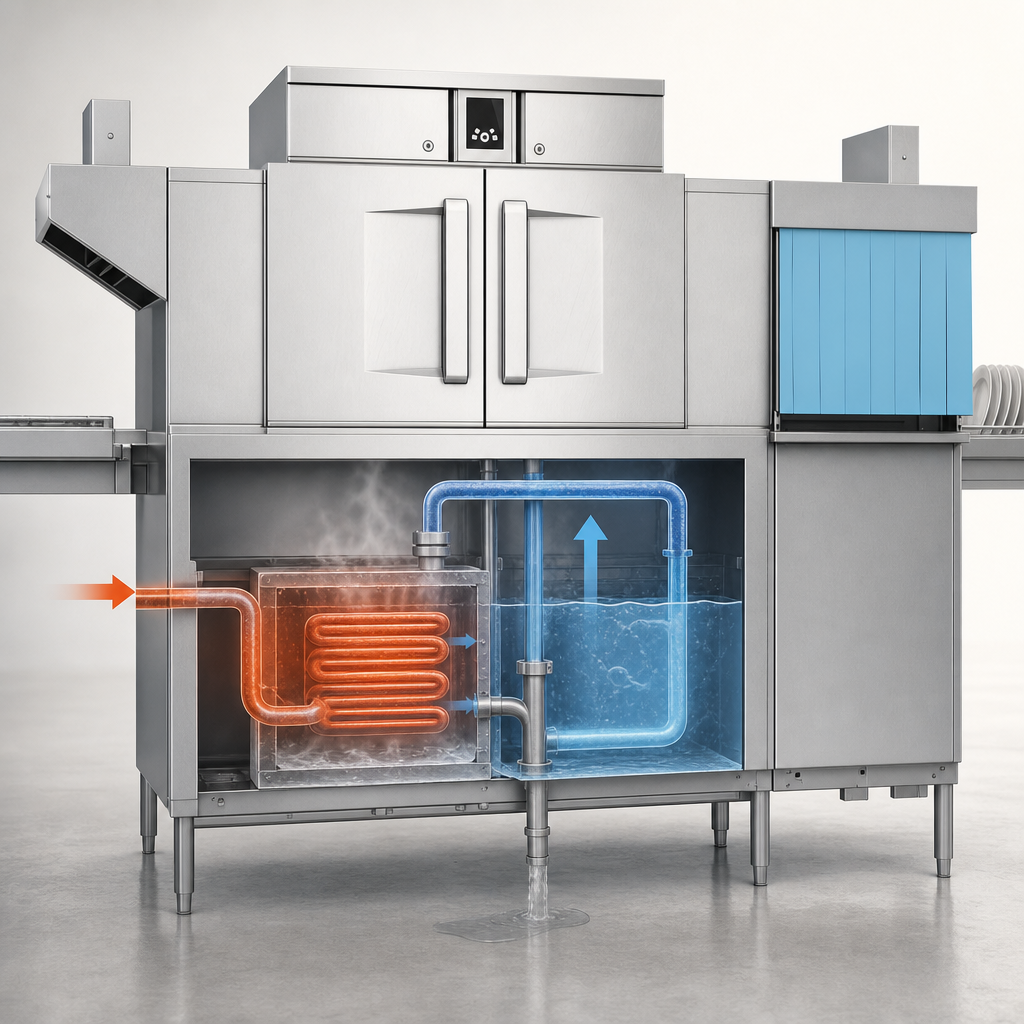

  • Drain Water Energy Recovery (DWER): Captures heat from 180 °F drain water to pre-heat the rinse—cutting utility costs and eliminating steam in the dishroom.
  • Complete Delime™ + Booster Guard™: Automatic delime notification, chemical dispensing and scale protection keep the booster performing like new.
  • Smart Touchscreen & WiFi: On-board diagnostics and the Hobart SmartConnect app provide real-time status, temperature logs and usage analytics.
  • NSF Pot & Pan Mode: One-touch, high-pressure cycle blasts away heavy soil without slowing production.
  • Capless, anti-clog wash arms: Snap out in seconds—no end caps to lose, no blocked jets to clear.
  • Pumped final rinse: 114 GPH pumped rinse maintains sanitizing pressure, even when building water pressure drops.
  • Insulated, hinged doors: 19.5" chamber opening keeps heat and noise inside, while the double-door design speeds daily cleaning.
  • Programmable Energy Saver: Auto-shuts the machine down after a preset idle period—ideal for off-peak hours.

Performance & Specifications

Racks per Hour 342 (9.5 ft/min conveyor)
Water Consumption 0.33 gal/rack  |  114 gal/hr pumped final rinse
Corner Scrapper Integrated 22" pre-wash tank (23 gal)
Tank Capacities Wash 23 gal • Power Rinse 22 gal
Heat Source 25 kW electric tank heaters or 130 lb/hr steam coils
Built-in Booster 24 kW, 70 °F rise, stainless pressure-less design
Vent Requirements Load 200 CFM • Unload 400 CFM (4" × 16" stack)
Overall Size 96.5" L × 34" H table height × 86.5" chamber width
Shipping Weight Approx. 1,040 lb (102" L × 38" W × 79" H crated)
Electrical (single-point) 208/60/3 – 168 A | 240/60/3 – 154 A | 480/60/3 – 79 A

Durability & Serviceability

  • All-stainless, self-draining pumps and impellers built for decades of service.
  • Sloping scrap screens and deep baskets keep food soil out of wash water.
  • Rapid-return conveyor drive reduces mechanical stress and downtime.
  • Door-actuated drain closure prevents accidental heater damage.
  • Hobart’s nationwide parts & service network keeps you running 24/7.

Factory Start-Up Included

  • Provided free for installations within 100 miles of a Hobart Service office (public-road access required).
  • Start-up includes calibration, operator training and performance verification.

Sites beyond 100 miles or not accessible by public roadway will be quoted separately by Hobart Service.

Certifications

  • ENERGY STAR®
  • NSF/ANSI 3
  • cULus
Important: Avoid washing silver, aluminum or pewter wares with chlorine-based sanitizers, as sodium hypochlorite may corrode these metals.

Power through peak volumes, slash utility bills and stay connected—upgrade your dishroom flow with the Hobart CL86C-DWR today.

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash - Flow

Height

68.5in

Width

44.75in

Depth

31.25in

Shipping Weight

624.0lbs

Energy Efficiency

ENERGY STAR®

Rack Capacity

approximately (200) racks/hour

Temperature

high/low temp (convertible)

Tank Heat

specify

Construction

stainless steel

Tank design

(1) tank without pre-wash

Specifications

Conveyor Dishwasher, (2) tank, with CORNER scrapper; Drain Water Energy Recovery with factory-installed drain water tempering kit; (342) racks/hour, .33 gallon/rack, Complete Delime with Booster Guard, Touch Screen Controls with diagnostics, troubleshooting, and SmartConnect App, capless wash arms, NSF Pot & Pan mode, pumped rinse, insulated hinged doors. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
