Hobart CL76C-BAS+BUILDUP Steam Tank Heat High Temperature Rack Conveyor Dishwasher

SKU: CL76C-BAS+BUILDUP
$138,166.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Conveyor Dishwashers Conveyor Dishwashers Dishwashers Hobart New Arrivals Restaurant Equipment

Hobart CL76C-BAS+BUILDUP Steam Tank Heat High Temperature Rack Conveyor Dishwasher

245 racks/hour, 0.47 gal/rack, 24 kW booster, WiFi touchscreen controls

Built for high-volume warewashing, this steam-heated conveyor dishwasher combines 245 racks-per-hour output with smart controls and maintenance-focused features.

  • NSF-rated 245 racks per hour with 0.47 gallons per rack for efficient high-volume operation.
  • Steam tank heat with a built-in 24 kW booster supports high-temperature sanitizing.
  • Complete Delime, Booster Guard, and capless wash arms help simplify upkeep.
  • Touchscreen controls with diagnostics, WiFi, and SmartConnect app/cloud reporting keep operators informed.
  • Insulated hinged doors, NSF pot and pan mode, and ENERGY STAR® efficiency support demanding kitchens.
  • Single-tank, no-prewash design includes a 22-inch corner scraper for conveyor warewashing performance.

Overall Dimensions:

44.75"W x 31.25"D x 68.5"H

Product Weight:

624.0 lb

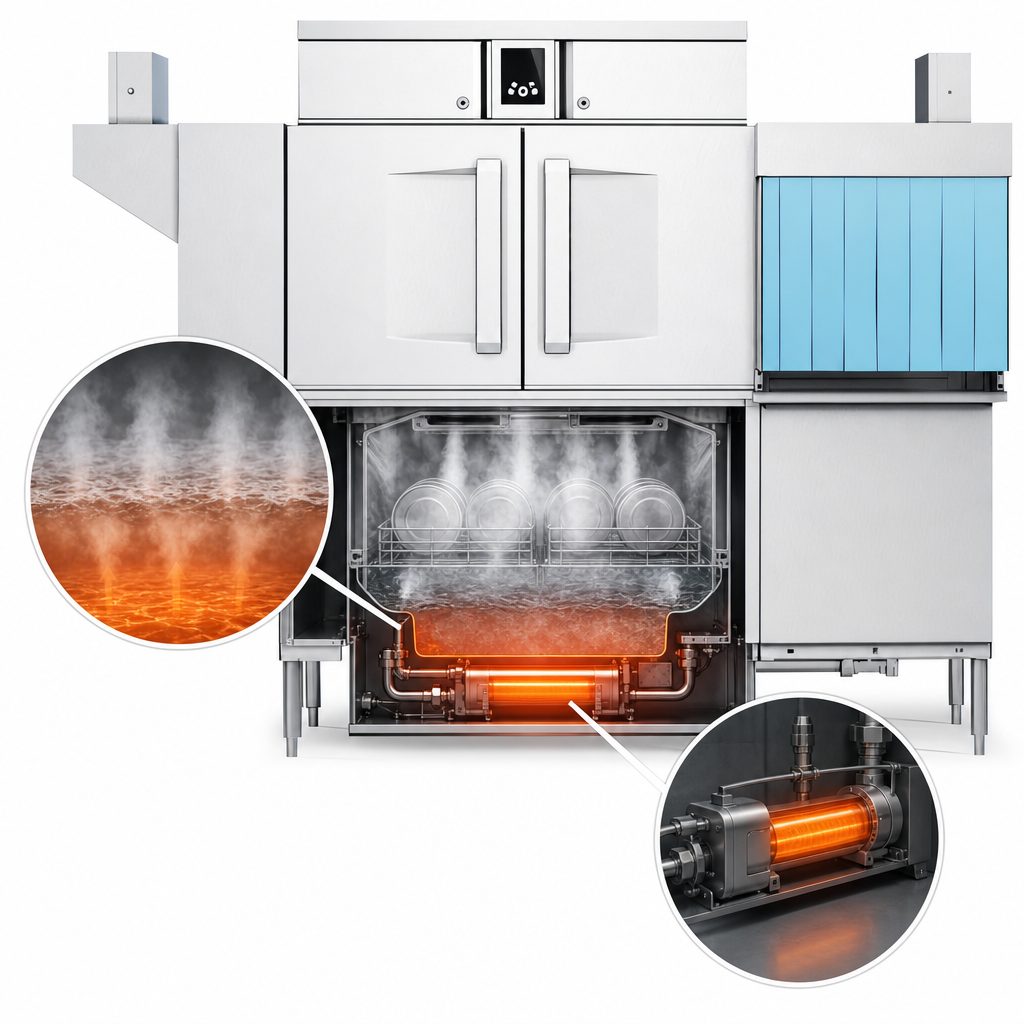

Steam Tank Heat with Booster

High-temperature steam tank heat system with an internal pressure-less 24 kW booster heater.

245 Racks Per Hour Output

NSF-rated capacity supports high-volume dishroom throughput.

Pumped Final Rinse

Provides 114 gallons per hour pumped final rinse performance.

Complete Delime System

Includes Delime Notification, Auto Dispensing, and Booster Guard to help reduce buildup and maintain performance.

Touchscreen Diagnostics

User-friendly touchscreen controls include diagnostics, troubleshooting, and service diagnostics.

SmartConnect Connectivity

WiFi connectivity and SmartConnect app/cloud tools provide machine status, temperature logs, error reporting, and usage analysis.

Capless Anti-Clogging Wash Arms

Wash arms and self-aligning wash manifolds are designed to help reduce clogs and simplify cleaning.

Insulated Hinged Doors

Large double-door opening with insulated hinged doors and door interlock switches improves access and safety.

NSF Pot and Pan Mode

Configurable pot and pan cycle mode is NSF rated for heavier warewashing needs.

Precision Pressure Sensor Tank

Wash tank uses precision pressure sensor monitors instead of conventional mechanical floats.

Energy Saver Mode

Programmable auto shut-down helps conserve energy between cycles.

Single-Tank No-Prewash Design

One-tank conveyor design without a pre-wash section.

22-Inch Corner Scraper

Corner scraper helps improve soil removal at the load side.

Type Rack Conveyor Dishwasher
Style High Temperature
Installation Type Floor Model
Material Stainless Steel
Capacity 245 Racks per Hour
Controls Touch Screen
Phase 3-Phase
Voltage 208/240/480 Volts
Watts 24 kW
Water Consumption 0.47 Gallons per Rack
Conveyor Speed 6.8 Feet per Minute
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 2 Inch FPT
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 32 Inches
Shipping Height 69 Inches
Shipping Weight 624 Pounds

Documents

PDF Cutsheet PDF Download PDF Steam spec sheet PDF Download

Frequently Asked Questions

It is NSF-rated for 245 racks per hour.
It includes a 114 gallons per hour pumped final rinse.
Complete Delime with Delime Notification, Auto Dispensing, Booster Guard, capless anti-clogging wash arms, and precision pressure sensor monitors help maintain performance.
Yes. It includes touchscreen controls with diagnostics and troubleshooting, WiFi connectivity, and SmartConnect app/cloud reporting.
Yes. The documentation shows both left-to-right and right-to-left operation versions.
Optional items include vent hoods, a vent stack damper kit, direct drive unloader, blower-dryer options, drain water tempering kit, flanged feet kit, higher chamber opening, external steam booster heater, table limit switch, correctional package, water hammer arrester, and factory-mounted circuit breakers.
