Hobart CL66C-DWR+BUILDUP Warewash - Flow Conveyor Dishwashers
Description
Hobart Warewash – Flow Conveyor Dishwasher

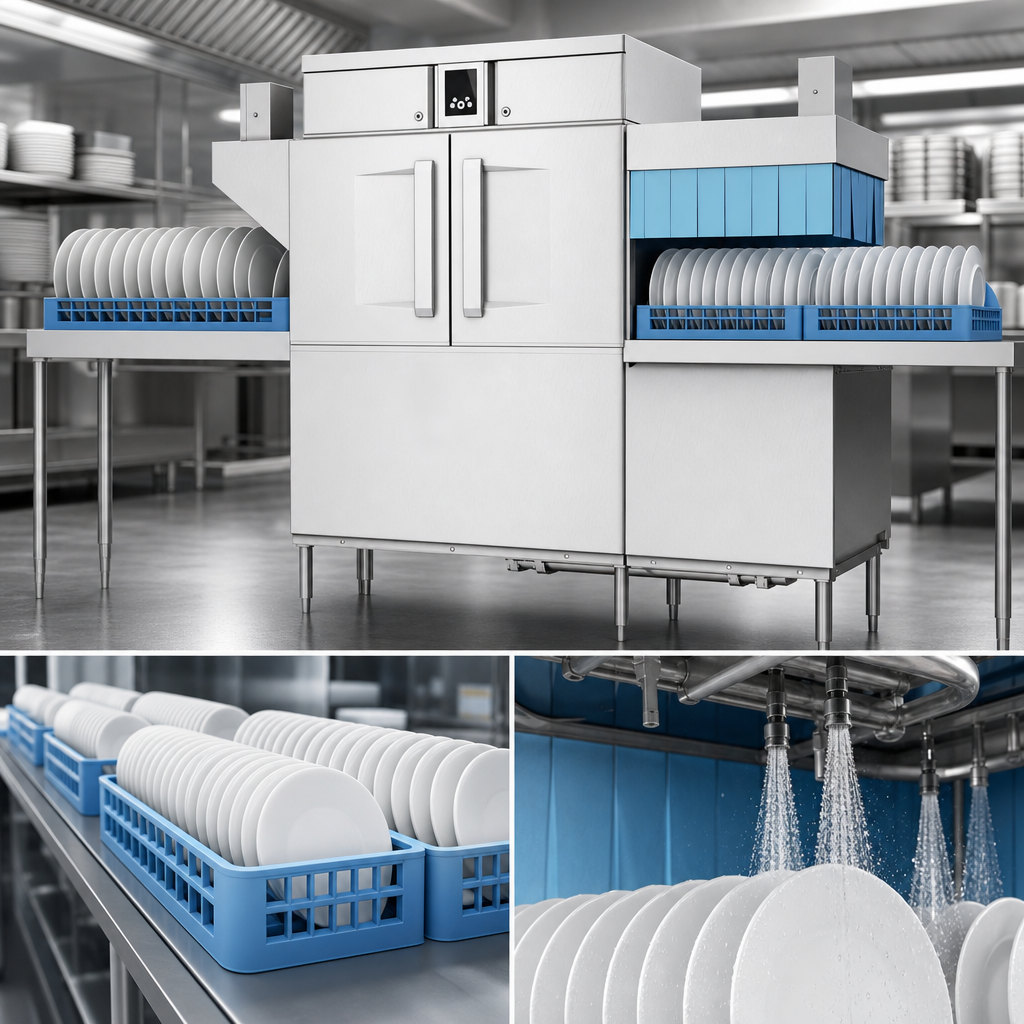

Model CL66C-DWR • Single-Tank • Corner Scrapper • High-TemperatureBuilt on Hobart’s legendary CL-Series platform, the Warewash – Flow delivers blazing throughput, ultra-low water consumption and connected intelligence—everything you need to keep dishes moving and costs under control. Process up to 202 racks per hour while using only 0.45 gal per rack, all in a compact footprint that slips seamlessly into new or existing dishroom layouts.
Why You’ll Love It

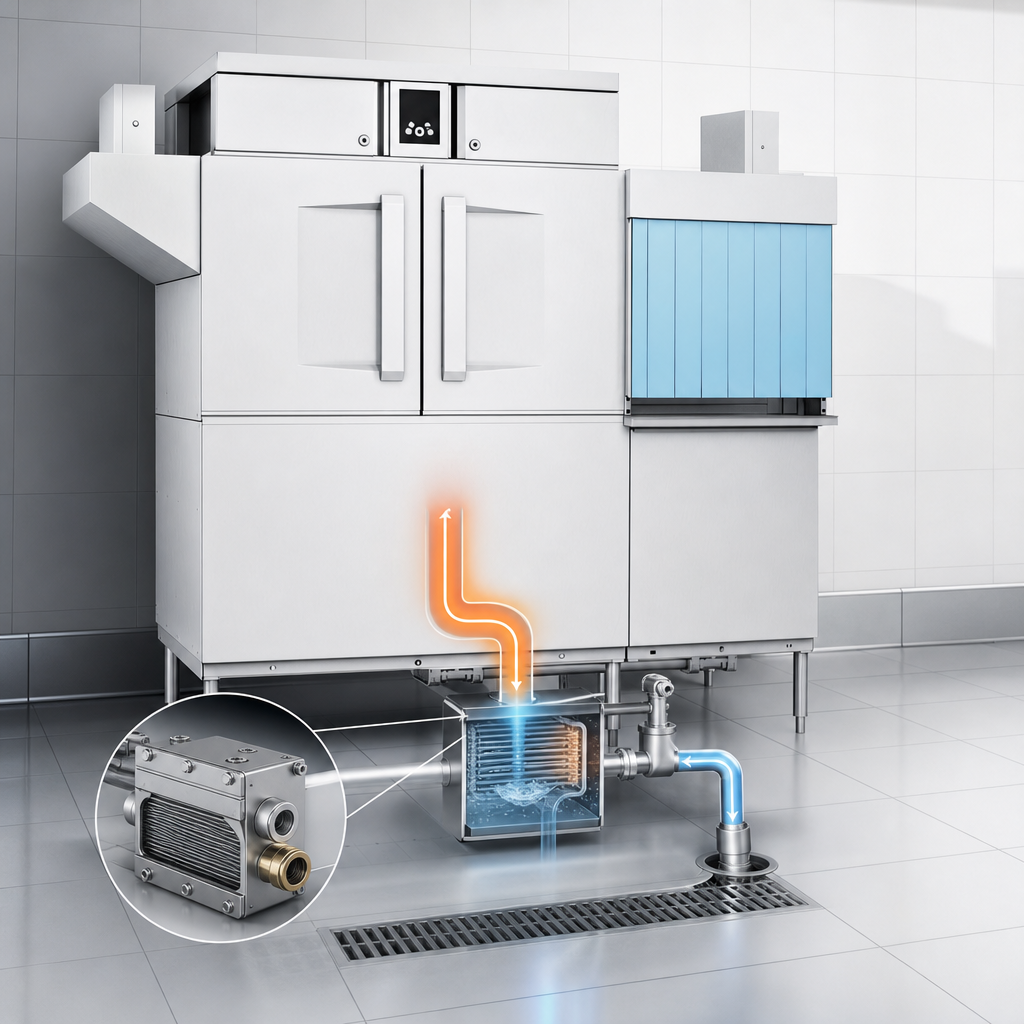

- Drain Water Energy Recovery (DWER) captures exhaust heat to pre-warm incoming water—no direct vent required.
- Factory-installed tempering kit automatically cools drain water to meet code.
- Complete Delime™ + Booster Guard™ keeps the 18 kW booster and wash system running at peak efficiency—no guesswork, no downtime.
- Touch-screen controls provide step-by-step diagnostics, troubleshooting and performance data.
- SmartConnect™ WiFi sends temperature logs, error codes and cost-of-operation analytics straight to the cloud.
- Capless, anti-clog wash arms and self-draining stainless pump minimize clean-up time.
- NSF Pot & Pan mode tackles heavy-soil ware at the push of a button.
- Insulated, hinged doors swing wide open for easy interior access and a cooler dishroom.
- Pumped final rinse maintains consistent sanitizing pressure regardless of supply fluctuations.
- Energy-Saver auto-shutoff powers the unit down during extended lulls to cut utility spend.
Performance & Utility Requirements
| Racks / Hour (NSF) | 202 |
|---|---|
| Water Usage / Rack | 0.45 gal |
| Pumped Final Rinse | 90 gal / hr |
| Conveyor Speed | 5.6 ft / min |
| Wash Tank Capacity | 23 gal |
| Corner Scrapper Tank | 23 gal |
| Booster Heater | 18 kW, 70 °F rise (built-in) |
| Tank Heat | 15 kW (electric) |
| Chamber Opening | 19.5 in (H) × 22 in (W) |
| Water Pressure | 20–65 PSI flowing |
| Water Hardness (max) | 3 grains |
| Vent Requirement* | Load 200 CFM • Unload 400 CFM |
| Shipping Weight | Approx. 895 lb |
*Optional vent hood and stack damper kits available.
Installation Notes
- Single-point electrical connection simplifies hookup (208, 240 or 480 V, 3-phase—see spec sheet for amperage).
- ½ in hot & cold water lines required; provide code-compliant water hammer arrester upstream.
- 2 in drain can exit either side of drain housing for flexible table design.
- Maintain ambient dishroom temperature ≥ 65 °F for optimal performance.
Avoid exposing silver, pewter or aluminum ware to sodium hypochlorite sanitizers.
