Hobart CL66C-BAS+BUILDUP Warewash - Flow Conveyor Dishwashers
Description

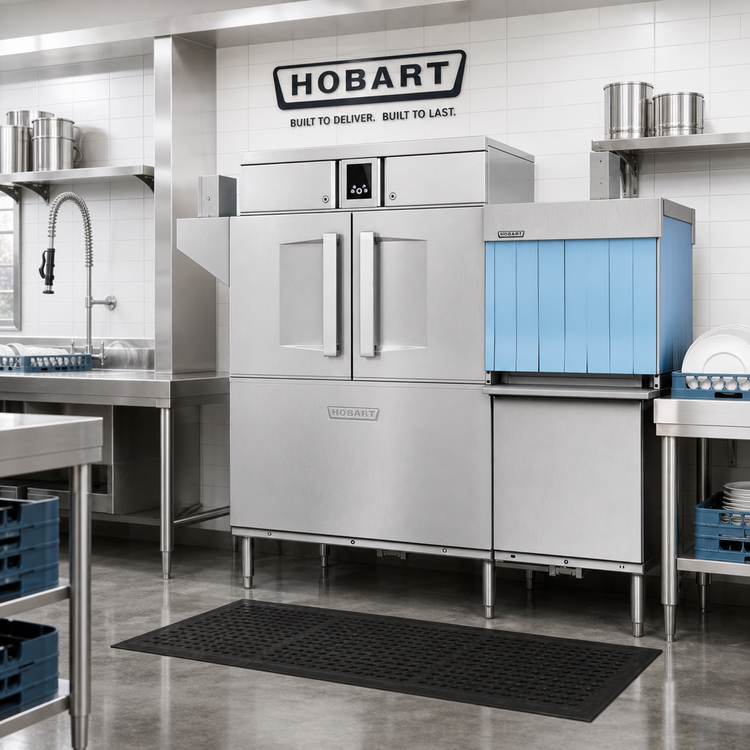

Hobart CL66C-BAS “Flow” Rack Conveyor Dishwasher
Single-Tank • 202 racks/hr • 0.45 gal/rack • ENERGY STAR®Built for high-volume kitchens that refuse to compromise on cost control, food-safety or uptime, the Hobart CL66C-BAS “Warewash – Flow” delivers industry-leading throughput with sophisticated, app-based insight and the lowest water and energy usage in its class.
Why You’ll Love It

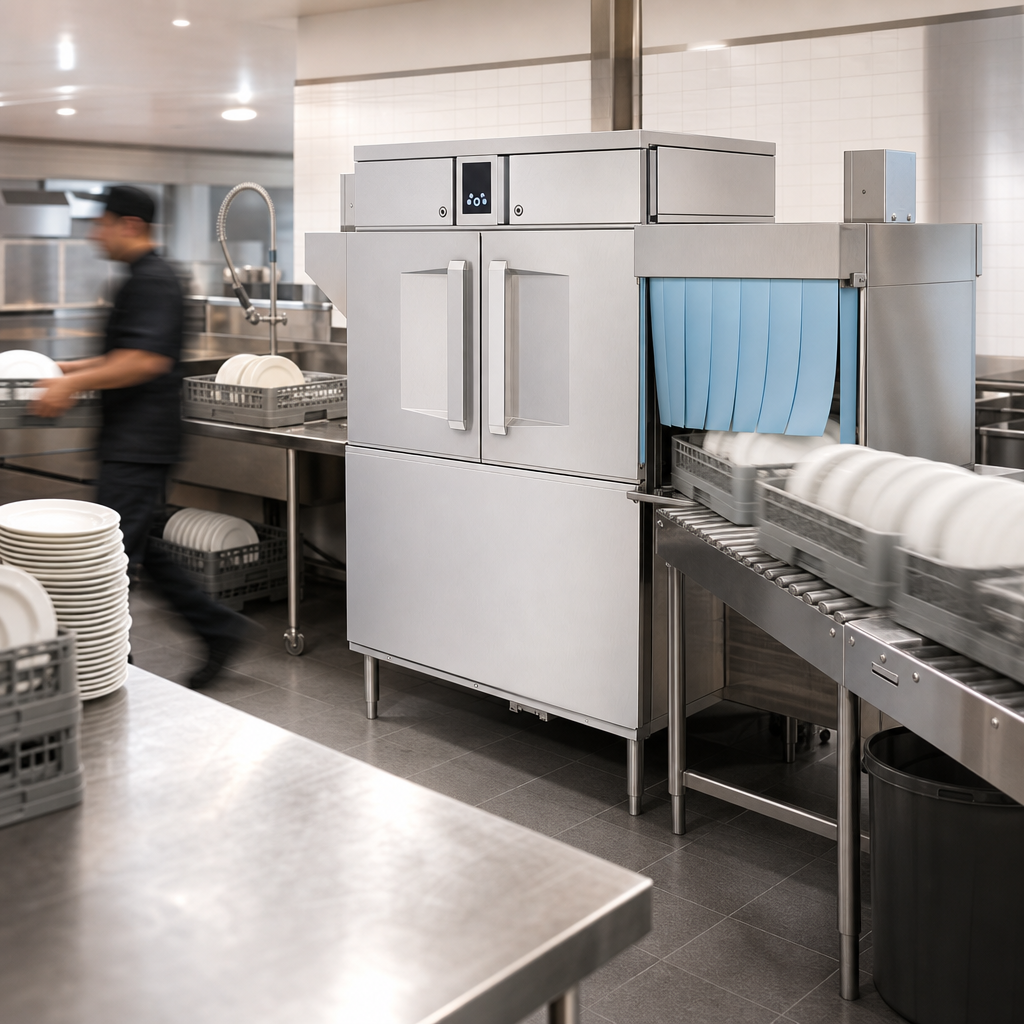

- 202 NSF-rated racks per hour – keep service moving at peak periods.
- Water miser – just 0.45 gal per rack (90 gal/hr pumped final rinse) slashes utility bills.
- 22" Corner Scrapper – pre-wash section knocks off heavy soil before the wash zone.
- Complete Delime™ + Booster Guard™ – one-touch, auto-dispensed deliming protects the tank and 18 kW internal booster.
- Smart Touchscreen & Wi-Fi – diagnostics, troubleshooting, temperature logs and cost analytics in the free SmartConnect app.
- Capless, anti-clog wash arms – tool-free removal speeds daily cleaning.
- NSF Pot & Pan mode – selectable heavy-soil cycle without extra equipment.
- Pumped final rinse – consistent rinse pressure regardless of incoming water flow.
- Insulated, hinged cabinet doors open extra-wide (19.5" H) for effortless interior access.
- Energy-Saver Auto-Shut-Down – user-set idle timer cuts utilities when the line is quiet.
At-a-Glance Specifications
| Throughput | 202 racks/hr (5.6 ft/min conveyor speed) |
|---|---|
| Water Usage | 0.45 gal/rack | 90 gal/hr pumped final rinse |
| Wash Tank Capacity | 23 gal (plus 23 gal corner scrapper section) |
| Internal Booster Heater | 18 kW stainless, pressure-less (70 °F rise) |
| Chamber Opening | 19.5" H × 22" W |
| Controls | 7" Smart touchscreen, multilingual, app-ready Wi-Fi |
| Pot & Pan Cycle | NSF-certified configurable heavy-soil mode |
| Electrical (E1 single-point) | 208 V / 115.7 A | 240 V / 105.1 A | 480 V / 54.7 A |
| Energy Star® Qualified | Yes |
| Approx. Shipping Weight | 855 lb • 76" L × 38" W × 79" H (crated) |
Factory Start-Up Included
Hobart will provide free start-up & operator training for installations within 100 miles of any Hobart Service Office (accessible by public roadway) during normal business hours with prior notice. Sites beyond 100 miles or in hard-to-reach locations will be quoted separately.
What You’ll Need
- Incoming hot water: 110 °F minimum (with internal booster) at 20-65 PSI.
- Electrical service per above single-point connection.
- Ventilation: 200 CFM (load end) | 400 CFM (unload end).
- 3 grains hardness or less recommended for optimal results.
Performance and specification data taken from Hobart CL66C-BAS cutsheet (Rev 02/25). Continuous product improvement may cause design and specification changes without notice.
