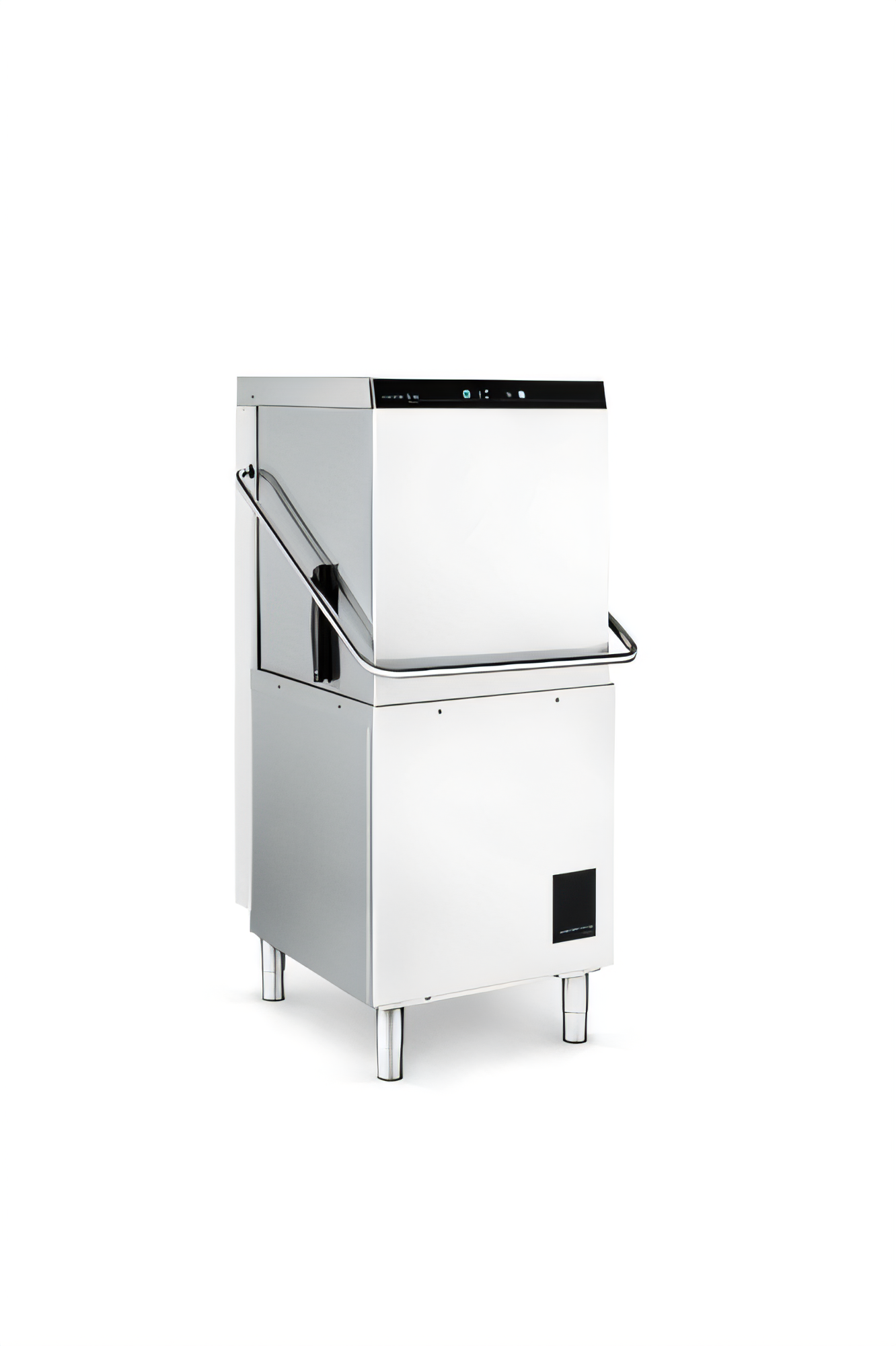

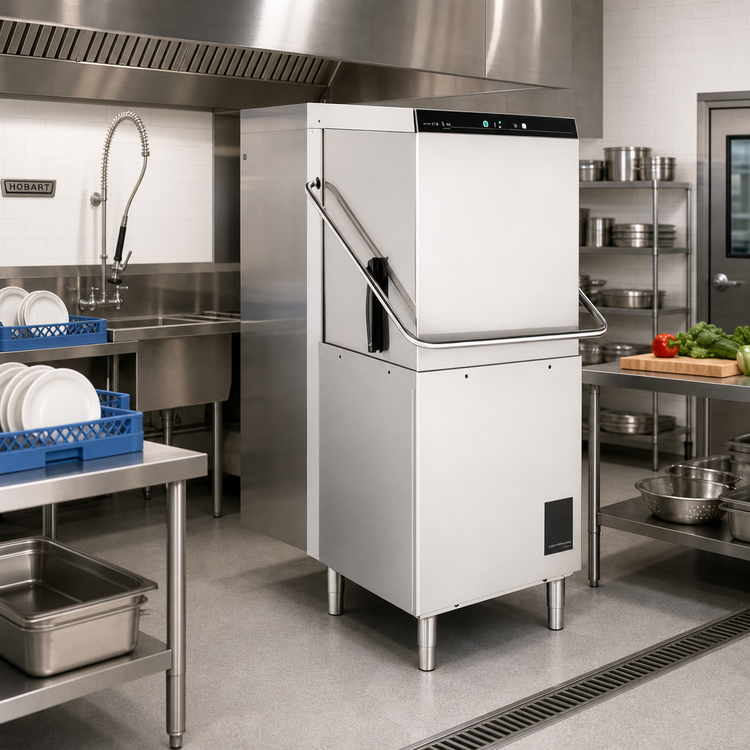

Centerline CDH High-Temperature Door-Type Dishwasher

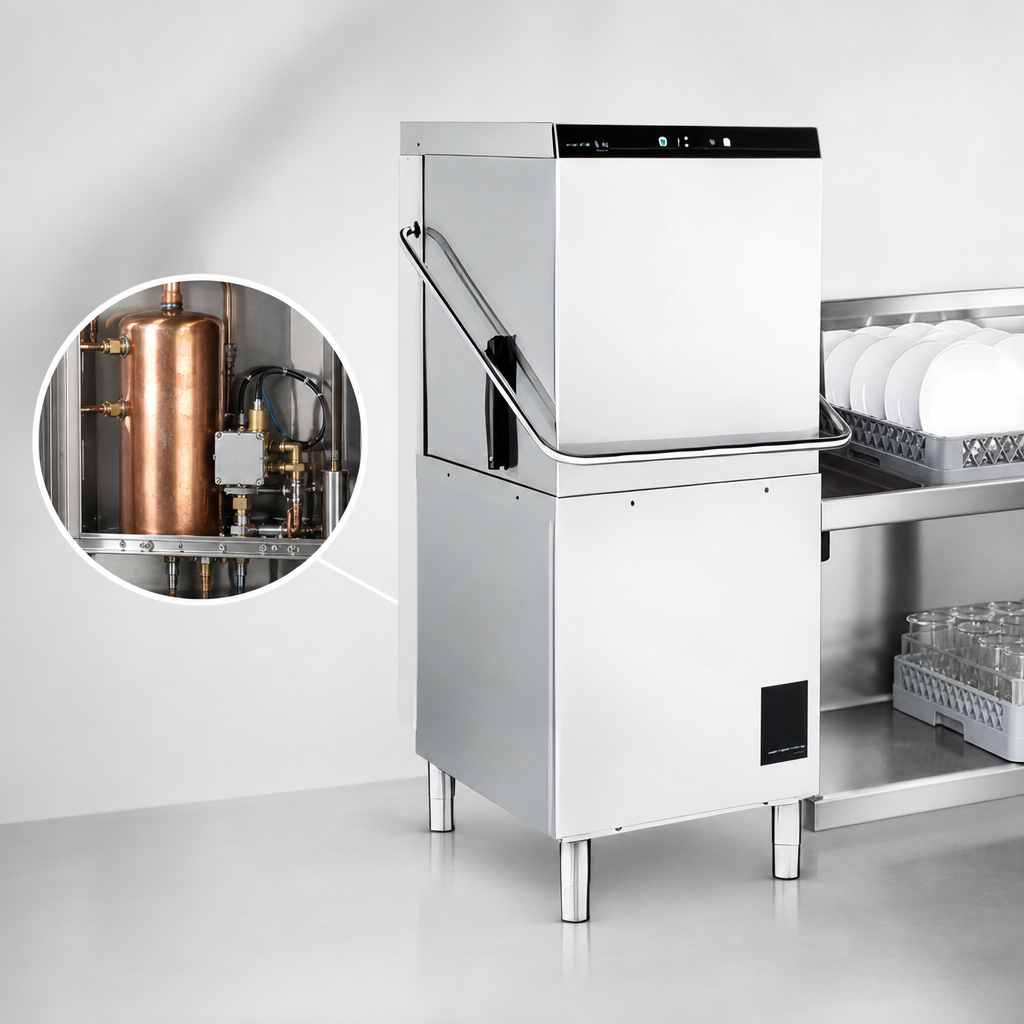

Powerful performance in a compact, pillar-less designEngineered for busy kitchens that demand speed, sanitation, and easy ownership, the Hobart Centerline CDH processes up to 51 racks per hour while using just 0.73 gal of water per rack. A built-in 6.5 kW booster, soft-start wash pump, and intuitive top-mounted controls make high-temperature sanitizing effortless in either straight-thru or corner installations.
Key Features & Benefits

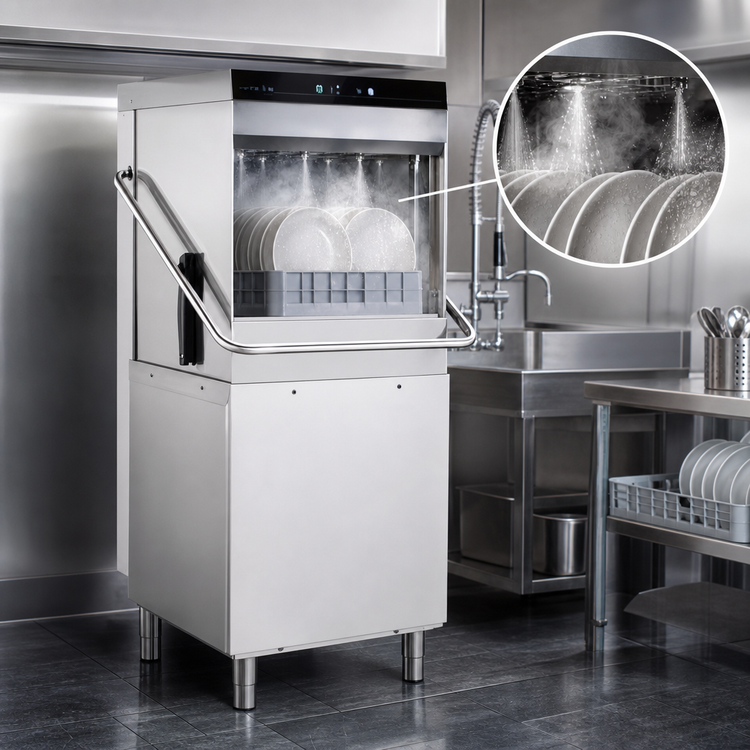

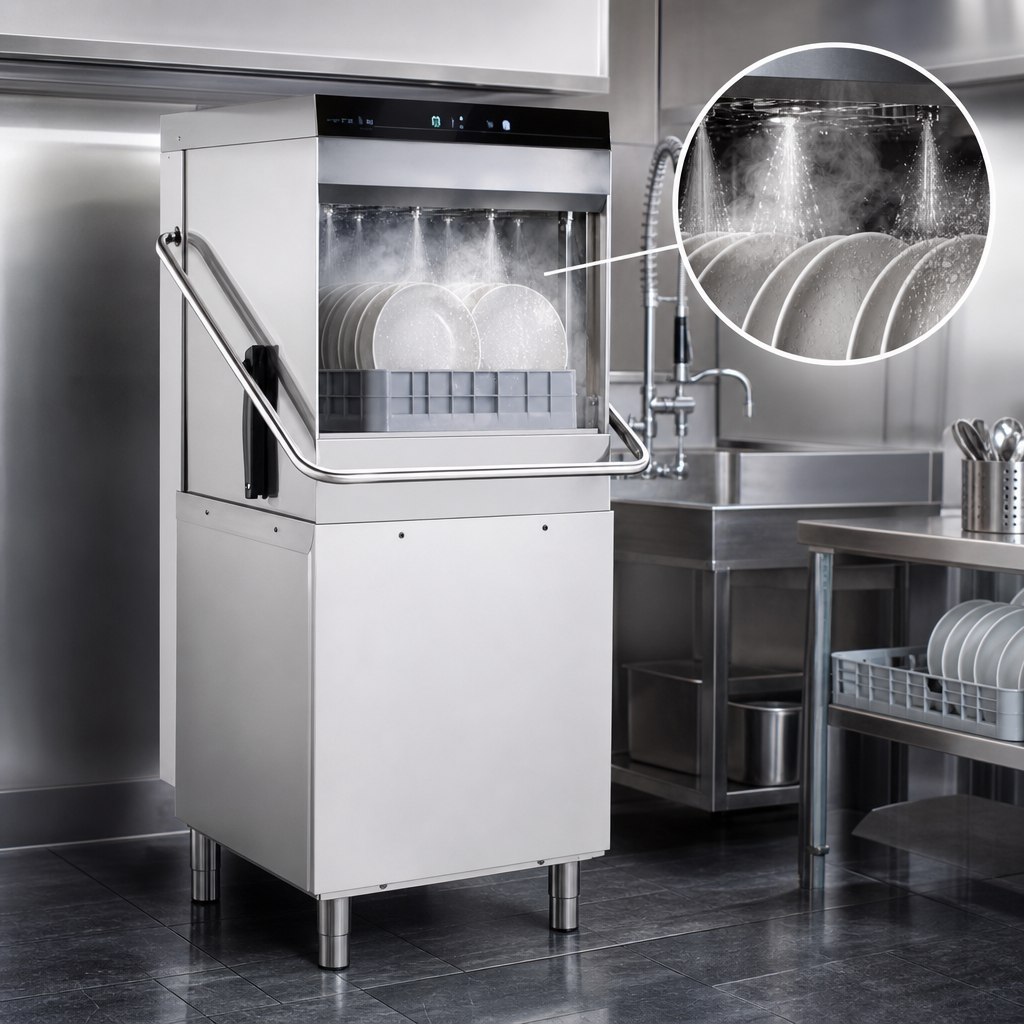

- High-temperature sanitizing with built-in booster – no chemical sanitizer required.
- Field-convertible 208-240 V / 60 Hz / 3-phase single-point connection (convertible to single-phase) simplifies installation.
- Recirculating design with pumped rinse cuts water and energy consumption.
- Tri-prong, snap-in wash & rinse arms resist clogging and remove without tools for fast cleaning.
- 18" pillarless door opening accepts larger sheet pans and trays.
- Standard & optional extended cycles handle light to heavy soil loads.
- Soft-start pump protects delicate wares and reduces noise at start-up.
- Automatic fill, pumped drain, and delime notification with dedicated cycle streamline daily maintenance.
- Service diagnostics with clear error codes keep downtime to a minimum.
- ENERGY STAR®, NSF & cULus certified – may qualify for local utility rebates.
Included in the Box
- (1) 19 ³⁄₄" × 19 ³⁄₄" peg rack
- (1) 19 ³⁄₄" × 19 ³⁄₄" combination rack
- 9 ft inlet hose with ¾" garden-hose fitting
- 9 ft drain hose with 19 mm barb fitting
Specifications
| Capacity | 51 racks/hr · 1,275 dishes/hr · 2,295 glasses/hr |
|---|---|
| Water Usage | 0.73 gal per rack · 37.2 gal per hour maximum |
| Wash Tank Volume | 7.9 gal |
| Door Opening | 18" vertical, pillar-less |
| Rack Size | 19 ³⁄₄" × 19 ³⁄₄" |
| Footprint (W × D) | ≈25 13⁄₁₆" × 28 1⁄₂" |
| Height (door closed) | 62 15⁄₁₆" |
| Electrical | 208-240 V / 60 Hz / 3-ph, 35 A max (field convertible to 1-ph) |
| Booster Heater | 6.5 kW electric |
| Wash Tank Heat | 5 kW electric |
| Motor Horsepower | Wash 0.80 HP · Rinse 0.25 HP · Drain 0.04 HP |
| Shipping Weight | ≈232 lb (105 kg) |
| Exhaust Requirement | 450 CFM (if vent hood is required) |
| Certifications | cULus, NSF, ENERGY STAR® |
Popular Options & Accessories
- Chemical detergent & rinse-aid pumps
- Low-chemical sensing indicators
- Corner splash kit & flanged feet
- Water hammer arrestor or drain-water tempering kit
- Pumped drain air-gap kit
- Additional peg, combination, or sheet-pan racks
