Hobart BDSRLEU-STDDOM Warewash Undercounter Dishwashers
Description

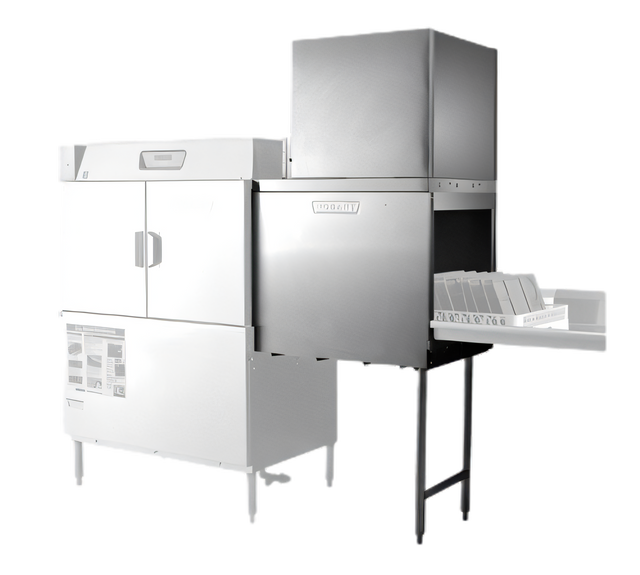

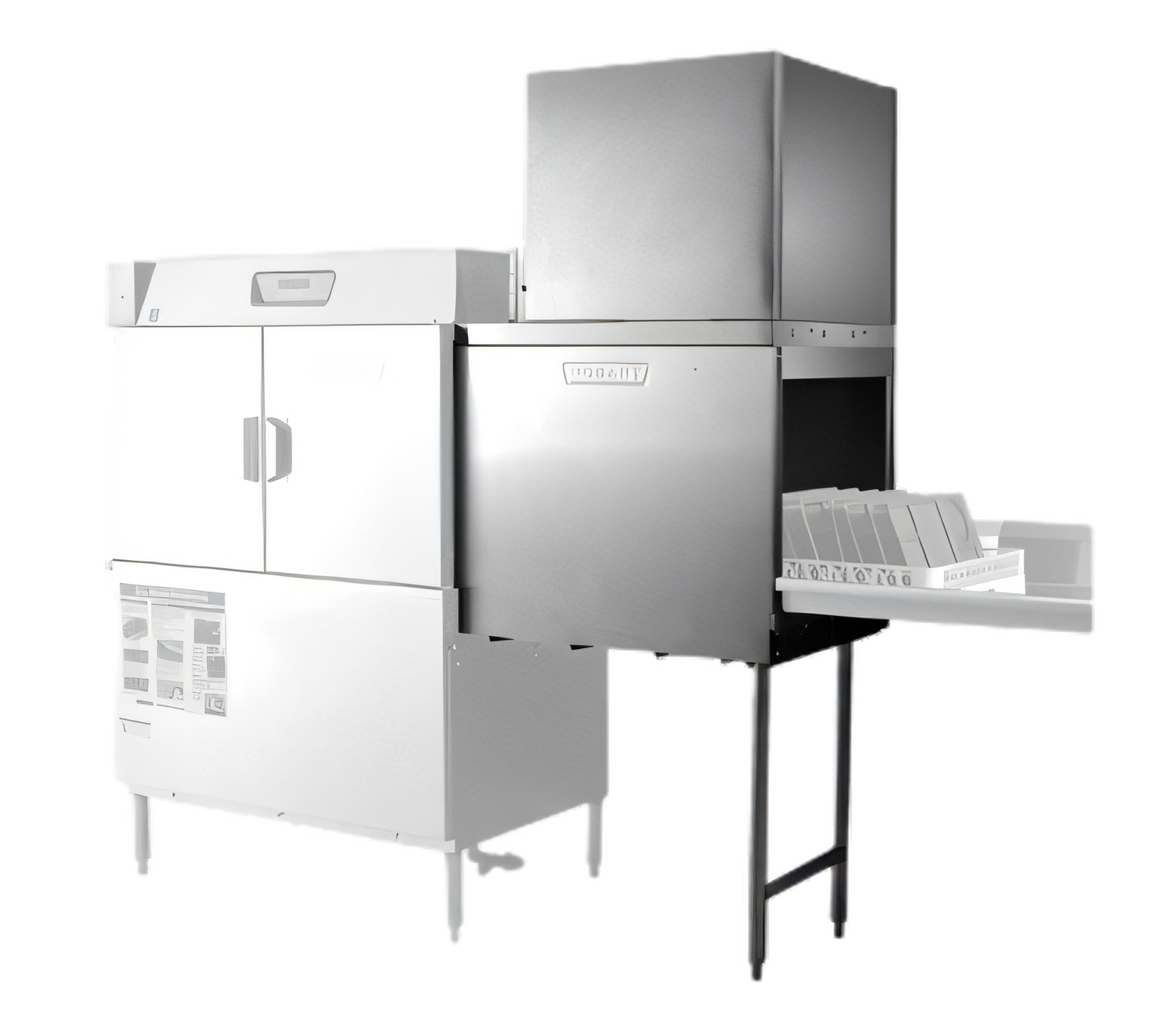

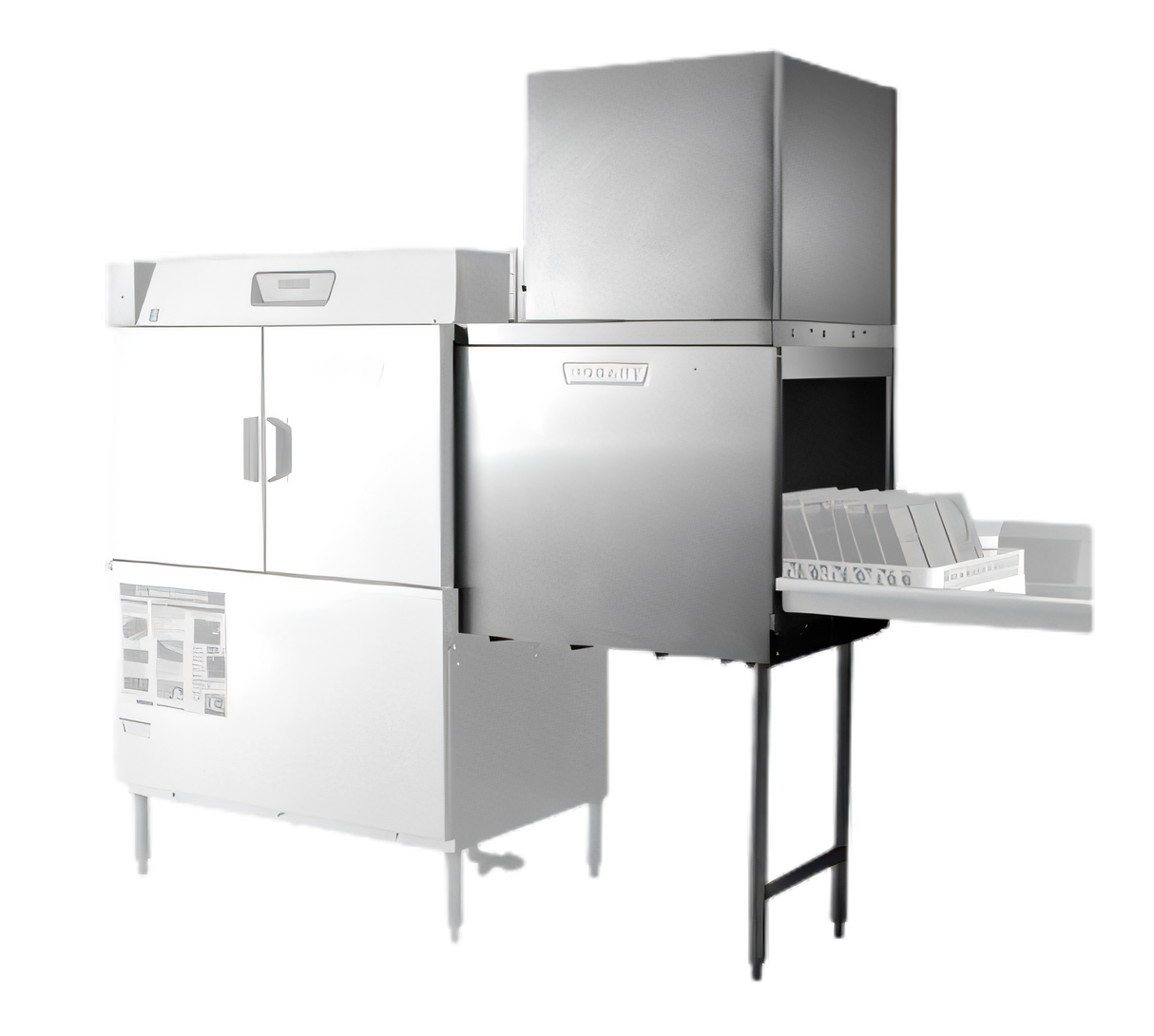

Hobart CLeN Series Steam Blower-Dryer Accessory – Right-to-Left, 208-240 V/60/3
High-velocity, steam-heated drying for Hobart CLeN conveyor dishwashersUpgrade your warewasher with Hobart’s stainless-steel Steam Blower-Dryer. By driving room air across a steam coil and forcing the heated air over the conveyor path, it delivers dry, table-ready ware the moment it exits the machine—improving throughput, reducing hand-drying and elevating food-safety results.
Key Features
- 33 inch stainless-steel drying chamber bolts directly to the CLeN machine—no extra floor space required.
- 2 HP industrial direct-drive blower moves 200–400 CFM of heated air while keeping noise to a minimum.
- Steam coil consumes just 55 lb/hr at 20 psi for energy-efficient heat without electric elements.
- Down-and-up airflow plus internal baffles prevent heat from reaching the unload table or clean-dish operator.
- Automatic on/off: blower starts and stops with the dishwasher pump motors—no extra switches.
- All-stainless construction, splash-proof motor enclosure and Hobart “Dual-Drive” conveyor coupling ensure long service life.
Quick-Look Specifications
| Orientation | Right-to-Left conveyor flow |
|---|---|
| Electrical | 208–240 V / 60 Hz / 3-Phase, 4.5 A |
| Minimum Circuit Ampacity | 15 A |
| Maximum Protective Device | 15 A |
| Blower Motor | 2 HP, direct-drive, splash-proof enclosure |
| Air Delivery | 200–400 CFM forced circulation |
| Heat Source | Double-row finned copper steam coil |
| Steam Consumption | 55 lb/hr @ 20 psi (max 25 psi) |
| Steam Connections | 1" FPT supply; ¾" FPT condensate return (bucket traps furnished) |
| Drain Connection | 1" FPT |
| Vent Connection | 4" × 16" opening, locking damper, 400 CFM exhaust |
| Overall Height | ≈ 83" (dryer sits ≈ 17 ⅜" above dishwasher top) |
| Chamber Length | 33" |
| Compatible Warewashers | Hobart CLeN Series conveyor models (CL44eN, CL54eN, CL64eN, CLPS/CLCS66 eN, CLPS/CLCS76 eN, CLPS/CLCS86 eN) |
Installation Notes
- Single-point electrical connection powers blower and controls (three-phase only).
- Requires dedicated 4" × 16" vent stack—canopy hoods cannot be used with this accessory.
- Steam supply and condensate return must be piped and trapped per local code.
- Supplied stainless-steel hardware and foam gasket create a watertight seal between dryer and dishwasher.
- Control circuit operates on 115 V provided by the warewasher’s internal transformer.
Hobart continually improves its products; specifications are subject to change without notice.
