Hobart BDSRLEU-HTSDOM Warewash Undercounter Dishwashers
Description

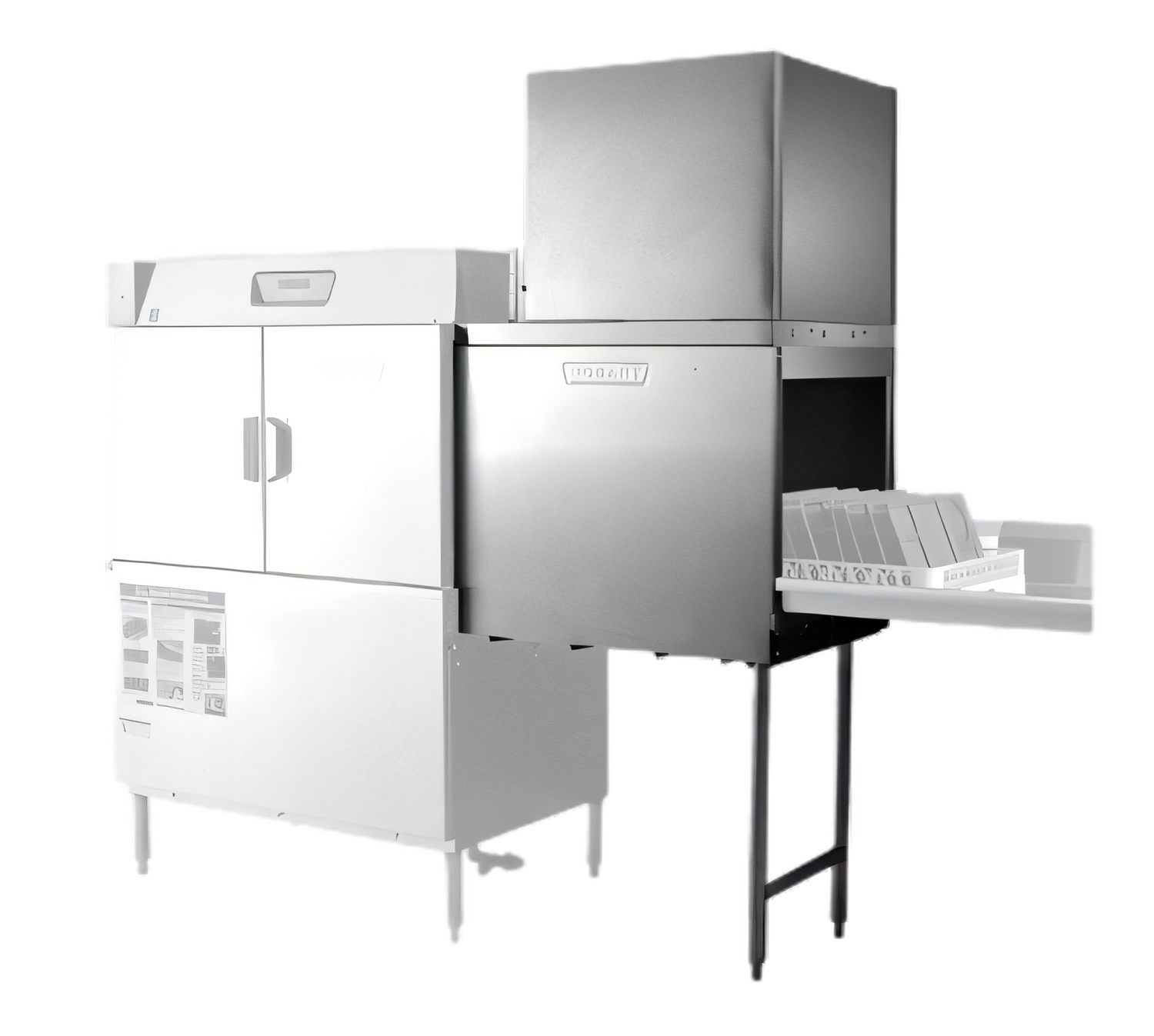

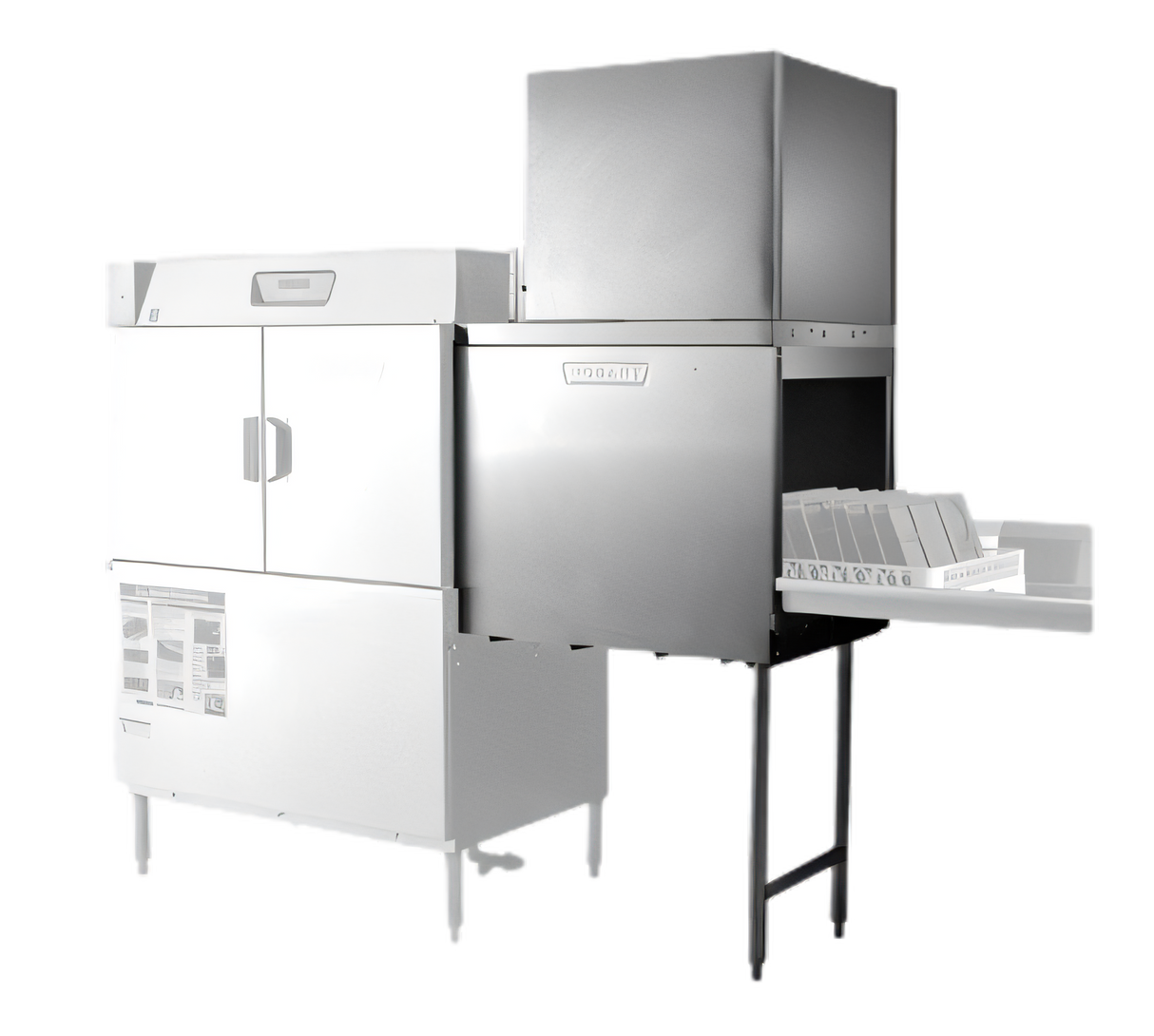

Steam Blower-Dryer Accessory – CLeN Series
Right-to-Left | 208-240 V / 60 Hz / 3-Ph | 2 H.P. MotorAdd Hobart’s factory-engineered blower-dryer to your CLeN conveyor dishwasher and send crockery, cutlery and trays straight from the machine to service. A powerful 2 H.P. industrial fan forces room air through a steam-heated coil, flooding the 33 in. stainless chamber with high-velocity, vertical airflow that dries ware fast—no towel wiping, no extra labor.
Why You’ll Love It
- Immediate, even drying thanks to positive forced circulation of heated air.
- Quiet, direct-drive blower delivers high performance at a low sound level.
- Stainless steel wrap-around housing stands up to daily ware-room abuse.
- “Dual Drive” stainless conveyor pawls mate perfectly with CLeN dishwashers—no field mods required.
- Baffle system keeps heat inside the chamber and away from the unload operator.
- Runs only while the dishwasher pumps are operating, saving energy and steam.
Technical Specifications
| Direction of operation | Right ➜ Left (factory set) |
|---|---|
| Compatible dishwashers | CLeN conveyor models CL44eN, CLPS66eN, CLCS66eN, CL54eN, CLPS76eN, CLCS76eN, CL64eN, CLPS86eN, CLCS86eN* |
| Chamber length | 33 in. (838 mm) |
| Blower motor | 2 H.P. direct-drive, splash-proof, ventilated |
| Air volume | 200–400 CFM through 4 × 16 in. vent |
| Steam consumption | 55 lb/hr @ 20 psi (max 25 psi) |
| Electrical rating | 208-240 V / 60 Hz / 3-Ph, 4.5 A (15 A min. circuit) |
| Steam supply | 1 in. FPT connection |
| Condensate return | ¾ in. FPT connection (bucket traps furnished) |
| Drain | 1 in. FPT in dryer tank |
| Overall height | 80 13⁄16 in. (machine + dryer) |
| Finish & construction | All stainless steel, welded & bolted; locking damper in vent |
*Dryer chamber bolts directly to the washer tank lip using supplied stainless hardware and foam gasket.
Installation & Utility Requirements
- 3-phase power must match dishwasher’s electrical specification.
- Provision for 400 CFM exhaust through 4 × 16 in. duct; canopy hood cannot be used.
- Field steam pressure regulator recommended if supply exceeds 25 psi.
- Allow 17 3⁄8 in. of additional height above the warewasher.
- Unit ships completely assembled; legs feature stainless adjustable feet for leveling.
As part of Hobart’s policy of continuous product improvement, specifications are subject to change without notice. Questions? Call Hobart Customer Care at 1-888-4HOBART.
