Hobart BDSRLBE-STDDOM Warewash - Flow Undercounter Dishwashers
Description

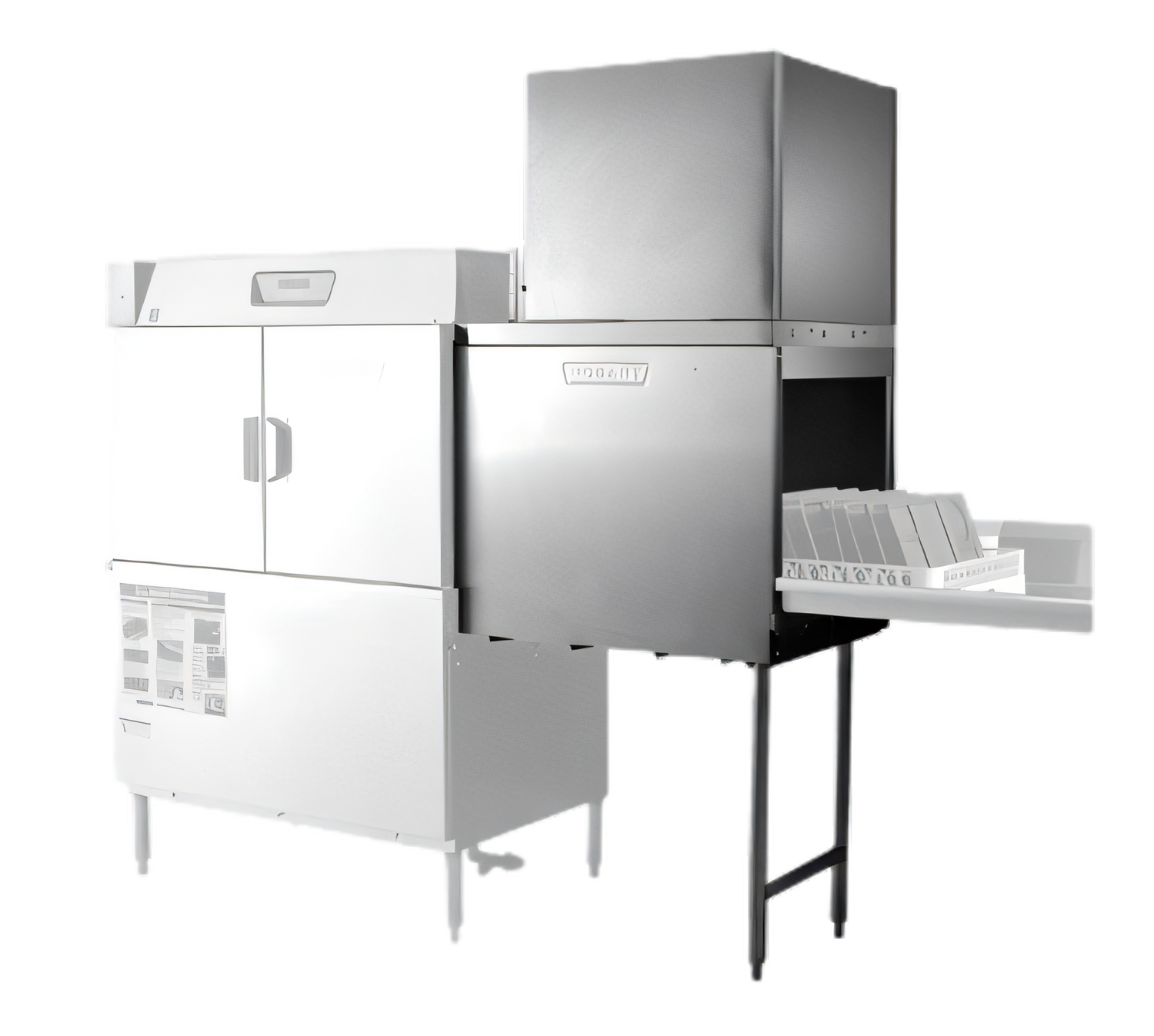

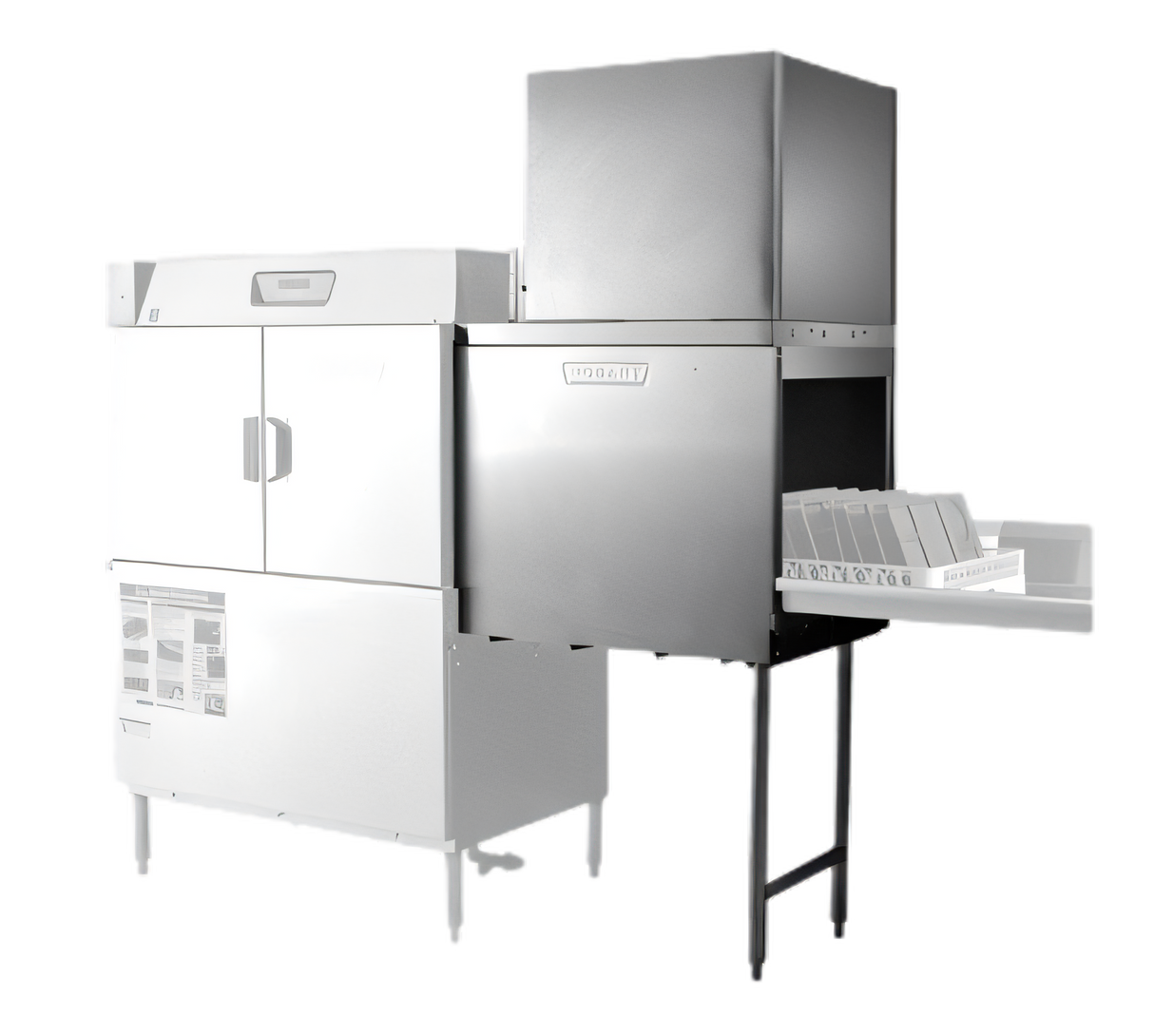

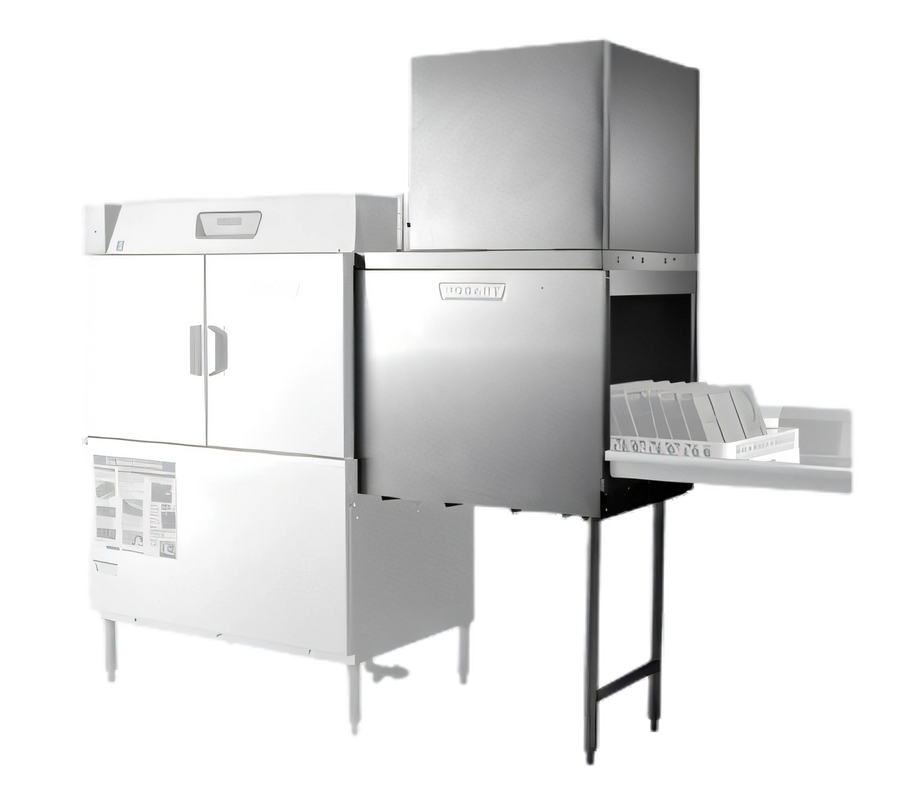

Hobart CLeN Steam Blower-Dryer Accessory
Right-to-Left • 380-415 V / 50 Hz / 3-Ph • Standard HeightTransform your Hobart CLeN conveyor dishwasher into a true one-pass system. The Steam Blower-Dryer forces a blanket of high-velocity, steam-heated air over every rack—delivering spot-free, table-ready ware with no hand drying and no bottlenecks at the unload end.
Performance Benefits
- 33 inch stainless chamber bolts directly to CLeN machines—no field fabrication.
- 2 HP direct-drive industrial blower moves up to 400 CFM while operating quietly.
- Steam coil consumes just 55 lb/hr @ 20 psi, using the energy you already produce.
- Baffled airflow dries both sides of dishes and keeps heat off the unload operator.
- Blower activates only when the dishwasher pumps run—extending motor life.
- NSF & UL sanitation listed when installed per Hobart guidelines.
Key Features
- Orientation: Right-to-Left wareflow (factory configured).
- Single-point electrical connection: 380-415 V, 50 Hz, 3-phase.
- Splash-proof, ventilated motor enclosure with solid-state overload protection.
- 4" × 16" locking-damper vent stack—canopy hood not permitted above dryer.
- Stainless tank with adjustable legs & wrap-around service panels for a finished look.
- Supplied with bucket-type steam traps, foam-tape chamber gasket and mounting hardware.
Utility Connections
| Electrical | 380–415 V / 50 Hz / 3-Ph, 2.6 A, 15 A min. supply circuit |
|---|---|
| Steam supply | 1" FPT, 55 lb/hr @ 20 psi (max 25 psi) |
| Condensate return | ¾" FPT (bucket traps furnished) |
| Drain | 1" FPT in dryer tank |
| Vent | 4" × 16" inside dimension, 200–400 CFM exhaust |
Dimensions & Clearances (Standard Height)
| Overall height | 83" |
|---|---|
| Chamber length | 33" |
| Minimum unload table opening | 19 11⁄16" |
| Height above CLeN machine | ≈ 17 ⅜" |
Model reference: Steam Blower-Dryer, R-L, 380-415 V/50/3-Ph, Standard Height, Domestic (Hobart part ID 4271). Compatible with all Hobart CLeN Series conveyor dishwashers.
