Hobart BDSLRCD-STDDOM Warewash Undercounter Dishwashers
Description

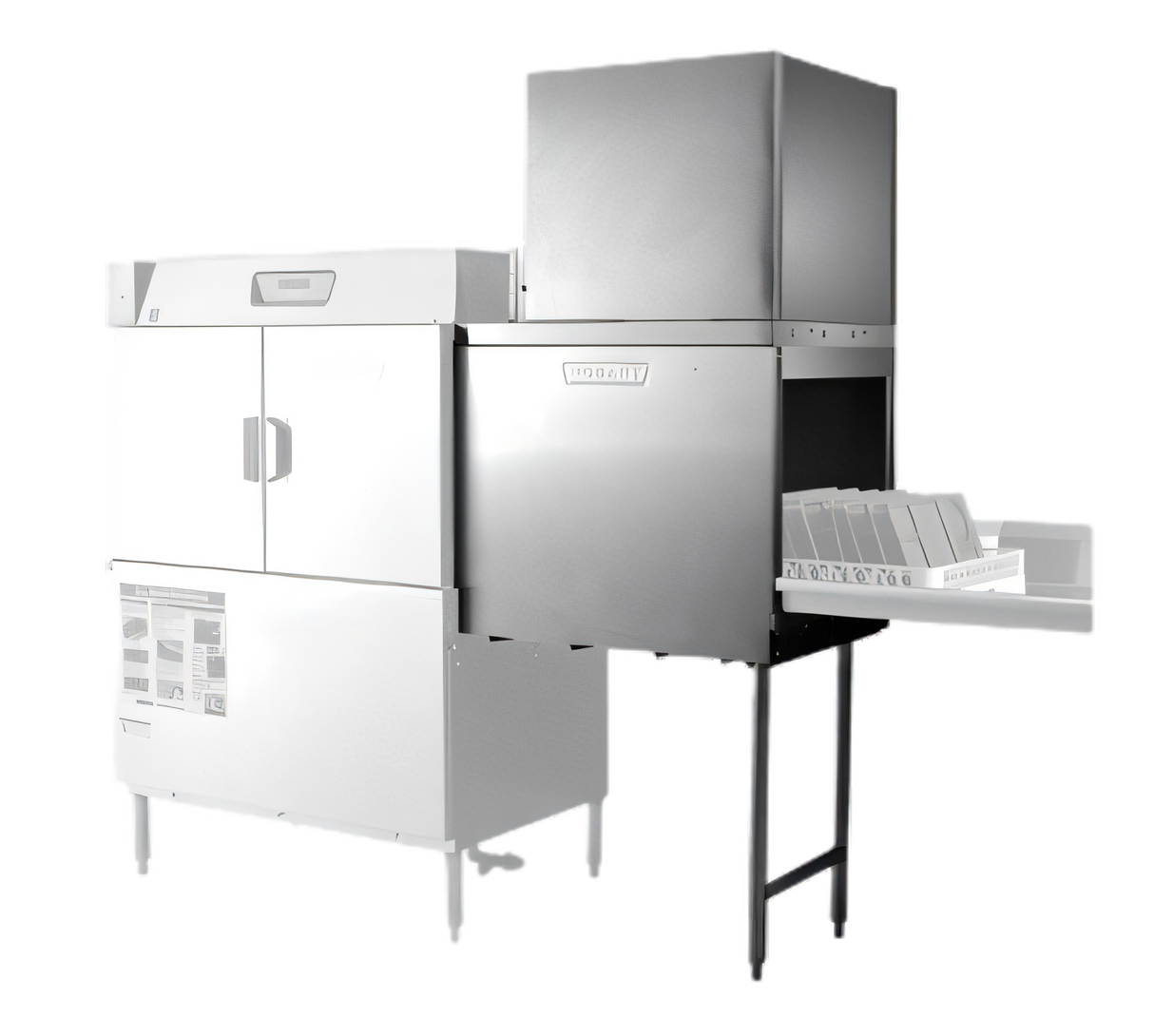

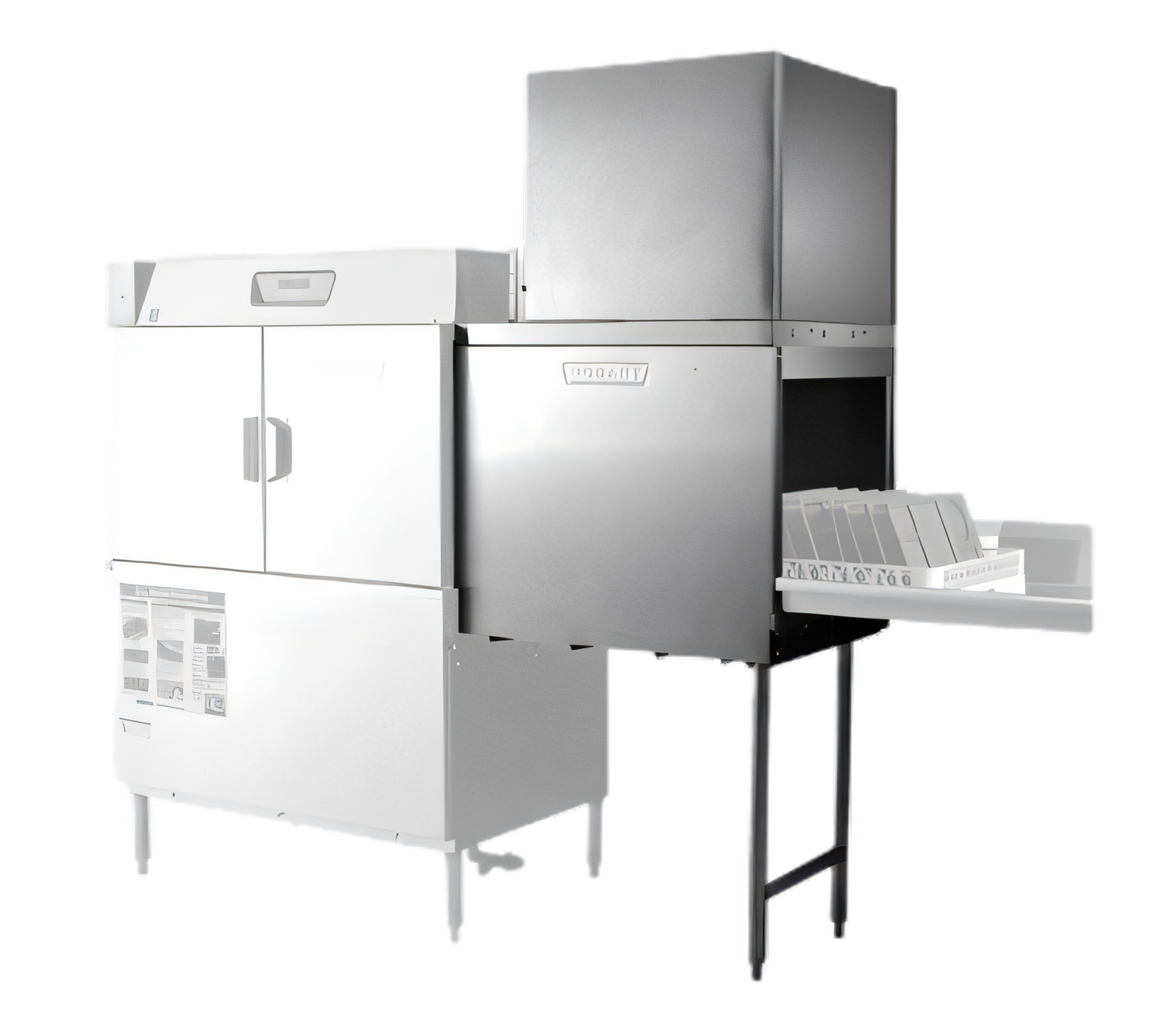

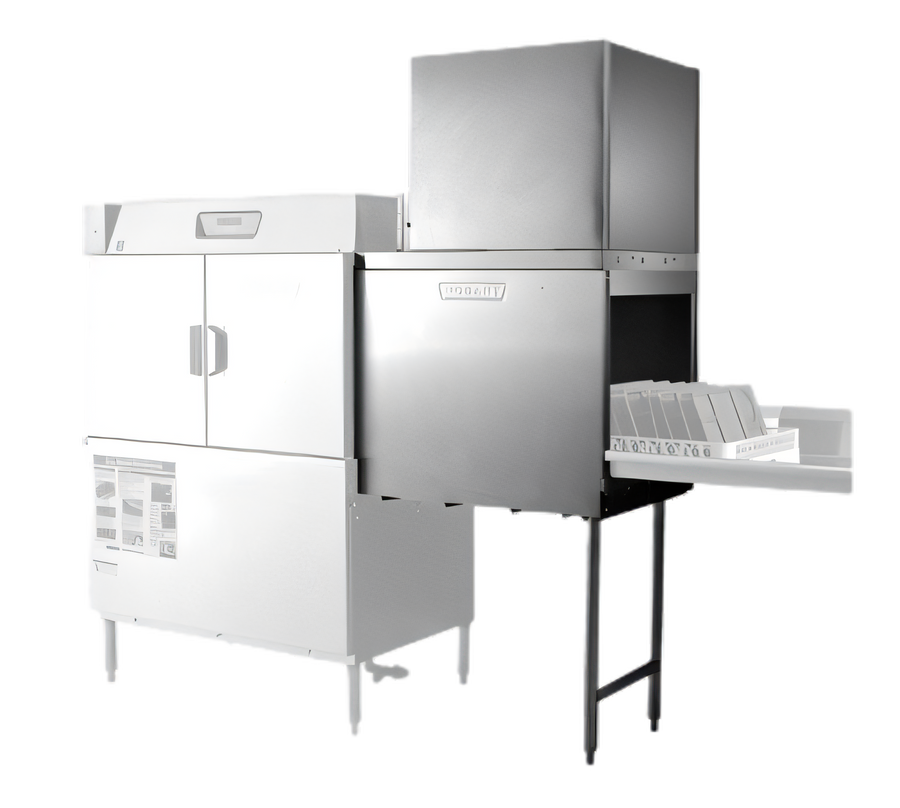

Hobart CLeN Series Steam Blower-Dryer
Left-to-Right • 480 V / 60 Hz / 3-Phase • Standard HeightBoost your CLeN conveyor dishwasher’s performance with Hobart’s factory-matched Steam Blower-Dryer. A powerful 2 H.P. direct-drive blower forces high-velocity, steam-heated air across every rack, delivering bone-dry plates and trays the moment they exit the machine—no towels, no waiting, no re-runs.
Key Benefits
- Stainless-steel 33 in. drying chamber welded for long-term durability.
- Positive forced circulation of heated air for rapid, even drying.
- Quiet, industrial-type blower combines high velocity with low sound levels.
- Matches all CLeN Series conveyor dishwashers—installs without field fabrication.
- Steam heat uses just 55 lb/hr (at 20 psi) for energy-efficient operation.
- Automatically starts and stops with the dishwasher pumps—no extra switches to remember.
Technical Specifications
| Direction of Operation | Left ➜ Right |
|---|---|
| Electrical | 480 V / 60 Hz / 3-Ph, 2.6 A (15 A min. circuit) |
| Blower Motor | 2 H.P., splash-proof, direct drive |
| Steam Consumption | 55 lb/hr @ 20 psi (max 25 psi) |
| Exhaust Requirement | 200–400 CFM, 4 × 16 in. vent with locking damper |
| Steam Connection | 1 in. FPT (64-7/8 in. AFF) |
| Condensate Return | ¾ in. FPT, bucket traps furnished (22 in. AFF) |
| Drain | 1 in. FPT in dryer tank |
| Overall Chamber Height | ≈ 17 ⅜ in. above dishwasher |
Installation Highlights
- Ships ready to bolt directly to the CLeN wash chamber—foam gasket tape included.
- Single-point, three-phase electrical connection (1-⅛ in. conduit hole provided).
- Vent hood or canopy cannot be used; provide dedicated 4 × 16 in. stack.
- Stainless adjustable feet level the tank; track height matches CLeN conveyor.
- Blower-dryer controller power (115 V) supplied by dishwasher transformer.
As part of Hobart’s policy of continuous product improvement, specifications are subject to change without notice.
