Hobart  |  Warewash  |  SKU: BDERLBX-STDDOM

Hobart BDERLBX-STDDOM Warewash Undercounter Dishwashers

$16,119.28
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

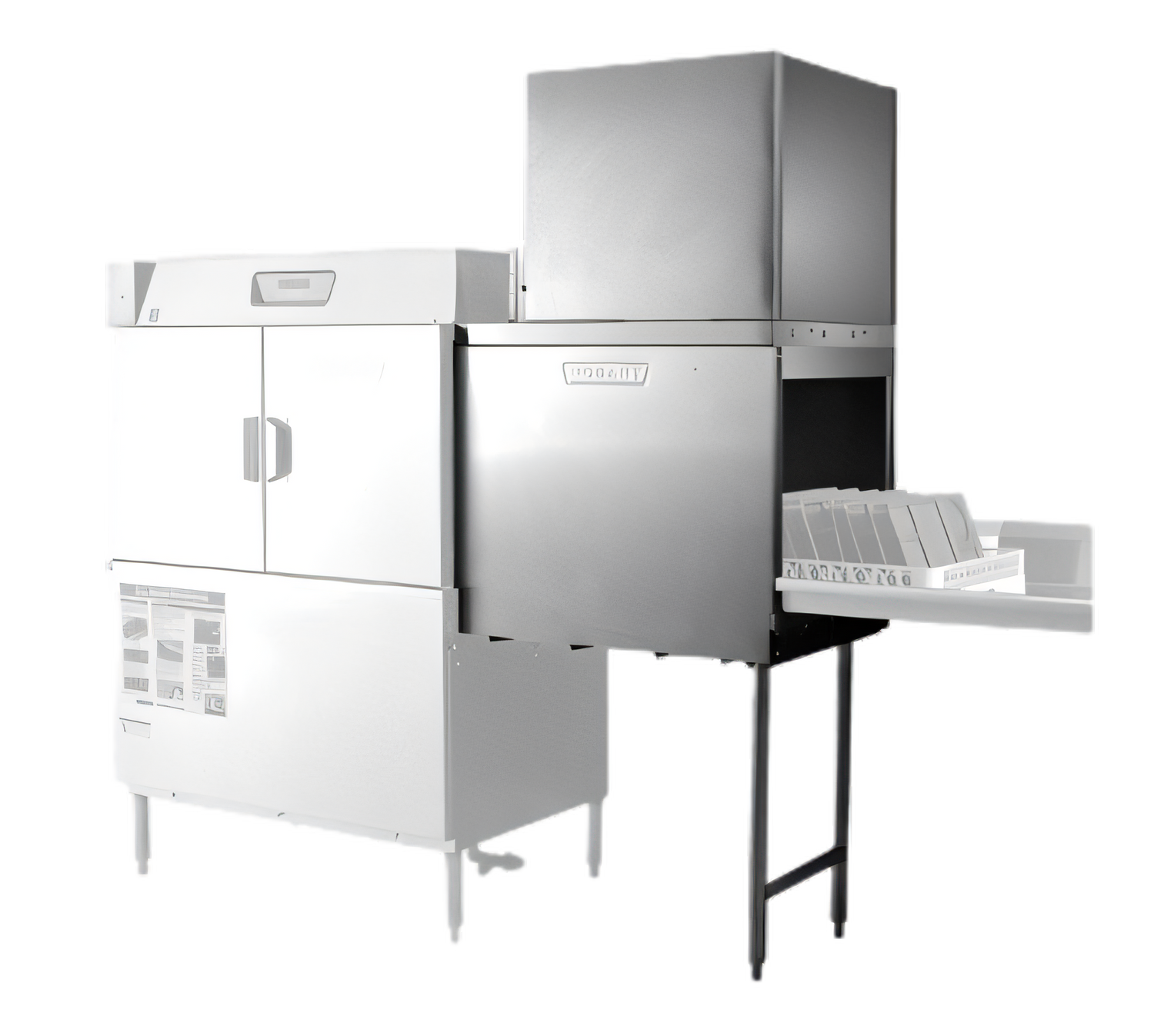

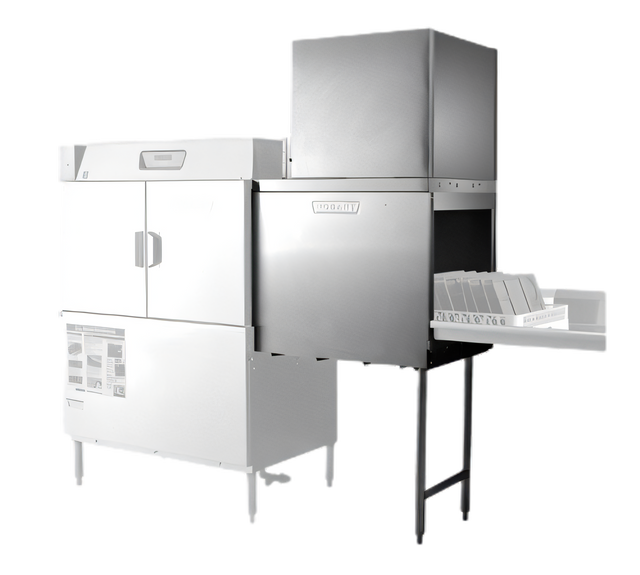

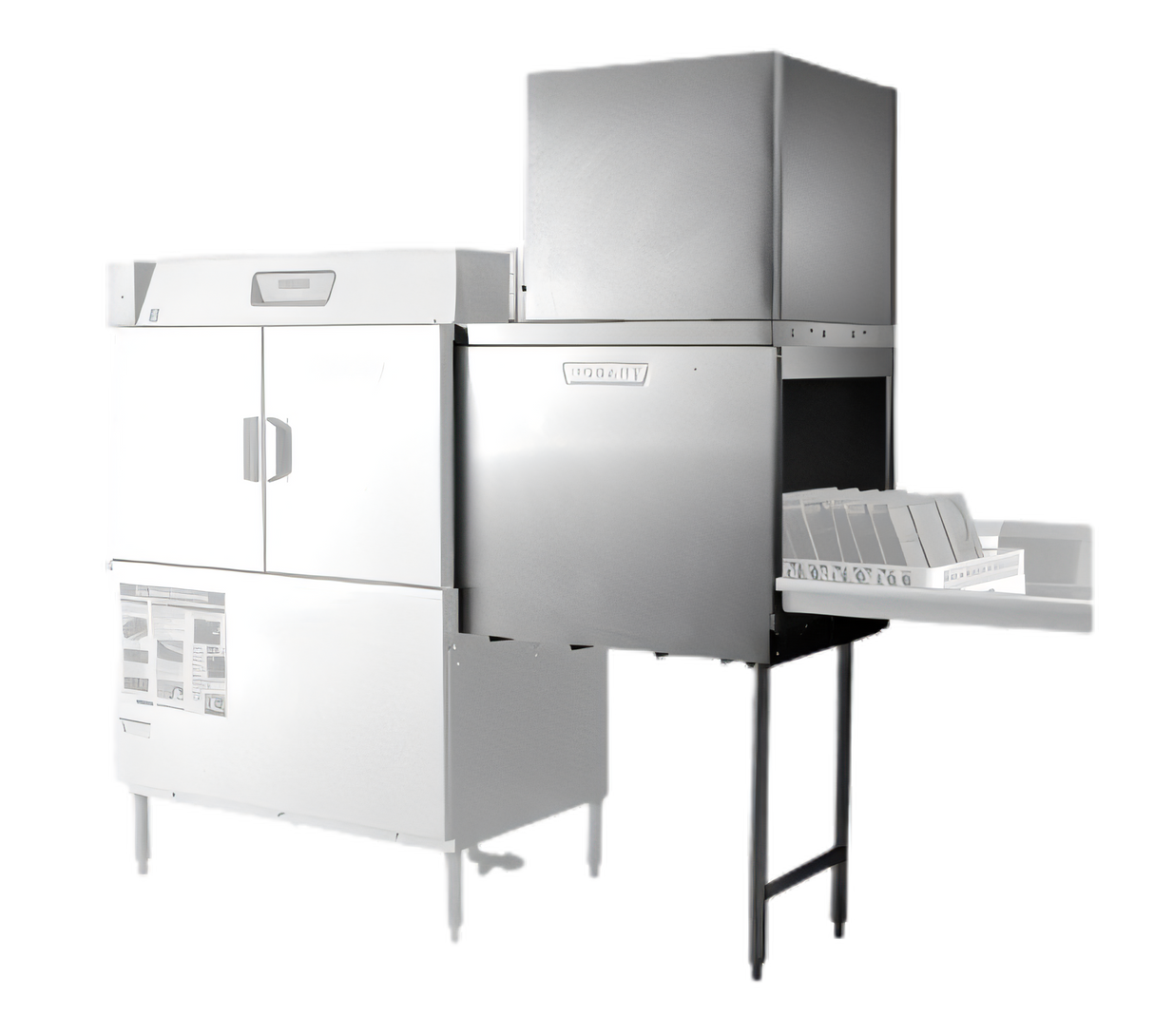

Hobart CLeN All-Electric Blower-Dryer Accessory

Right-to-Left • 240 V / 60 Hz / 3-Phase • Standard Height

Slash plate-wiping, towel-swapping and puddle-mopping are officially off the to-do list. Add Hobart’s stainless-steel blower-dryer to your CLeN conveyor dishwasher and send every rack out dry, cool to the touch, and ready for service—no extra labor, no wait time.

Key performance advantages

  • High-velocity heated air stream instantly shears moisture from tableware & trays.
  • 2 HP direct-drive industrial blower delivers powerful airflow at a remarkably low sound level.
  • 10 kW Incoloy® electric heating (3 × 3.3 kW elements) reaches target temperature fast and holds it steady.
  • Full-width plenum and baffle system drive air down through the rack, then redirect it up for complete coverage—no adjustment needed for different ware heights.
  • One-piece 33 inch stainless chamber bolts directly to the warewasher for an integrated, leak-free fit.
  • Compatible with all Hobart CLeN conveyor models (CL44eN, CL54eN, CL64eN, CLPS/CS 66-86eN, etc.).
  • Controller ties into the dishwasher’s pump circuit—blower runs only when the machine is washing, saving energy automatically.
  • NSF & cULus listed for peace-of-mind code compliance.

At-a-glance specifications

Orientation Right-to-Left (R-L)
Electrical 240 V / 60 Hz / 3-Ph
Rated Amps 30.7 A
Minimum Circuit Ampacity 40 A
Recommended Breaker 40 A
Heating Capacity 10 kW (Incoloy® elements)
Blower Motor 2 HP, splash-proof enclosure
Airflow / Exhaust 200 – 400 CFM via 4 in × 16 in stack (locking damper included)
Chamber Length 33 in (838 mm)
Height Added to Machine ≈ 17 3⁄8 in (441 mm)
Drain Connection 1 in FPT
Construction Full stainless steel, welded & bolted
Certifications NSF, cULus

Need an opposite flow? A left-to-right model and additional voltages (208, 480, 600 V and export 50 Hz) are also available—chat with us for details.

Installation note: Canopy hoods cannot be used above this blower-dryer. Provide the specified 4 × 16 in dedicated exhaust, 1 in drain, and single-point electrical connection per local code. All electrical, plumbing and vent work must be performed by qualified personnel.

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash

Specifications

Blower Dryer, Electric, R - L, 240v/60/3-ph, Standard Height, Domestic
