Hobart BDELRET-STDDOM Warewash Undercounter Dishwashers
Hobart BDELRET-STDDOM Warewash Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

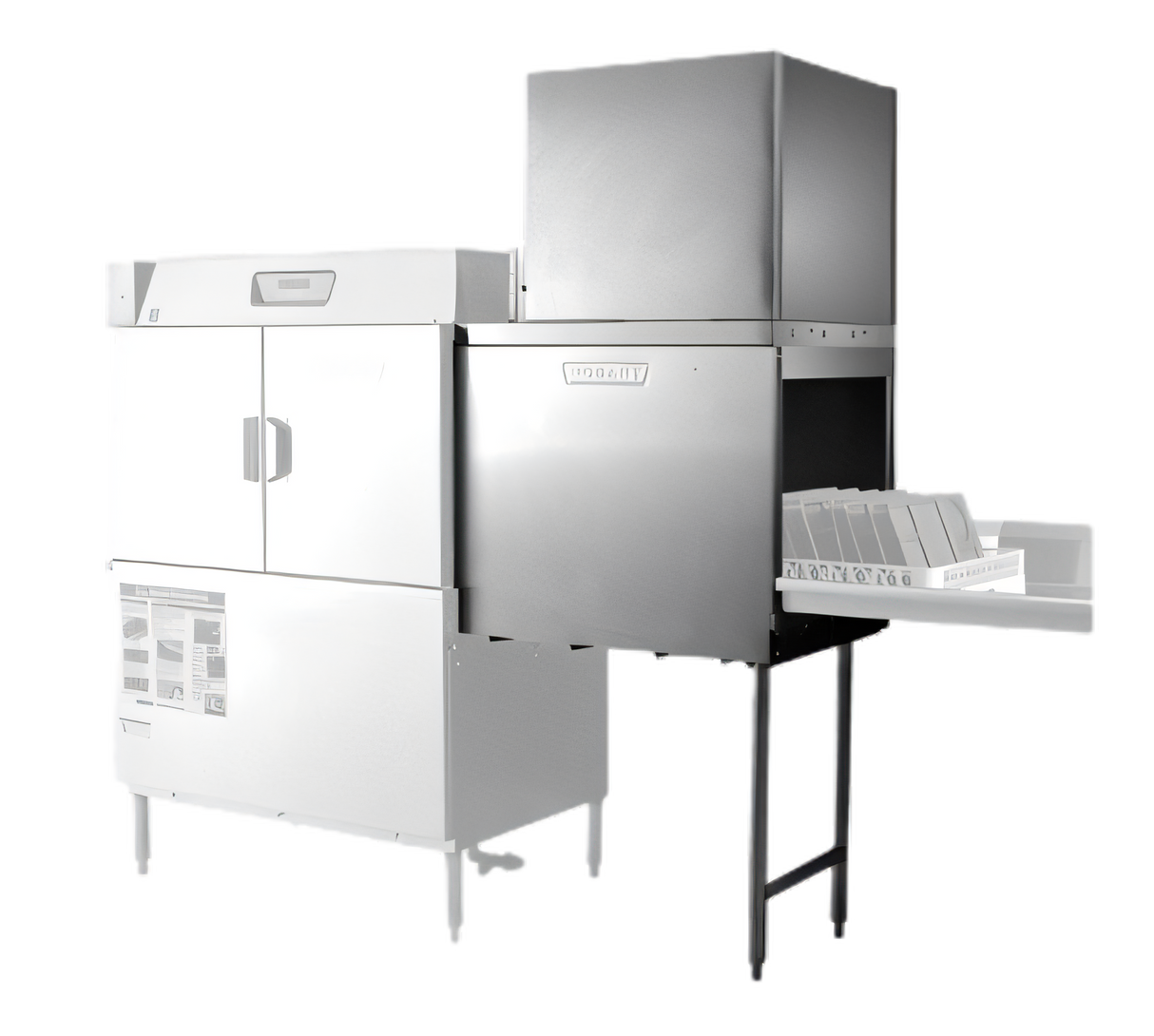

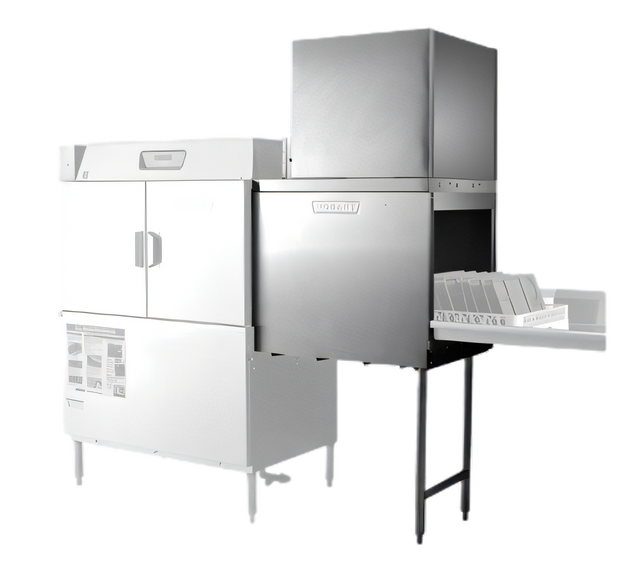

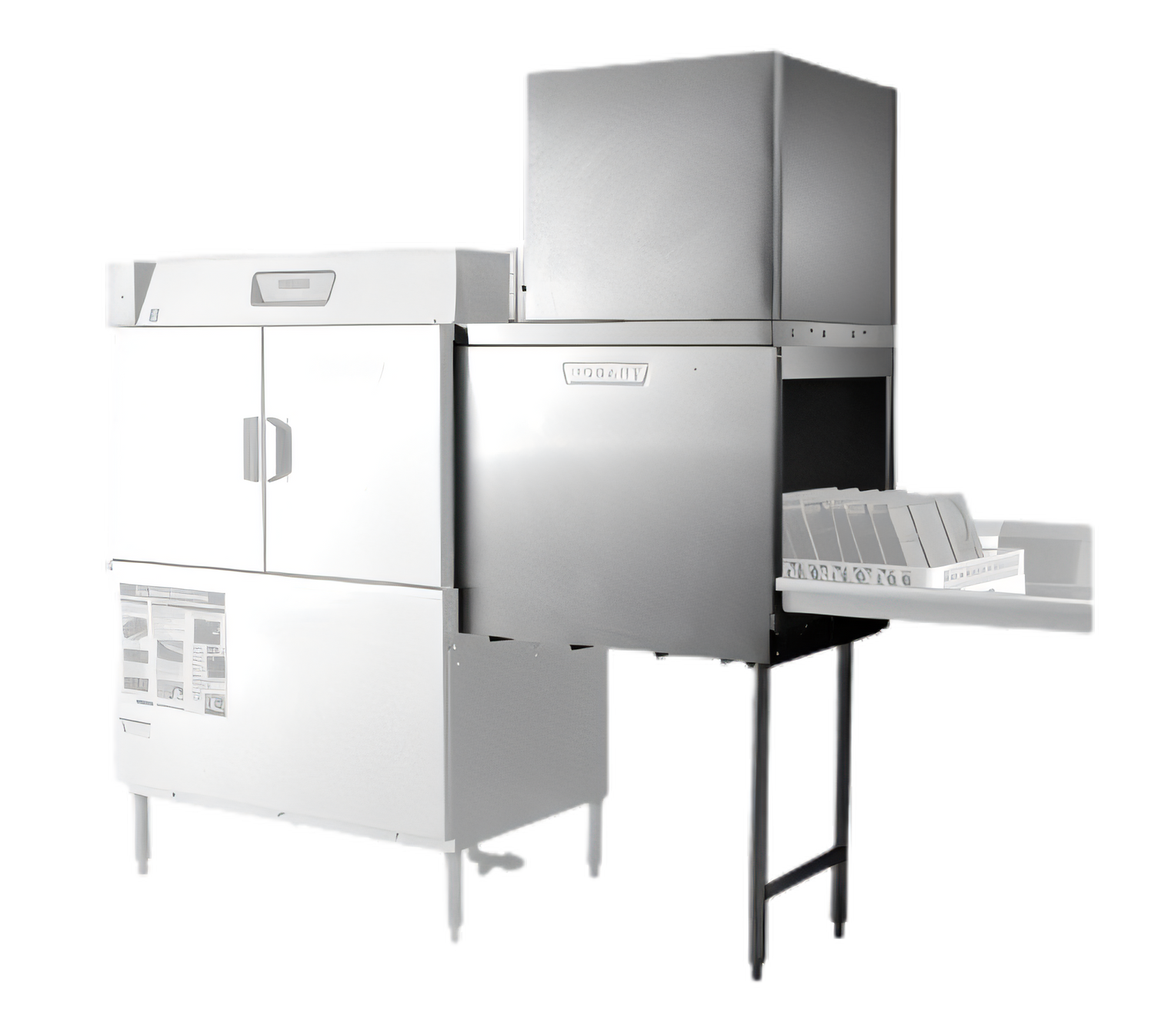

Hobart All-Electric Blower-Dryer – 600 V L-to-R
Factory-matched drying accessory for CLeN Series conveyor dishwashersMove racks straight from the conveyor to storage—no wiping, no waiting. Hobart’s blower-dryer delivers a curtain of heated, high-velocity air that turns freshly washed wares into immediately usable inventory, keeping your dishroom efficient and your staff productive.
Top benefits at a glance
- 33 in. stainless-steel chamber installs seamlessly on any Hobart CLeN model
- 10 kW Incoloy® electric heater controlled by thermostat & independent high-limit
- 2 HP direct-drive industrial blower moves up to 400 CFM while operating quietly
- Full-width air orifice & internal baffles ensure thorough, even drying
- “Dual Drive” stainless conveyor pawls synchronize perfectly with the warewasher
- Runs only when wash pumps are on, reducing energy use and noise between cycles
Technical specifications
Series compatibility | Hobart CLeN conveyor dishwashers |
---|---|
Direction of operation | Left → Right |
Electrical requirement | 600 V / 60 Hz / 3-phase (single-point connection) |
Rated amps | 12.6 A |
Minimum circuit ampacity | 20 A |
Heat output | 10 kW (3 × 3.3 kW elements) |
Blower motor | 2 HP, splash-proof, ventilated |
Vent connection | 4 in. × 16 in. stack, 200–400 CFM exhaust |
Drain | 1 in. FPT in dryer tank |
Electrical knockout | 1 ⅛ in. conduit, 61 in. above floor |
Chamber height increase | ≈ 17 ⅜ in. above warewasher |
Why add a Hobart blower-dryer?
- Eliminates hand-drying labor and linen costs
- Prevents moisture that can harbor bacteria or spot glassware
- Keeps hot air away from operators—baffles redirect flow back into the chamber
- Supports HACCP programs with consistently dry, sanitary wares
Looking for a different voltage or Right-to-Left flow? Contact us for alternate configurations and lead times.
