Hobart  |  Warewash  |  SKU: BDELRCD-STDDOM

Hobart BDELRCD-STDDOM Warewash Undercounter Dishwashers

$15,966.17
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Terms & conditions
Related Searches
Bar Equipment Dishwashers Undercounter Dishwashers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

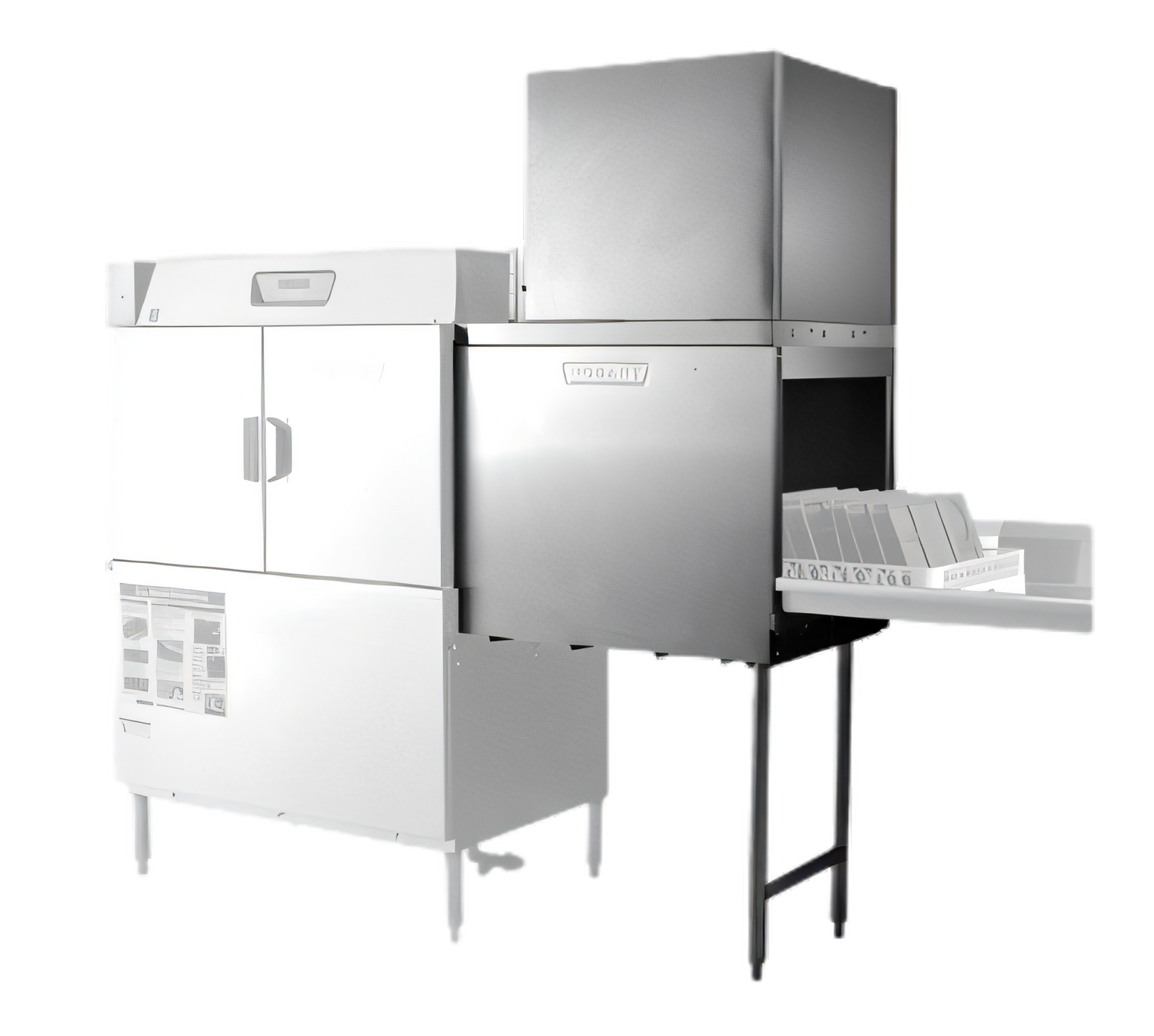

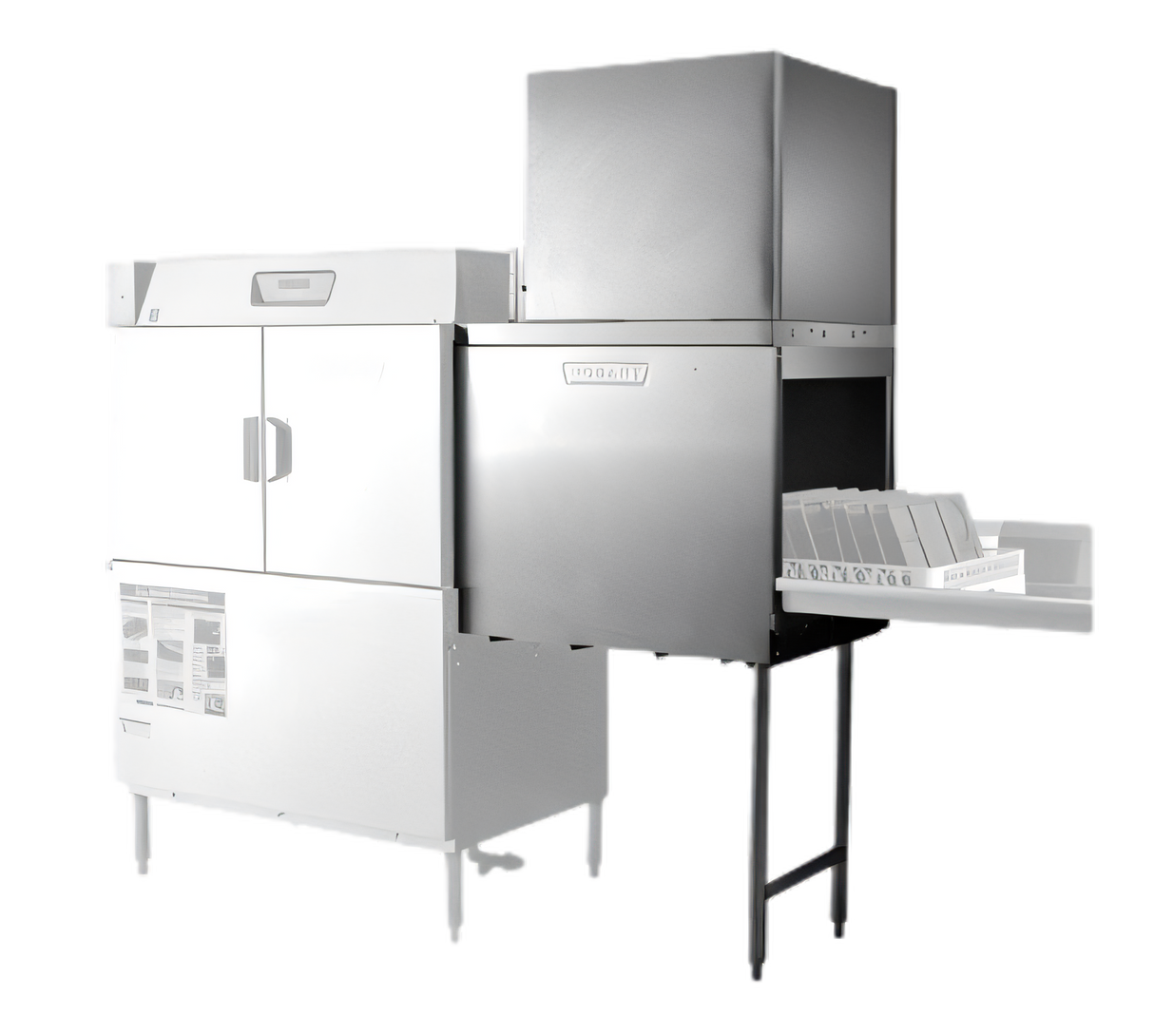

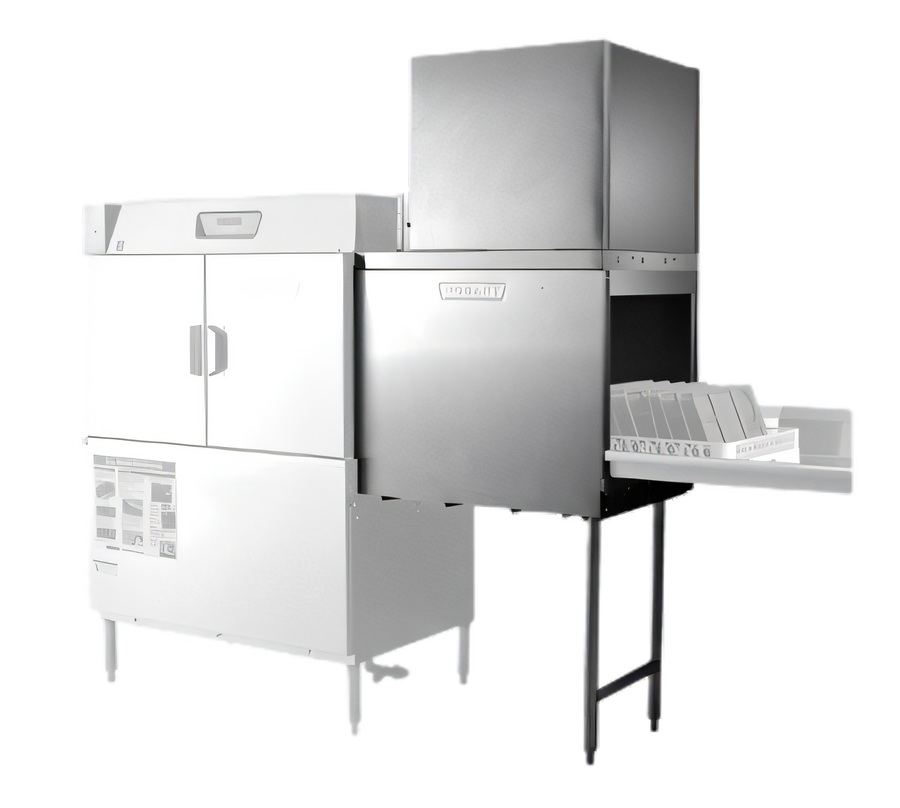

Hobart CLeN Series All-Electric Blower-Dryer – 480 V / 60 Hz / 3-Phase

Left-to-Right operation · Standard height · Made in the USA

Turn every rack that leaves your CLeN warewasher into a rack of ready-to-use dishes. Hobart’s stainless-steel blower-dryer forces a curtain of high-velocity, heated air across the conveyor path, eliminating excess moisture without slowing your line or soaking your staff.

Why you’ll love it

  • 33 inch stainless-steel drying chamber resists corrosion and wipes clean fast.
  • 2 HP industrial blower moves 200–400 CFM at a low sound level for a quieter dish room.
  • 10 kW Incoloy® electric heating system with thermostatic control and independent over-temp protection.
  • Positive forced-air circulation dries tableware, sheet pans, and trays—no manual adjustment required.
  • Internal baffles redirect airflow upward, keeping heat off the discharge table and the operator.
  • Splash-proof, ventilated motor with solid-state overload protection; runs only while the dishwasher is in cycle.
  • Single-point 480 V / 3-phase connection simplifies installation.
  • NSF & UL Listed accessory engineered exclusively for Hobart CLeN conveyor dishwashers.

Technical data

Compatibility All Hobart CLeN conveyor dishwashers (CL44eN, CL54eN, CL64eN, CLPS/CLCS series, etc.)
Direction of operation Left → Right
Electrical rating 480 V / 60 Hz / 3-phase
Rated current 15.7 A
Minimum circuit ampacity 20 A
Maximum protective device 20 A
Heating capacity 10 kW (3 × 3.3 kW elements)
Blower motor 2 HP, direct-drive
Exhaust requirement 4" × 16" vent, 400 CFM
Chamber length 33" (840 mm)
Height above warewasher ≈ 17 3⁄8" (442 mm)
Construction All stainless steel, welded/bolted; wrap-around enclosure for heater, motor & blower

Installation notes

  • Single 1-1/8" conduit knockout provided 61" above finished floor for field wiring.
  • 1" FPT drain connection in dryer tank.
  • Includes stainless hardware and foam gasket for bolting to CLeN machine.
  • Canopy hoods cannot be used; dedicated 4" × 16" vent connection is required.
Important: This blower-dryer is designed for 480 V / 60 Hz / 3-phase service and Left-to-Right conveyor flow. Selecting the wrong voltage or direction may damage equipment and void warranty.

Need a different voltage, reverse operation, or an extended vent hood? Reach out via the contact form and we’ll quote the exact configuration direct from Hobart.

Features & Specs

Manufacturer

Hobart

Brand_name

Warewash

Specifications

Blower Dryer, Electric, L - R, 480v/60/3-ph, Standard Height, Domestic
