Hobart AM16VLT-BAS-4 Warewash Undercounter Dishwashers
$28,733.60
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hobart AM16VLT-BAS-4 Warewash Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart AM16VLT-BAS-4 Warewash Undercounter Dishwashers
$28,733.60
Unit price
/
Unavailable
Description

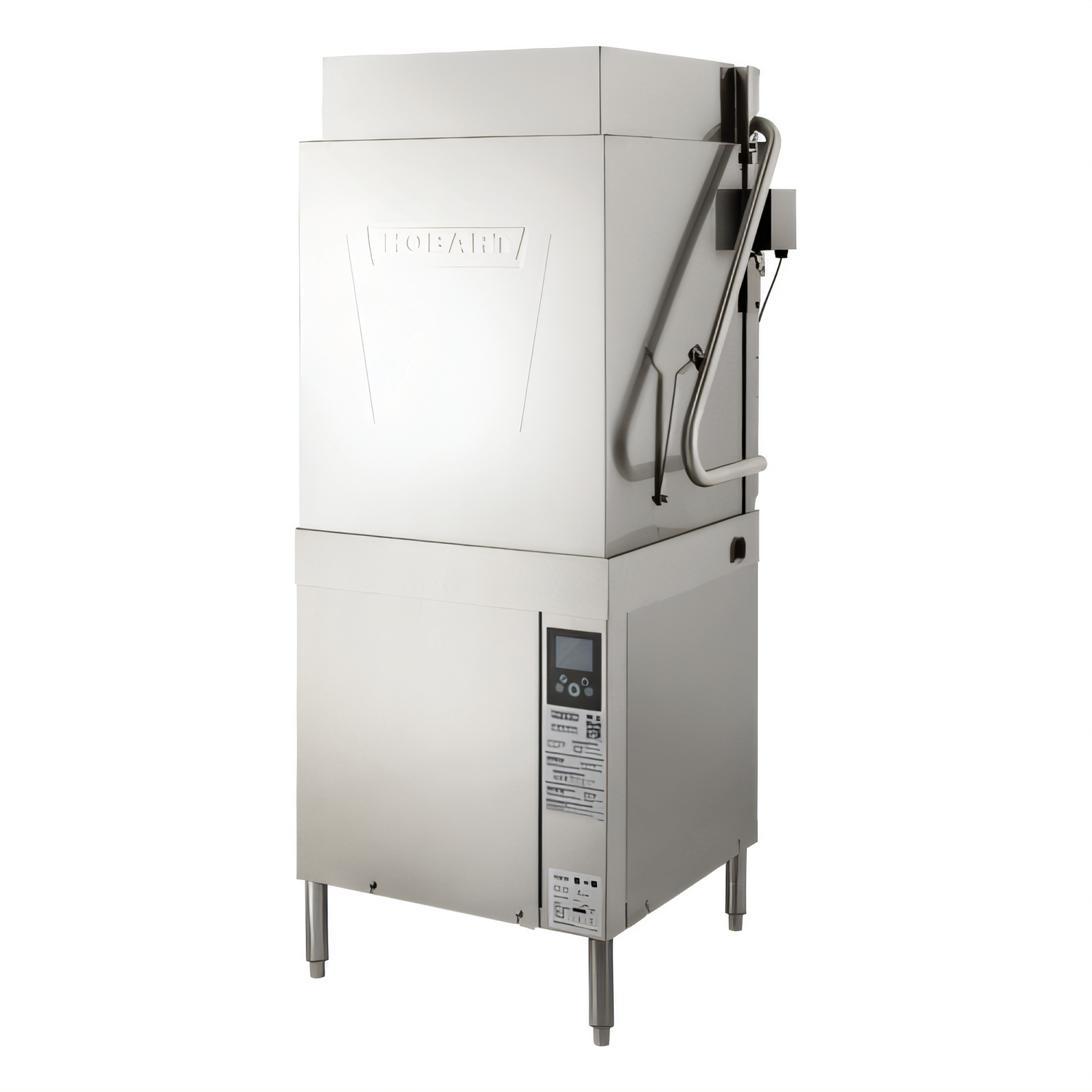

Hobart AM16VLT-BAS Tall Ventless High-Temp Dishwasher
27-inch chamber • 40 racks/hour • Model AM16VLT-BAS • ENERGY STAR®Give your dishroom more capacity, less steam and smarter control in the same footprint. The Hobart AM16VLT-BAS combines a 27 inch pillar-less opening with true ventless energy-recovery, high-temperature sanitizing and cloud-connected intelligence—delivering the clean you demand with the savings you deserve.
Why You’ll Love It

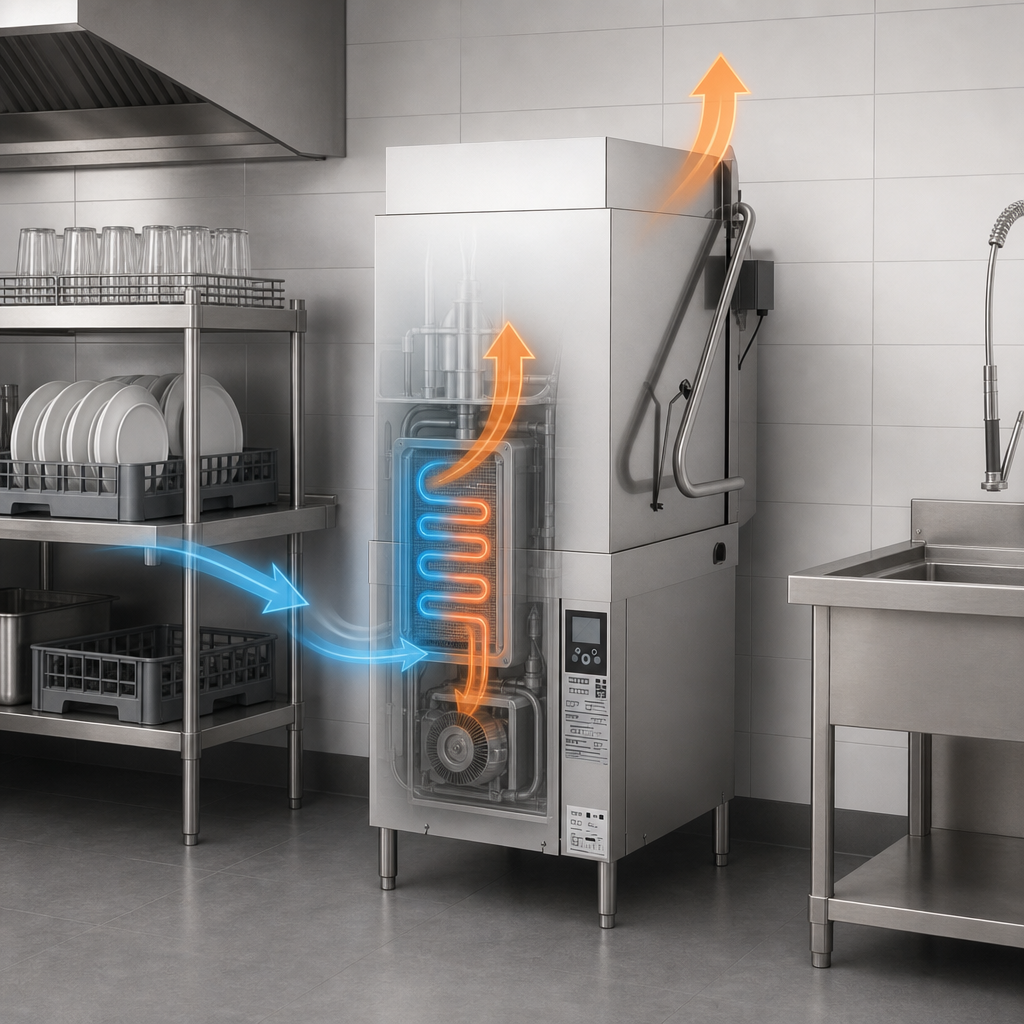

- Ventless Energy Recovery: built-in condenser captures steam, so no dedicated hood is required.
- Ultra-low water use – just 0.67 gal per rack (26.8 gph max) saves thousands of gallons every year.
- 40 racks per hour with selectable 1, 2, 4 or 6-minute cycles and NSF pot-&-pan rating.
- 27″ tall chamber fits 18 × 26″ sheet pans and 60-qt mixer bowls without tilting.
- Smart 7" full-color touchscreen with on-screen video prompts, multi-language support and service diagnostics.
- Wi-Fi enabled; monitor temperatures, usage, error codes and operating costs in the free Hobart SmartConnect app.
- Sense-A-Temp™ 70 °F-rise electric booster (7.1 kW) delivers a consistent 180 °F final rinse—even from 55 °F supply water.
- X-shaped stainless wash arms plus two-stage filtration = superior coverage with less spray-arm maintenance.
- Automatic fill, door-actuated start and pumped drain for simple, splash-free operation.
- All-stainless tank, chamber, frame and feet for maximum life in the harshest commercial kitchens.
Flexible, Space-Saving Installation
- Straight-through or corner configuration—no extra kits required.
- Single-point 3-phase connection standard; field convertible to dual-point or single-phase.
- Ventless design slashes HVAC costs and simplifies code compliance.
At-a-Glance Specs
| Model | AM16VLT-BAS (Tall Chamber Ventless) |
|---|---|
| Capacity | 40 racks / hr • 1,000 dishes / hr (avg) • 1,800 glasses / hr (avg) |
| Cycle Times | 1, 2, 4 or 6 minutes (selectable) |
| Water Use | 0.67 gal per rack • 10.5 gal wash tank |
| Door Opening | 27″ pillar-less (fits sheet pans & 60-qt bowl) |
| Electrical | 480 V / 60 Hz / 3 Ø – single-point 24 A (30 A circuit) Field convertible to 208-240 V & single-phase |
| Booster / Tank Heat | 7.1 kW booster • 5.4 kW wash-tank heater |
| Overall Dimensions* | 25-3/16″ W × 29-1/2″ D × 78-3/16″ H (door closed) |
| Shipping Weight | ≈ 372 lb (crated) |
| Certifications | ENERGY STAR®, NSF, cULus |
*Maximum door height 90-5/8″ when fully open.
Included With Your AM16VLT-BAS

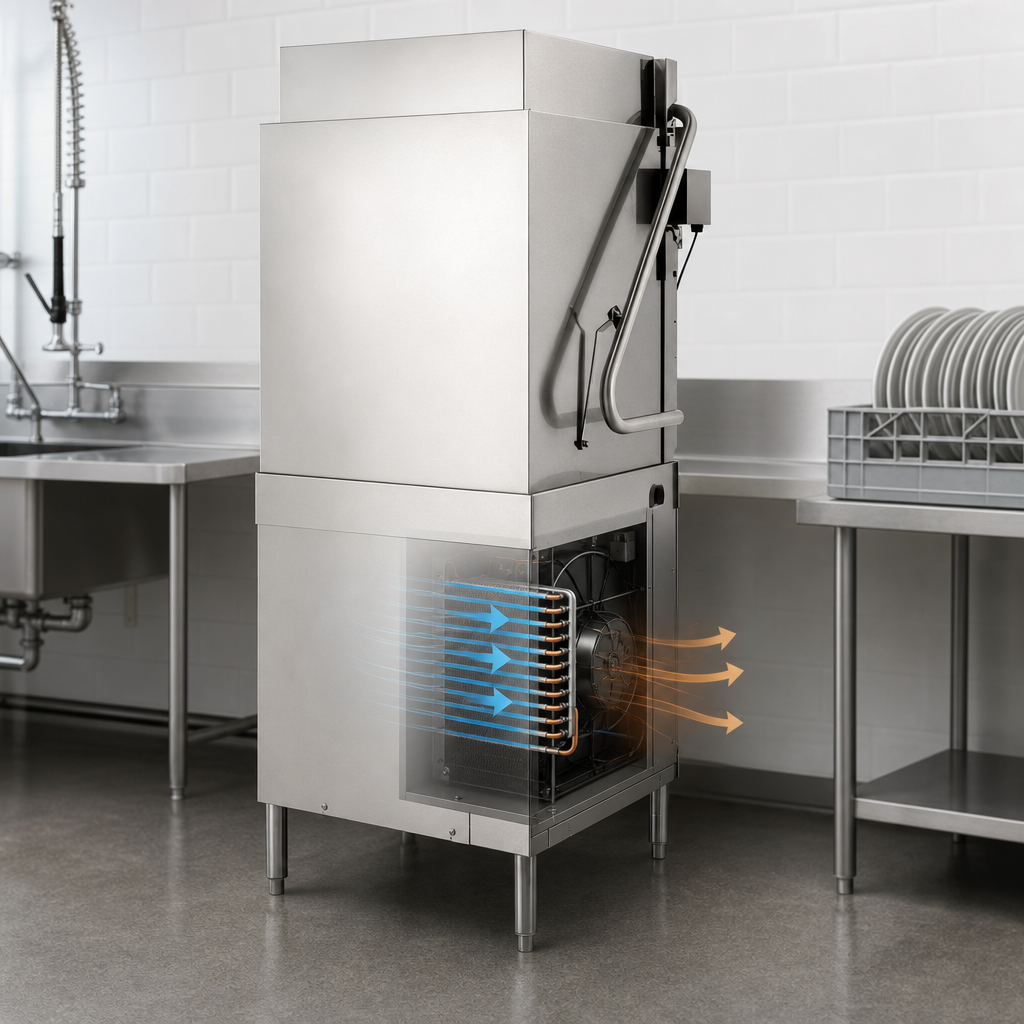

- (1) Ventless high-temp dishwasher with internal condensing system
- Touchscreen controller & Wi-Fi hardware
- Stainless slanted scrap screen & basket
- 6′ incoming water hose and 6′ drain hose with 5⁄8″ barb
- Factory startup by Hobart Service (see note below)
Factory Startup Included: Hobart will commission the machine free of charge when the site is within 100 miles of a Hobart Service Office and accessible by public roadway during normal business hours.
Sites outside this radius or with limited access will be quoted separately.
Pro Tips for Best Results
- Maintain incoming water pressure between 15 – 65 psi.
- For optimum performance, keep the dishroom at 65 °F (18 °C) or warmer.
- Water hardness above 3 grains can shorten machine life—use softening or the built-in delime cycle as needed.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Tank Heat
electric
Energy Efficiency
ENERGY STAR®
Racks
single
Construction
stainless steel
Temperature
high temp with booster
Design
universal (straight-thru/corner)
Rack Capacity
approximately (40) racks/hour
Specifications
Ventless Dishwashing Machine, tall chamber (27”), door type, energy recovery, high temp sanitizing, 480/60/3, internal condensing system, 40 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Delime Notification with Cycle, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
