Hobart AM16VLT-BAS-2 Warewash Undercounter Dishwashers
$27,201.30
Unit price
/
Unavailable
Description

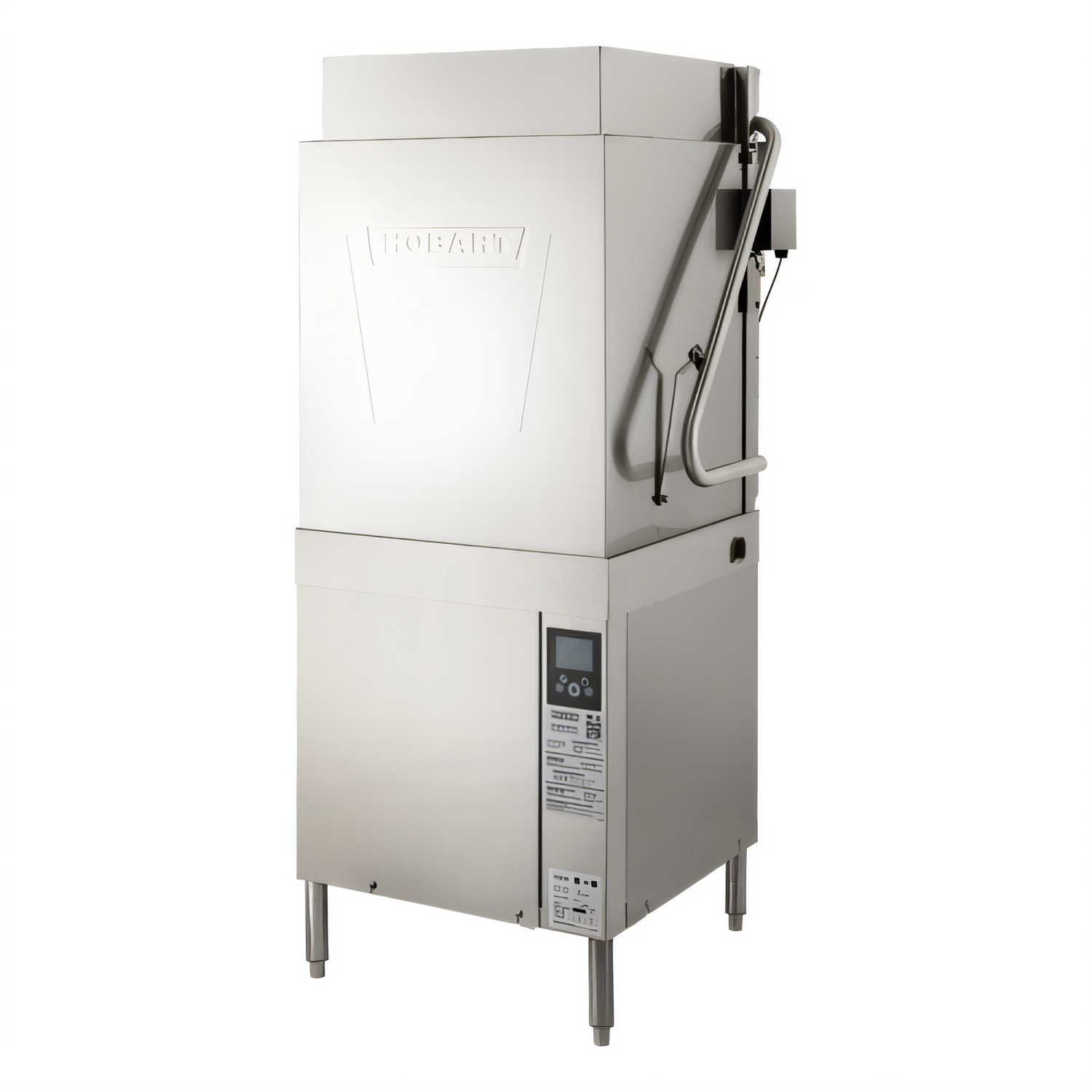

Hobart AM16VLT-BAS Ventless Tall-Chamber Dishmachine
High-temperature door-type warewasher – 27" clearance, 40 racks/hour, ENERGY STAR®Do more with less floor space, less steam and less water. The Hobart AM16VLT-BAS combines tall-chamber versatility with a built-in condensing system that eliminates the need for a vent hood, saving thousands on install costs while delivering best-in-class results at just 0.67 gal/rack.
Why you’ll love it
- Ventless energy-recovery design – no separate hood required.
- 40 racks per hour with high-temperature sanitizing (180 °F final rinse).
- Extra-tall, 27" pillar-less opening handles 18 × 26" sheet pans & 60-qt mixing bowls.

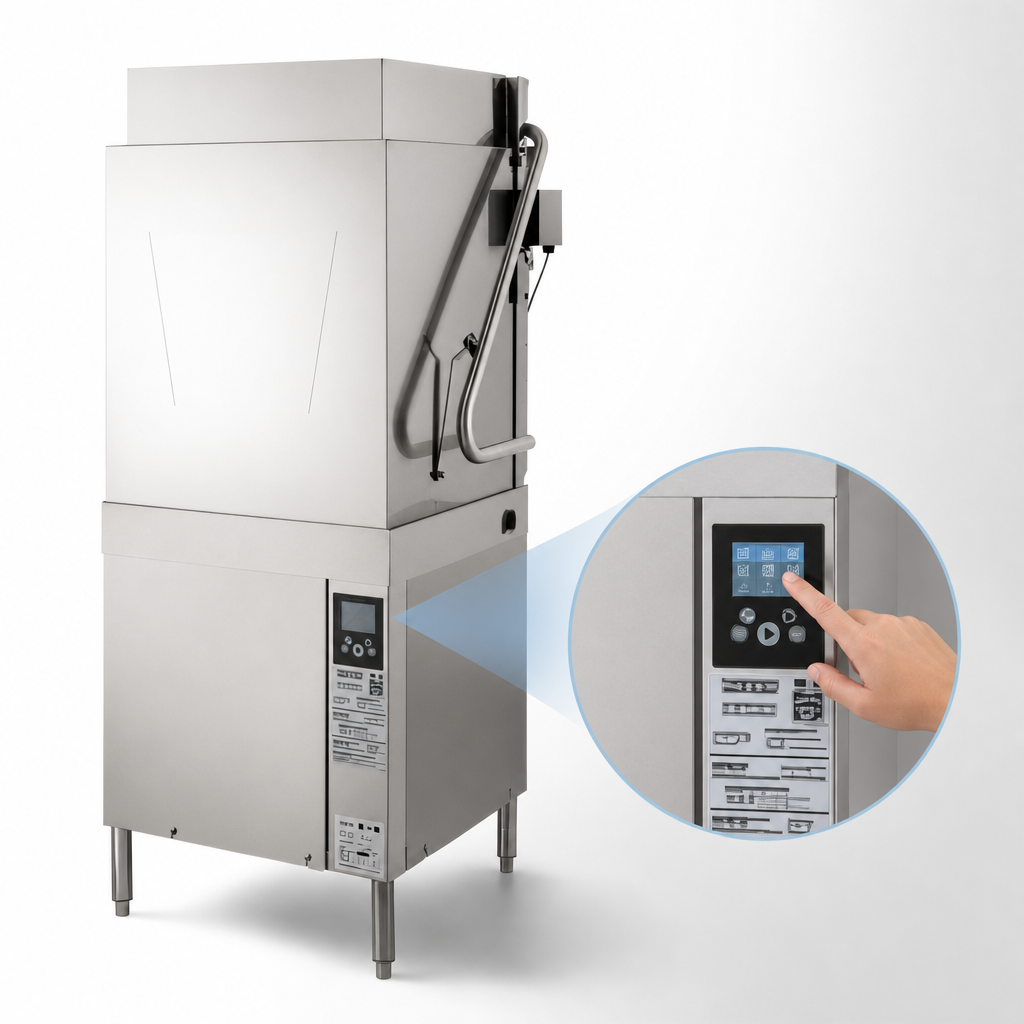

- Smart 7" touchscreen controls with cycle timer, service diagnostics & language selection.
- Native Wi-Fi – connect to the Hobart SmartConnect app for live performance data, temp logs & error alerts.
- Sense-A-Temp™ 70 °F-rise electric booster for consistent NSF sanitizing temperatures.
- X-shaped revolving wash arms + two-stage filtration for superior soil removal.
- Timed 1, 2, 4 or 6-minute cycles; NSF pot-&-pan rated on 2, 4 & 6-minute selections.
- Automatic fill, AutoClean and delime notification & cycle keep maintenance effortless.
- Single-point electrical connection ships 3-phase and is field-convertible to single-phase.
- Stainless steel tank, chamber, trim panels, frame & feet for long-term durability.
- ENERGY STAR®, cULus & NSF certified.
Performance at a glance
| Racks per hour (max.) | 40 |
|---|---|
| Water usage | 0.67 gal / rack • 26.8 gal / hr |
| Wash tank capacity | 10.5 gal |
| Door / chamber clearance | 27 in H × 20 in W (pillar-less) |
| Cycle times | 1, 2, 4, 6 min (selectable) |
| Electrical | 208-240 V / 60 Hz / 3 ph (field-convertible to 1 ph) |
| Booster heater | 7.1 kW Sense-A-Temp™ (70 °F rise) |
| Tank heater | 5.4 kW electric |
| Drain type | Pumped (5/8" hose supplied) |
| Shipping weight | ≈ 372 lb (crated) |
Included with every AM16VLT-BAS
- Built-in internal condenser – captures steam, pre-heats incoming water.
- Pumped final rinse & pumped drain – flexible installation under standard tables.
- Slanted one-piece scrap screen & basket system.
- Door-actuated start and mechanical door lock.
- Free factory start-up by Hobart Service (see conditions below).
Popular add-ons (sold separately)
- Peg, combination or sheet-pan racks
- Integrated chemical pumps
- Splash shield for corner installs
- Flanged or seismic feet
- Sink integration kits, fold-down tables & rapid-fill kit
- Drain-water tempering kit
Factory Start-Up Included: Hobart will commission the machine free of charge when installation is scheduled within 100 miles of a Hobart Service Office that is accessible by public roadway during normal business hours.
Locations beyond 100 miles or those with limited access will be quoted separately.
Need help configuring tabling or accessories? Contact our foodservice specialists anytime — we’ll build a solution around your space, menu and volume.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Energy Efficiency
ENERGY STAR®
Racks
single
Construction
stainless steel
Tank Heat
electric
Design
universal (straight-thru/corner)
Temperature
high temp with booster
Rack Capacity
approximately (40) racks/hour
Specifications
Ventless Dishwashing Machine, tall chamber (27”), door type, energy recovery, high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 40 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Delime Notification with Cycle, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
