Hobart AM16VLT-ADV-4 Warewash Undercounter Dishwashers
$33,672.10
Unit price
/
Unavailable
Description

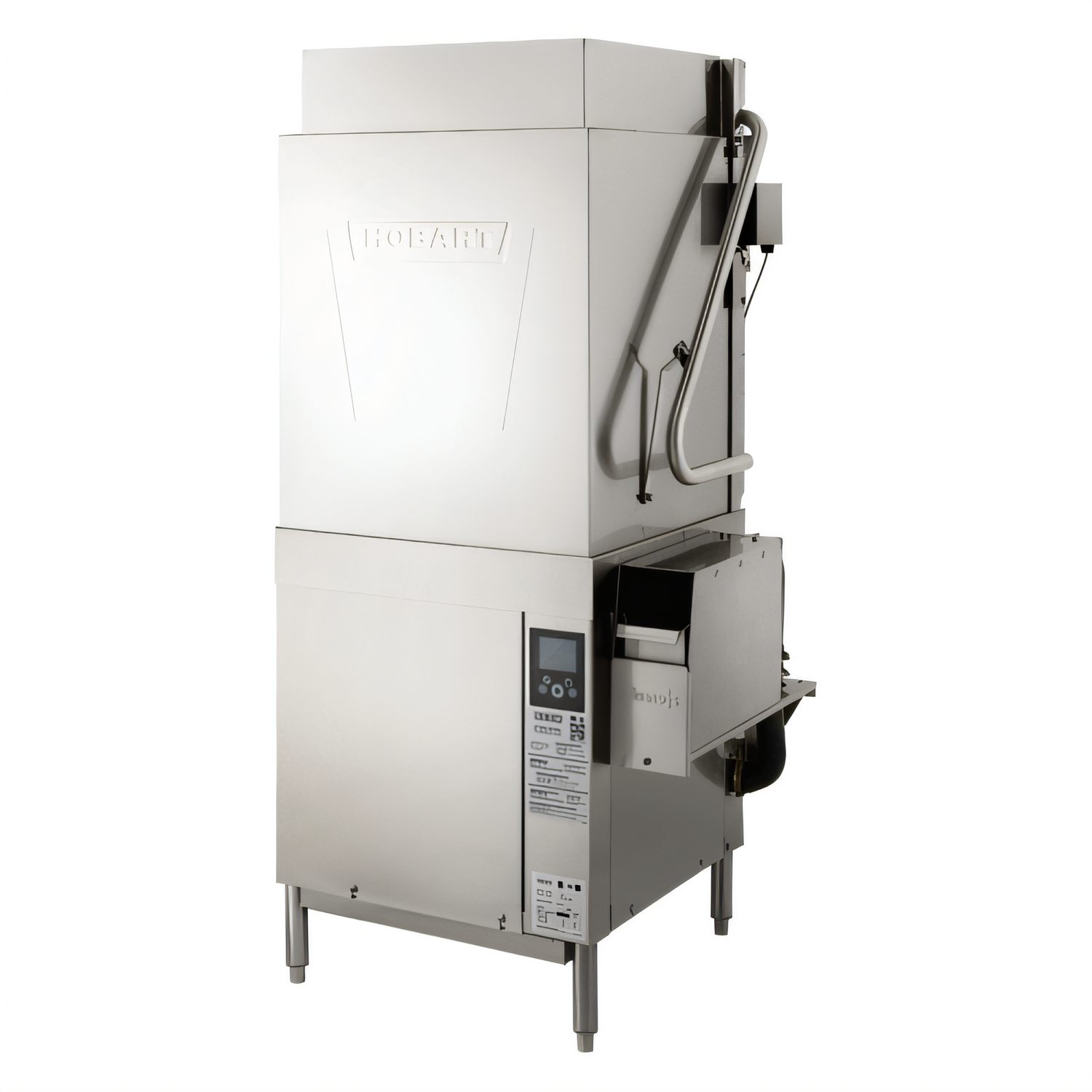

Hobart AM16VLT-ADV Tall Advansys™ Ventless Dishwasher
High-temperature • Door-type • ENERGY STAR®Do more with less floor space, less water and no exhaust hood. The AM16VLT-ADV combines Hobart’s award-winning Advansys™ technology with a 27" pillarless opening, allowing you to wash everything from full-size sheet pans to 60-quart mixing bowls—while using just .67 gal of fresh water per rack.
Key Advantages

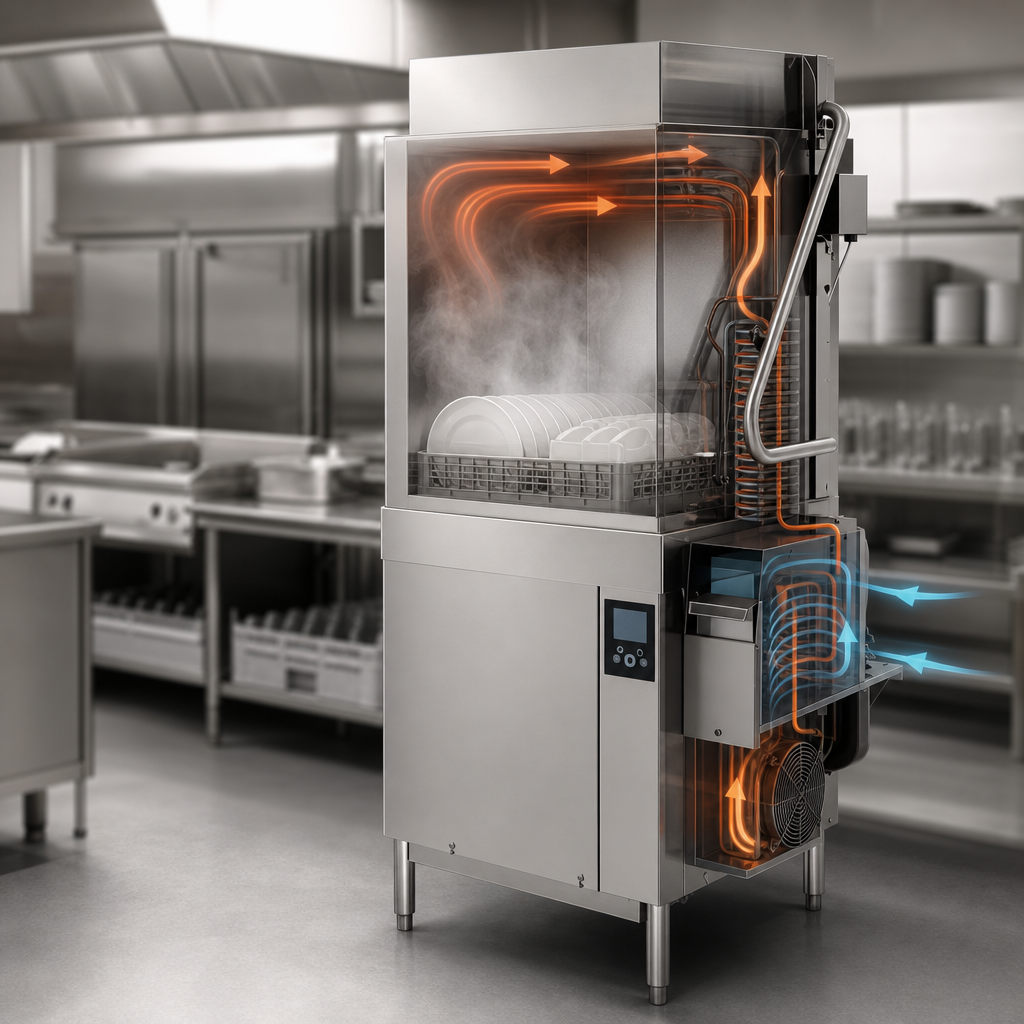

- Ventless energy & heat recovery – internal condenser captures steam and drain-water heat, eliminating the need for a Type II hood in most jurisdictions.

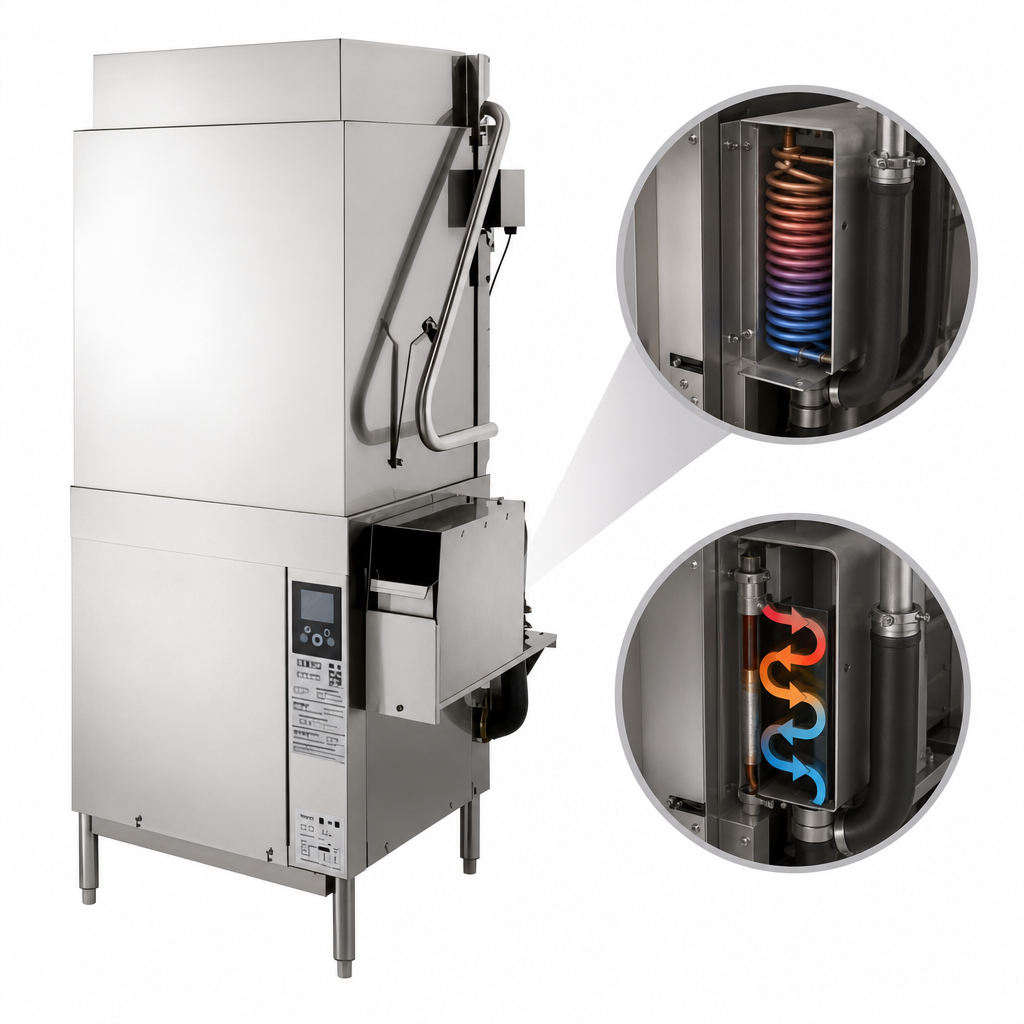

- Drain Water Energy Recovery (DWER) – reclaims heat from every cycle to pre-warm incoming rinse water.
- Automatic Soil Removal (ASR) – a dedicated pump continuously pulls food soil out of the tank to keep wash water cleaner, longer.
- Sense-A-Temp™ 70 °F-rise booster guarantees 180 °F sanitizing rinse temperatures, even on cold-water feeds.
- Smart touchscreen & Wi-Fi – full-color interface with SmartConnect™ cloud access for cycle counts, temperature logs, error alerts and cost analytics.
- Four cycle lengths (1, 2, 4, 6 min) with NSF pot-&-pan rating on the 2, 4 & 6-minute cycles.
- X-shaped stainless wash arms with anti-clog jets deliver complete coverage and tool-free removal.
- Pillar-less chamber & 27" door opening speed up loading and prevent breakage.
- Field-flexible power – ships 480 V/60/3 but converts to single-phase or 208-240 V in minutes.
- ENERGY STAR®, cULus and NSF certified for verified efficiency and sanitation.
Smart Hygiene & Maintenance
- Complete Delime™ cycle with on-screen notification and Booster Guard™ protection.
- Auto Dispensing for detergent, rinse aid and sanitizer (with optional chemical pumps).
- AutoClean at shutdown flushes soils from the tank and wash arms.
- Pumped drain with built-in air-gap and drain-water tempering for code compliance.
- Service diagnostics & error code memory reduce downtime.
Performance at a Glance
| Racks per hour * | 36 |
|---|---|
| Water use per rack | .67 gal / 2.54 L |
| Wash tank volume | 10.5 gal / 39.7 L |
| Door opening | 27 in (686 mm) |
| Rack size | 19¾ in × 19¾ in (502 × 502 mm) |
| Cycle selections | 1, 2, 4, or 6 minutes |
| Sanitizing method | High-temperature (180 °F / 82 °C) |
| Booster heater | 7.1 kW Sense-A-Temp™ (70 °F rise) |
| Main wash heat | 5.4 kW electric |
| Electrical | 480 V / 60 Hz / 3 ph (field-convertible to 208-240 V or 1 ph) |
| Overall dimensions H × W × D | 78 3⁄16 in × 29 13⁄16 in × 37 in (1 987 mm × 758 mm × 940 mm) |
| Net / ship weight | 410 lb / 427 lb (186 kg / 194 kg) |
| Certifications | ENERGY STAR®, NSF, cULus |
*Maximum racks per hour at 1-minute cycle.
Built for Demanding Kitchens
- All-stainless tank, chamber, trim panels, frame and feet.
- Spring-balanced hood with UHMW glide tracks for effortless lifting.
- Slanted scrap screen & basket keep debris out of the pump.
- Door-actuated start and positive door lock protect operators.
- Straight-through or corner setup—rack tracks are easily re-positioned on site.
Factory Start-Up Included:
Hobart will perform one free start-up within 100 mi/161 km of an authorized Hobart Service Office (accessible by public roadway) during normal business hours with advance notice. Sites outside this radius or with limited access will receive a custom quotation.
Hobart will perform one free start-up within 100 mi/161 km of an authorized Hobart Service Office (accessible by public roadway) during normal business hours with advance notice. Sites outside this radius or with limited access will receive a custom quotation.
Perfect for
- Restaurants & cafés looking to eliminate hood installation costs
- Correctional & healthcare facilities requiring high-temp sanitation without chemical residue
- Bakeries and catering kitchens washing sheet pans & large stock pots
- Any operation seeking data-driven dishroom management with Wi-Fi connectivity
Upgrade to a smarter, safer, and more sustainable dishroom—choose the Hobart AM16VLT-ADV Tall Advansys™ today.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Temperature
high temp with booster
Construction
stainless steel
Tank Heat
electric
Energy Efficiency
ENERGY STAR®
Racks
single
Design
universal (straight-thru/corner)
Rack Capacity
approximately (40) racks/hour
Specifications
Ventless Dishwashing Machine, tall chamber (27") door type, energy recovery, automatic soil removal (ASR), drain water energy recovery (DWER), high temp sanitizing, 480/60/3 (field convertible to single phase), internal condensing system, 38 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, pumped drain air gap, drain water tempering, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
