Hobart AM16VLT-ADV-2 Warewash Undercounter Dishwashers
$32,392.36
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hobart AM16VLT-ADV-2 Warewash Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hobart AM16VLT-ADV-2 Warewash Undercounter Dishwashers
$32,392.36
Unit price
/
Unavailable
Description

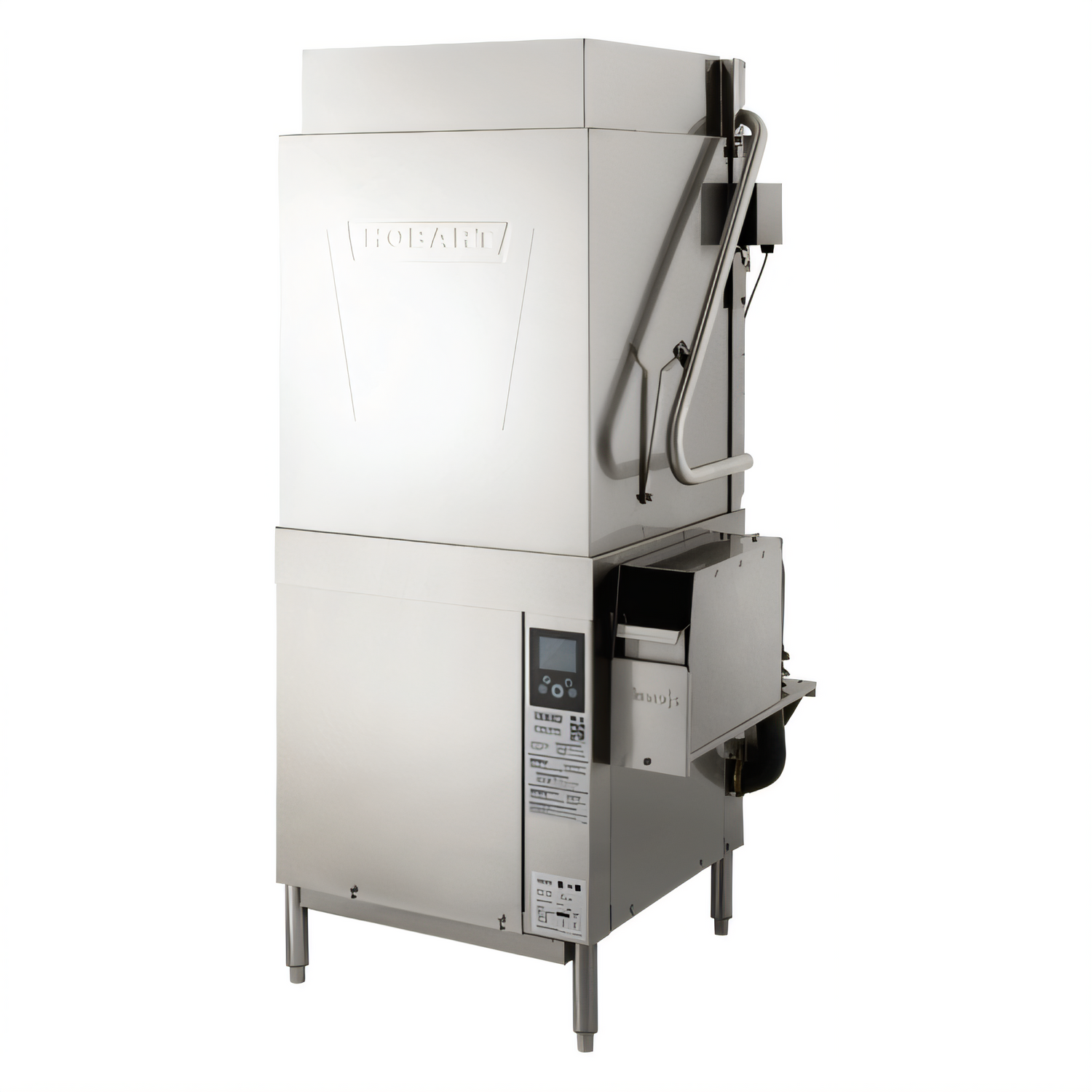

Hobart AM16VLT-ADV Tall Ventless Door-Type Warewasher
High-Temperature • ENERGY STAR® • SmartConnect-EnabledGive your dishroom hood-free performance, high-temp sanitation and cloud-connected visibility – all in one rugged stainless-steel machine. The Hobart AM16VLT-ADV captures steam heat, removes food soil automatically and delivers a 0.67 gal/rack rinse, lowering utility costs while powering through up to 36 racks per hour.
Why You’ll Love It

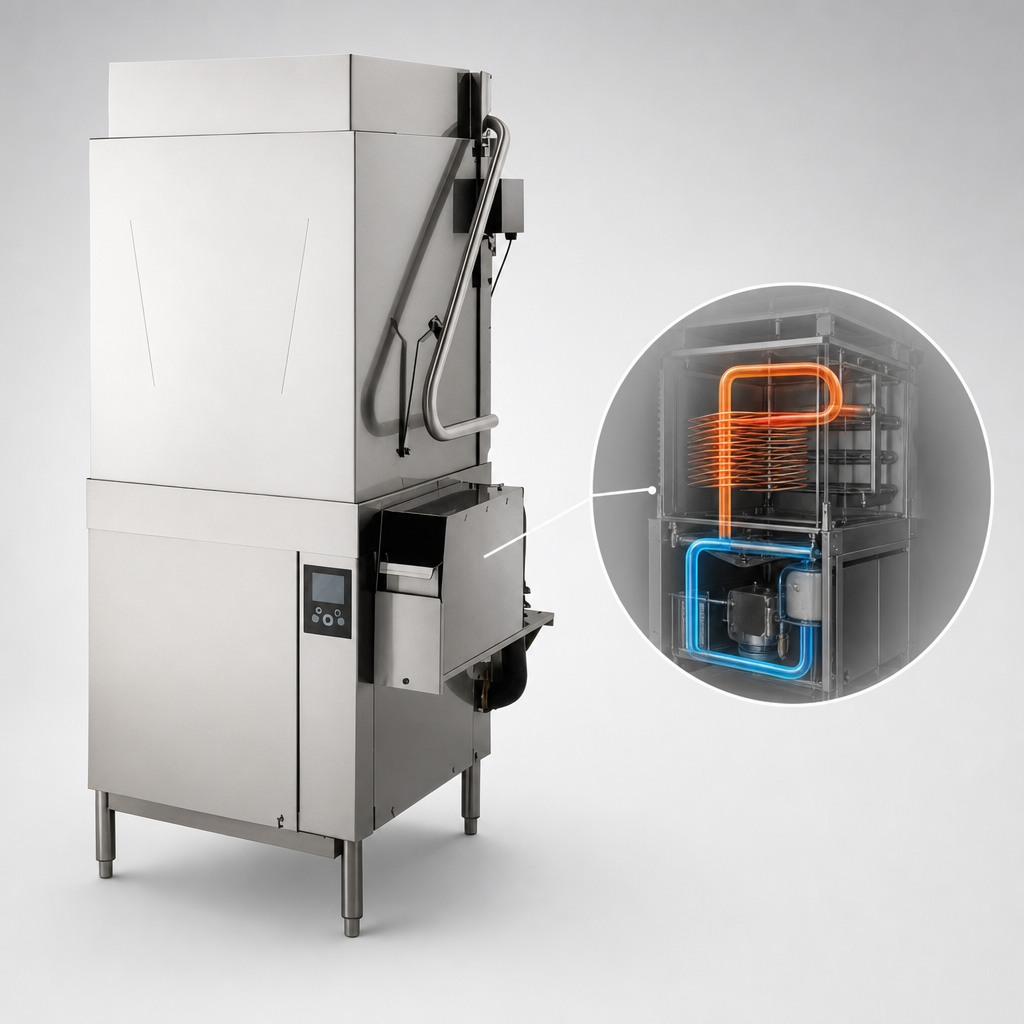

- Ventless Energy Recovery – internal condenser eliminates the need for a separate hood.

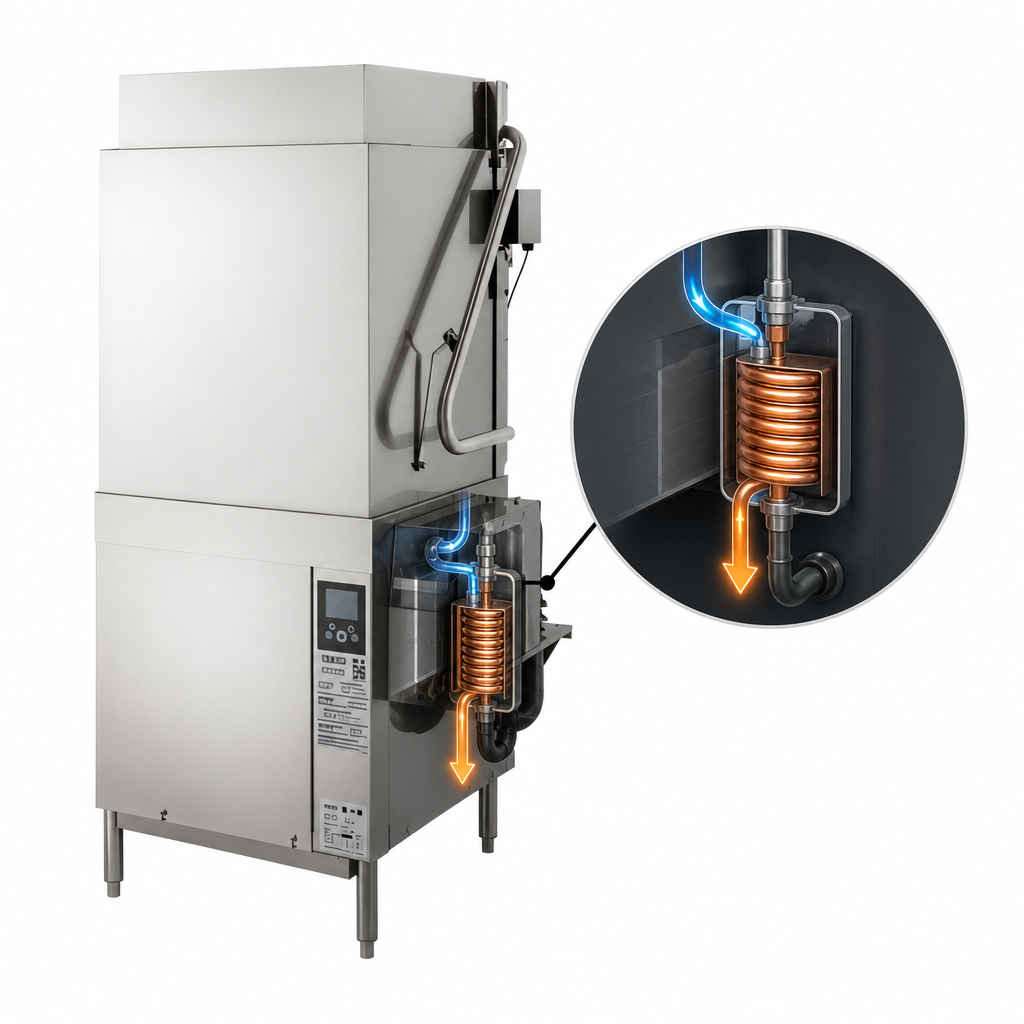

- Drain Water Energy Recovery (DWER) uses departing drain water to pre-heat incoming rinse water.
- Automatic Soil Removal (ASR) continuously scrubs out food debris, keeping wash water cleaner for longer.
- Sense-A-Temp™ 70 °F-rise booster with Booster Guard™ ensures NSF-approved high-temp sanitizing every cycle.
- Ultra-low water use – only 0.67 gal per rack; ENERGY STAR® listed.
- Tall 27 in. chamber fits 18 × 26 sheet pans, 60-qt mixer bowls & more.
- 38* racks per hour with selectable 1, 2, 4 or 6-minute cycles and NSF pot-&-pan rating.
- Smart touchscreen interface + on-board diagnostics.
- Wi-Fi & SmartConnect App – live status, temp logs, error alerts, cost & consumption analytics.
- Field-convertible 208-240 V / 60 Hz / 3-phase or 1-phase single-point connection.
- Door-actuated start, auto-fill and AutoClean streamline operation.
- X-shaped, anti-clog stainless wash arms & interchangeable rinse arms for complete coverage.
- Slanted scrap screen & basket for fast, tool-free removal.
- All-stainless tank, chamber, trim, frame & feet for maximum durability.
- Straight-thru or corner configuration – perfect for almost any dishroom layout.
*Factory rate 36 racks/hr on standard 2-minute cycle; up to 38 racks/hr on 1-minute quick cycle.
Technical Specifications
| Model | AM16VLT-ADV (Tall Chamber) |
|---|---|
| Capacity | Up to 36 racks/hr | 950 dishes/hr | 1,710 glasses/hr |
| Door/Clearance | 27 in. vertical opening |
| Water Consumption | 0.67 gal per rack (≈ 24.1 gal/hr max) |
| Wash Tank Volume | 10.5 gal |
| Wash Pump | 2 HP self-draining stainless impeller |
| Booster Heater | 7.1 kW Sense-A-Temp electric (70 °F rise) |
| Tank Heat | 5.4 kW electric |
| Electrical | 208-240 V / 60 Hz / 3-ph (53.7 A) – field convertible to 1-ph |
| Overall Dimensions (W × D × H) | 29 ⅞ " × 37 " × 78 ⅛ " (max handle) |
| Shipping Weight | Approx. 427 lb |
| Certifications | cULus, NSF, ENERGY STAR® |
Included with Your Machine
- Complete Delime™ cycle with on-screen notification
- Pumped drain with built-in air gap & drain water tempering
- Door lock for safe, sealed operation
- Factory start-up by Hobart Service (within 100 mi of a service office)
- 1-year parts & labor warranty
Popular Accessories (sold separately)
- Peg, combo or sheet-pan racks
- Chemical pumps & rapid-fill hot water kit
- Sink saddle, splash shields & seismic feet
Installation Notice: Complimentary factory start-up applies to locations within
100 miles of an authorized Hobart Service office and accessible by public roadway.
Sites outside this radius or with limited access will incur additional charges.
Professional plumbing & electrical connections required.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Construction
stainless steel
Tank Heat
electric
Energy Efficiency
ENERGY STAR®
Racks
single
Design
universal (straight-thru/corner)
Temperature
high temp with booster
Rack Capacity
approximately (40) racks/hour
Specifications
Ventless Dishwashing Machine, tall chamber (27") door type, energy recovery, automatic soil removal (ASR), drain water energy recovery (DWER), high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 38 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, pumped drain air gap, drain water tempering, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
