Description

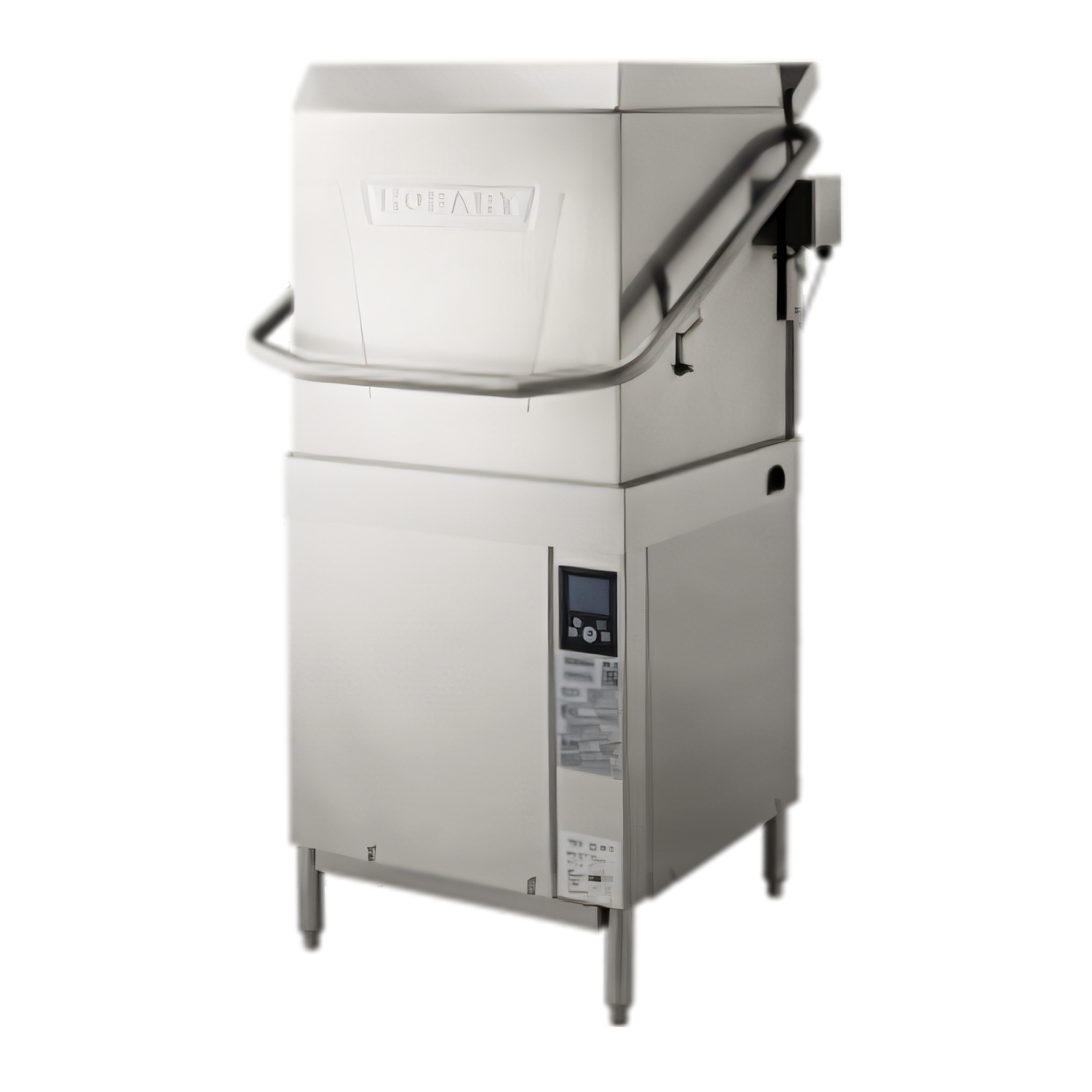

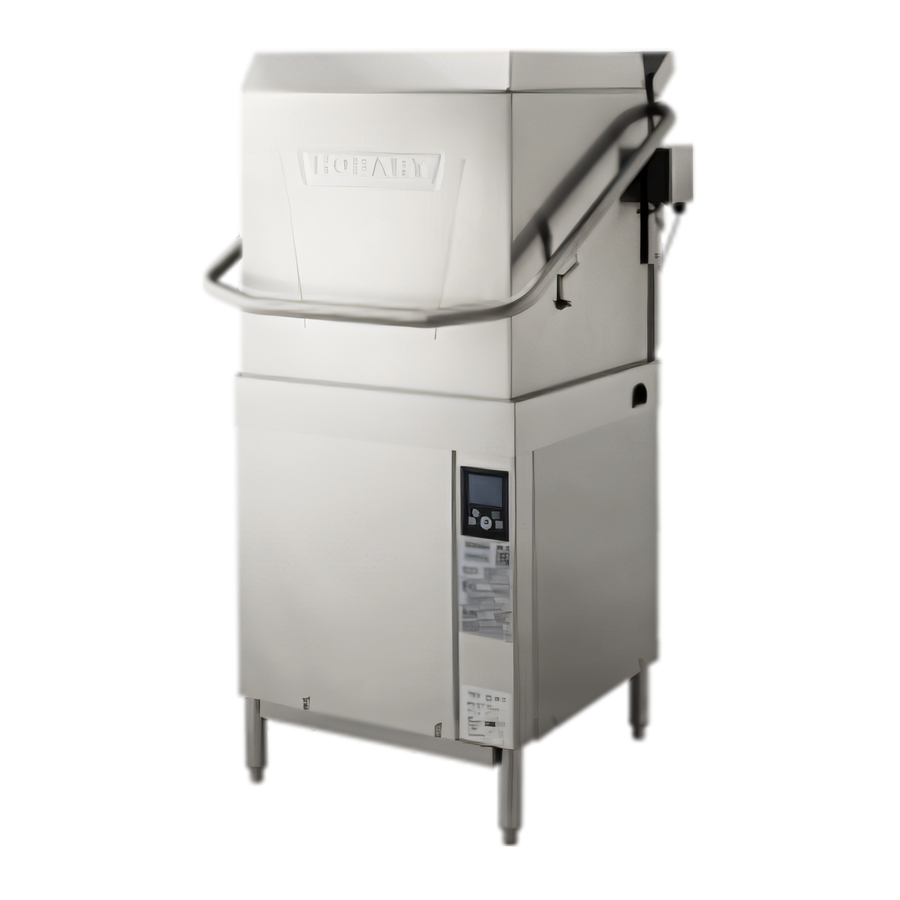

Hobart AM16VL Ventless High-Temperature Door-Type Dishwasher
Model AM16VL-BAS • Energy Recovery • SmartConnect-EnabledEliminate expensive hood work, slash utility costs and keep every rack inspection-ready. The AM16VL marries Hobart’s legendary ware-washing performance with a built-in condensing system, 70 °F-rise booster and cloud-connected controls—delivering spotless, sanitized results at just 0.67 gal of water per rack.
Key Advantages

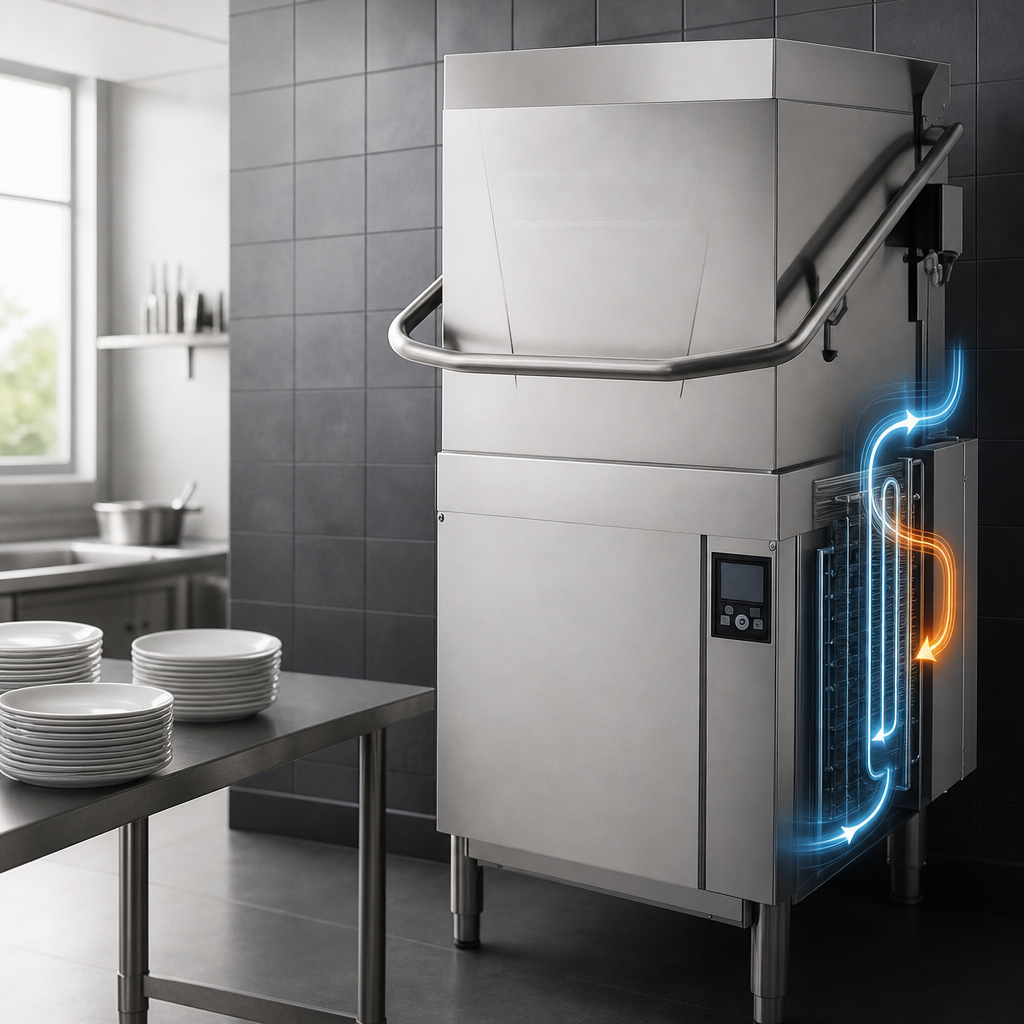

- Ventless operation with energy-recovery condenser—no dedicated hood required*

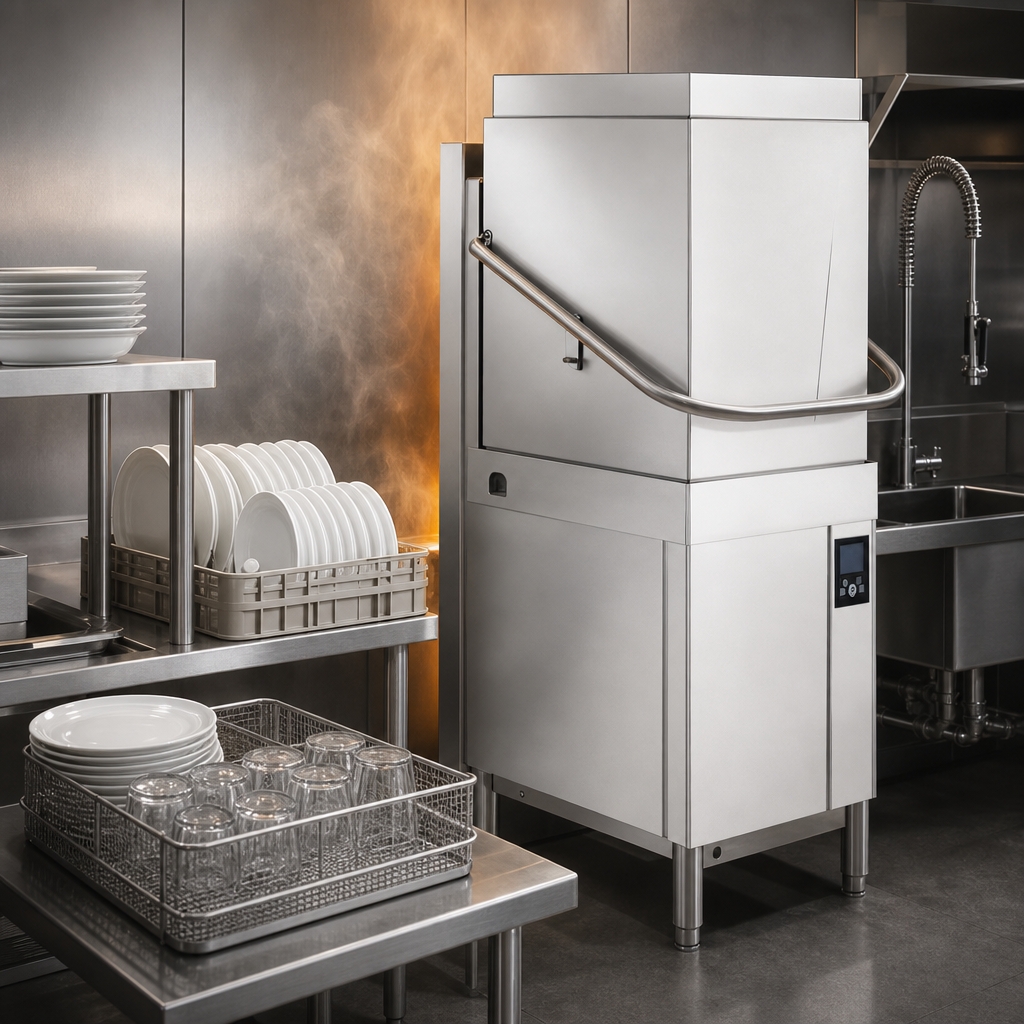

- High-temp sanitizing via Sense-A-Temp™ 7.1 kW booster (70 °F rise)
- Handles 45 racks/hour (up to 1,125 dishes or 2,025 glasses)
- Ultra-low rinse consumption: 0.67 gal per rack / 30.15 gal per hour
- Touchscreen interface with 1, 2, 4 or 6-minute cycles & built-in diagnostics
- Wi-Fi + SmartConnect app for machine status, temperature logs & cost analytics
- Pillarless 17" opening & NSF pot-and-pan rating fit sheet pans and stock pots
- Self-draining, stainless wash pump & pumped drain—no gravity slope needed
- X-shaped upper/lower wash arms and two-stage filtration fight clogs & soil build-up
- Door lock, auto-fill, AutoClean & delime notification/cycle for safer operation
- cULus, NSF & ENERGY STAR® certified
Smarter, Connected Dishroom
- 7" full-color capacitive touchscreen simplifies training & cycle selection
- SmartConnect cloud dashboards track temperature compliance, water & energy use
- Real-time error code alerts speed troubleshooting and reduce downtime
- Single-point or dual-point electrical hook-up; ships 208-240 V/60 Hz/3-ph, easily field-convertible to single phase
Built for the Rush
- 5-sided insulated hood retains heat and lowers ambient noise
- One-piece stainless tank, chamber, frame & feet for maximum durability
- Spring-counterbalanced door with reinforced thermo-plastic rollers
- Slanted, self-locating scrap screen & basket keep soils out of the wash circuit
Technical Specifications
Capacity | 45 racks/hr – high-temp sanitizing |
---|---|
Rinse Water | 0.67 gal per rack (pumped) |
Wash Tank Volume | 10.5 gal |
Door/Rack Clearance | 17 in |
Cycle Times | 1, 2, 4 or 6 min (selectable) |
Electrical | 208-240 V / 60 Hz / 3 ph (field-convertible to 1 ph) |
Booster Heater | 7.1 kW electric, 70 °F rise |
Tank Heat | 5.4 kW electric |
Dimensions (W × D × H) | 25 3/16" × 30" × 78 1/2" (max door height) |
Shipping Weight | ≈ 322 lb (crated) |
Certifications | cULus, NSF, ENERGY STAR® |
Popular Accessories (sold separately)
- Peg, combination & wine glass racks
- Chemical pumps & water hammer arrestor kit
- Splash shield for corner installs
- Rapid-fill hot-water kit, marine or prison packages
- Flanged or seismic feet & pumped-drain air-gap kit
*Ventless/energy-recovery performance may be subject to local code. Always verify ventilation requirements with your authority having jurisdiction.
