Hobart AM16VL-ADV-4 Warewash Undercounter Dishwashers
Hobart AM16VL-ADV-4 Warewash Undercounter Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

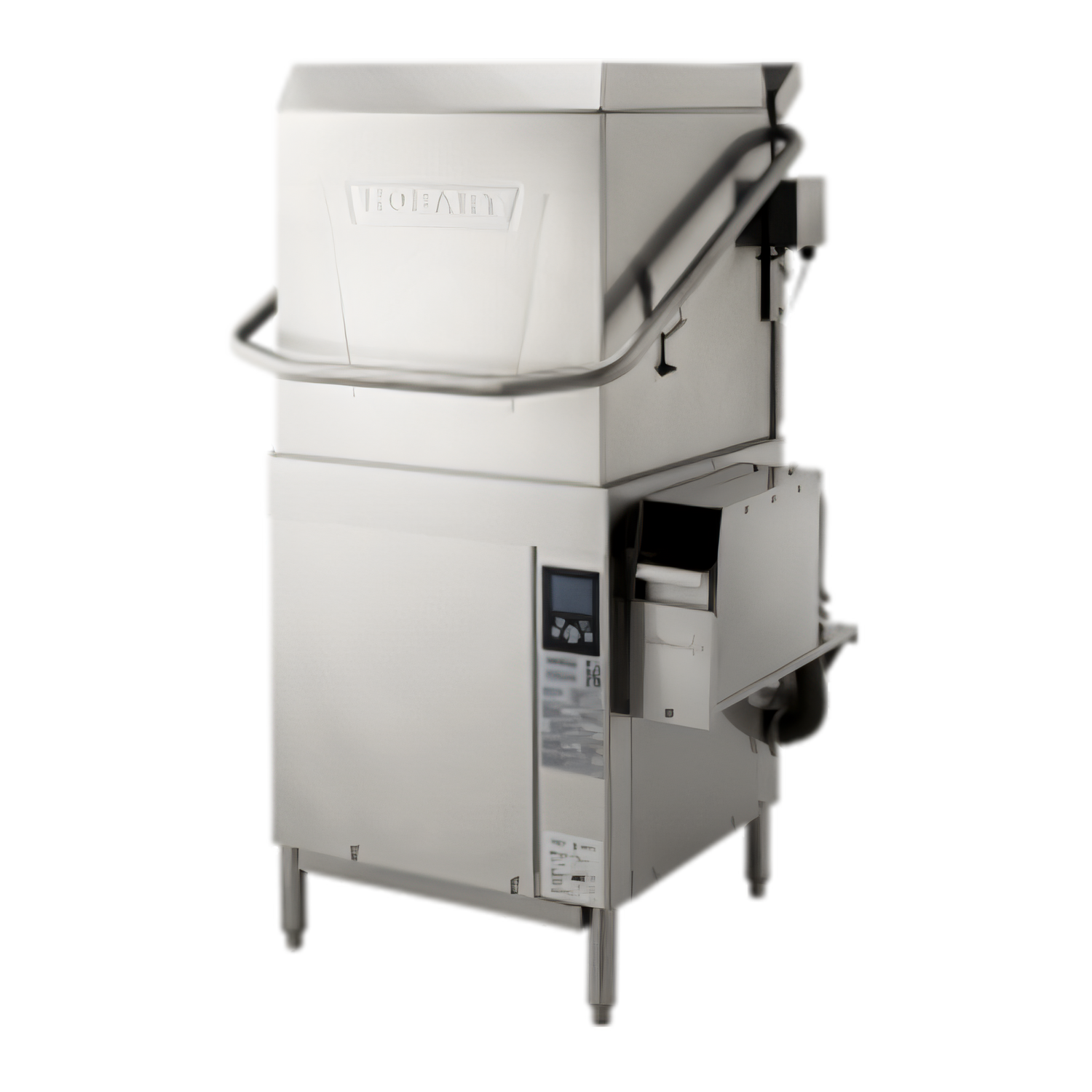

Hobart AM16VL-ADV Advansys™ Ventless Door-Type Dishwasher
High-temperature sanitizing • 40 racks/hr • ENERGY STAR®Engineered for the busiest commercial kitchens, the Hobart AM16VL-ADV pairs ventless energy recovery with automatic soil removal and smart connectivity. Wash up to 1,000 dishes per hour—without the need for a dedicated exhaust hood—while slashing operating costs and simplifying compliance.
Key benefits
- Ventless internal condensing system eliminates hood requirements in most jurisdictions*
- Drain Water Energy Recovery (DWER) warms incoming rinse water, cutting utility use
- Automatic Soil Removal (ASR) keeps wash water cleaner, extending cycle efficiency
- Sense-A-Temp™ 70 °F-rise electric booster delivers a consistent 180 °F final rinse for NSF sanitation
- Complete Delime™ system with on-screen Delime Notification and Booster Guard™ prevents scale build-up
- Auto Dispensing with temperature / chemical lock-outs helps meet HACCP requirements
- 7" smart touchscreen plus Wi-Fi & SmartConnect cloud app for live status, logs and analytics
- Flexible straight-thru or corner configuration with a pillar-less 17" opening
- Field-convertible electrical: ships 480 V / 60 Hz / 3-ph, easily switched to single phase
- X-shaped stainless wash arms and interchangeable rinse arms resist clogging and boost coverage
- Pumped drain with NSF-approved air gap and factory drain-water tempering kit
- All-stainless tank, chamber, frame, trim panels & feet for unmatched durability
- cULus, NSF & ENERGY STAR® certified
Performance at a glance
Racks per hour | 40 |
---|---|
Final-rinse water | 0.67 gal / rack (26.8 gal / hr max) |
Wash-tank capacity | 10.5 gal |
Dishes / hour (≈25 per rack) | 1,000 |
Glasses / hour (≈45 per rack) | 1,800 |
Door opening | 17 in |
Booster heater | 7.1 kW Sense-A-Temp™ electric |
Tank heat | 5.4 kW electric |
Electrical | 480 V / 60 Hz / 3-ph (field convertible to single phase) |
Dimensions (W × D × H) | 25 3/16" × 24 7/16" × 78 1/2" max |
Shipping weight | ≈ 377 lb |
What’s included
- Slanted scrap screen & basket
- (1) 19 ¾" × 19 ¾" peg rack
- 6 ft incoming water hose with garden-hose fitting
- Factory startup by Hobart Service – FREE within 100 mi of a Hobart Service Office (standard business hours, advance notice required)
*Always verify local code requirements regarding hood exemptions and installation clearances.
