Hobart AM16T-BAS-4 Warewash Dishwashers
Hobart AM16T-BAS-4 Warewash Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

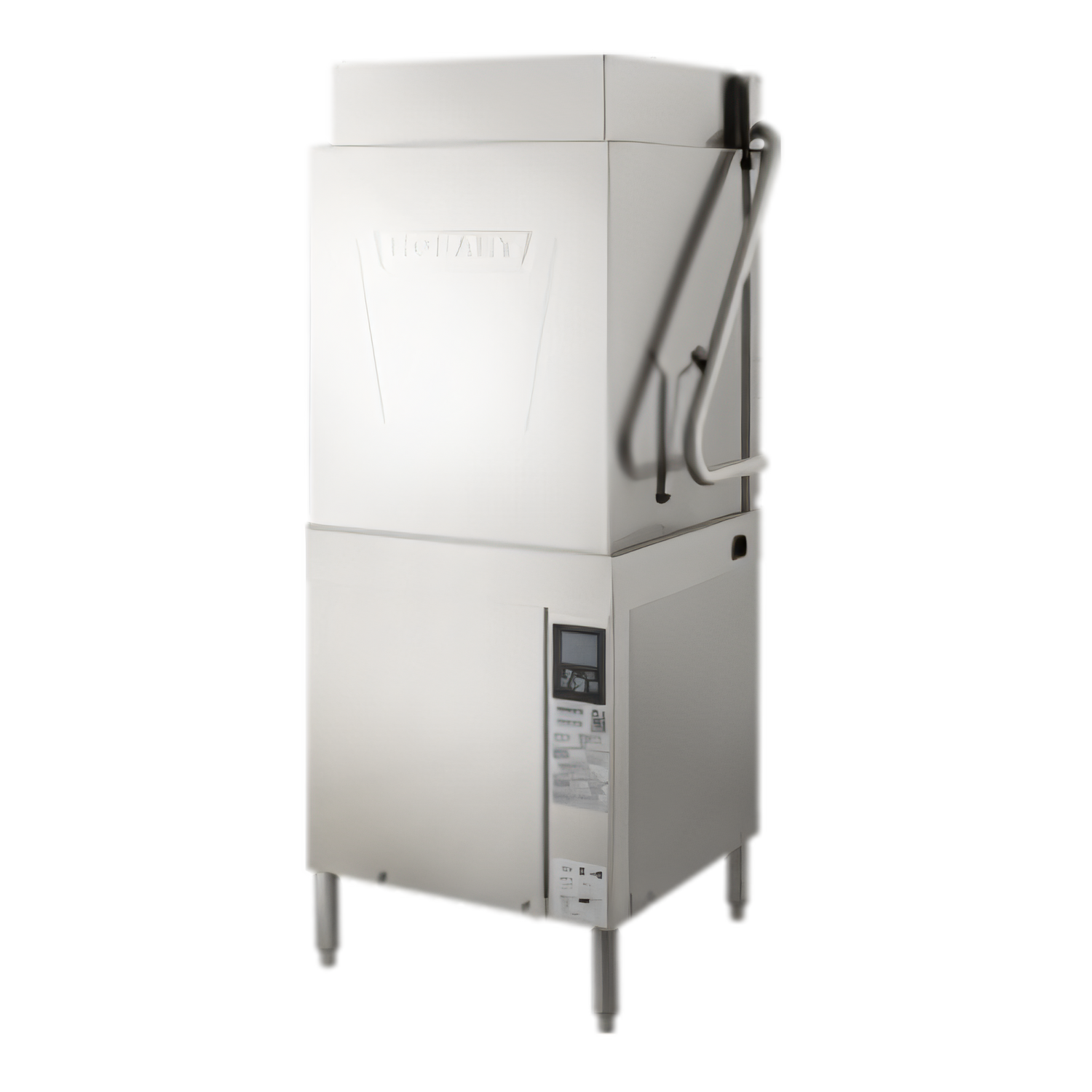

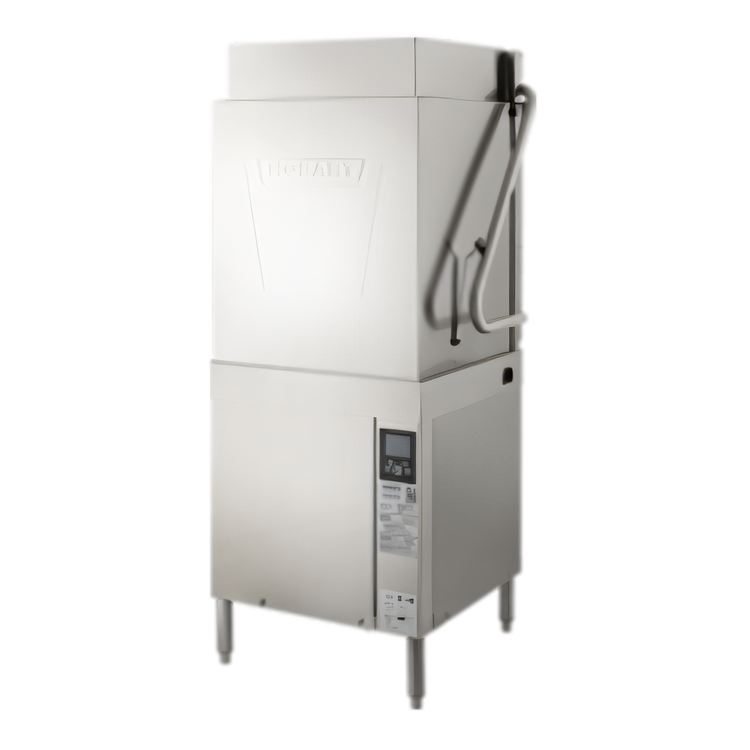

Hobart AM16T-BAS Tall Chamber Warewash Dishwasher
High-temperature, ENERGY STAR® door-type machine – 60 racks/hourPower through peak service with Hobart’s next-generation AM16T-BAS. A generous 27 inch chamber swallows sheet pans, the intuitive touchscreen slashes training time, and cloud-based SmartConnect keeps you in control from anywhere. All while using just .67 gal per rack and earning coveted ENERGY STAR® status.
Why you’ll love it
- Blazing 60 racks/hr throughput with selectable 1-, 2-, 4- or 6-minute cycles (NSF pot & pan rated).
- High-temp sanitizing (Sense-A-Temp™ 70 °F rise electric booster) – no chemicals required for final sanitation.
- Pillarless 3-sided hood & 27 in. opening – loads full 18 × 26 in. sheet pans or a 60 qt mixing bowl.

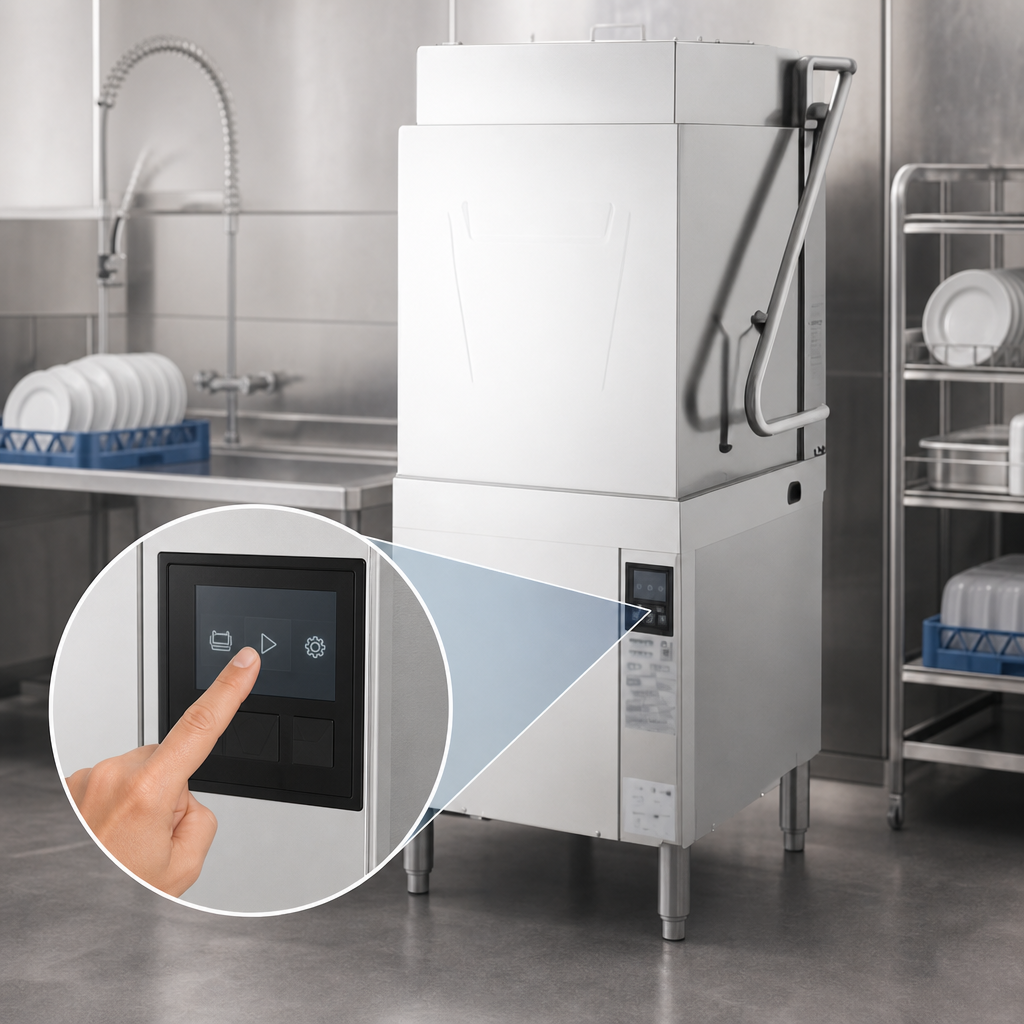

- Smart touchscreen: cycle status bar, temp read-outs, language toggle & built-in service diagnostics.

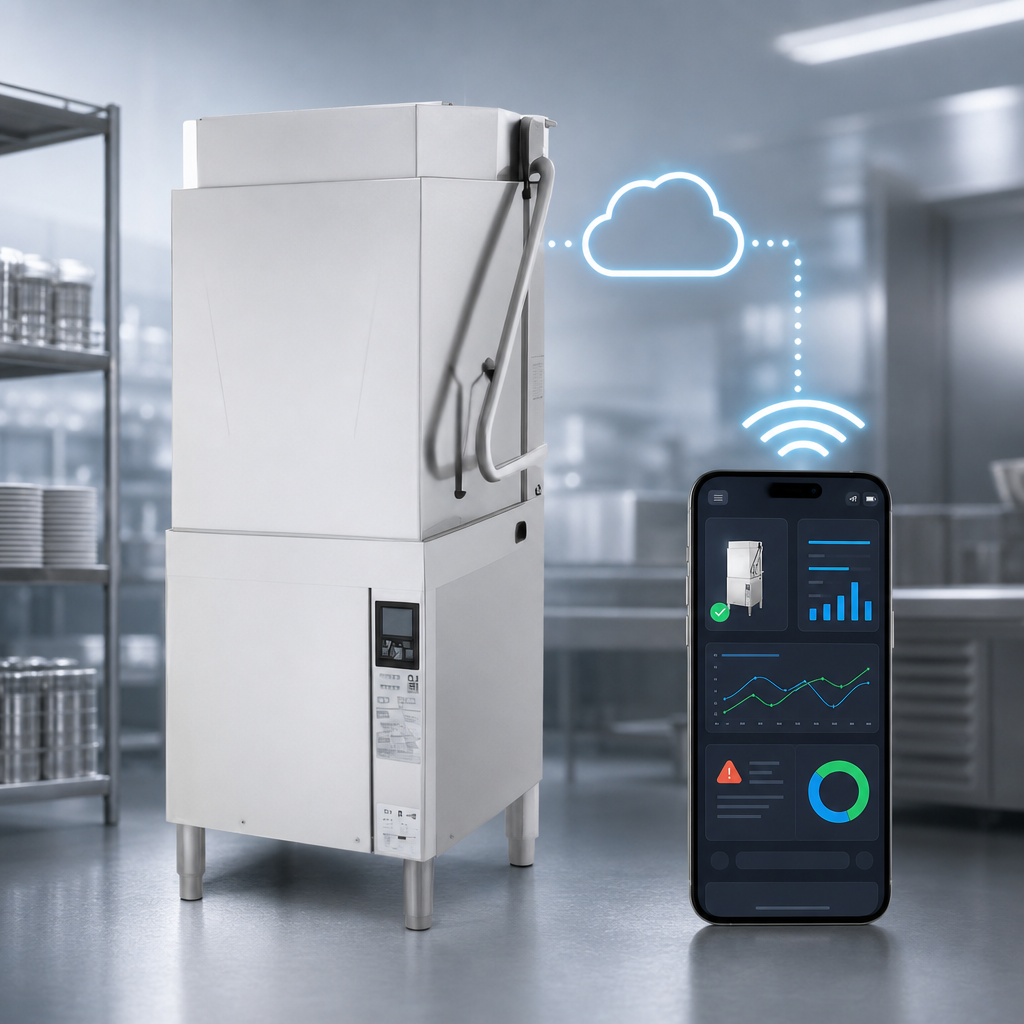

- Wi-Fi + SmartConnect app for live machine alerts, temperature logs, error codes and usage analytics.
- Delime cycle with notification helps protect the booster & wash tank from scale build-up.
- Pumped rinse and pumped drain – flexible installation up to 40 in. above floor, no floor drain needed.
- Straight-thru or corner configuration right out of the box; field convertible electrical (single/three phase).
- Rugged stainless steel tank, frame, doors & feet backed by a 1-year parts & labor warranty.
Performance & consumption
Wash cycles / hr | 60 racks (1-min cycle) |
---|---|
Water per rack | 0.67 gal pumped final rinse |
Max water use | 40.2 gal/hr |
Wash tank volume | 10.5 gal |
Heat source | Electric tank 5.4 kW + 7.1 kW booster |
Motor horsepower | Wash 2 HP | Rinse 0.18 HP |
Exhaust requirement | 450 CFM (max) |
Utility requirements
Electrical | 480 V / 60 Hz / 3 ph | 12.9 A (dual-point) or 23.5 A (single-point) |
---|---|
Water inlet | 3 ⁄ 4 in. GHT hose (6 ft supplied) – 110 °F, 15-65 PSI |
Drain | 5 ⁄ 8 in. pumped hose (6 ft supplied) – max 40 in. above floor |
Vent hood | May be required – consult local code |
Dimensions & clearances
Door opening | 27 in. H |
---|---|
Machine width | 25 3⁄16 in. |
Machine depth | 29 1⁄2 in. |
Machine height (door closed) | 67 9⁄16 in. |
Height (door open) | 90 5⁄8 in. |
Shipping weight | ~357 lb |
cULus | NSF | ENERGY STAR® certified. Recommended incoming water hardness ≤ 3 gr for optimal results.
