Hobart AM16T-BAS-10 Warewash Dishwashers
Hobart AM16T-BAS-10 Warewash Dishwashers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Hobart AM16T-BAS “Tall” Door-Type Dishwasher
High-temperature sanitizing • Smart touchscreen • ENERGY STAR® qualifiedBuilt for serious warewashing volume in tight footprints, the Hobart AM16T-BAS Tall combines 60-rack-per-hour throughput with cloud-connected intelligence and the legendary durability Hobart is known for. A 27 inch chamber swallows full 18 × 26 inch sheet pans, while a .67 gal/rack pumped rinse slashes water and energy costs.
Key benefits
- High-temp sanitizing with Sense-A-Temp™ 70 °F-rise electric booster for consistent 180 °F final rinse.
- Only .67 gal of fresh water per rack – earns coveted ENERGY STAR® listing.
- Up to 60 racks per hour with 1, 2, 4 or 6-minute NSF-rated cycles for dishes, pots & pans.
- User-friendly 3-sided pillar-less hood and spring-balanced door for fast loading.

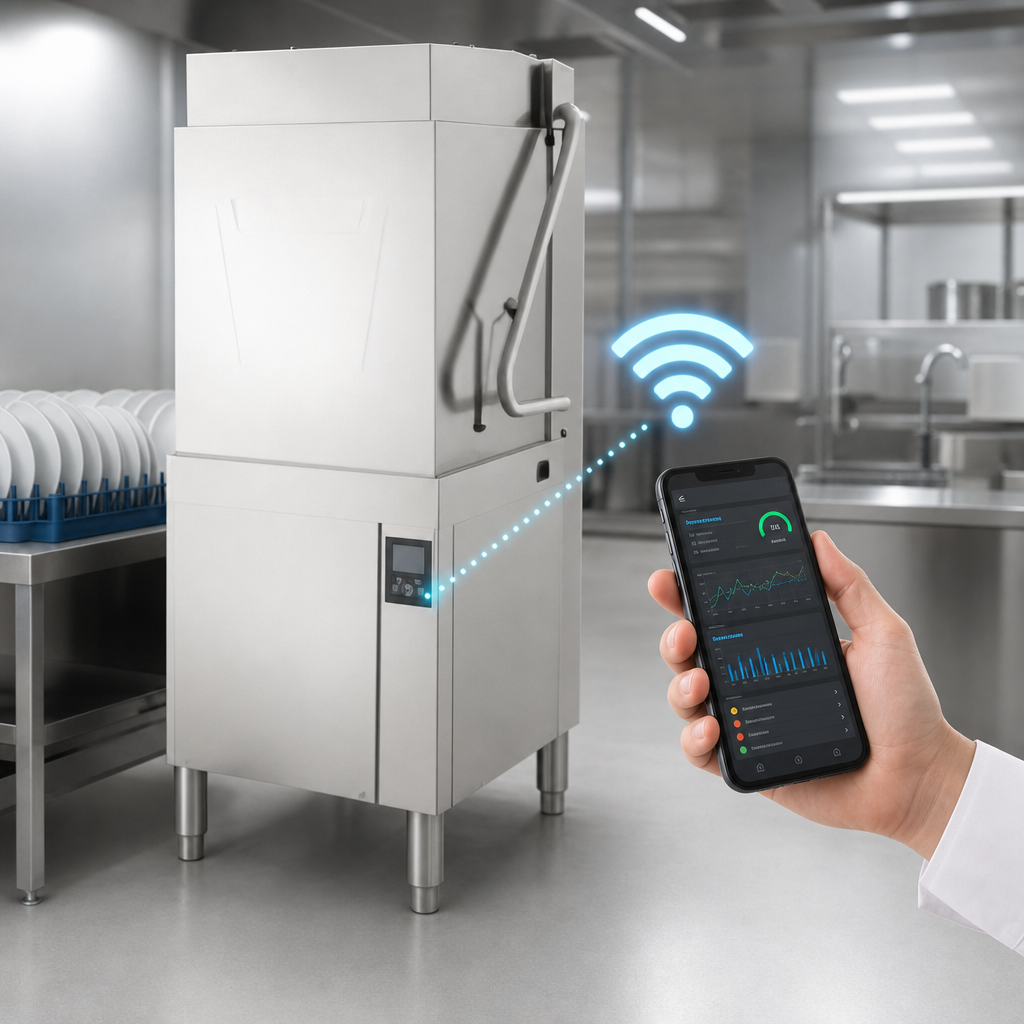

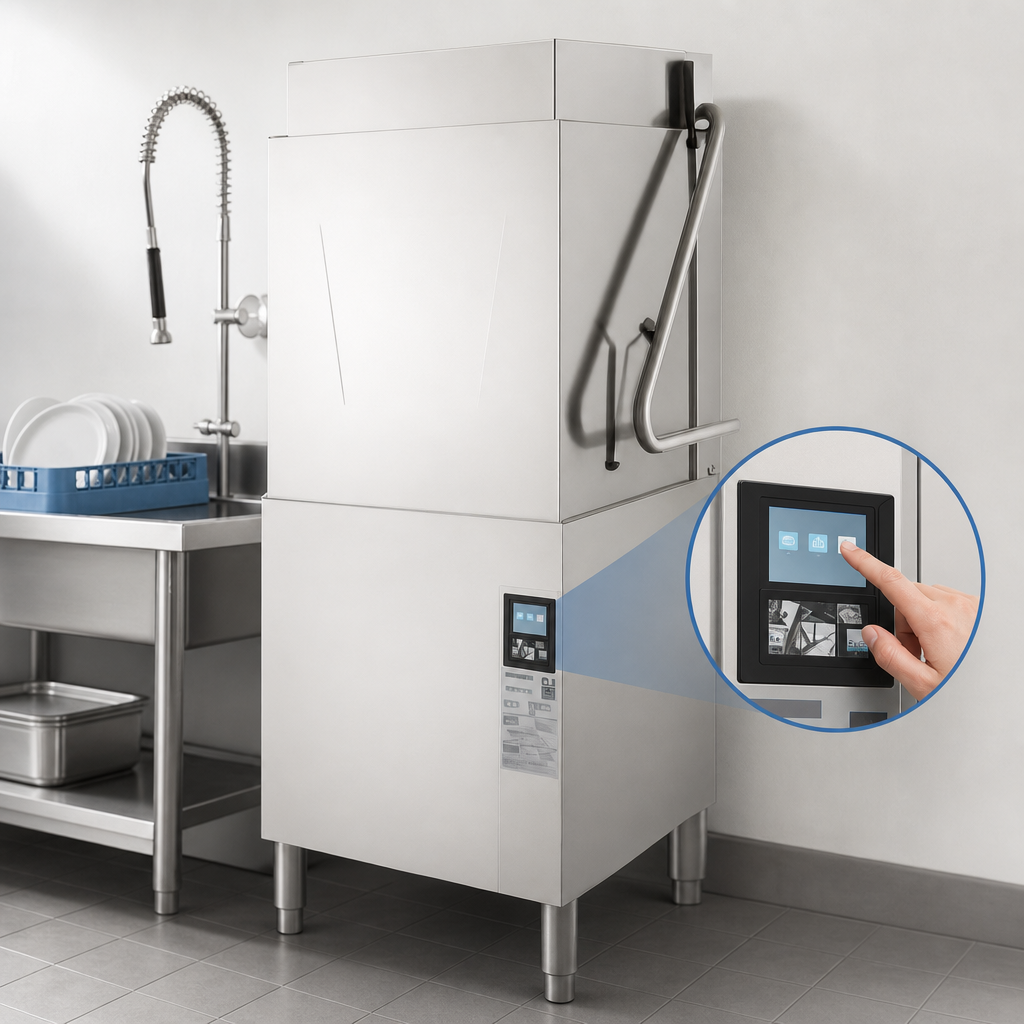

- Smart 4.3 in. touchscreen with Wi-Fi & Hobart SmartConnect app: usage analytics, temp logs, error alerts & chemical cost tracking.
- Field-activated Delime Cycle with on-screen notification keeps the booster scale-free.
- Self-draining, 2 HP stainless wash pump plus separate pumped rinse and pumped drain – no gravity drain required.
- Automatic fill, AutoClean and door-actuated start streamline operation.
- Stainless steel tank, frame, chamber, doors & feet for years of corrosion-free service.
- Straight-through or corner configuration right out of the box.
At-a-glance specifications
Racks / hour | 60 (max.) |
---|---|
Water use | .67 gal per rack | 40.2 gal/hr |
Door opening | 27 in. – fits 18 × 26 in. sheet pans & 60 qt mixer bowl |
Wash tank capacity | 10.5 gal |
Cycle times | 1, 2, 4 or 6 min (selectable) |
Electrical | 380-415 V / 50 Hz / 3 ph Field convertible to single-phase or dual-point connection |
Booster heater | 7.1 kW electric, Sense-A-Temp™ |
Tank heat | 5.4 kW electric |
Pumps (HP) | Wash 2.0 | Rinse 0.18 | Drain 0.21 |
Shipping weight | ≈ 357 lb |
Certifications | NSF, cULus, ENERGY STAR® |
Warranty | 1-year parts & labor |
Included in the box
- Sheet-pan / universal ware rack
- 6 ft common water & drain hoses with fittings
- SmartConnect quick-start guide
- Factory-installed pumped drain & rinse assemblies
Recommended incoming water: 110 °F, 15-65 psi, < 3 grains hardness for optimal results. Maintain dishroom temperature ≥ 65 °F for full 60-rack capacity.
