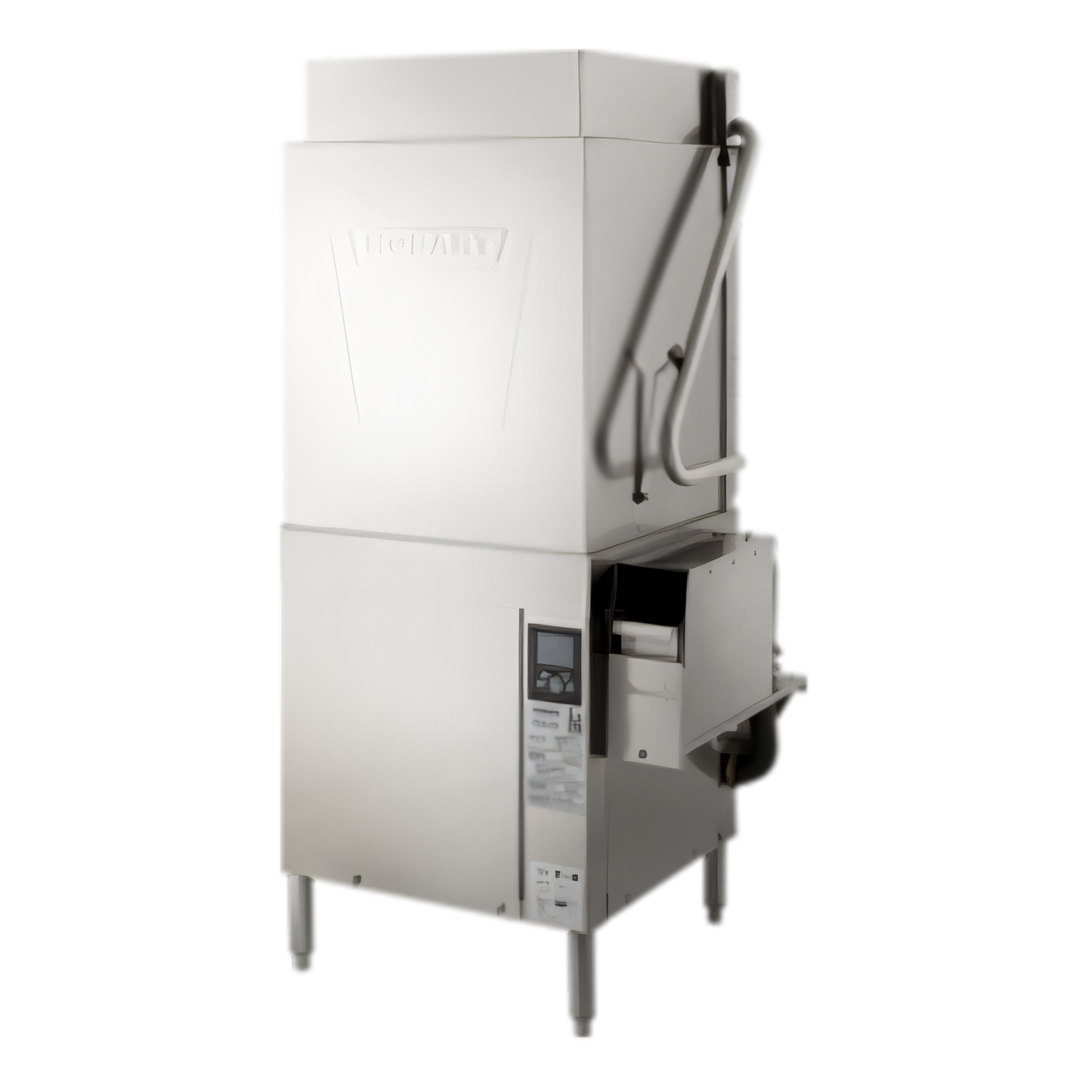

Hobart AM16T-ASR-2 Warewash Dishwashers
$27,182.54
Unit price
/
Unavailable
Description
Hobart AM16T-ASR Tall High-Temp Door-Type Dishwasher
Automatic Soil Removal • 52 Racks/hr • SmartConnect-ReadyCombine high-volume throughput, best-in-class water efficiency and next-gen connectivity in one rugged, ENERGY STAR® certified machine. The Hobart AM16T-ASR tall chamber warewasher powers through up to 52 racks per hour while using just 0.67 gallons of water per rack—saving labor, water and energy every shift.
Key Features

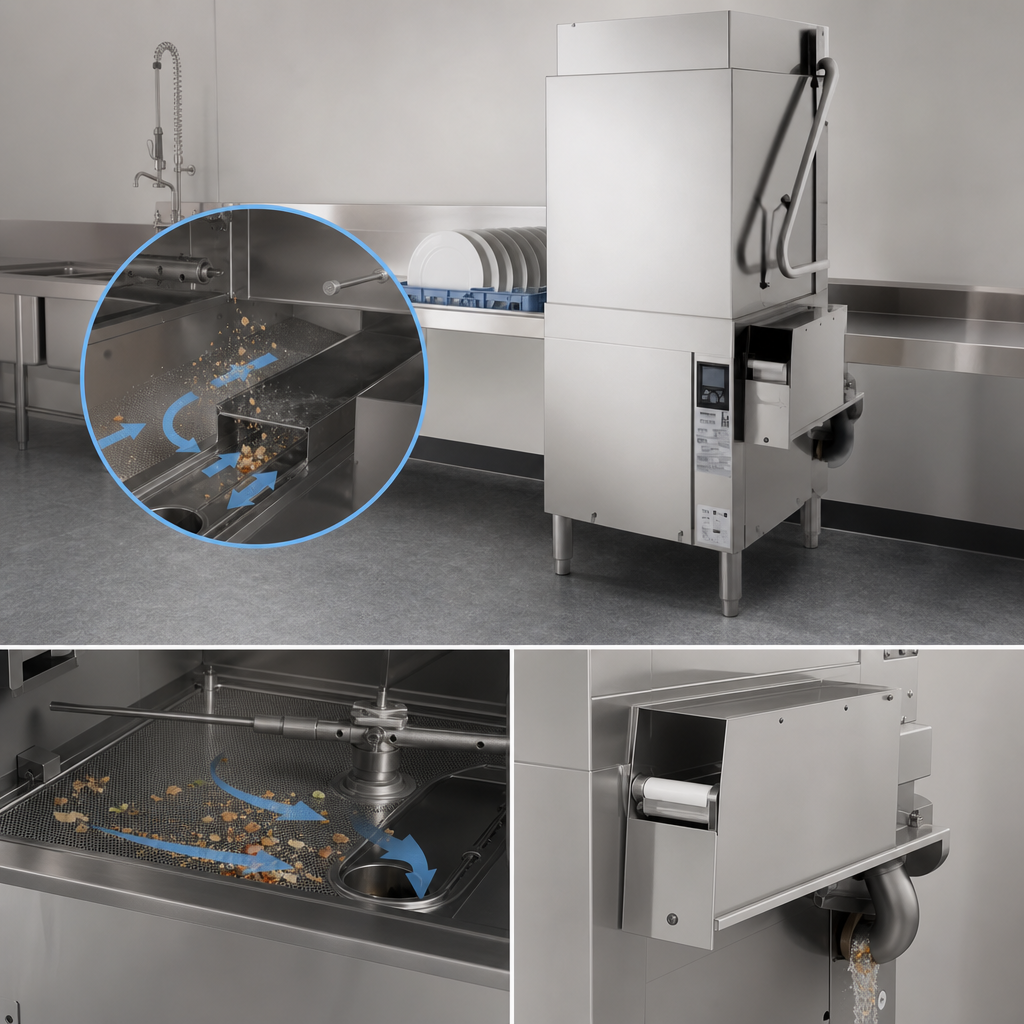

- Automatic Soil Removal (ASR) continuously evacuates food soils, extending wash-water life and cutting pre-scrap time.
- 27" pillar-less opening accommodates 18" × 26" sheet pans, 60-qt mixer bowls and other oversized wares.

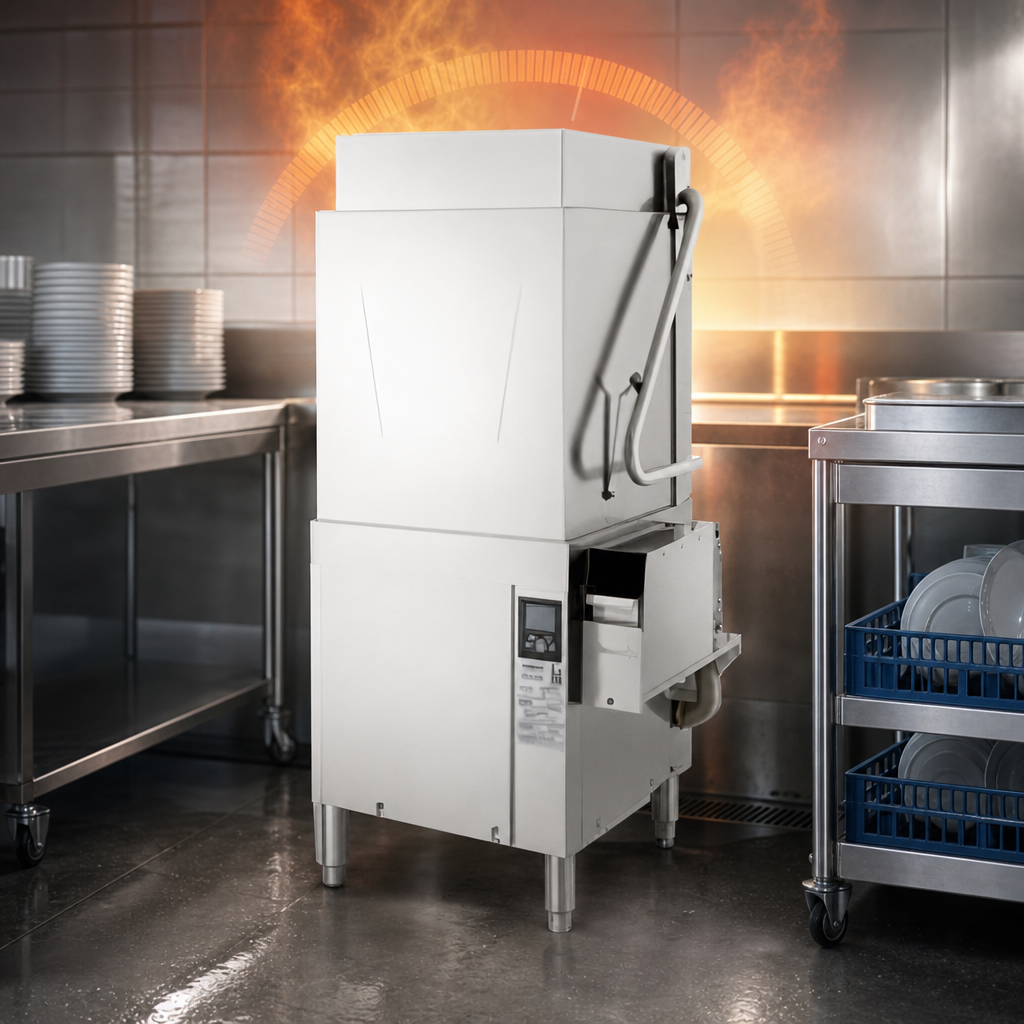

- High-temperature sanitizing with Sense-A-Temp™ 70 °F-rise electric booster—no chemical sanitizer required.
- 4.3" color touchscreen with cycle status lights, 1/2/4/6-minute selections, and on-board diagnostics.
- Wi-Fi connectivity and SmartConnect cloud for real-time temperature logs, consumption analytics and error alerts.
- Complete Delime™ system with Booster Guard™ and on-screen reminders prevents scale build-up automatically.
- Pumped drain with NSF air gap & drain-water tempering—eliminates need for floor drain and protects plumbing.
- Interchangeable X-shaped stainless wash arms & rinse arms for full-coverage spray and clog resistance.
- AutoFill, AutoClean and door-actuated start streamline opening/closing procedures.
- Single-point electrical connection (208-240 V) ships 3-phase, field convertible to single-phase.
- Straight-through or corner installation—convertible in the field to fit any dishroom layout.
- All-stainless tank, chamber, frame, trim panels and feet for maximum durability.
Performance & Utility
| Racks per hour | Up to 52 |
|---|---|
| Water use | 0.67 gal per rack | 34.84 gal per hour |
| Wash tank capacity | 10.5 gal |
| Dishes per hour (25 per rack) | ≈ 1,300 |
| Glasses per hour (45 per rack) | ≈ 2,340 |
| Door opening | 27" tall chamber |
| Cycle lengths | 1, 2, 4 or 6 minutes (NSF pot & pan rated on 2/4/6-min cycles) |
| Booster heater | 7.1 kW Sense-A-Temp™ electric, 70 °F rise |
| Tank heat | 5.4 kW electric |
| Wash pump | 2 HP stainless impeller, self-draining |
| Electrical | 208-240 V / 60 Hz / 3 ph (field convertible to 1 ph), single-point connection |
| Certifications | cULus, NSF, ENERGY STAR® |
| Shipping weight | ≈ 387 lb (crated 73.75"H × 36.5"W × 36.5"L) |
What’s Included
- Slanted stainless scrap screen & basket
- 6' hot-water inlet hose (¾" GHT)
- Drain-water tempering kit
- Vent-fan control circuit
- Factory startup by Hobart Service (see details below)
Factory Startup: Hobart provides one complimentary startup visit for installations located within 100 miles of a Hobart Service office and accessible by public roadway during normal business hours. Locations beyond this range or with restricted access will be quoted separately.
Have layout or utility questions? Contact our team or explore additional resources on Hobart’s SmartConnect portal.
Features & Specs
Features & Specs
Manufacturer
Hobart
Brand_name
Warewash
Certifications
NSF, cULus, ENERGY STAR
Energy Efficiency
ENERGY STAR®
Temperature
high temp with booster
Rack Capacity
approximately (40) racks/hour
Design
universal (straight-thru/corner)
Construction
stainless steel
Tank Heat
electric
Specifications
Dishwashing Machine, tall chamber (27") door type, automatic soil removal (ASR), high temp sanitizing, 208-240/60/3 (field convertible to single phase), 52 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app, Complete Delime™ with Delime Notification, Auto Dispensing, and Booster Guard™, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, pumped drain air gap, drain water tempering, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles (accessible by public roadway) of a Hobart Service Office during normal business hours with appropriate notice; Installation beyond 100 miles or those not accessible by public roadway will be quoted by Service.
